Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

22 part groups · 3 illustrations

Illustrations

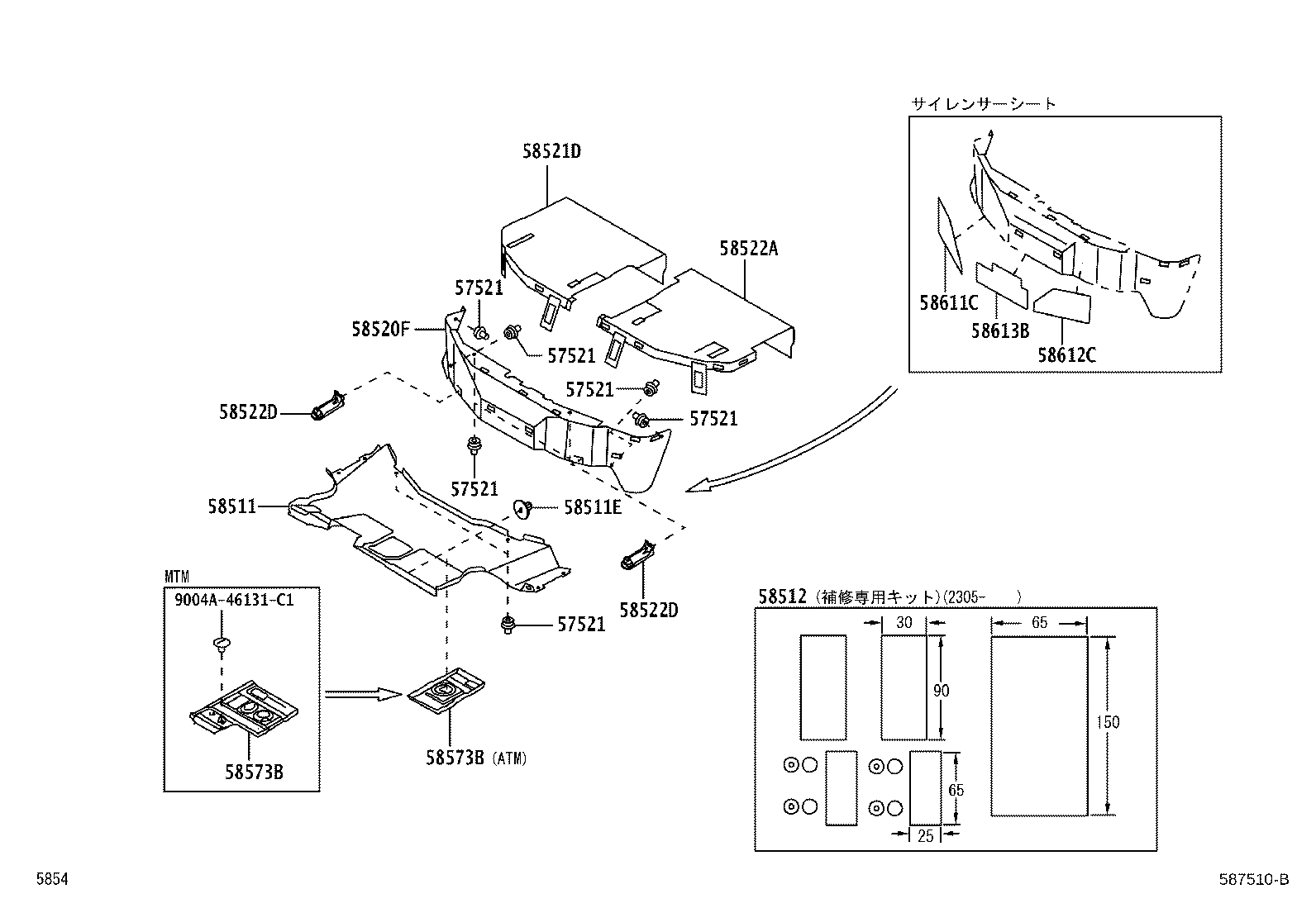

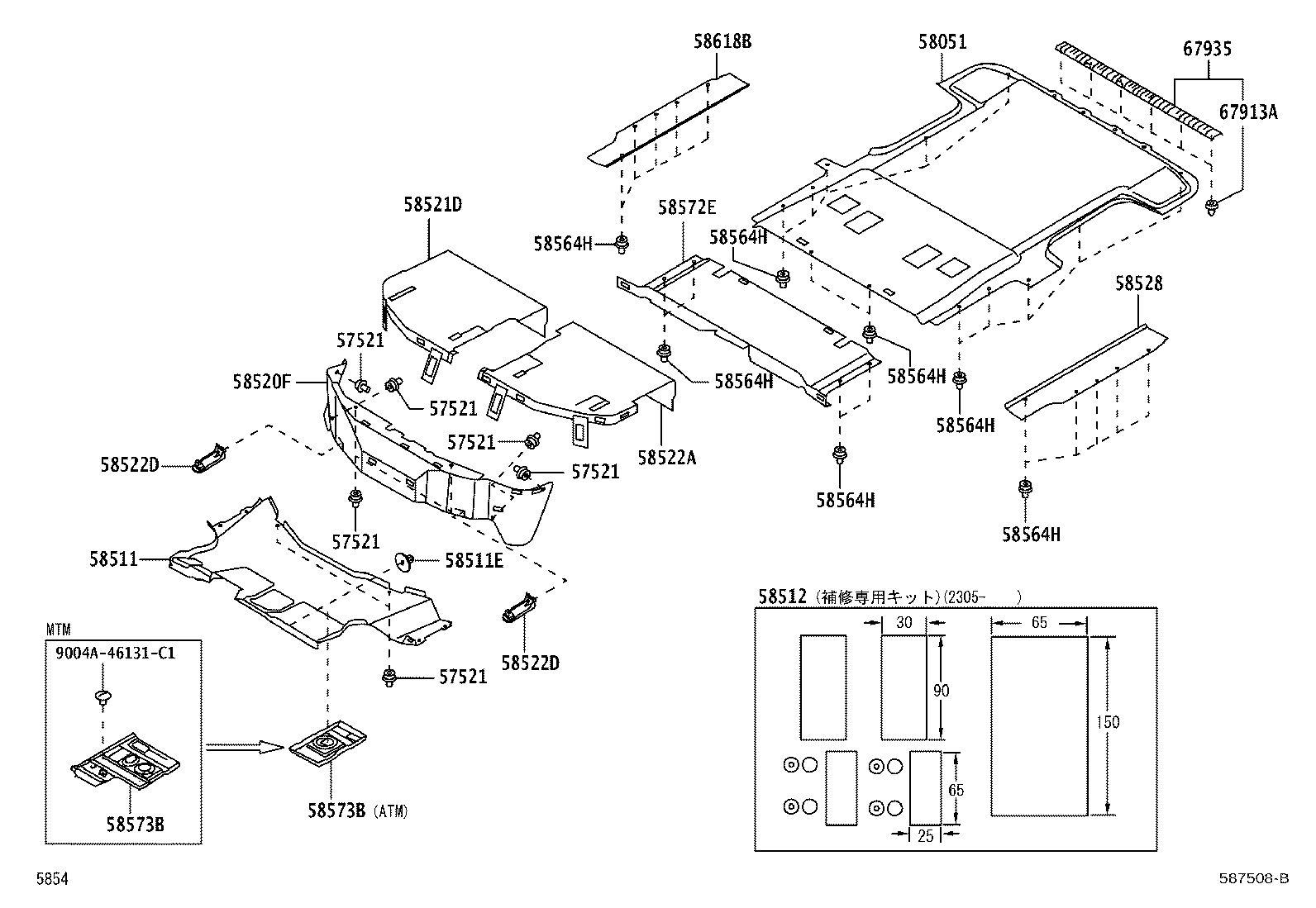

Figure 583301L 583301L 2008-01 → — Figure 587510B 587510B 2020-07 → — Figure 587508B 587508B 2020-07 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
57521 Fastener, Hook
58051 Mat Set, Floor
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58512 Mat, Seat Floor
58520C Clip(FOR FRONT FLOOR CARPET)
58520F Mat Assy, Engine Cover
58521D Mat, Engine Service Hole Cover
58522A Mat, Engine Service Hole Cover, LH
58522D Hook, Floor Carpet, NO.2
58528 Mat, Rear Door Step
58530E Clip(FOR FRONT FLOOR REAR CARPET)
58564H Clip(FOR REAR FLOOR CARPET)
58572E Mat, Rear Floor, Front
58573B Pad, Front Floor Center
58611C Sheet, Front Floor Silencer, RH
58612C Sheet, Front Floor Silencer, LH
58613B Sheet, Front Floor Silencer, Center
58618B Mat, Rear Door Step
67913A Clip(FOR SCUFF PLATE)
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
