Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

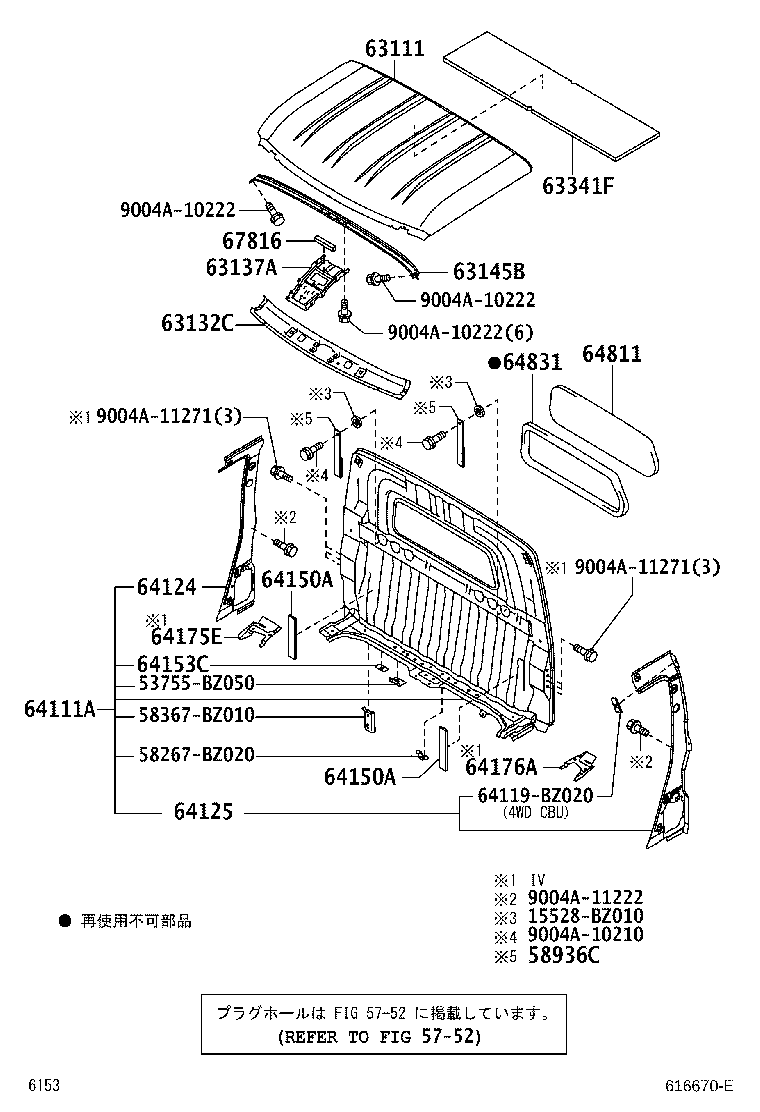

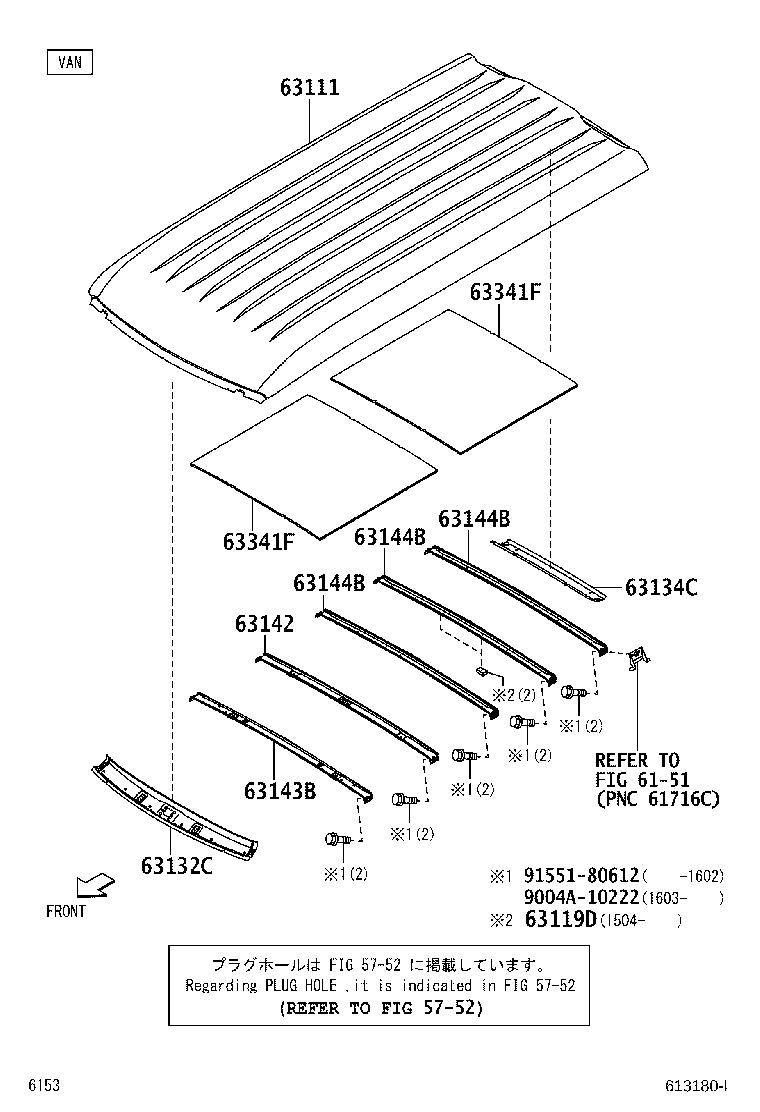

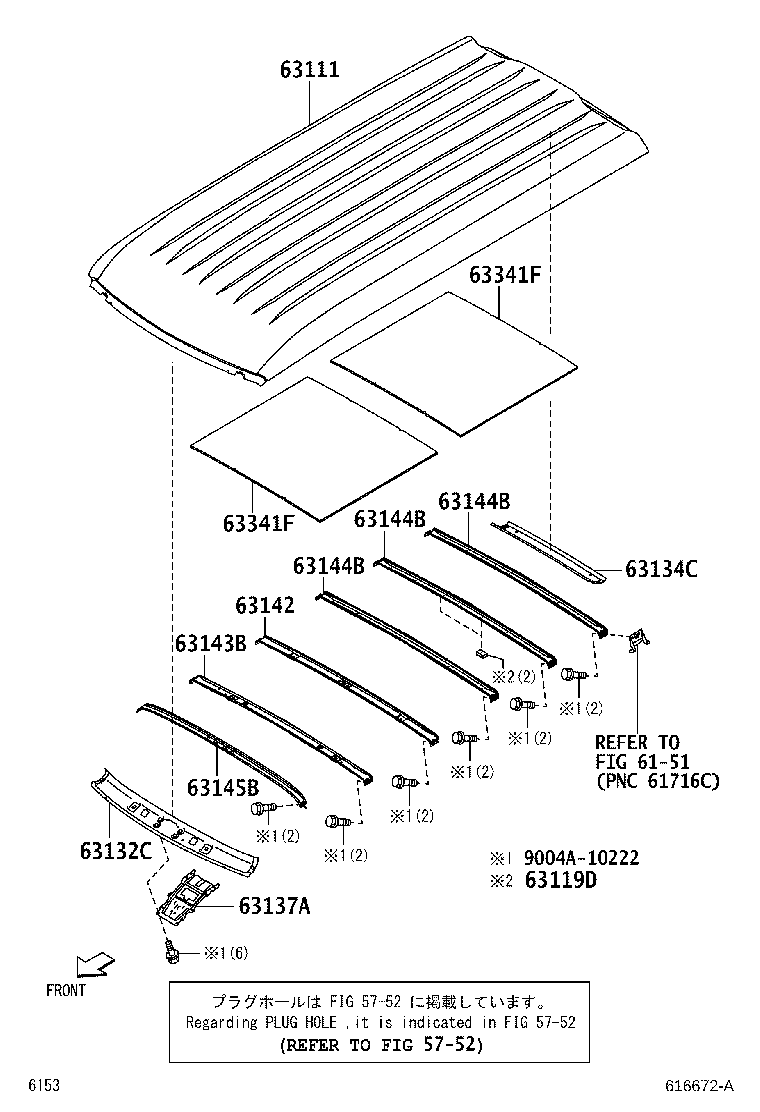

Roof Panel & Back Panel
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58936C | Baned, Engine Service Hole Cover Support |
| 63111 | Panel, Roof |
| 63119D | Pad, Roof Panel, NO.1 |
| 63132C | Panel, Windshield Header, Inner |
| 63134C | Frame, Back Door Opening, Inner |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63145B | Reinforcement, Windshield Header Panel |
| 63341F | Pad, Roof Silencer, NO.1 |
| 64111A | Panel, Back |
| 64124 | Panel, Back Corner, Inside, RH |
| 64125 | Panel, Back Corner, Inside, LH |
| 64150A | Cushion, Rubber(FOR BACK FRAME) |
| 64153C | Reinforcement, Back Frame |
| 64175E | Patch, Rear Mounting, RH |
| 64176A | Patch, Rear Mounting, LH |
| 64811 | Glass, Back Window |
| 64831 | Weatherstrip, Back Window Glass |
| 67816 | Pad, Roof Panel, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
