Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

25 part groups · 3 illustrations

Illustrations

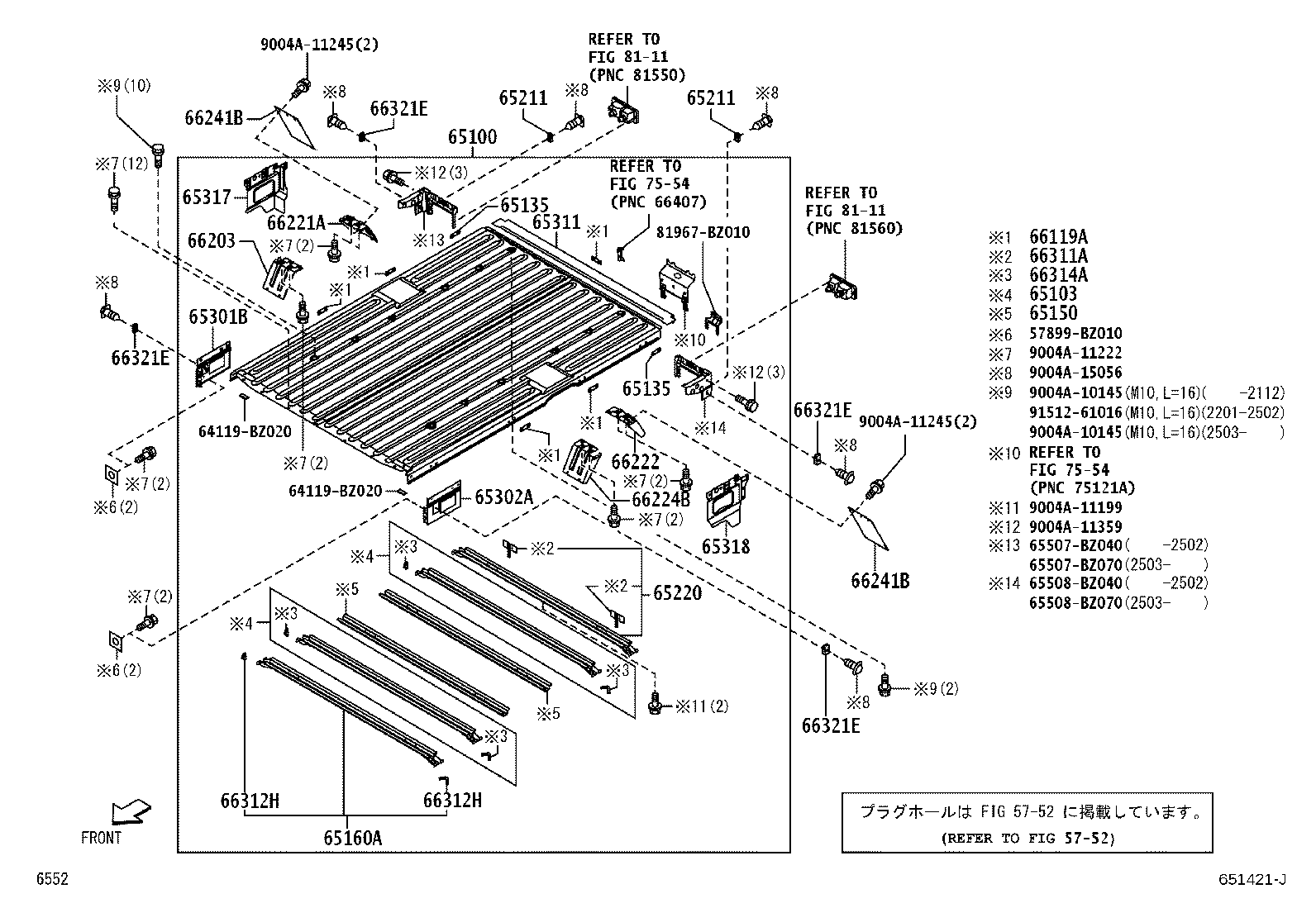

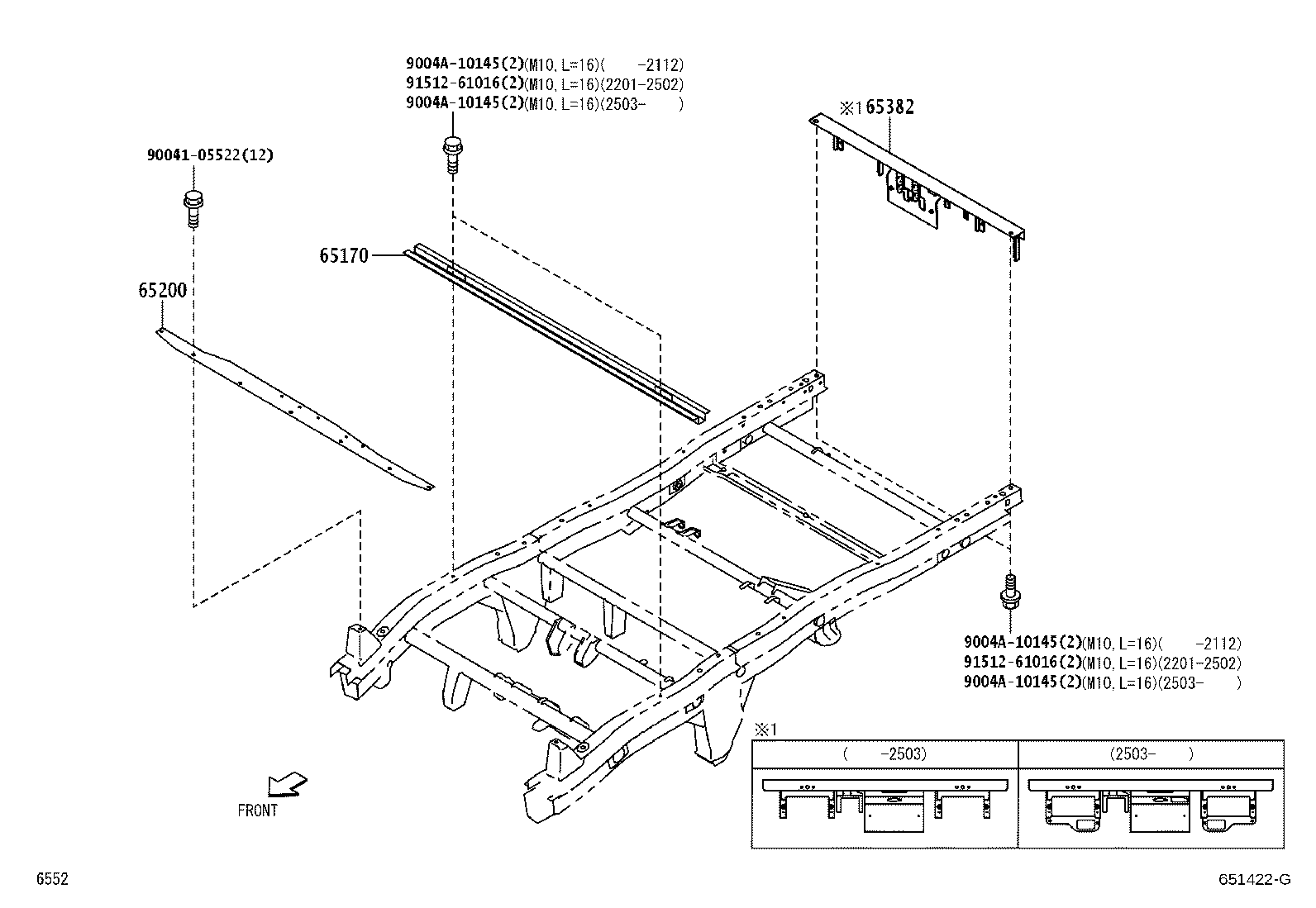

Figure 651113N 651113N 2008-01 → — Figure 651421J 651421J 2020-07 → — Figure 651422G 651422G 2020-10 → —

Part groups

PNCDescription
65100 Floor Assy, Rear Body
65103 Bracket Sub-assy, Mounting, NO.1
65135 Patch, Main Sill
65150 Sill Assy, Cross, NO.1
65160A Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65200 Frame Assy, Floor
65211 Cushion, Rear Deck End
65220 Sill Assy, Cross, NO.4
65301B Panel Sub-assy, Floor Front Coner, RH
65302A Panel Sub-assy, Floor Front Coner, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65382 Bracket Sub-assy, Mounting, Rear
66119A Patch, Hinge Gate Male
66203 Plate Sub-assy, Rear Fender, RH
66221A Plate, Rear Fender, Rear RH
66222 Plate, Rear Fender, Rear LH
66224B Plate, Rear Fender, Front LH
66241B Baffle, Rubber
66311A Hook, Rope, NO.1
66312H Hook, Rope
66314A Hook, Rope, NO.4
66321E Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
