Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

13 part groups · 4 illustrations

Illustrations

Figure 651347A

651347A 2008-01 → —

Figure 651347A

651347A 2020-07 → —

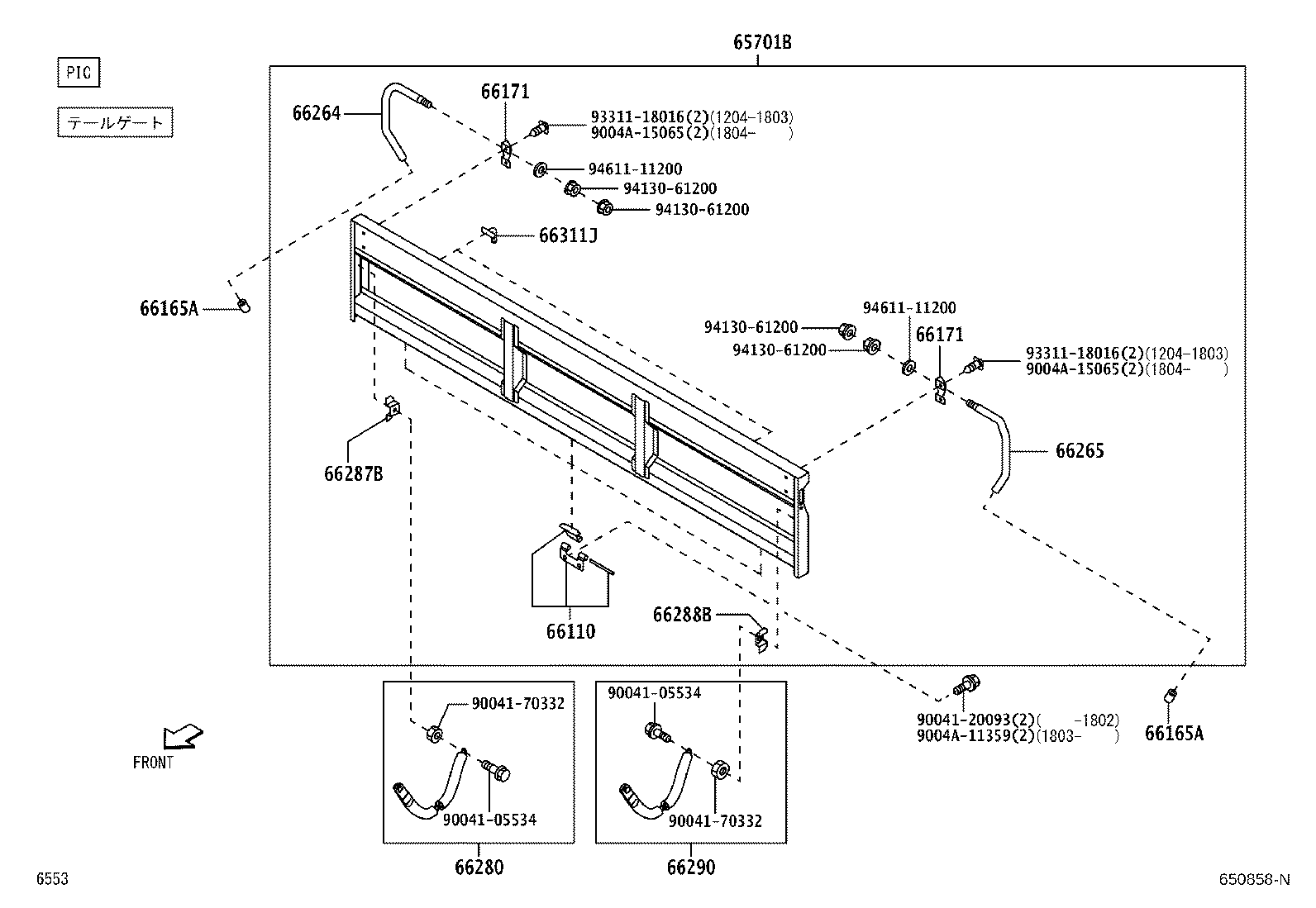

Figure 650858N

650858N 2008-01 → —

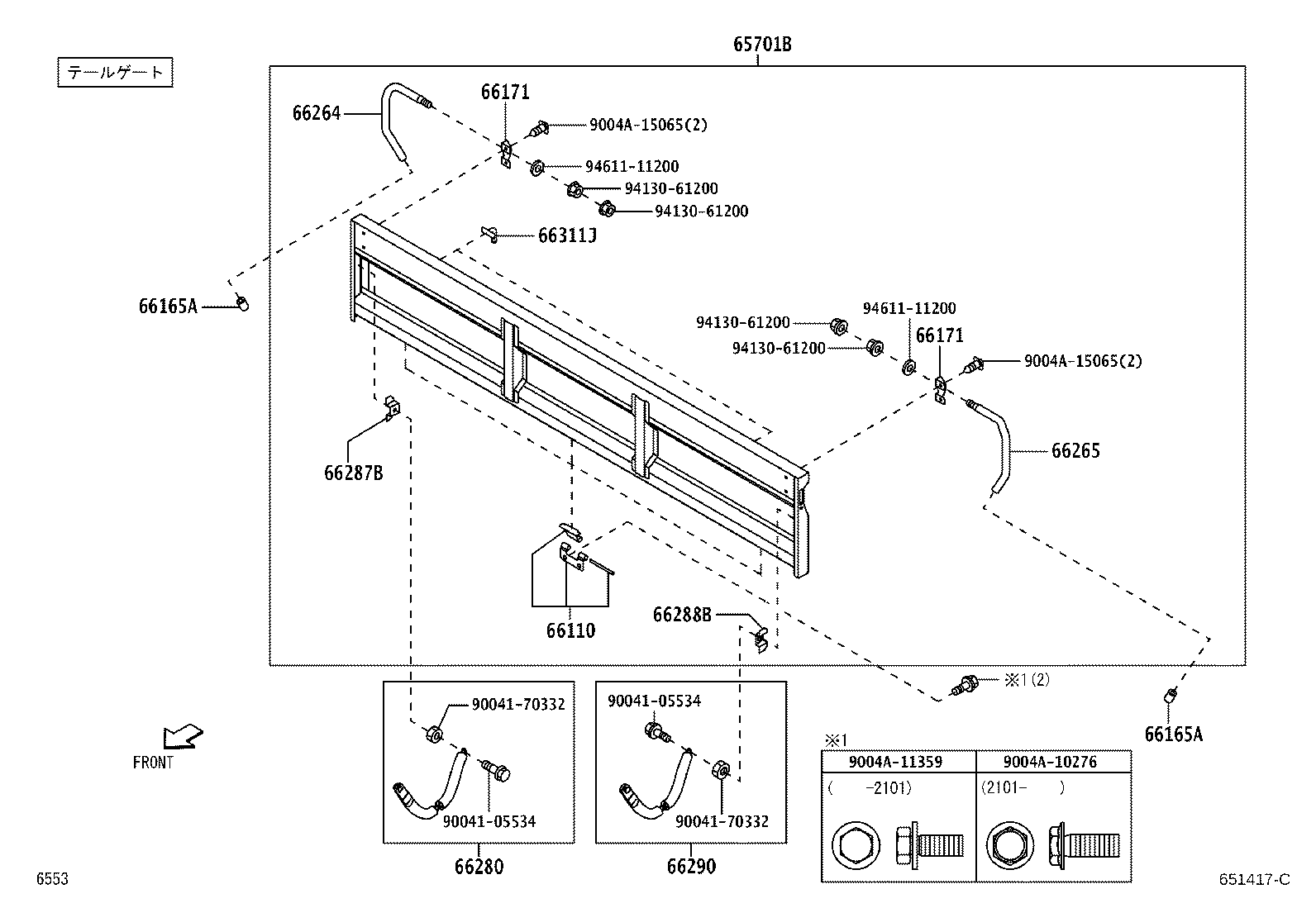

Figure 651417C

651417C 2020-07 → —

Part groups

PNC	Description
65400A	Guard Assy, Rear Body
65701B	Gate Sub-assy, Rear Body Tail
66110	Hinge Assy, Tail Gate
66165A	Cap, Gate Latch Handle
66171	Holder, Tail Gate
66264	Handle, Tail Gate Latch, RH
66265	Handle, Tail Gate Latch, LH
66280	Chain Assy, Tail Gate, RH
66287B	Bracket, Tail Gate Chain, RH
66288B	Bracket, Tail Gate Chain, LH
66290	Chain Assy, Tail Gate, LH
66311D	Hook, Rope
66311J	Hook, Rope

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
