Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

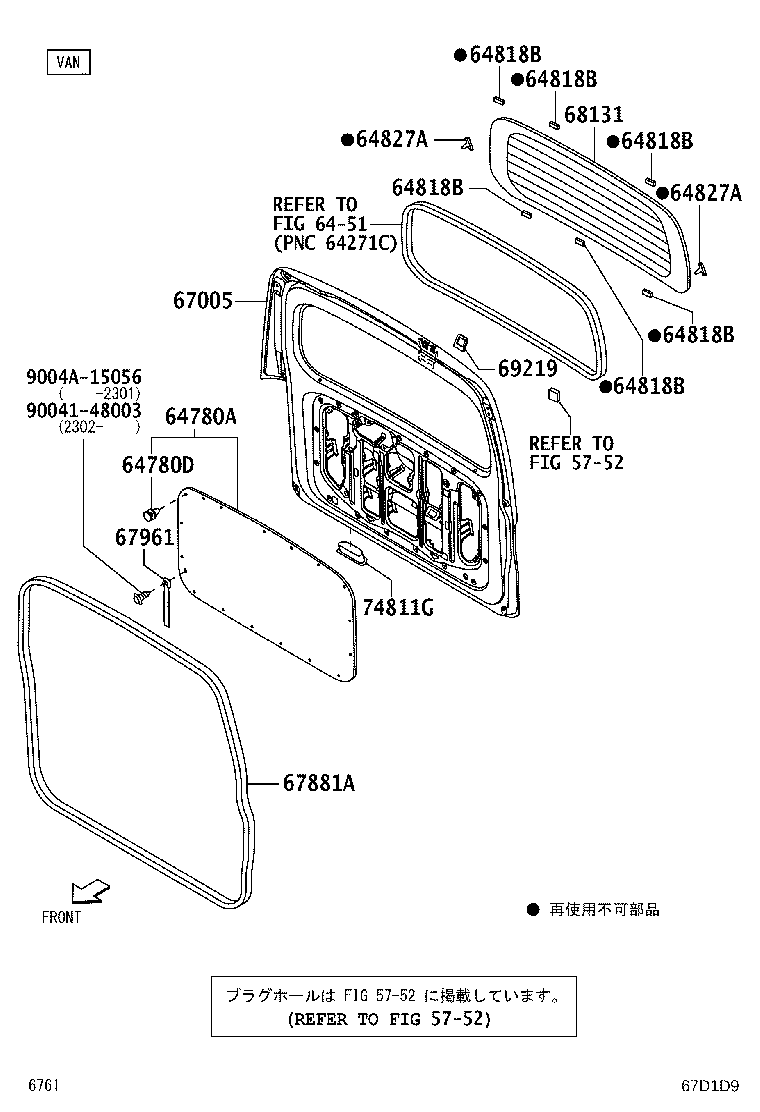

Back Door Panel & Glass
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64780A | Panel Assy, Back Door Trim |
| 64780D | Retainer(FOR BACK DOOR TRIM BOARD) |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64827A | Clip, Back Window Glass, RH |
| 67005 | Panel Sub-assy, Back Door |
| 67881A | Weatherstrip, Back Door |
| 67961 | Strap, Back Door Pull |
| 68131 | Glass, Back Door |
| 69219 | Seal, Back Door Outside Handle |
| 74811G | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
