Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

22 part groups · 6 illustrations

Illustrations

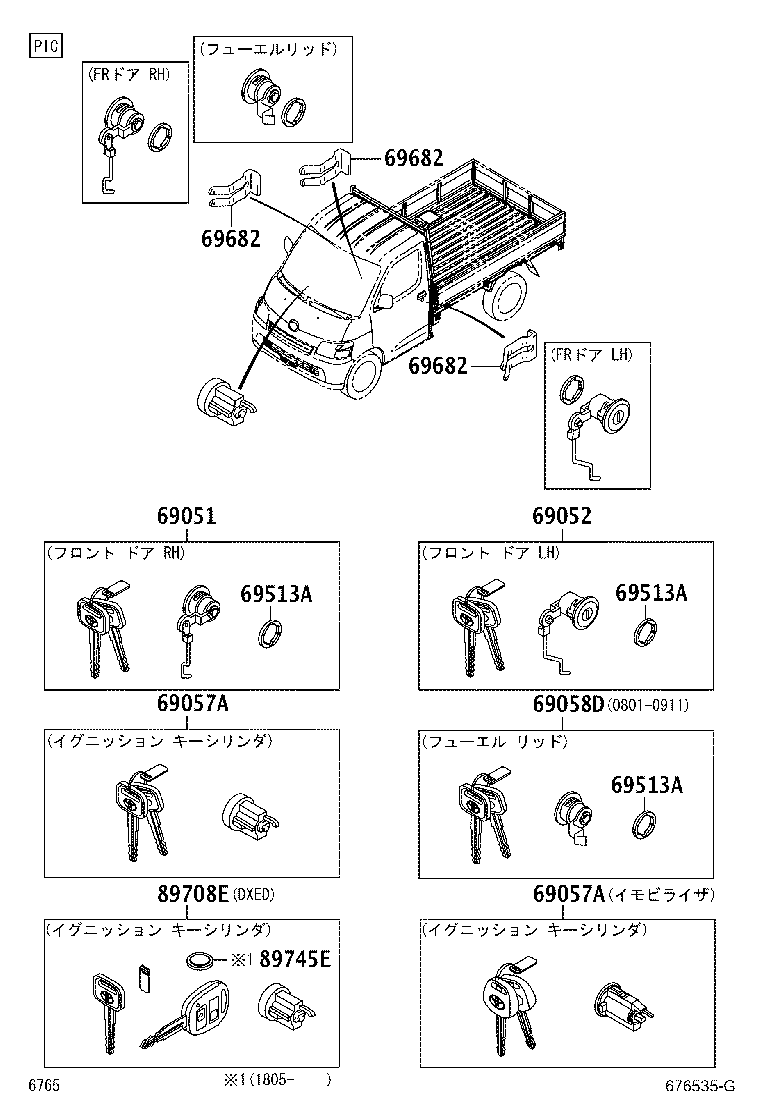

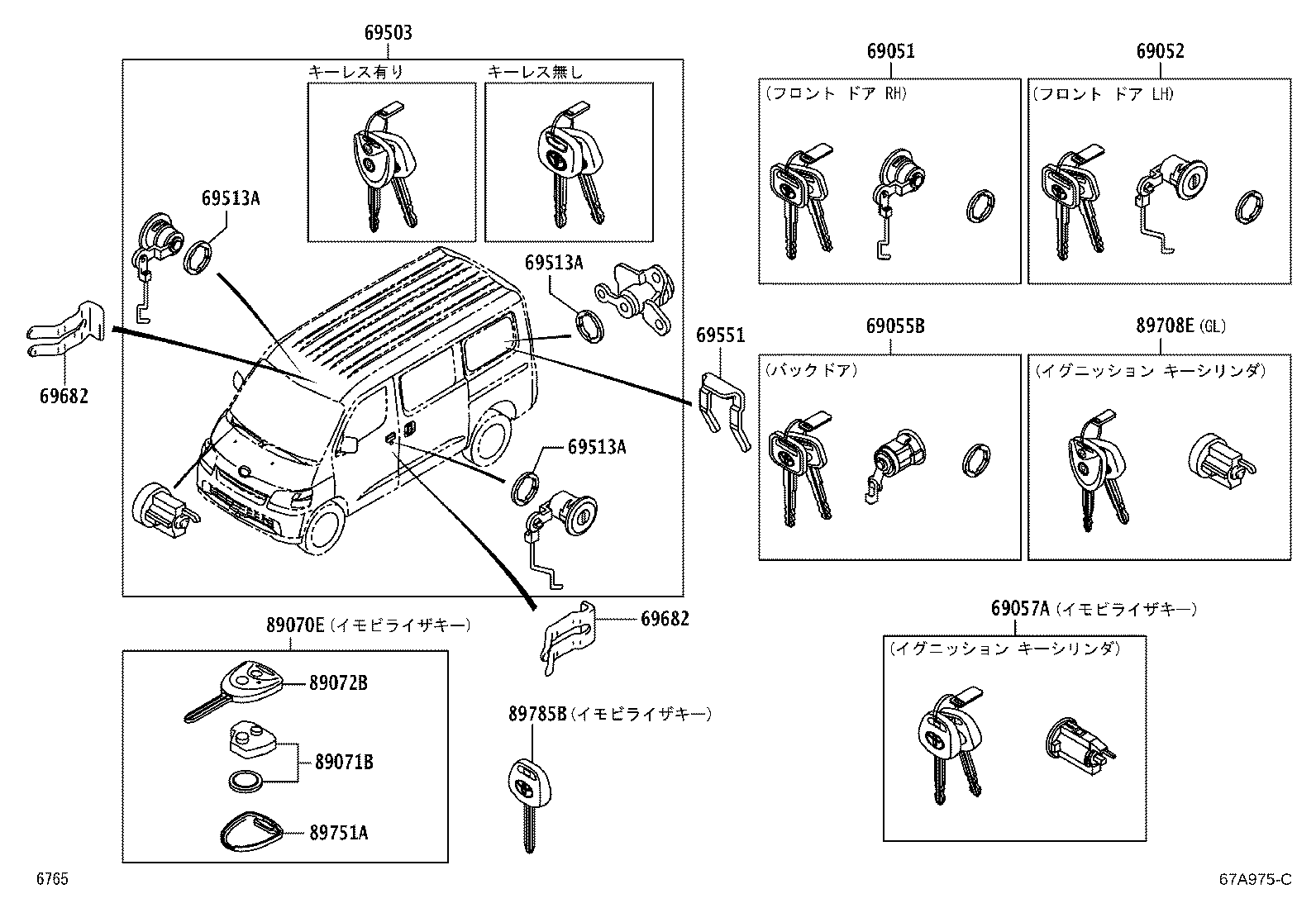

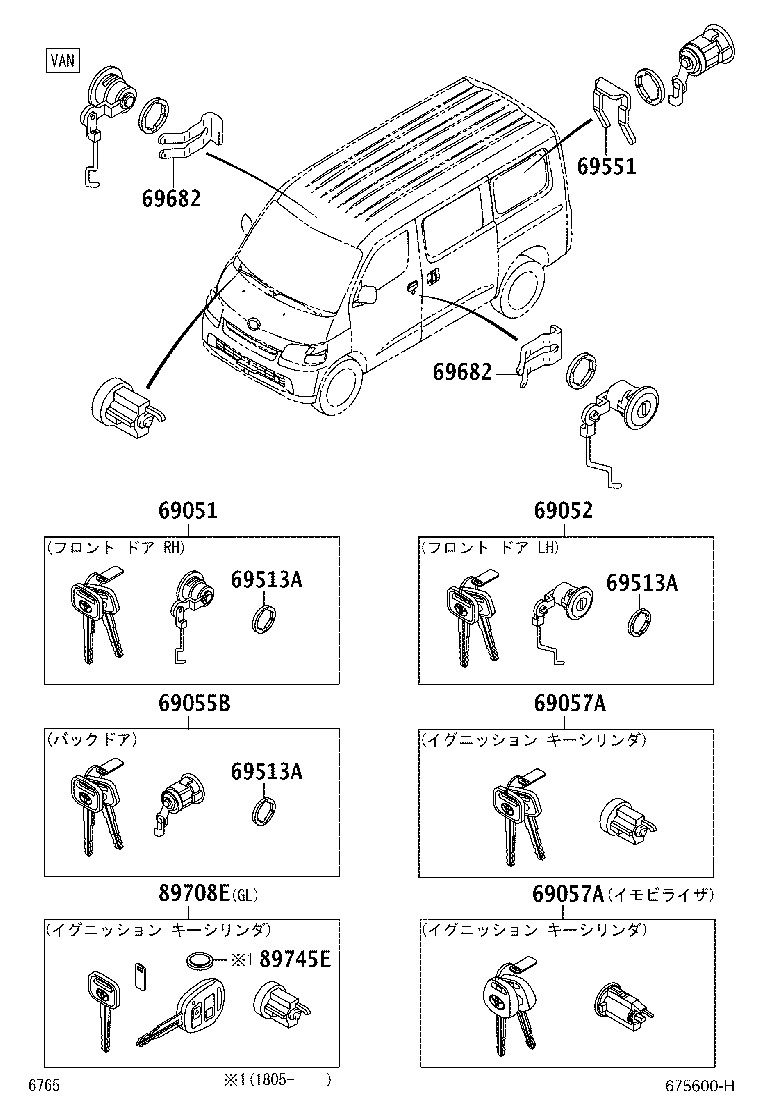

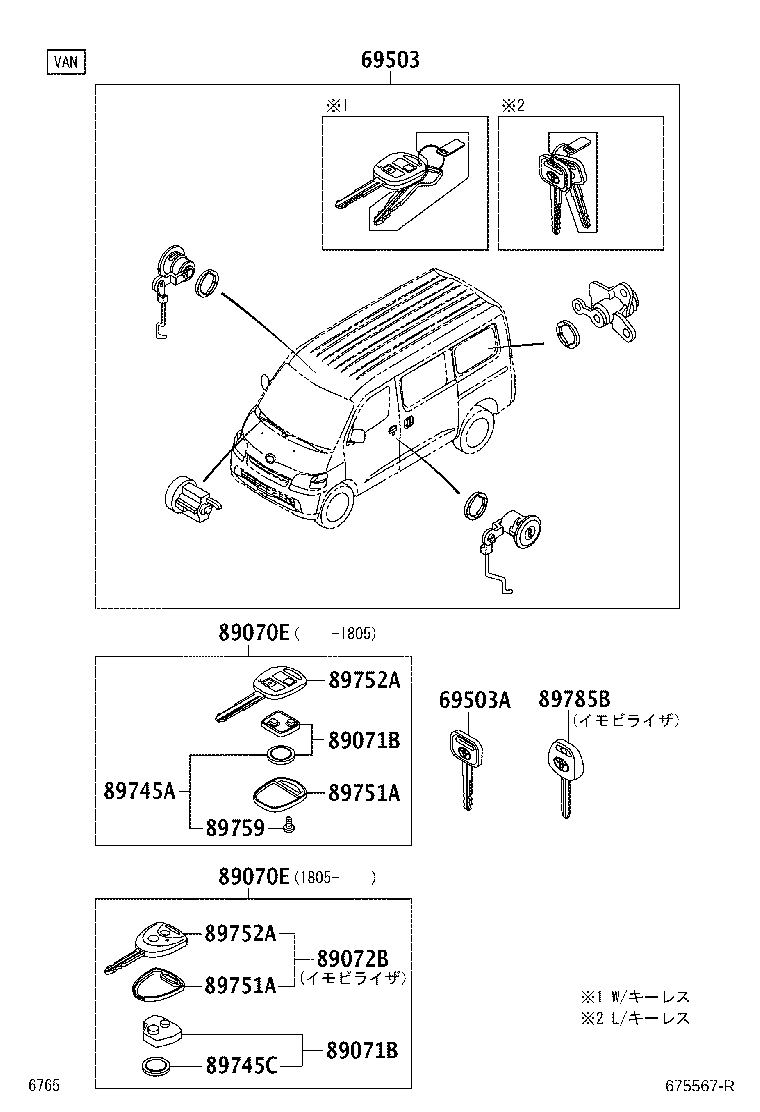

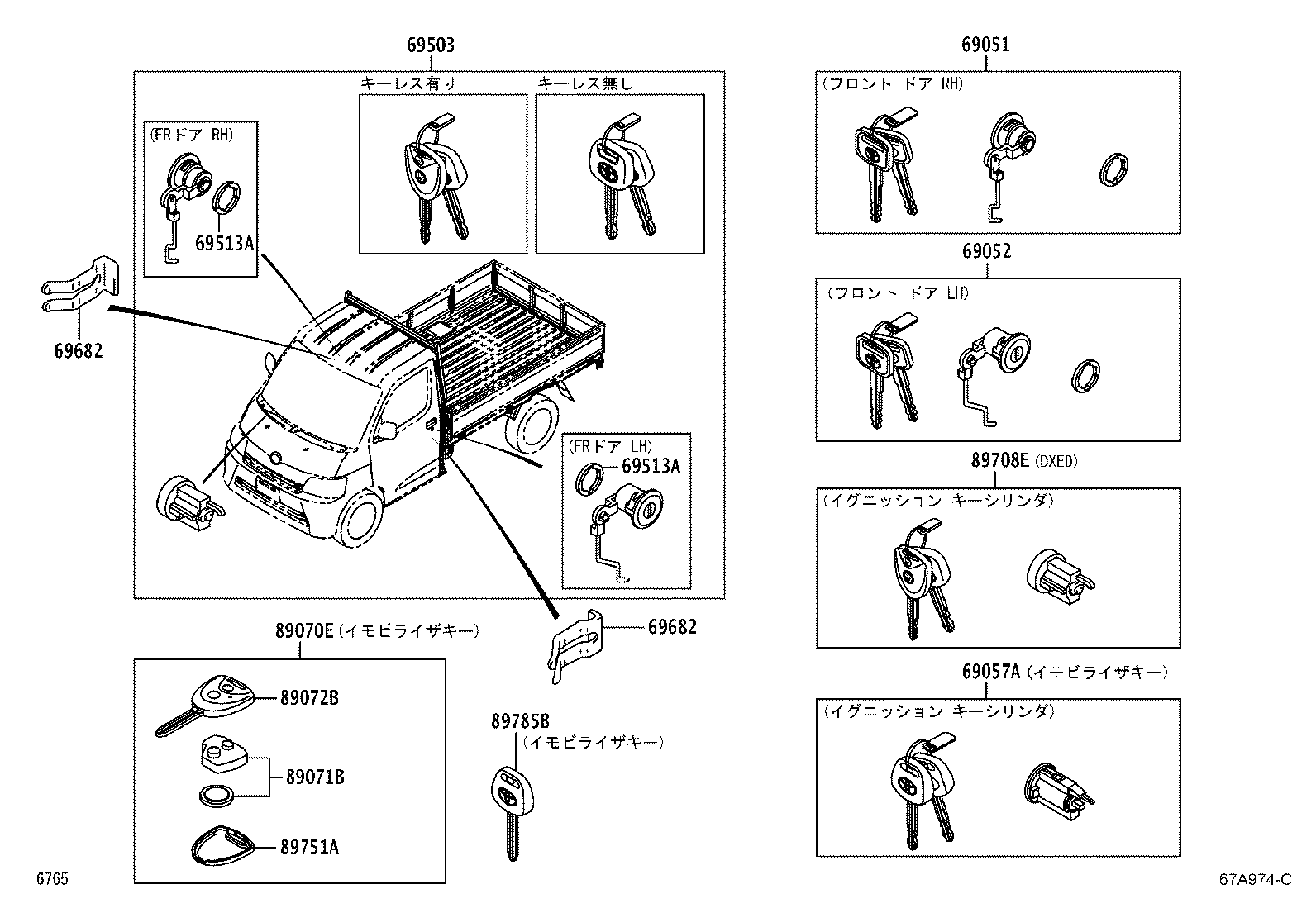

Figure 675568S 675568S 2008-01 → 2020-07 Figure 676535G 676535G 2008-01 → 2020-07 Figure 675567R 675567R 2008-01 → 2020-07 Figure 675600H 675600H 2008-01 → 2020-07 Figure 67A974C 67A974C 2020-07 → — Figure 67A975C 67A975C 2020-07 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058D Cylinder & Key Set, Fuel Tank Filler
69503 Cylinder Set, Lock
69503A Key, Blank
69513A Pad, Door Cylinder
69551 Retainer, Back Door Lock Cylinder
69682 Retainer, Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89708E Cylinder Set, Lock W/Transmitter
89742A Transmitter, Door Control
89745A Battery, Transmitter
89745C Battery, Transmitter
89745E Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89759 Screw, Door Control Transmitter
89785B Transmitter, Transponder Key Master
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
