Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

95 part groups · 14 illustrations

Illustrations

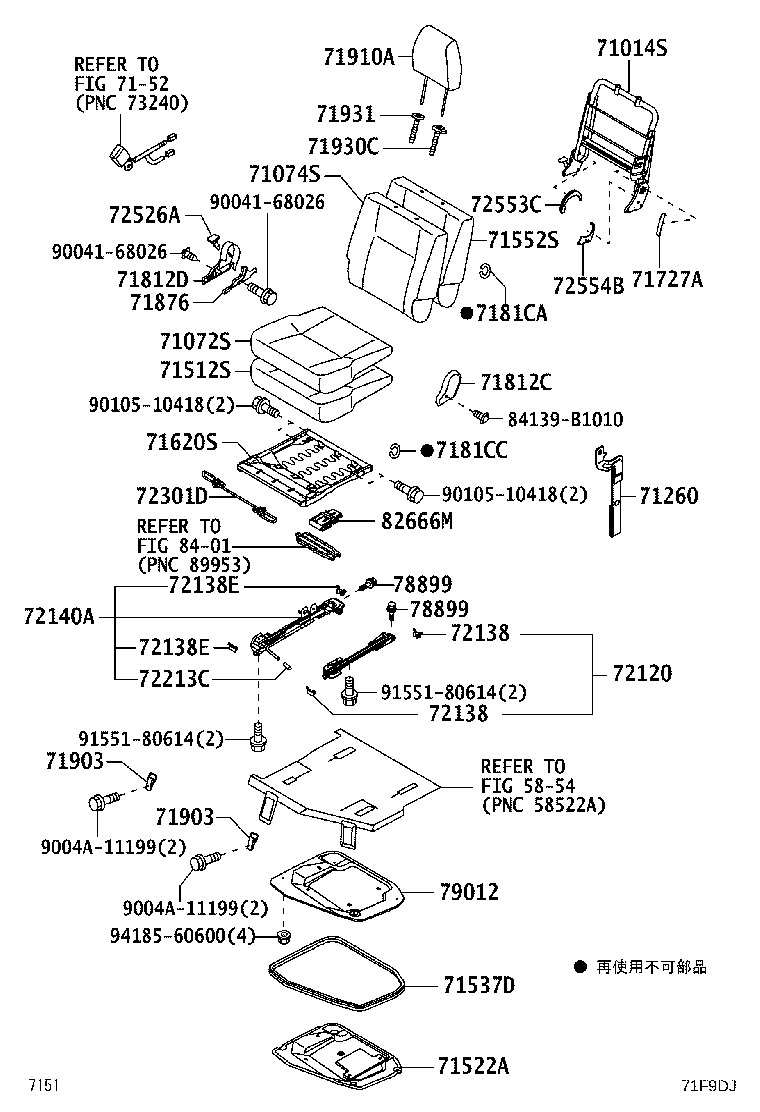

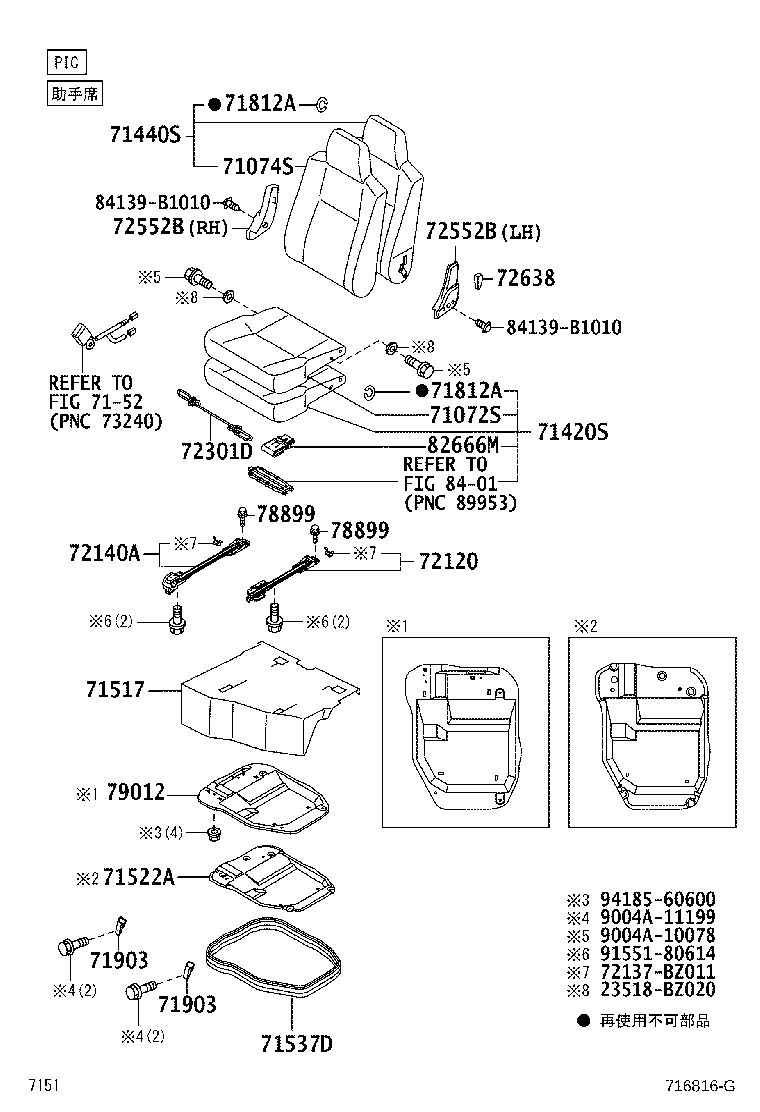

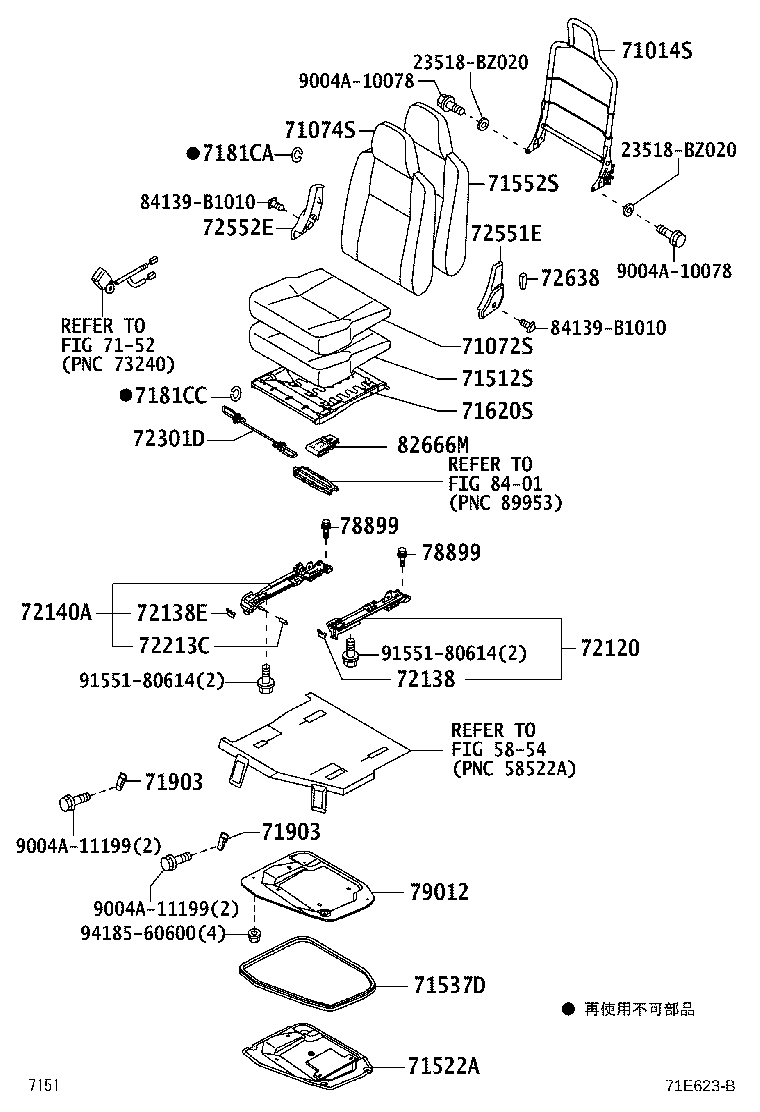

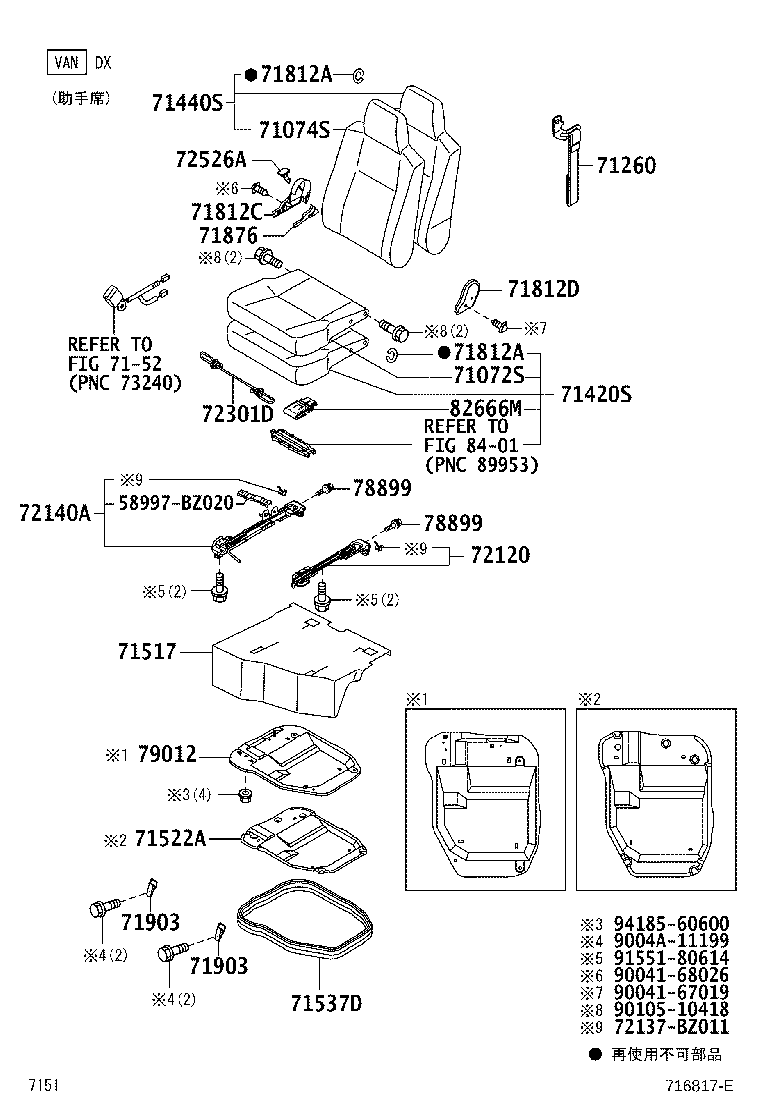

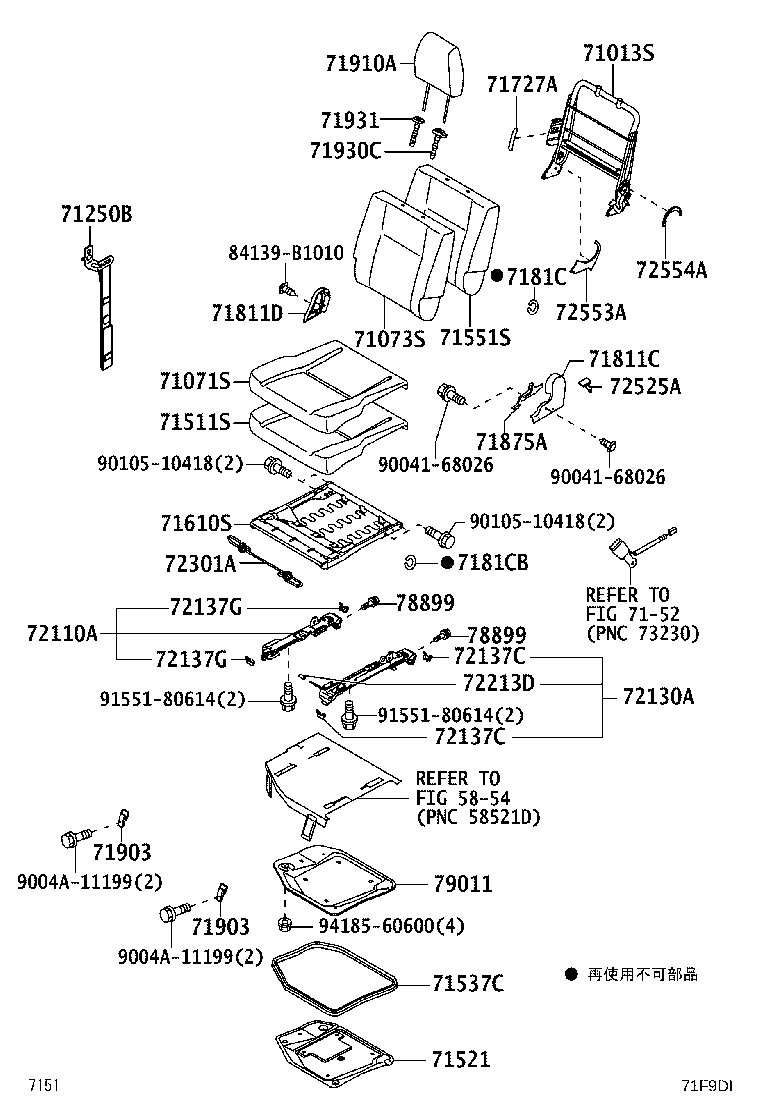

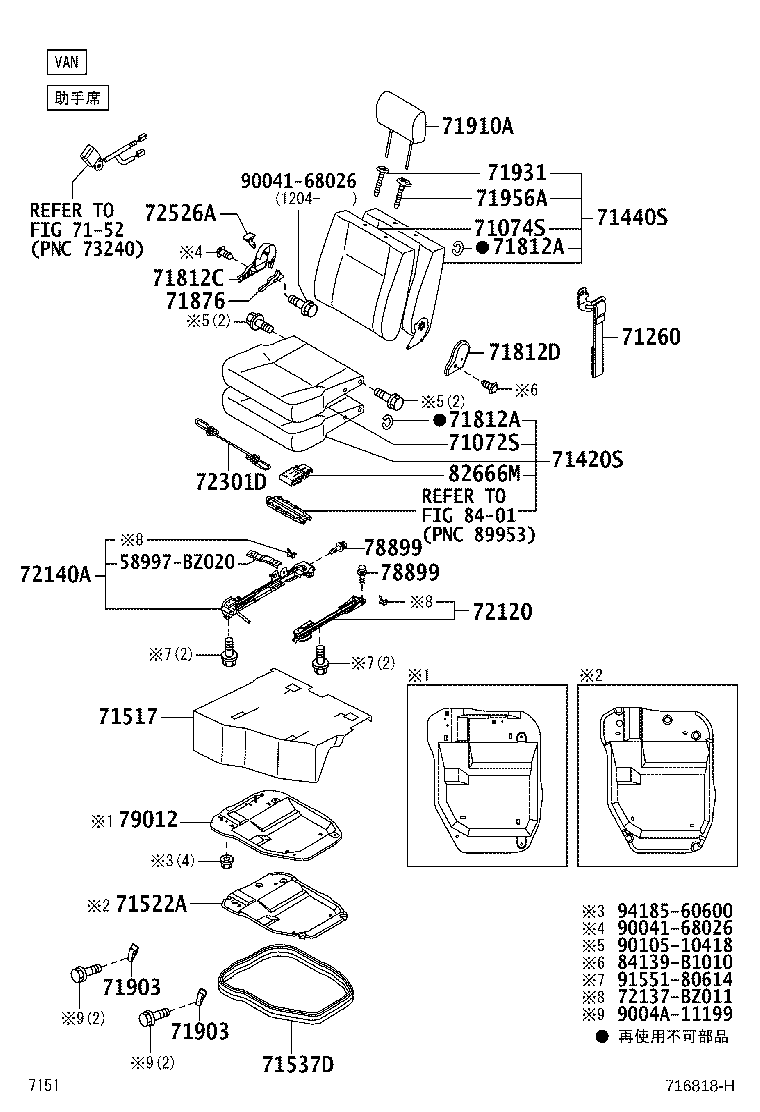

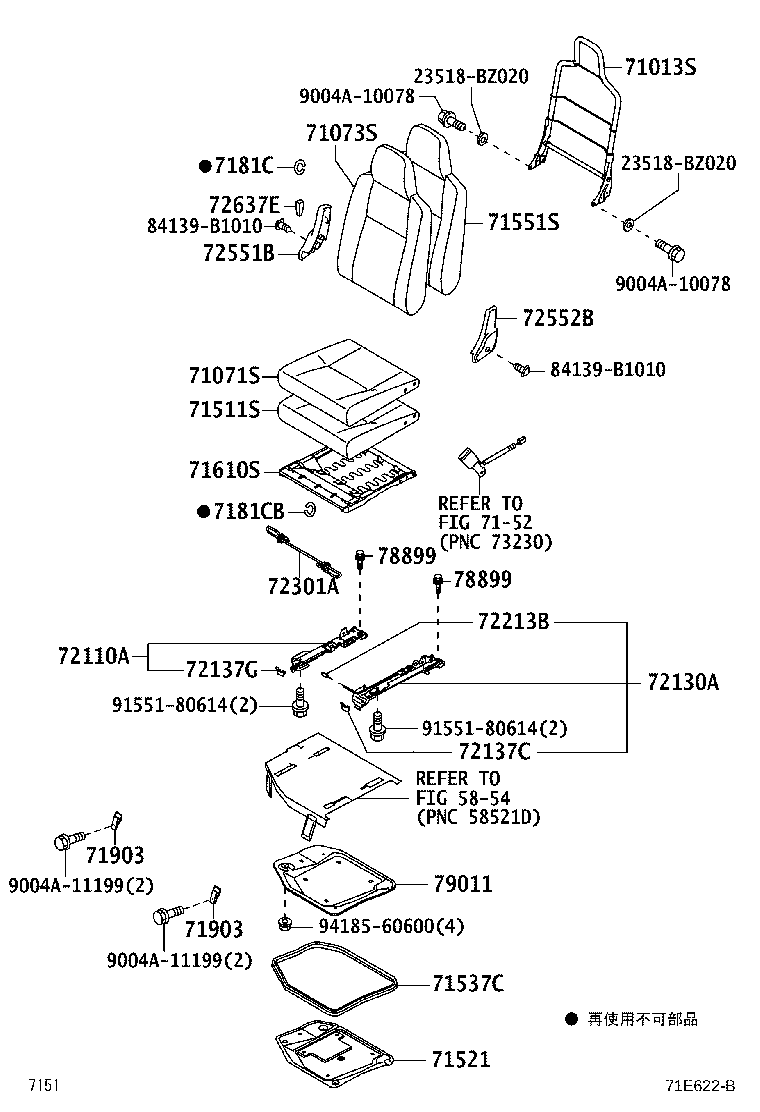

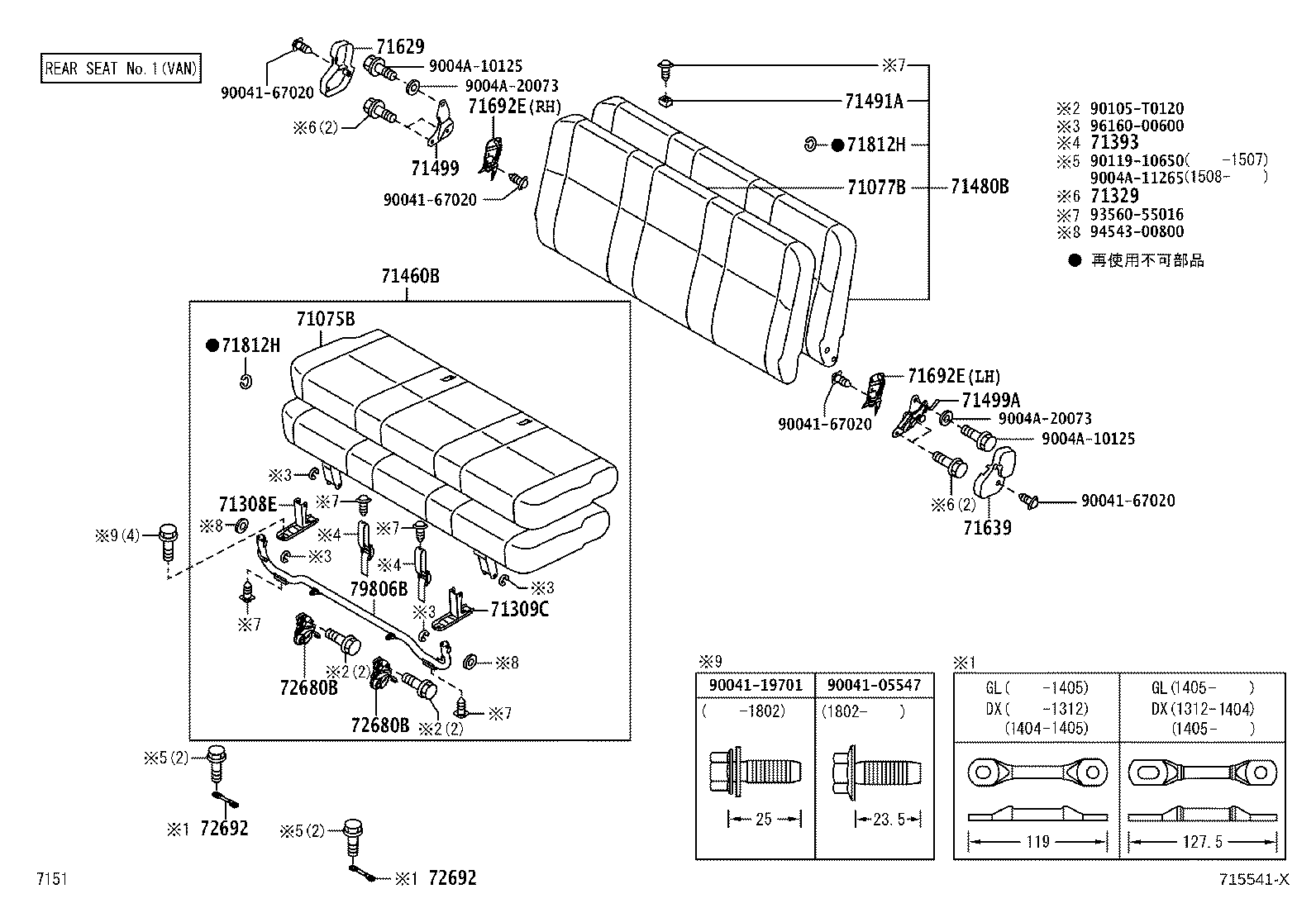

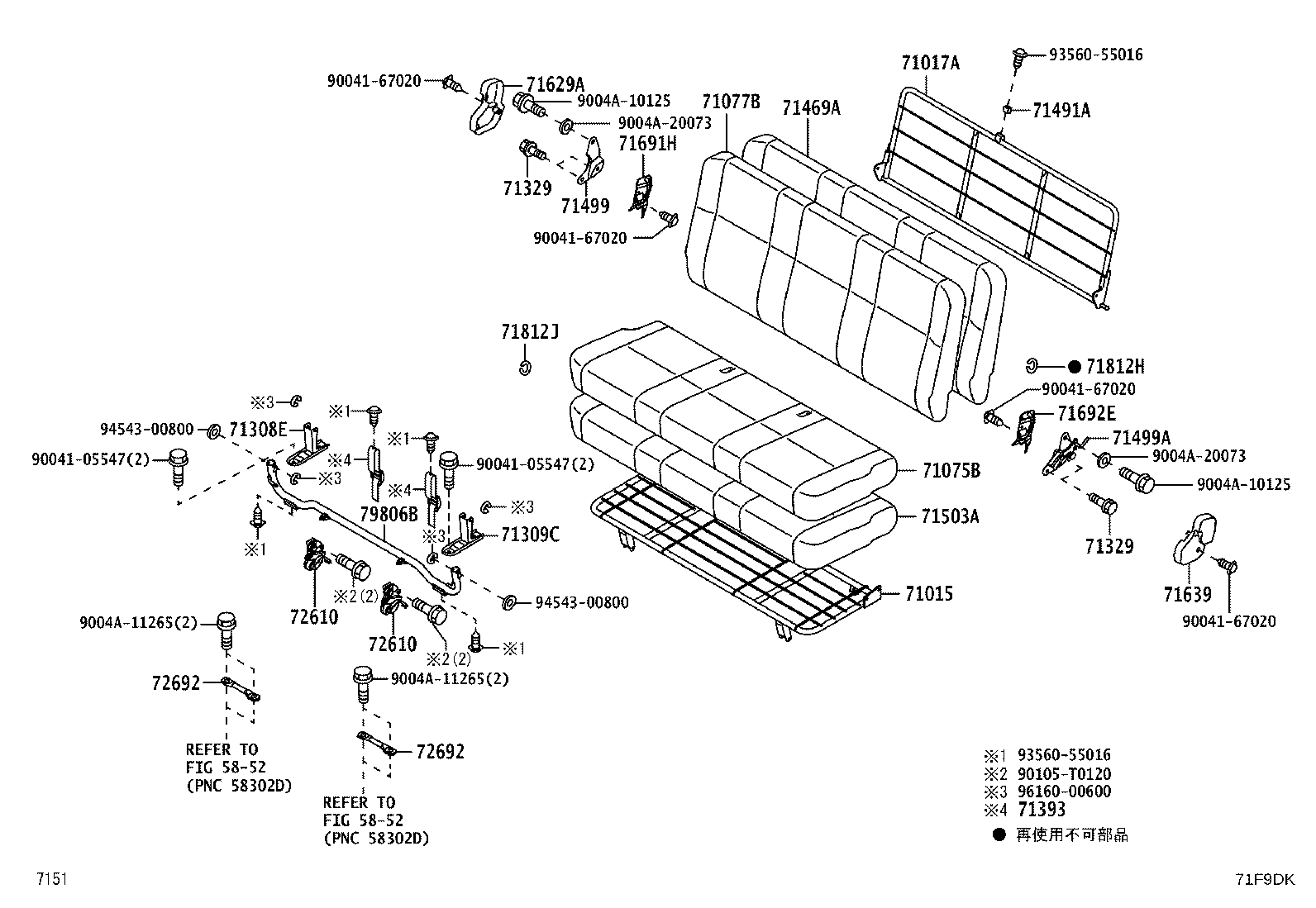

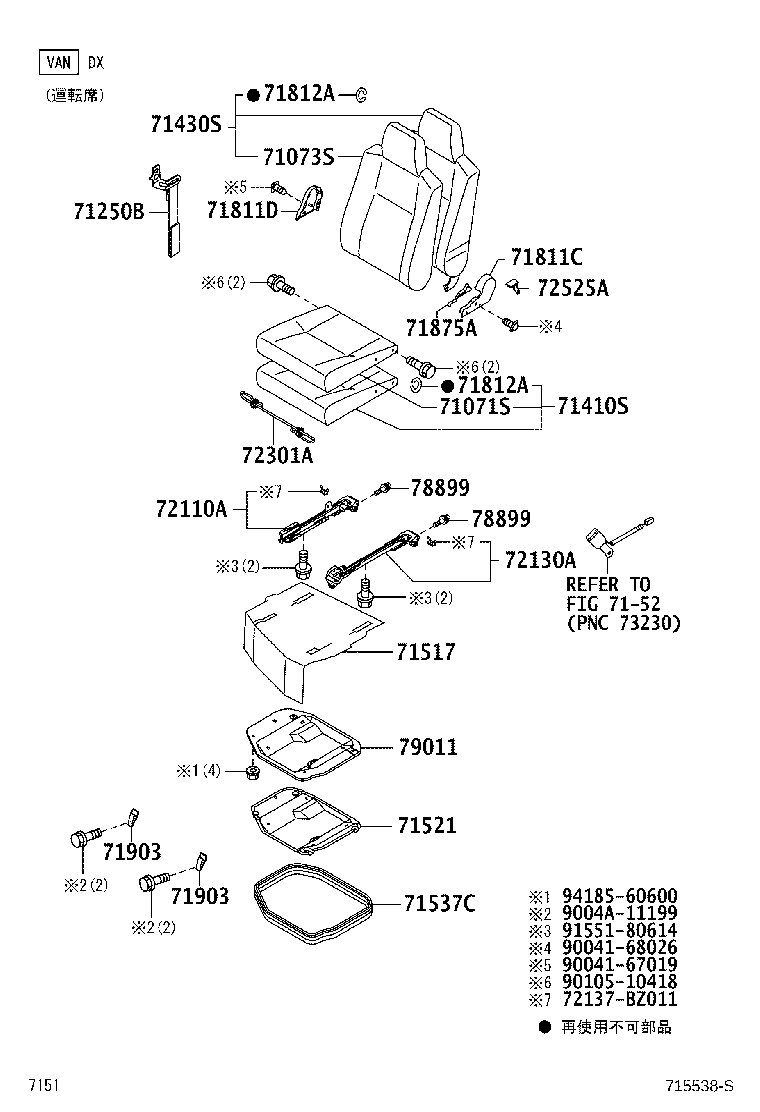

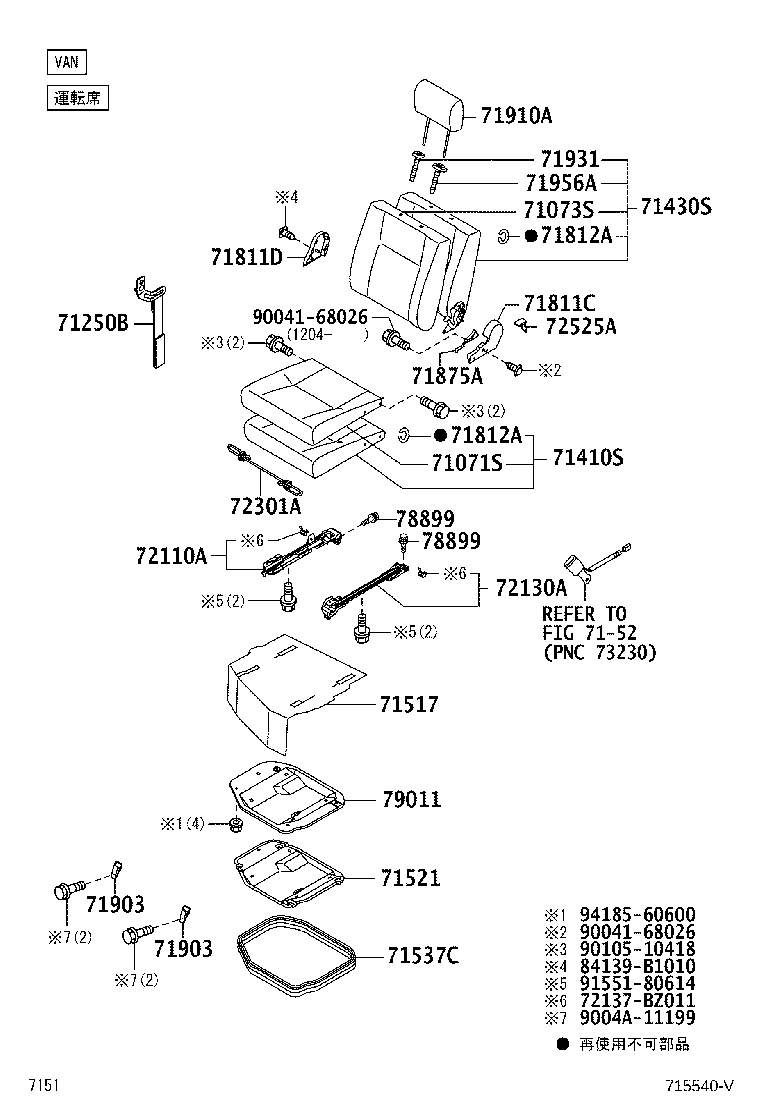

Figure 715537T 715537T 2008-01 → — Figure 716816G 716816G 2008-01 → — Figure 715538S 715538S 2008-01 → 2014-04 Figure 716817E 716817E 2008-01 → 2014-04 Figure 715540V 715540V 2008-01 → — Figure 715540V 715540V 2014-04 → — Figure 716818H 716818H 2008-01 → — Figure 716818H 716818H 2014-04 → — Figure 71E622B 71E622B 2020-07 → — Figure 71E623B 71E623B 2020-07 → — Figure 71F9DI 71F9DI 2020-07 → — Figure 71F9DJ 71F9DJ 2020-07 → — Figure 715541X 715541X 2008-01 → — Figure 71F9DK 71F9DK 2020-07 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71015 Frame Sub-assy, Rear Seat Cushion
71017A Frame Sub-assy, Rear Seatback
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71250B Bracket Assy, Seat, Outer RH
71260 Bracket Assy, Seat, Outer LH
71308E Leg Sub-assy, Rear Seat, RH
71309C Leg Sub-assy, Rear Seat, Rear LH
71329 Bolt, Rear Seat Hinge
71393 Band, Rear Seat Cushion
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71469A Pad, Rear Seatback
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71491A Cushion, Rear Seat Set
71499 Stopper, Rear Seatback
71499A Stopper, Rear Seatback, NO.2
71503A Pad Sub-assy, Rear Seat Cushion
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517 Cloth, Front Seat Cushion Under
71521 Pad, Front Seat Cushion Silencer, A
71522A Pad, Front Seat Cushion Silencer, B
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629 Cover, Rear Seat Cushion Hinge
71629A Cover, Rear Seat Cushion Hinge, RH
71639 Cover, Rear Seat Cushion Hinge, LH
71691H Cover, Rear Seat Cushion Hinge, NO.2
71692E Cover, Rear Seat Cushion Hinge, NO.2
71727A Trim, Seat Corner, NO.1
71811C Cover, Reclining Adjuster, RH
71811D Shield, Front Seat Cushion, RH
71812A Ring, Hog, Small (FOR FRONT SEAT)
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71812H Ring, Hog, Small (FOR REAR SEAT)
71812J Clip, Rear Seat Cover
7181C Ring, Hog, Small (FOR FRONT SEATBACK)
7181CA Ring, Hog, Small (FOR FRONT SEATBACK)
7181CB Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CC Ring, Hog, Small (FOR FRONT SEAT CUSHION)
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71903 Catch Sub-assy, Seat Cushion, Front
71910A Headrest Assy, Front Seat
71930C Support, Front Seat Headrest, LH
71931 Support, Front Seat Headrest
71956A Support, Front Seat Headrest
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72137C Cover, Seat Track Inner, RH
72137G Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72138E Cover, Seat Track, Inner LH
72140A Track Assy, Front Seat,Inner LH
72213B Knob, Seat Track Adjusting Handle, RH
72213C Knob, Seat Track Adjusting Handle, LH
72213D Knob, Seat Track Adjusting Handle
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72551E Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72552E Cover, Reclining Hinge, LH
72553A Protector, Reclining Cover, RH
72553C Protector, Reclining Cover, RH
72554A Protector, Reclining Cover, LH
72554B Protector, Reclining Cover, LH
72610 Lock Assy, Rear Seat Cushion
72637E Handle, Rear Seat Lock, RH
72638 Handle, Rear Seat Lock, LH
72680B Lock Assy, Rear Seat Cushion, LH
72692 Striker, Rear Seat Cushion Lock, NO.2
78899 Bolt, Front Seat
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79806B Leg Sub Assy, Fold Seat Rear
82666M Holder, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
