Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

19 part groups · 5 illustrations

Illustrations

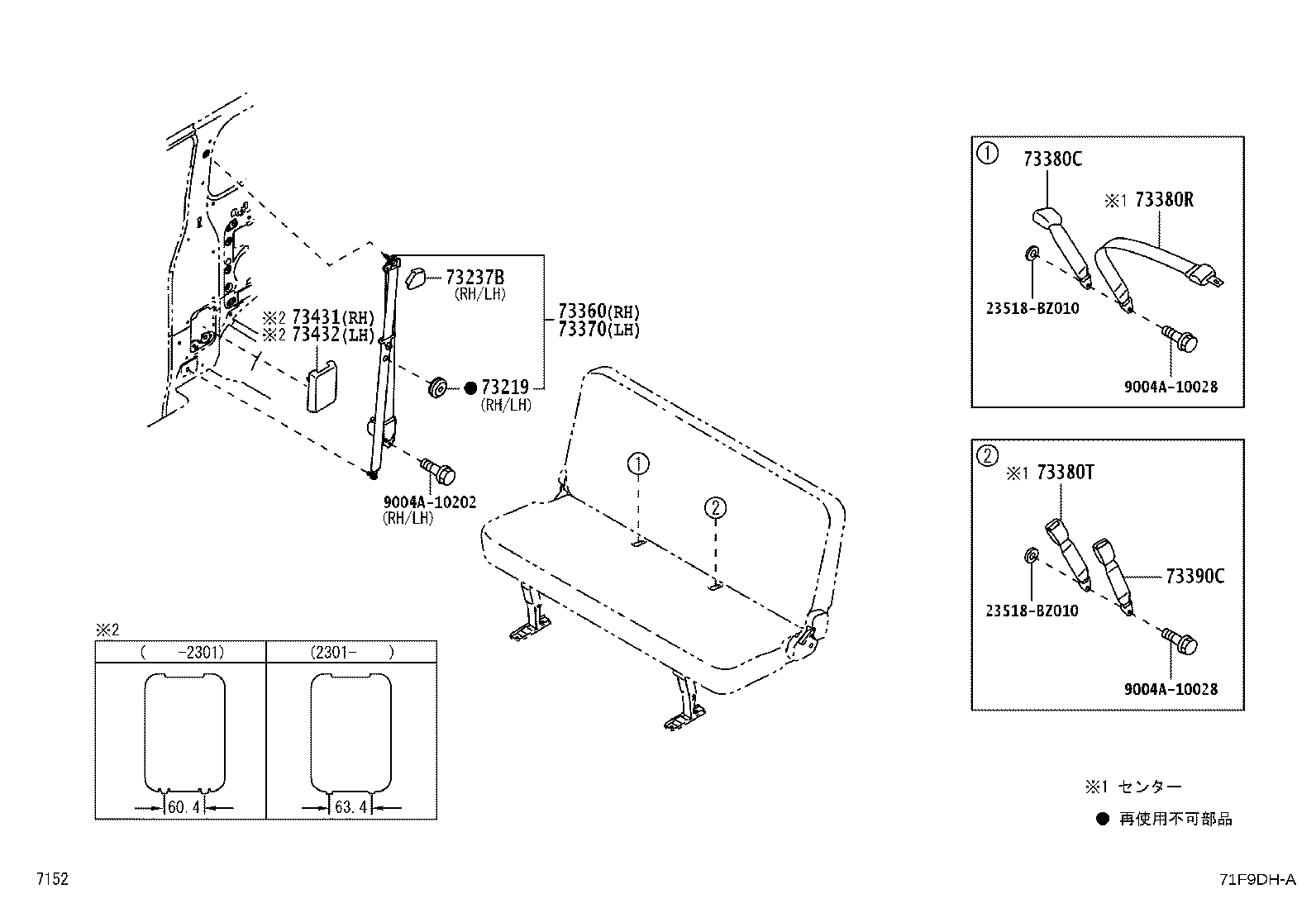

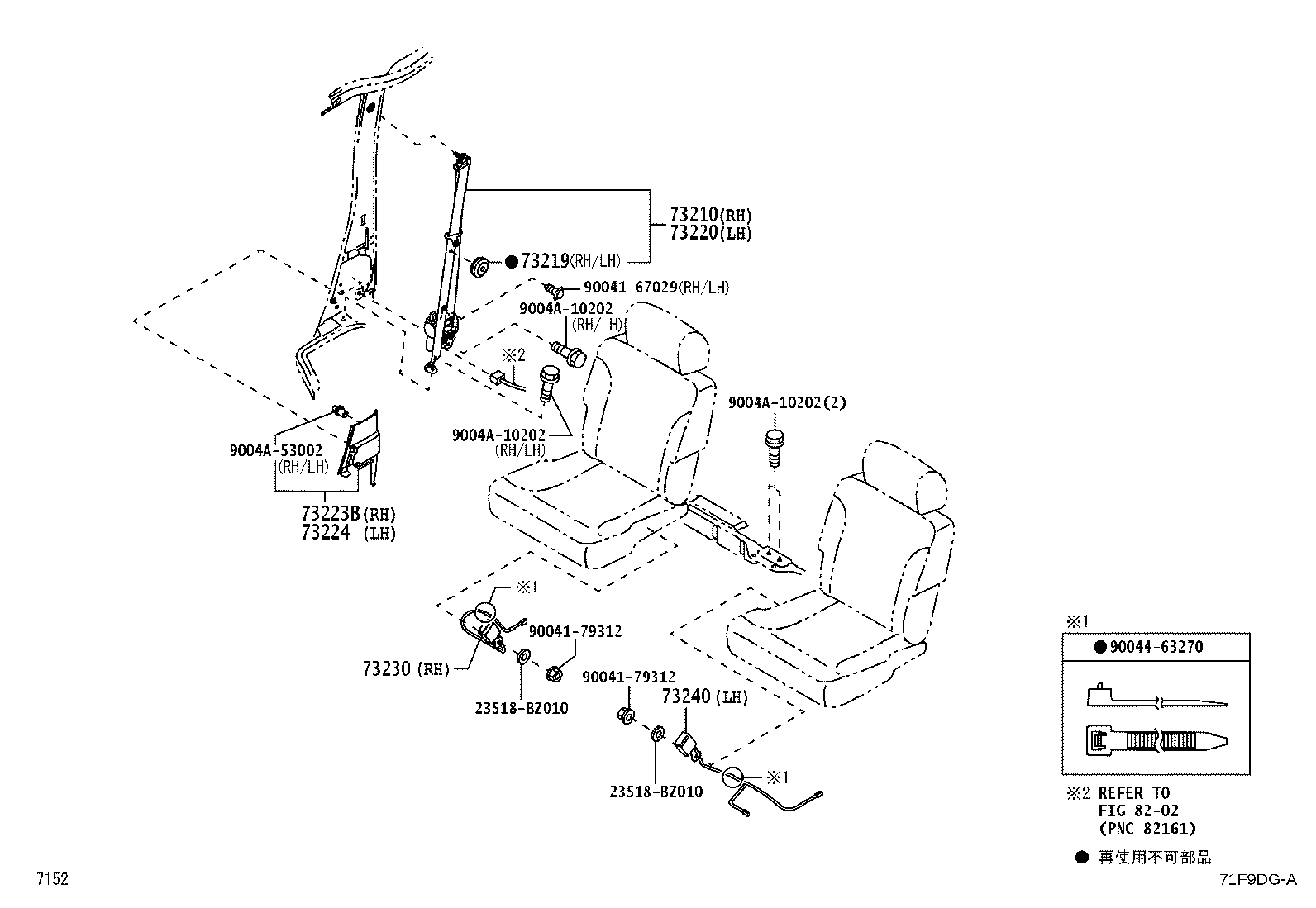

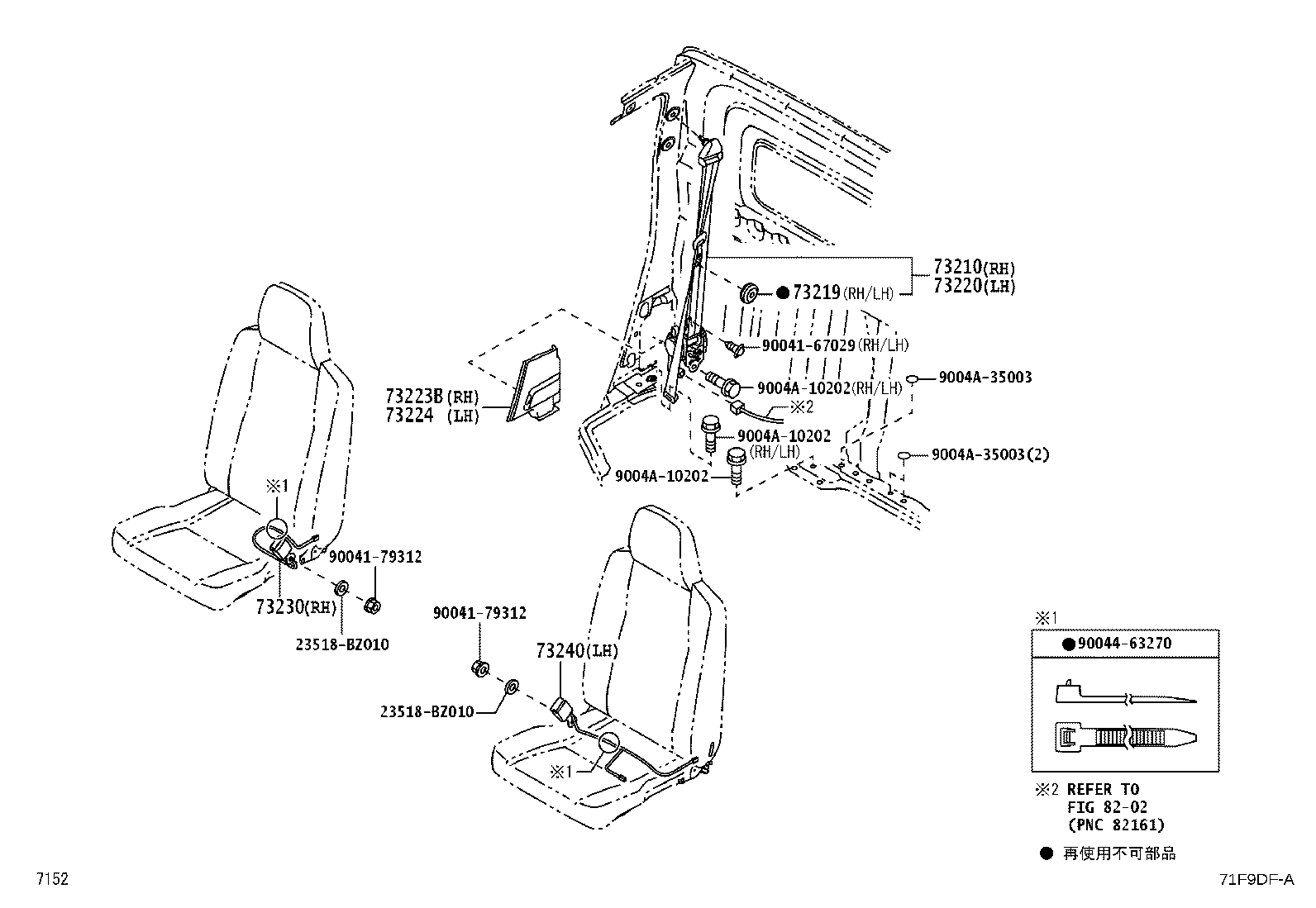

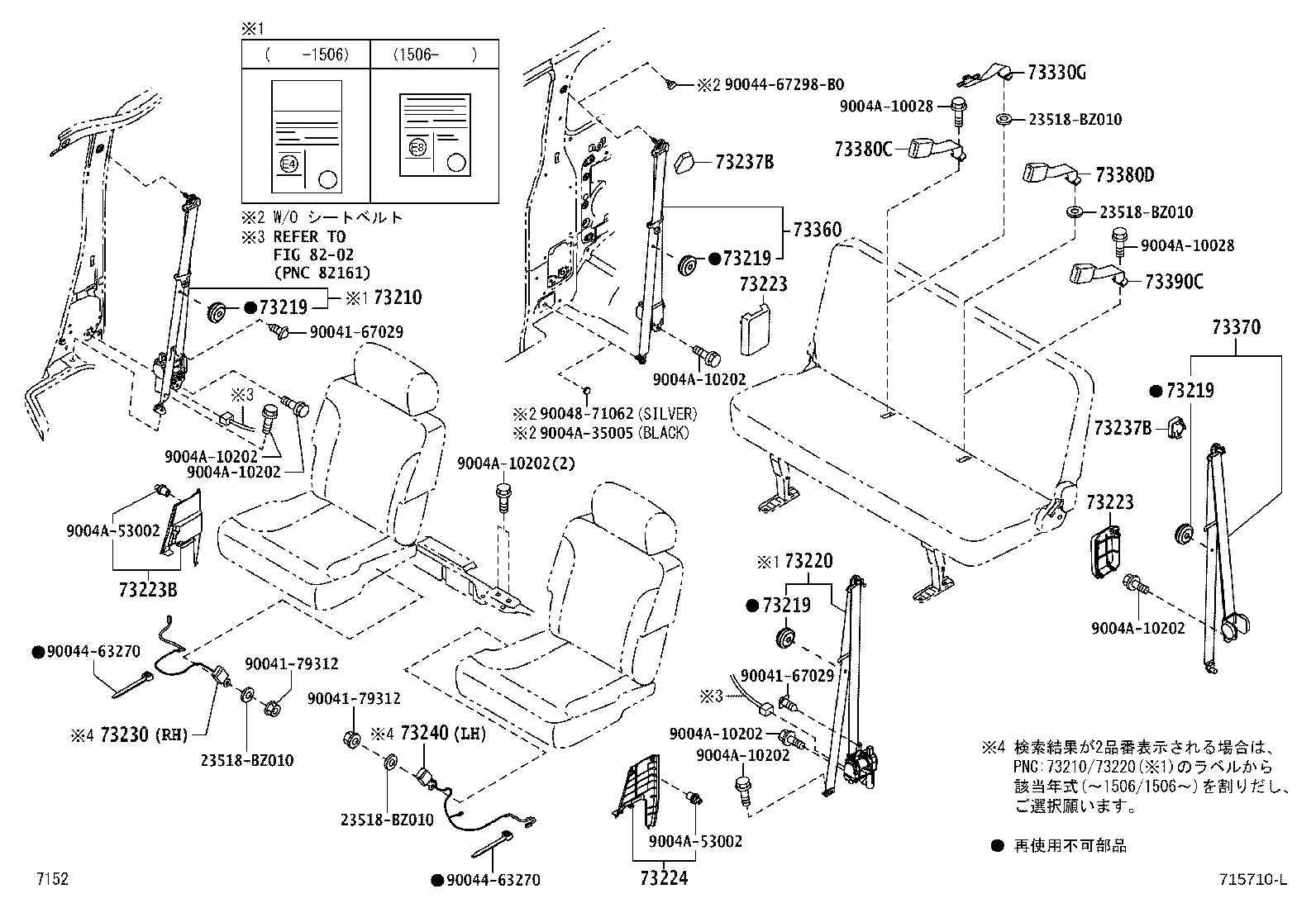

Figure 715708I 715708I 2008-01 → — Figure 715710L 715710L 2008-01 → — Figure 71F9DFA 71F9DFA 2020-07 → — Figure 71F9DGA 71F9DGA 2020-07 → — Figure 71F9DHA 71F9DHA 2020-07 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73237B Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73330G Belt Assy, RR Seat Lap Type
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73380D Belt Assy, Rear Seat, Inner
73380R Belt Assy, Rear Seat, Inner Center(FOR 3 PERSONS)
73380T Belt Assy, Rear Seat, Inner Center NO.2(FOR 3 PERSONS)
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73431 Cover, Rear Seat Belt Retractor, RH
73432 Cover, Rear Seat Belt Retractor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
