Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 3 illustrations

Illustrations

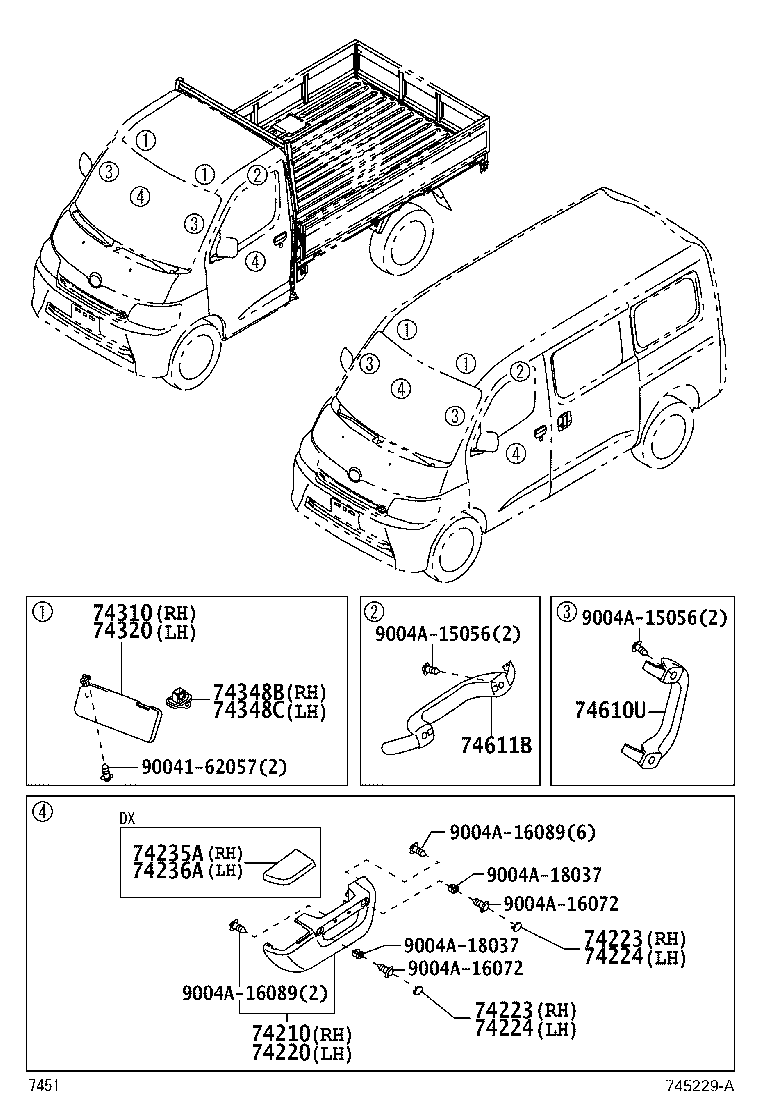

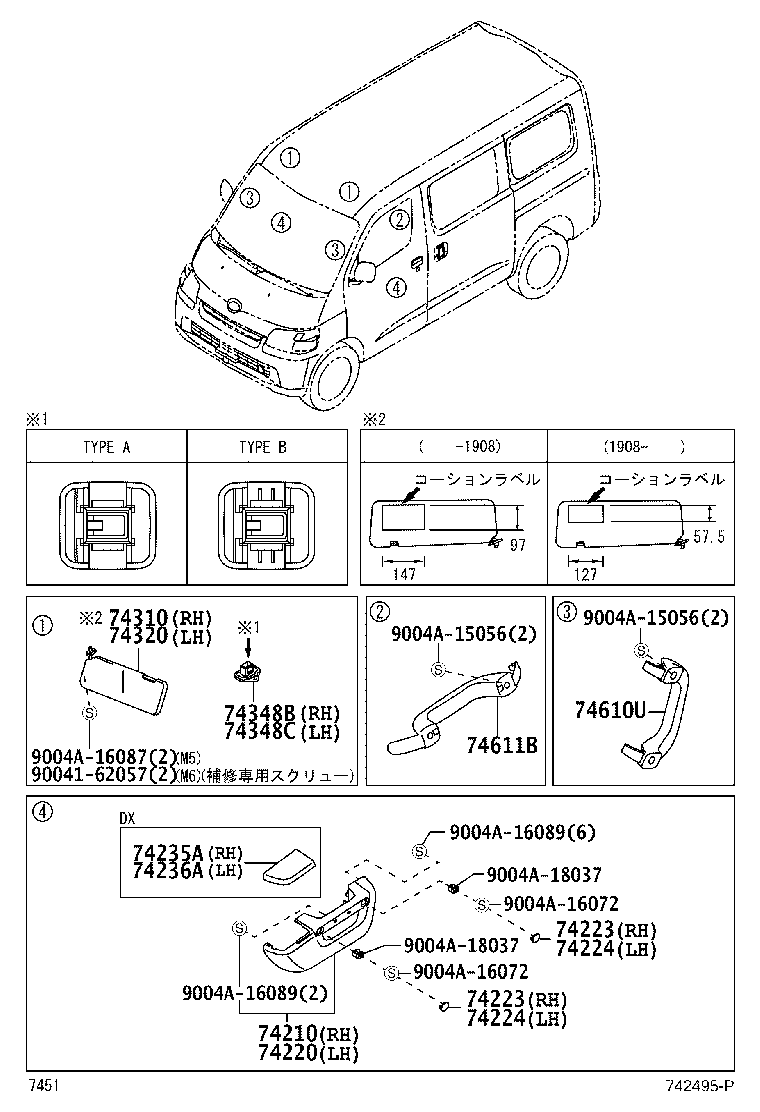

Figure 742496P 742496P 2008-01 → — Figure 742495P 742495P 2008-01 → — Figure 745229A 745229A 2020-07 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74235A Plate, Front Door Armrest Base Finish, RH
74236A Plate, Front Door Armrest Base Finish, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610U Grip Assy, Assist
74611B Grip, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
