Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

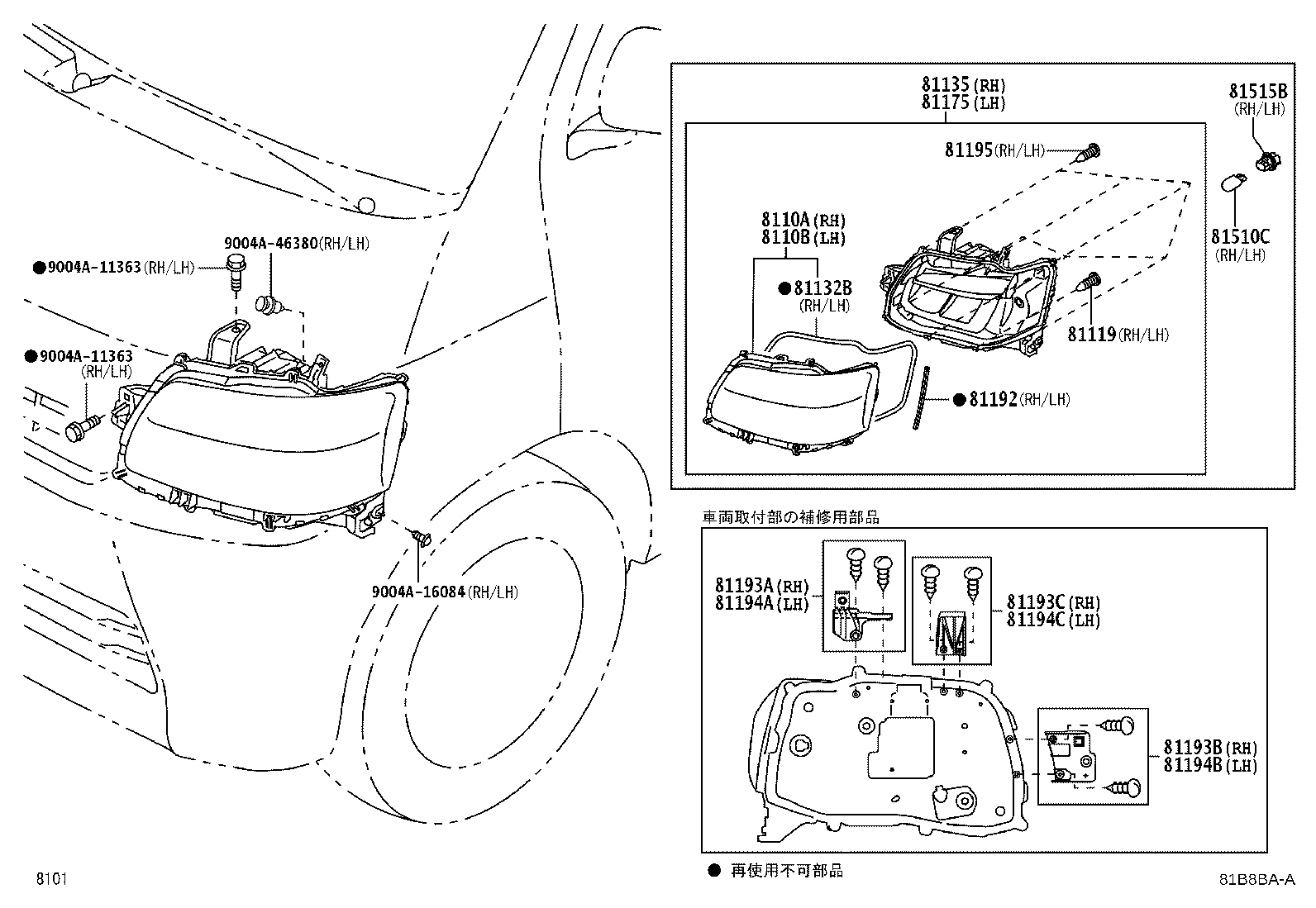

Headlamp
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81119 | Screw, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81171A | Unit, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81192 | Seal, Headlamp |
| 81193A | Protector, Headlamp, RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81193C | Retainer, RH Headlamp Protector, Upper RH |
| 81194A | Protector, Headlamp, LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81194C | Retainer, LH Headlamp Protector, Upper RH |
| 81195 | Screw, Headlamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
