Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

5 part groups · 3 illustrations

Illustrations

Figure 814569C

814569C 2008-01 → —

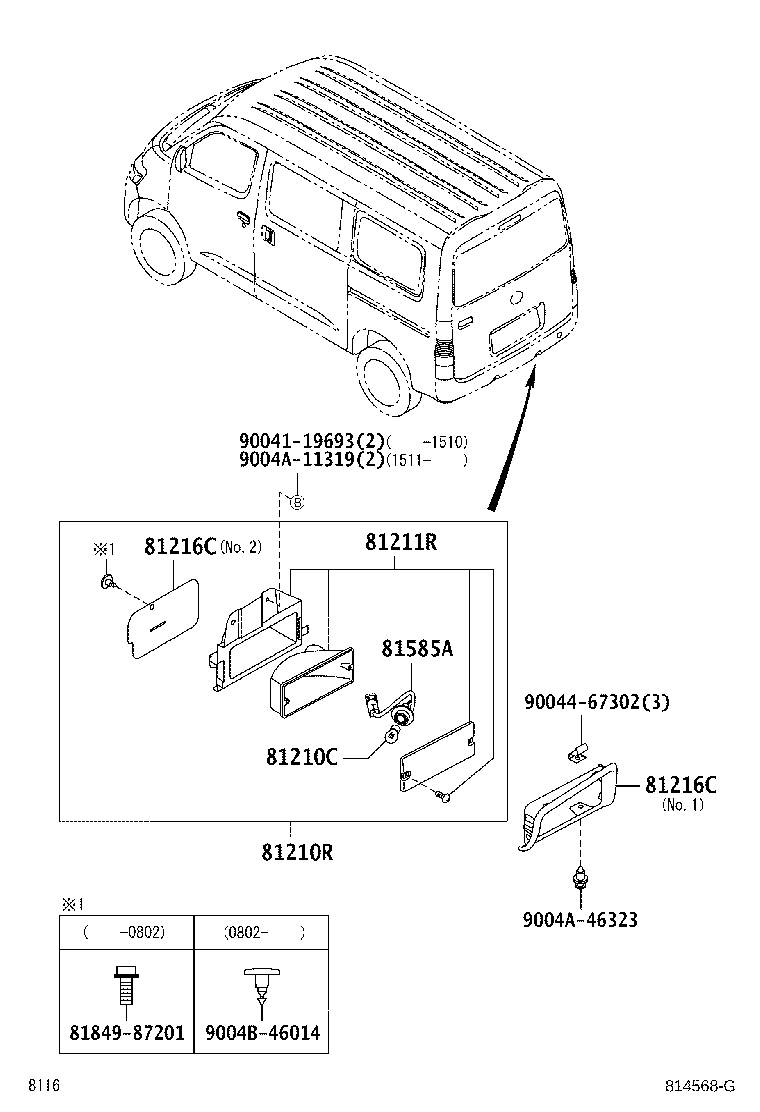

Figure 814568G

814568G 2008-01 → 2019-02

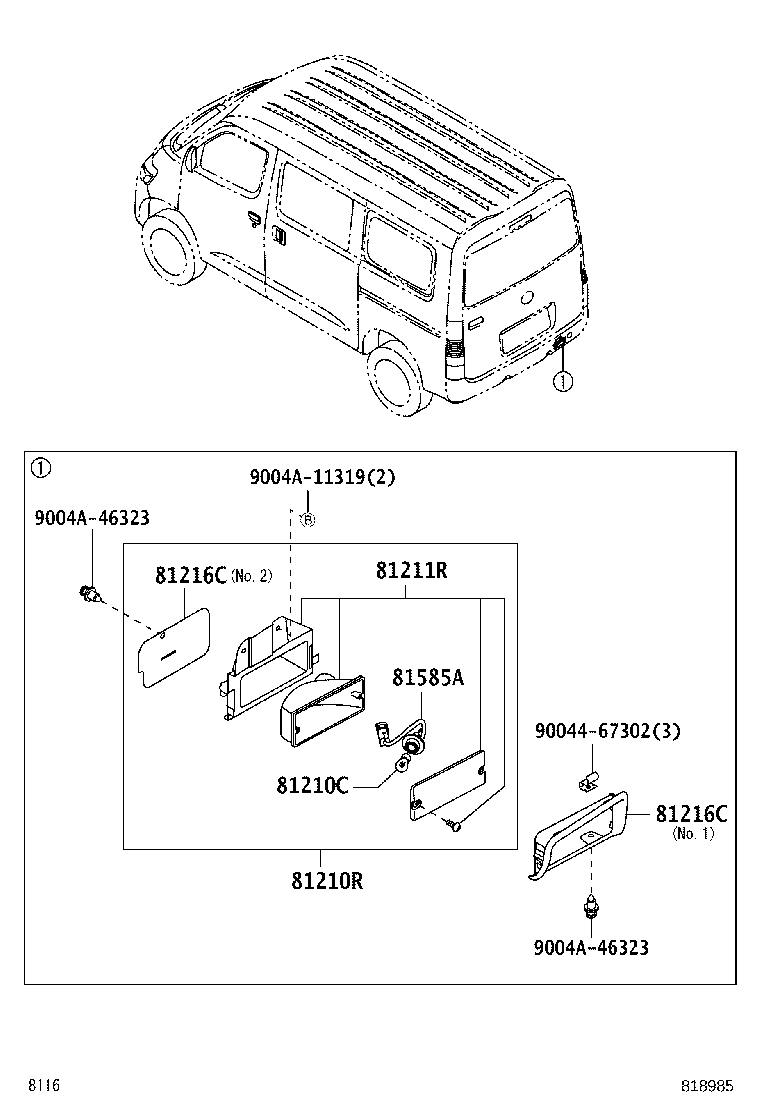

818985 2019-03 → —

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81210R	Lamp Assy, Rear Fog
81211R	Lens, Rear Fog Lamp
81216C	Rim, Rear Fog Lamp, RH, NO.1
81585A	Socket & Wire, Rear Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
