Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10
Switch & Relay & Computer
81 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |

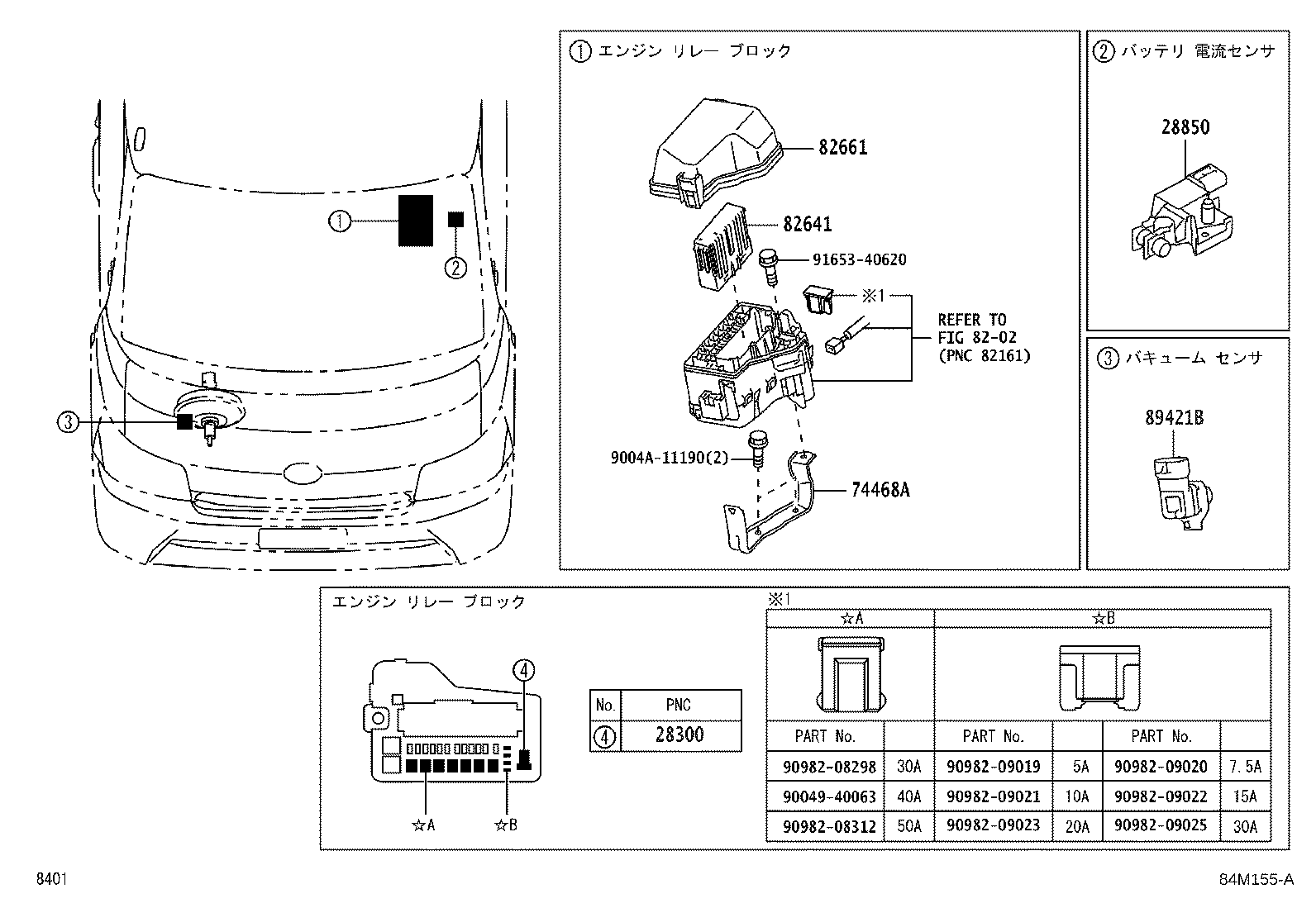

| 28850 | Sensor Assy, Battery Current |
| 74468A | Bracket, Relay Block |
| 74468B | Bracket, Relay Block, NO.2 |
| 81713 | Holder, Fusee |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |

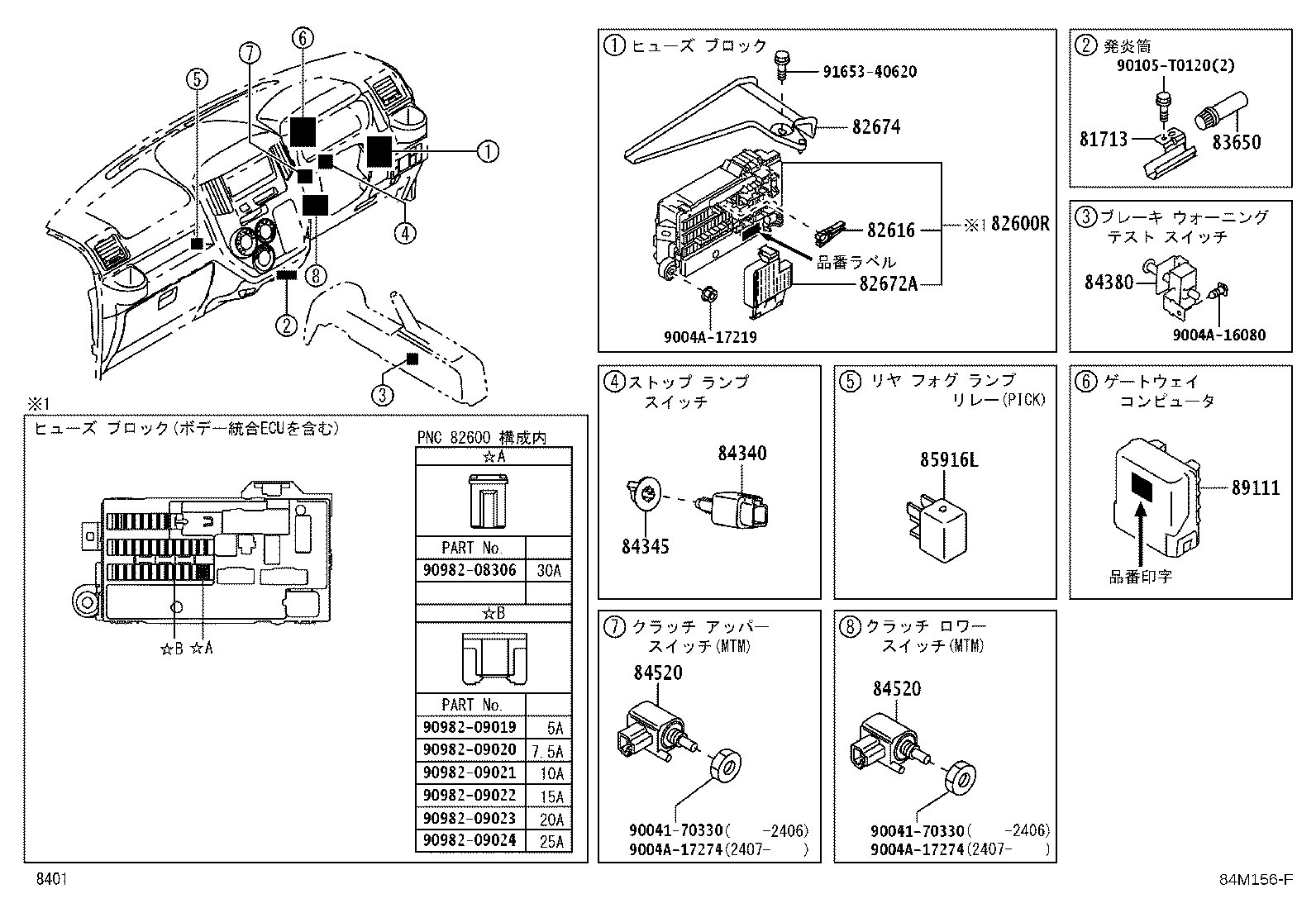

| 82600R | Block Assy, Fuse W/Main Body Computer |
| 82616 | Puller, Fuse |
| 82618 | Fuse, Fuse Block |
| 82641 | Relay, Integration NO.1 |

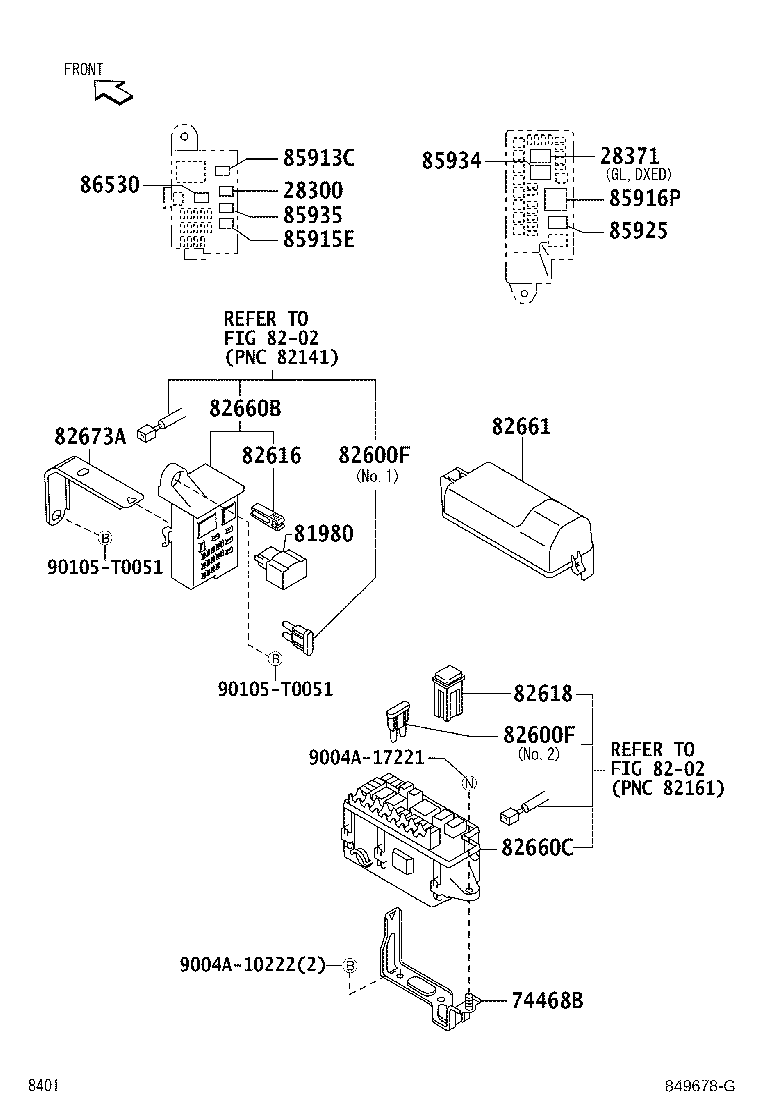

| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82674 | Cover, Junction Block Lower |

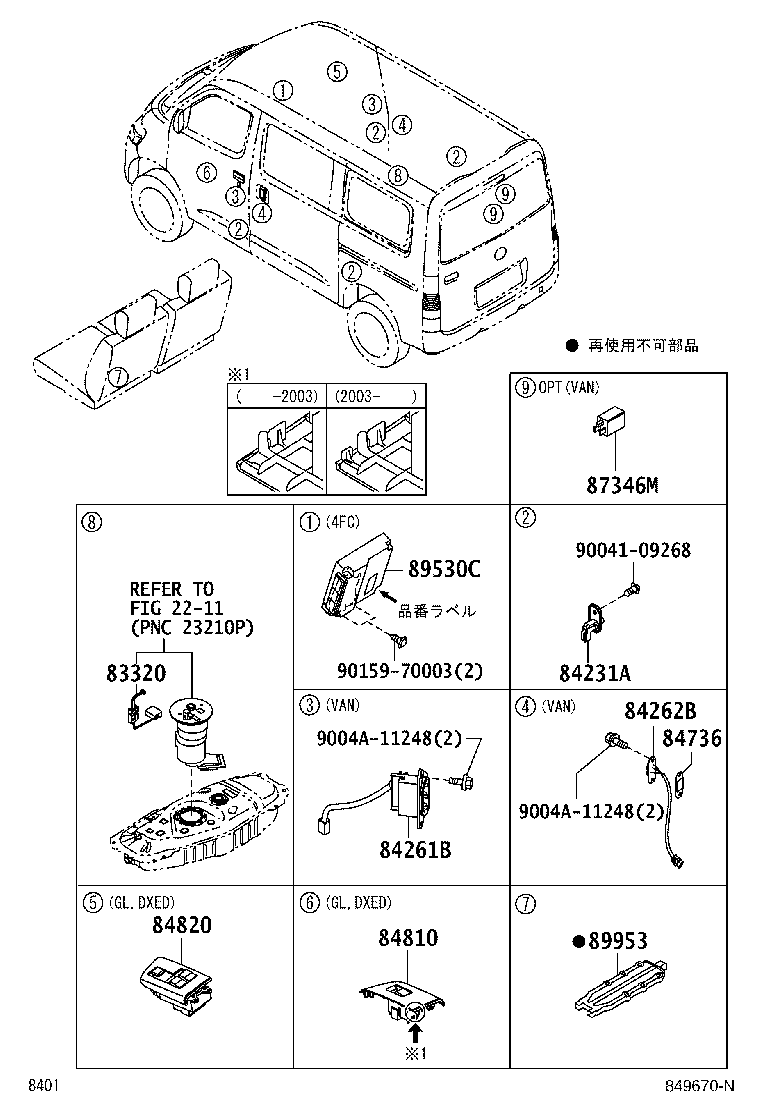

| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84119G | Blub |

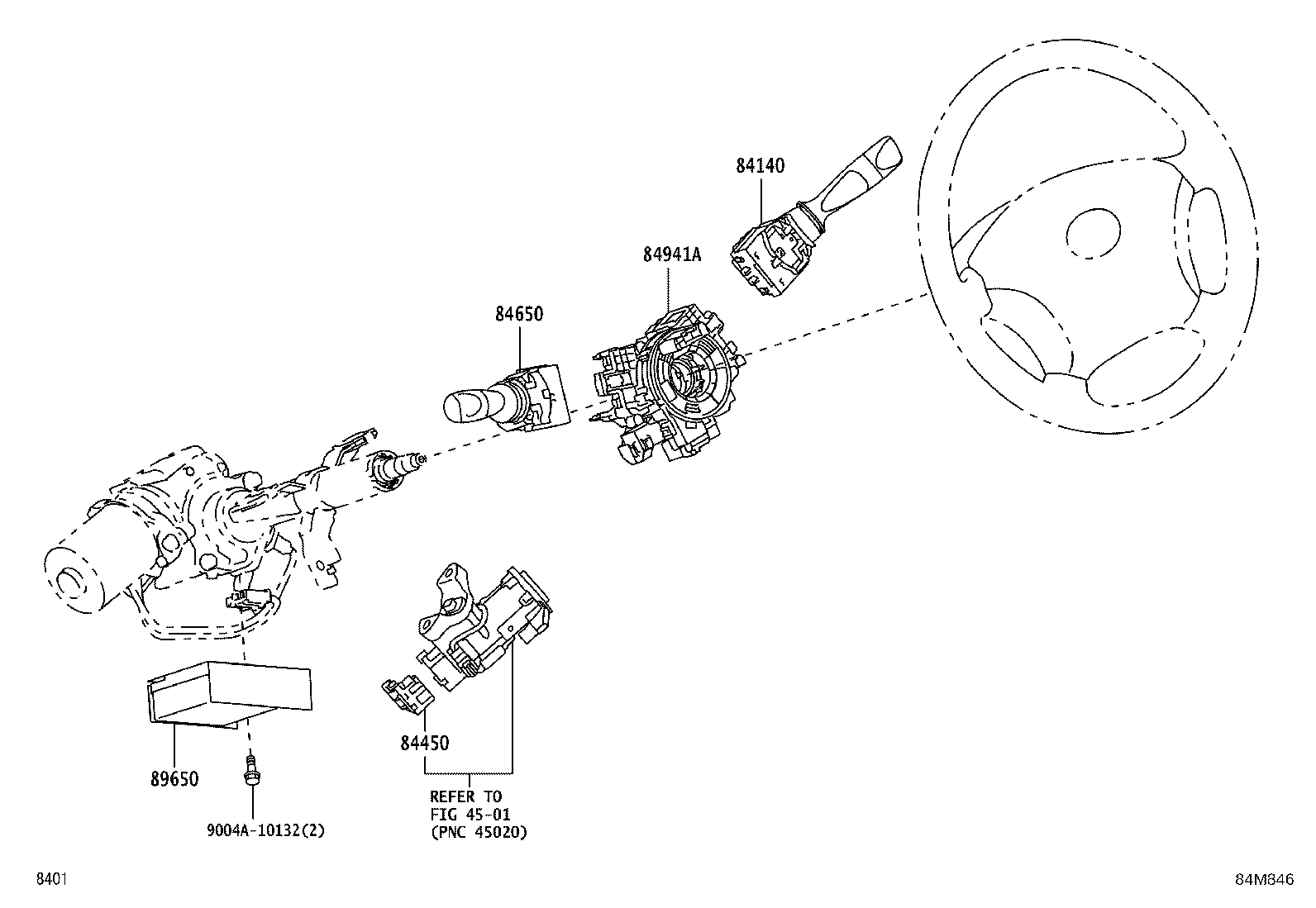

| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84210B | Gasket, Back-up Lamp Switch |
| 84231A | Switch, Courtesy Lamp |
| 84261B | Junction, Slide Door Control,Male |
| 84262B | Junction, Slide Door Control, Female |
| 84306 | Cable Sub-assy, Spiral |

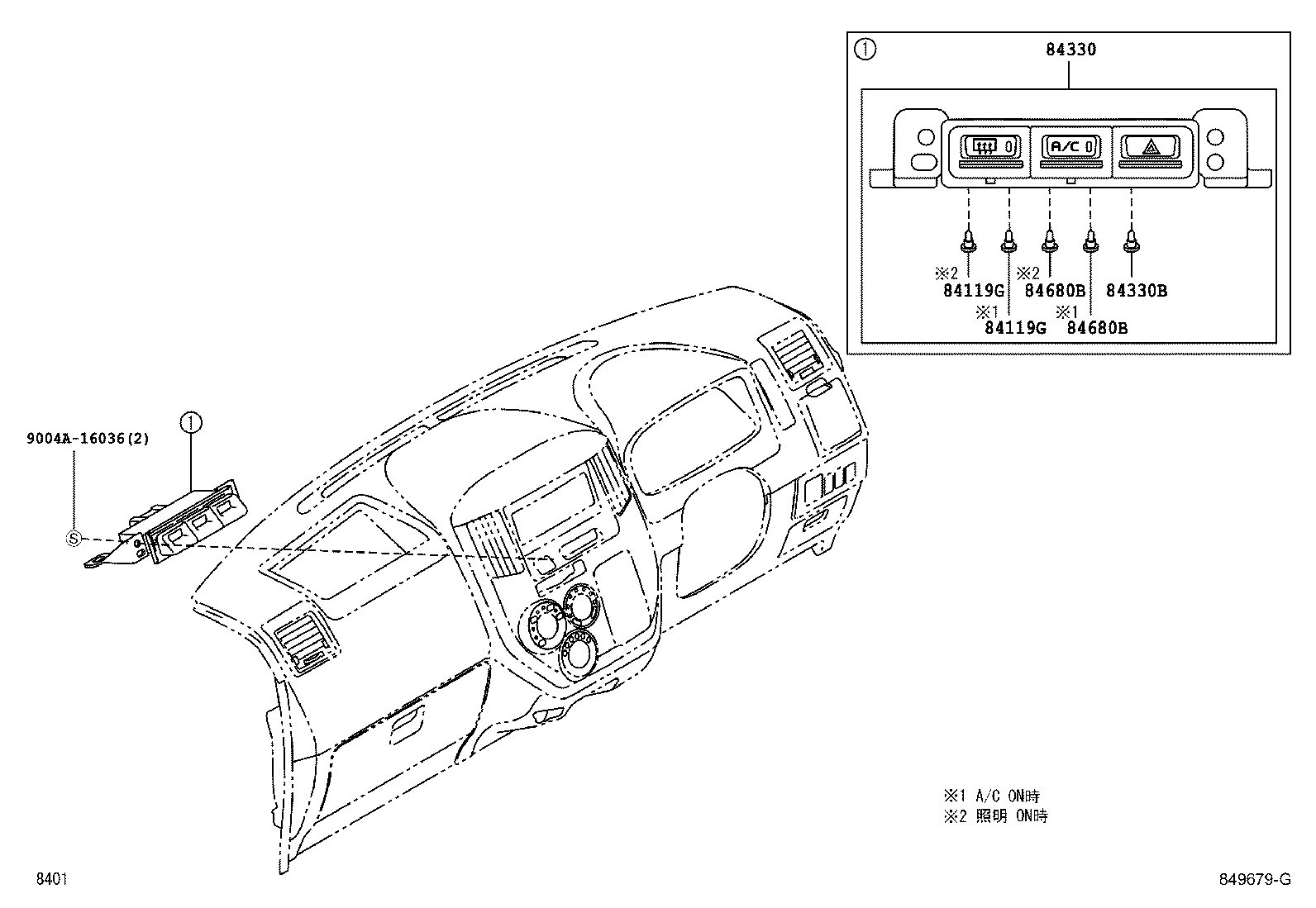

| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84470A | Switch Assy, Ecorun Cancel |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84545 | Switch, Neutral Position |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84680B | Bulb |
| 84725A | Switch, Differential Lock |
| 84725B | Blub, Differential Lock Switch |

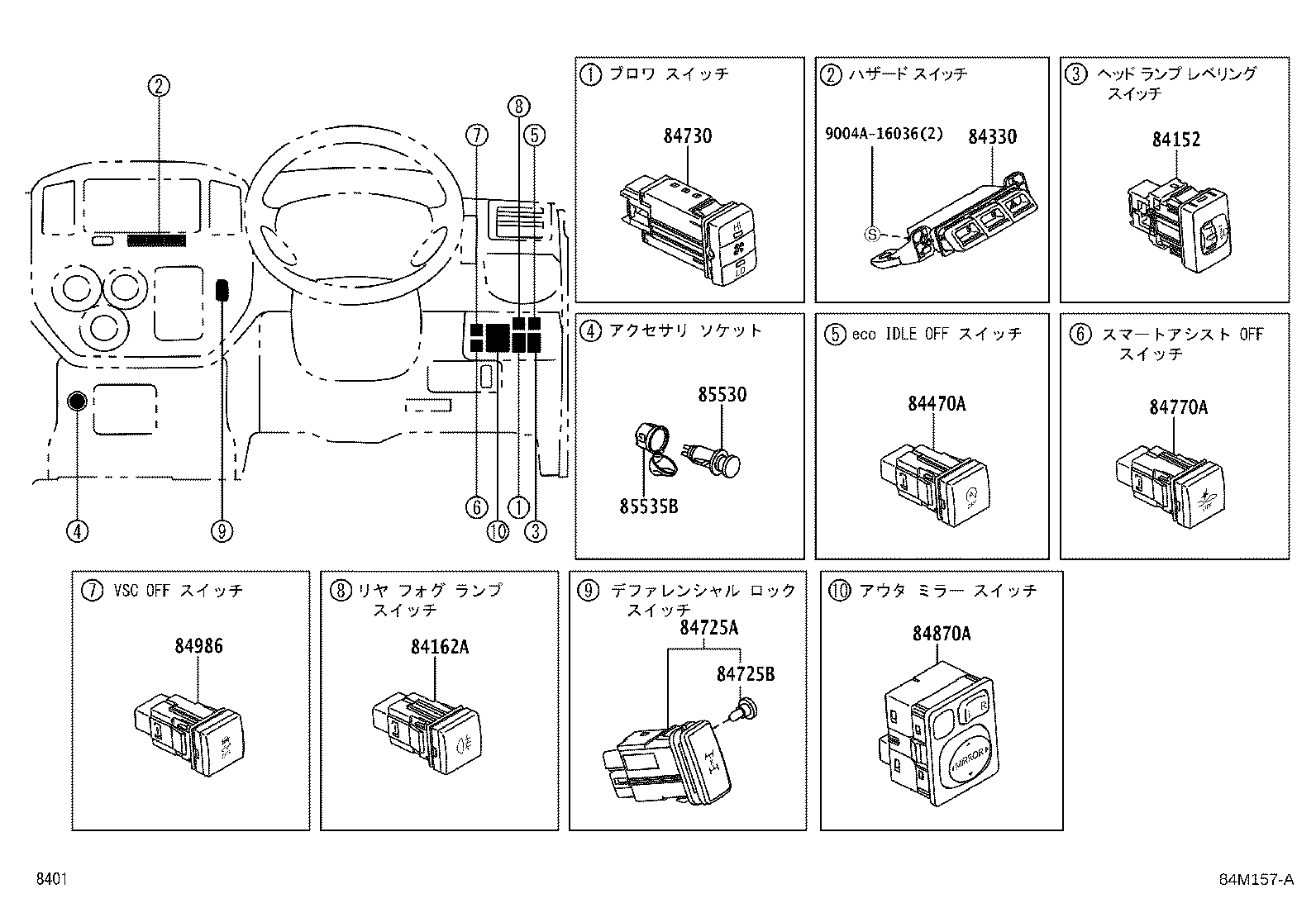

| 84730 | Switch Assy, Heater Blower |
| 84730S | Bulb, Heater Blower Switch |
| 84736 | Spacer, Heater Blower Switch |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84941A | Base, Switch |
| 84986 | Switch, Vehicle Stability Control |
| 85500 | Lighter Assy, Cigarette |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85913C | Relay, Heater, NO.1 |
| 85915E | Relay |
| 85916L | Relay, Rear Fog Lamp |
| 85916P | Relay, Headlamp |
| 85918A | Relay, Door Control |
| 85925 | Relay, Radiator Fan |
| 85934 | Relay, Magnet-clutch |
| 85935 | Relay, Fuel Pump |
| 86530 | Relay Assy, Horn |
| 87346M | Relay, Rear Heater |
| 89111 | Computer, Network Gateway |
| 89421B | Sensor, Vacuum |
| 89422A | Sensor, Water Temperature |
| 89439 | Bracket, Sensor |

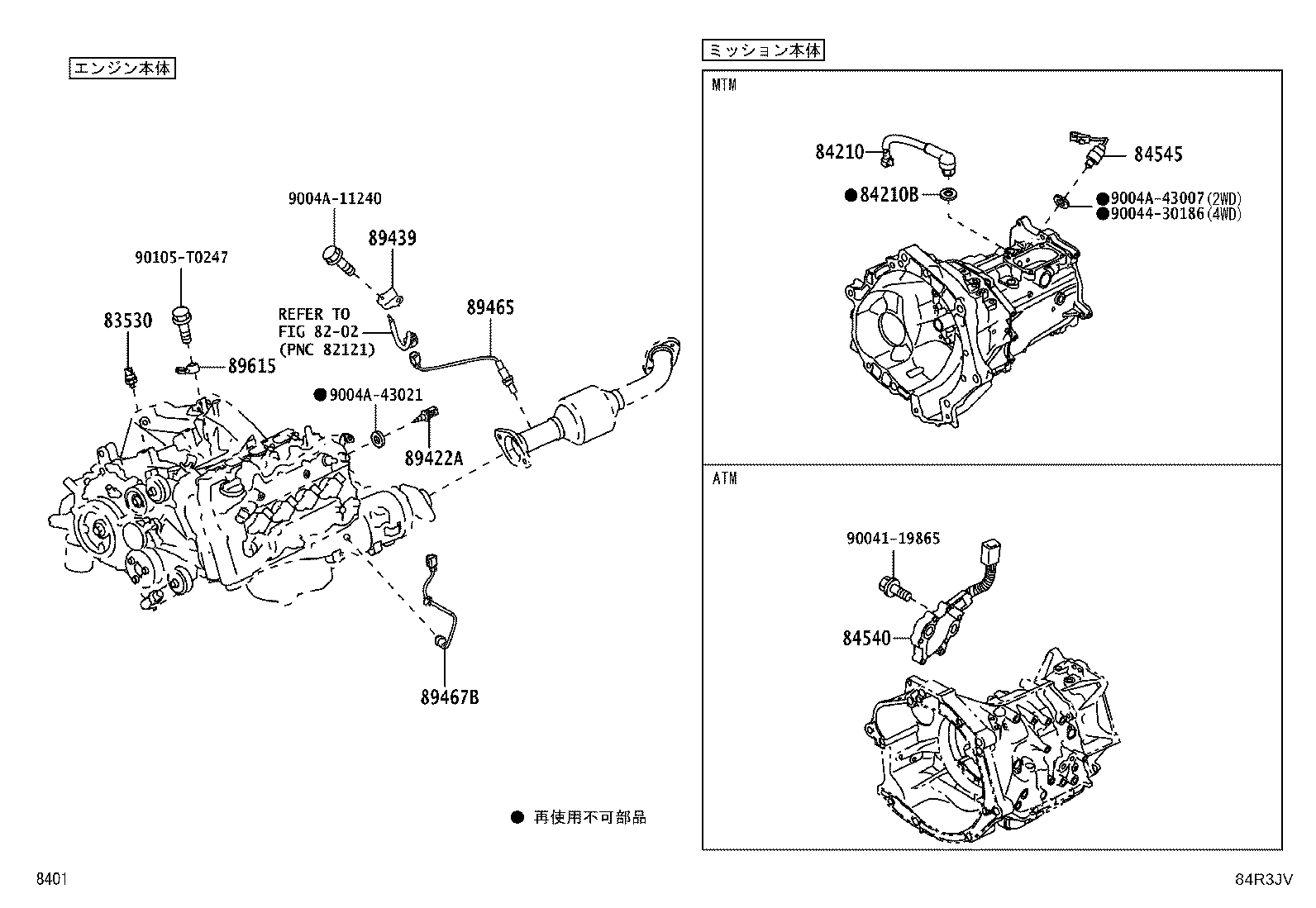

| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89530C | Computer Assy, Transmission Control |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89953 | Sensor, Belt Warning Occupant Detection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
