Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 4 illustrations

Illustrations

Figure 849654K

849654K 2008-01 → 2020-07

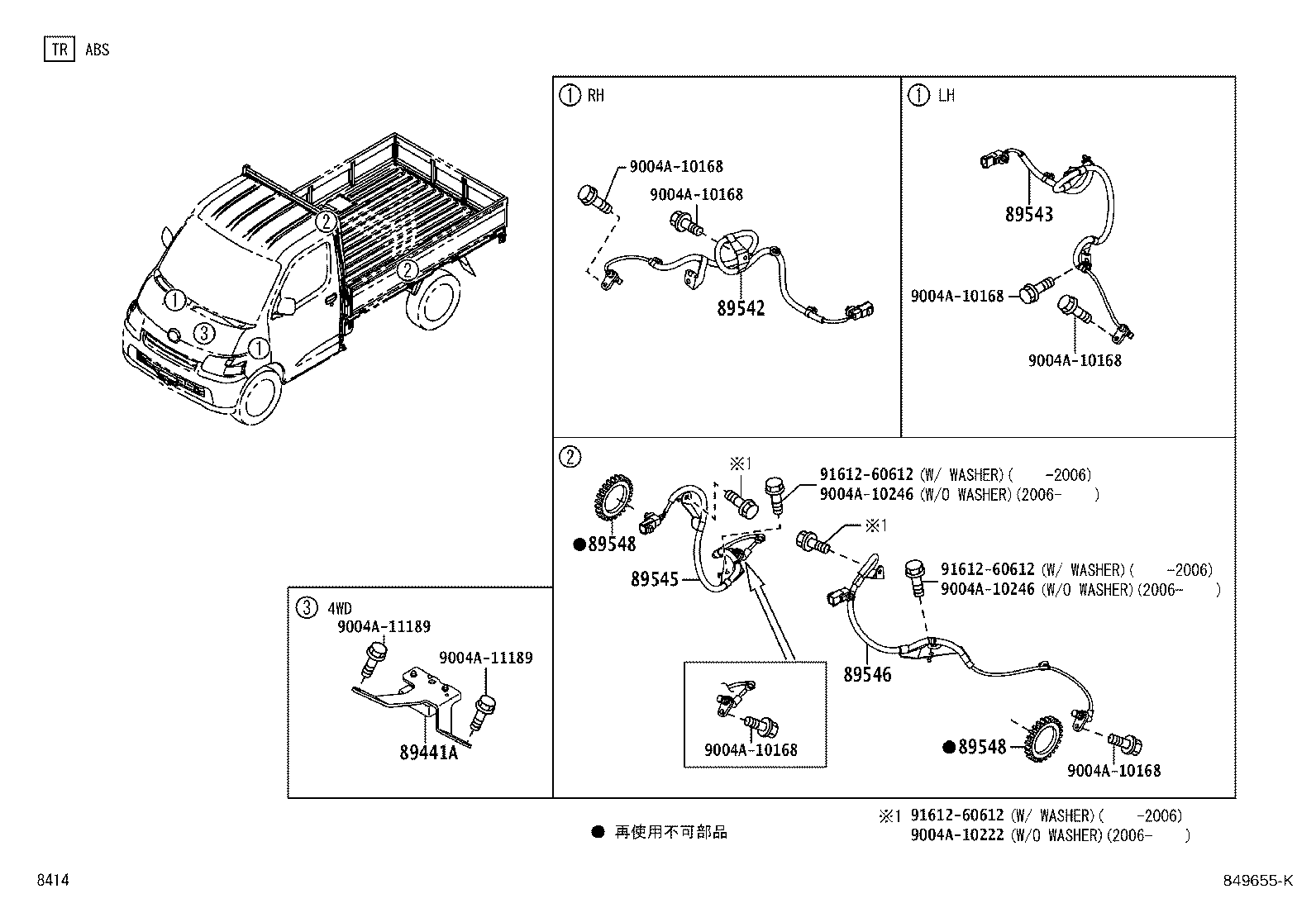

Figure 849655K

849655K 2008-01 → 2020-07

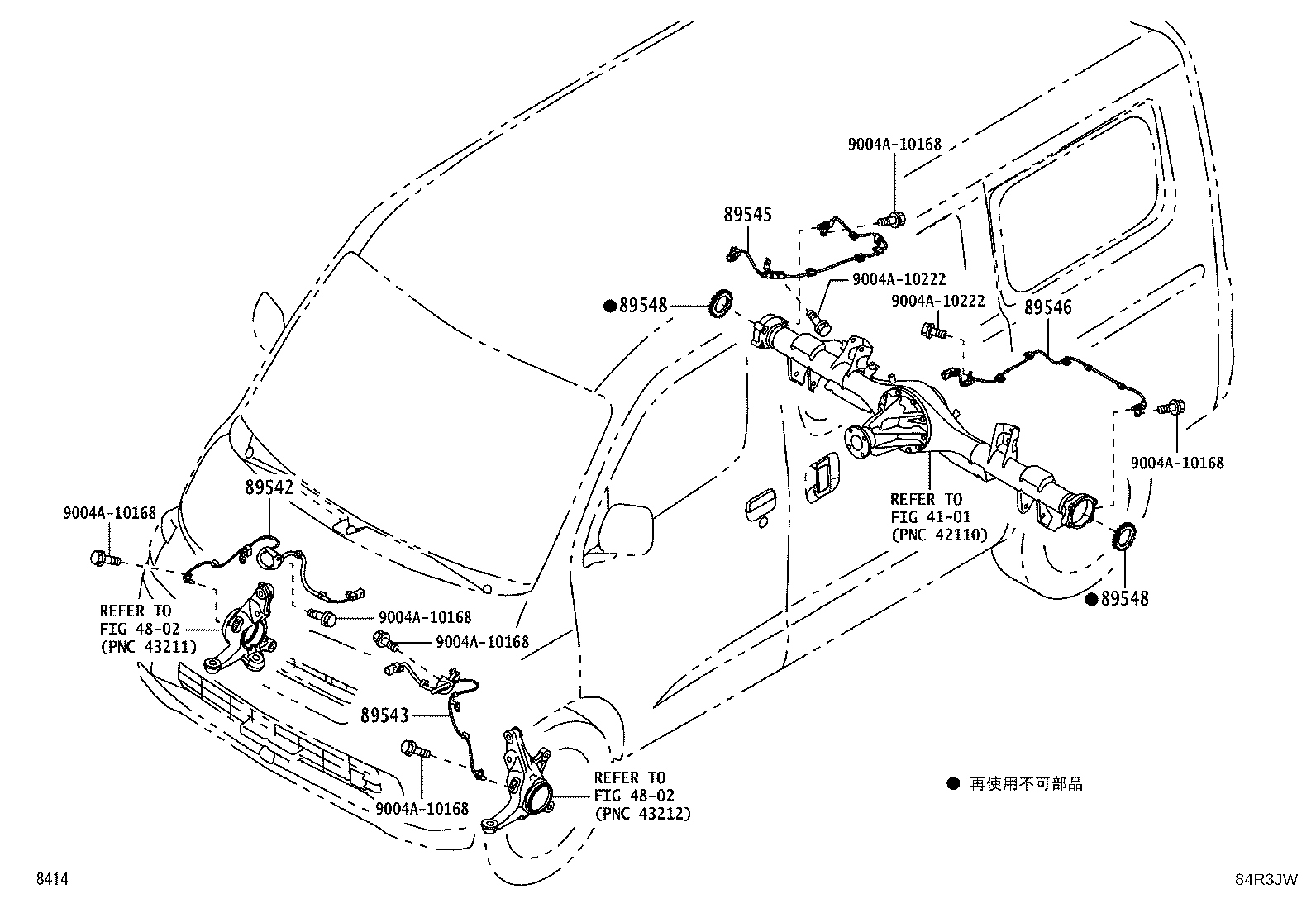

Figure 84R3JW

84R3JW 2020-07 → —

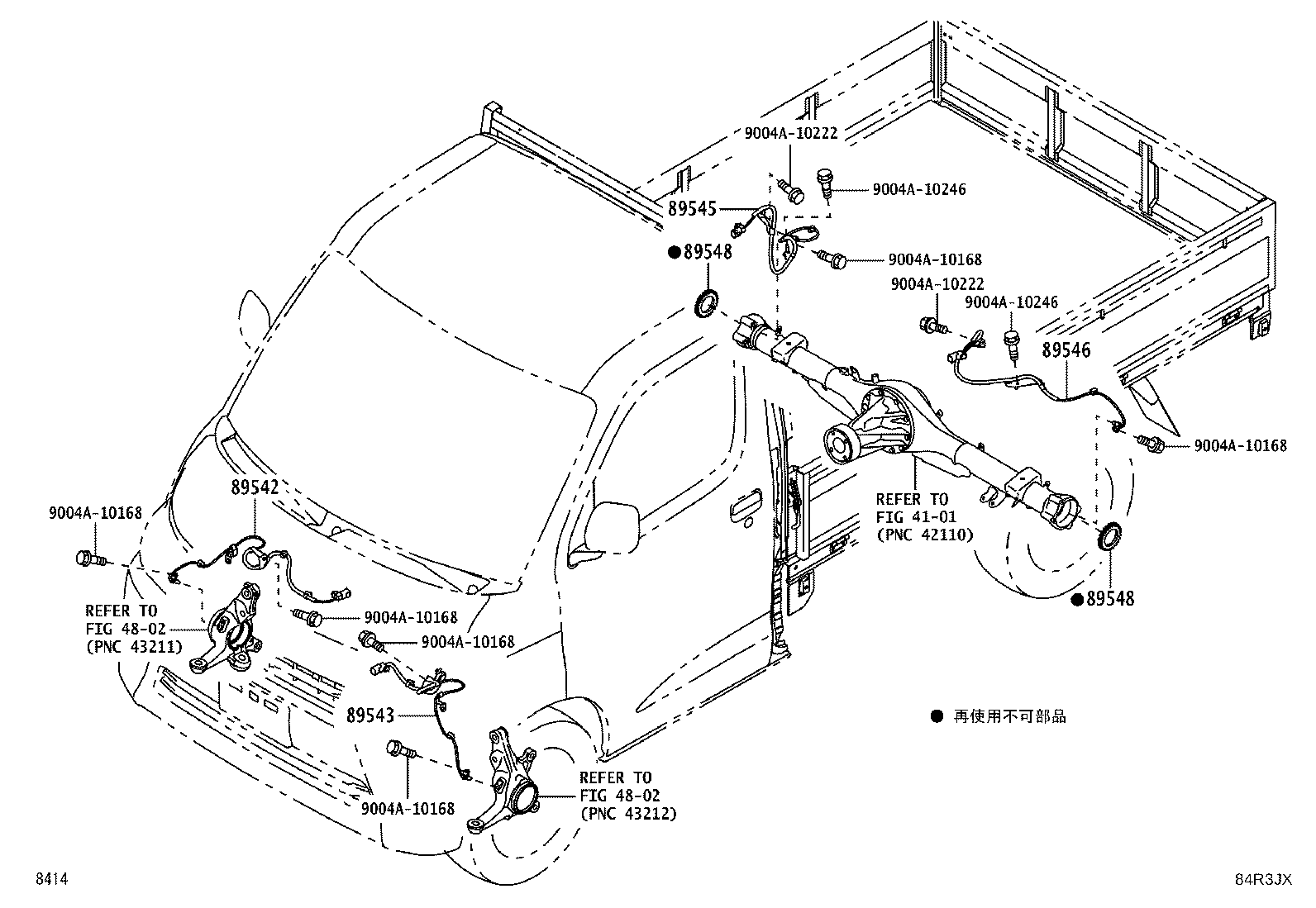

Figure 84R3JX

84R3JX 2020-07 → —

Part groups

PNC	Description
89441A	Sensor, Deceleration
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89548	Rotor, Skid Control Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
