Factory parts data · Europe

Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

4 part groups · 2 illustrations

Illustrations

Figure 849657E

849657E 2008-01 → —

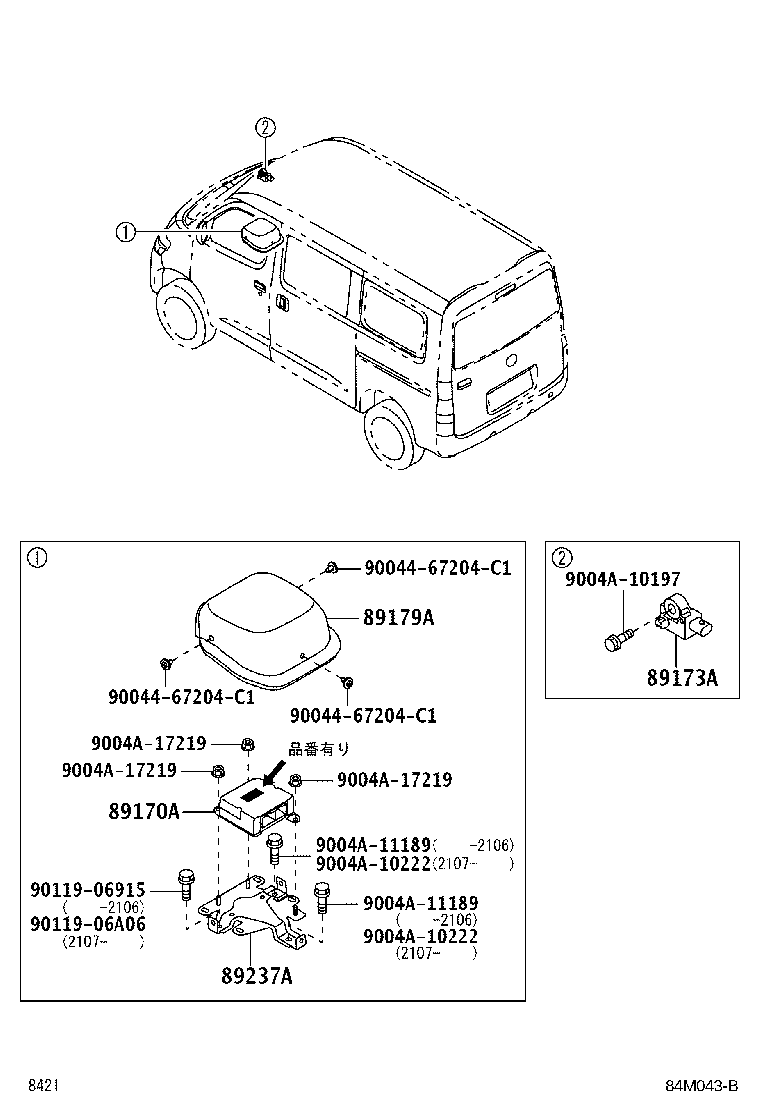

Figure 84M043B

84M043B 2020-07 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173A	Sensor, Airbag, Front RH
89179A	Cover, Airbag Sensor
89237A	Bracket, Computer Unit

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
