Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

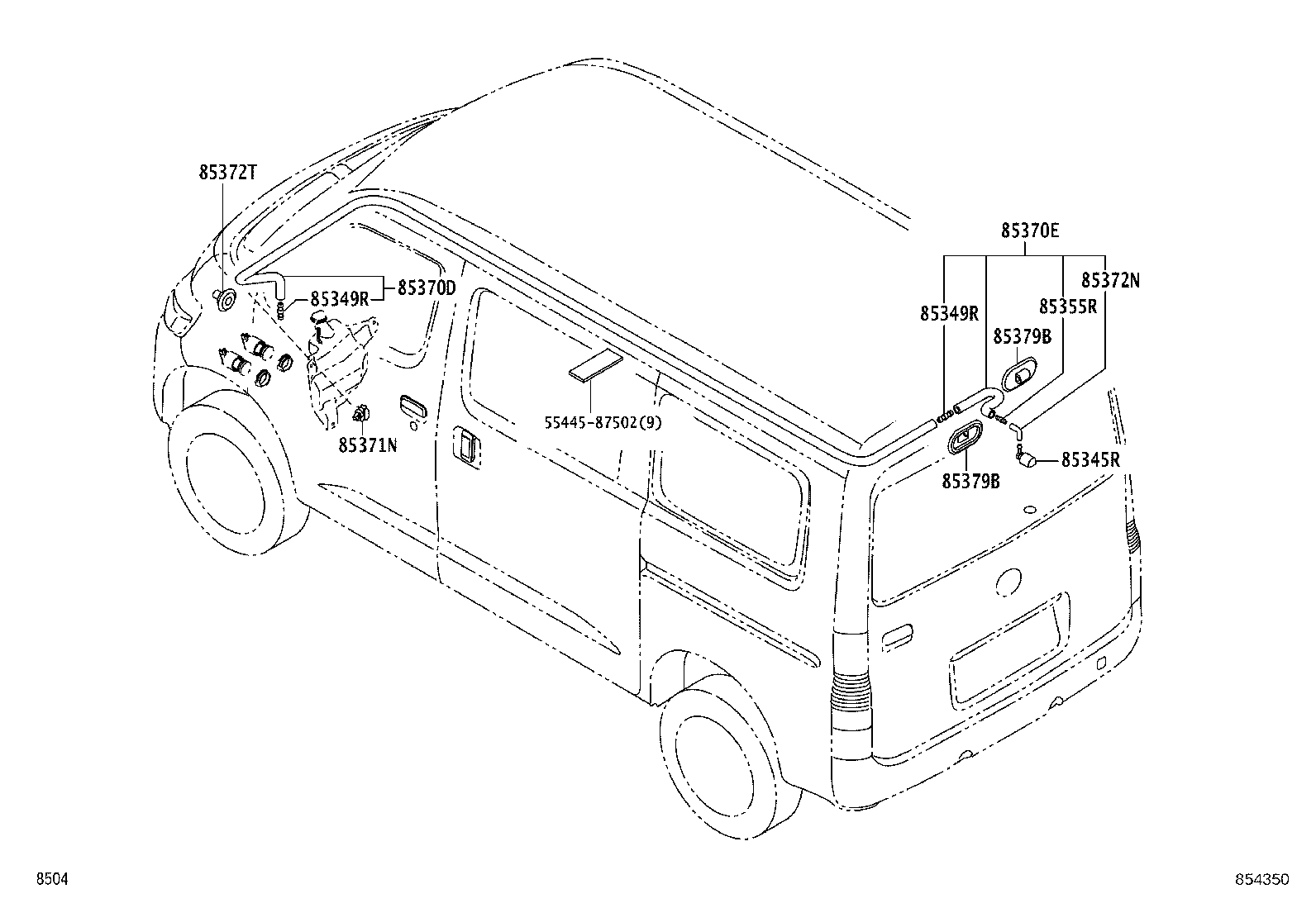

Rear Washer
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85345R | Nozzle, Rear Washer |
| 85349R | Joint, Rear Washer Hose, NO.5 |
| 85355R | Valve, Rear Washer Hose |
| 85370D | Hose Assy, Rear Washer, NO.1 |
| 85370E | Hose Assy, Rear Washer, NO.2 |
| 85371N | Clamp, Rear Washer Hose |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372T | Grommet, Washer |
| 85379B | Grommet, Washer, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
