Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

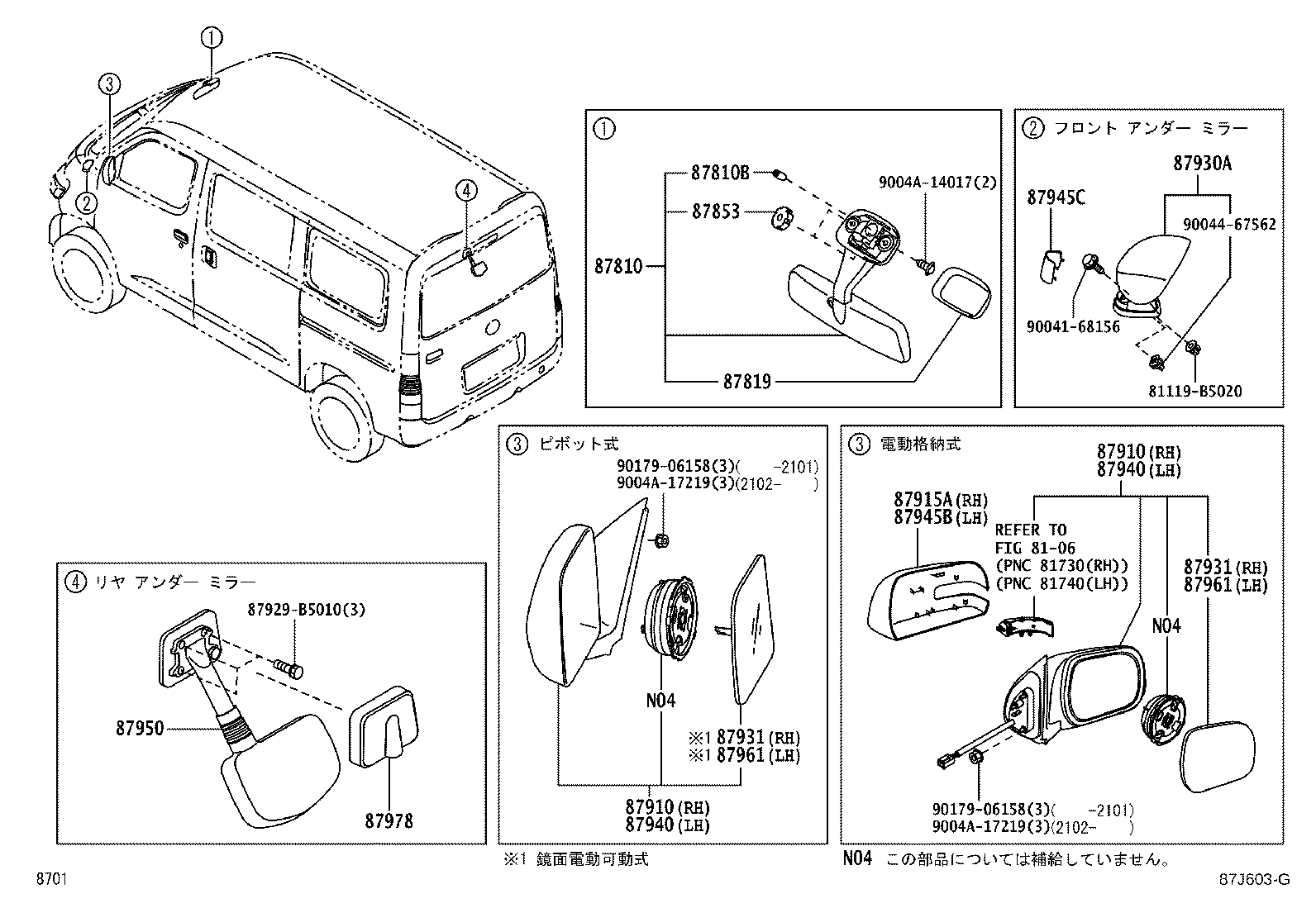

Mirror
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87819 | Lens, Inner RR View Mirror Room Lamp |
| 87827 | Absorber, Inner Rear View Mirror |
| 87853 | Base, Inner Rear View Mirror |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915A | Cover, Outer Mirror, RH |
| 87930A | Mirror Assy, Outer Under View |
| 87931 | Outer Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945B | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87961 | Mirror Outer, LH |
| 87978 | Cover, Outer Under Rear View Mirror, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
