Heating & Air Conditioning - Water Piping

13 part groups · 2 illustrations

Illustrations

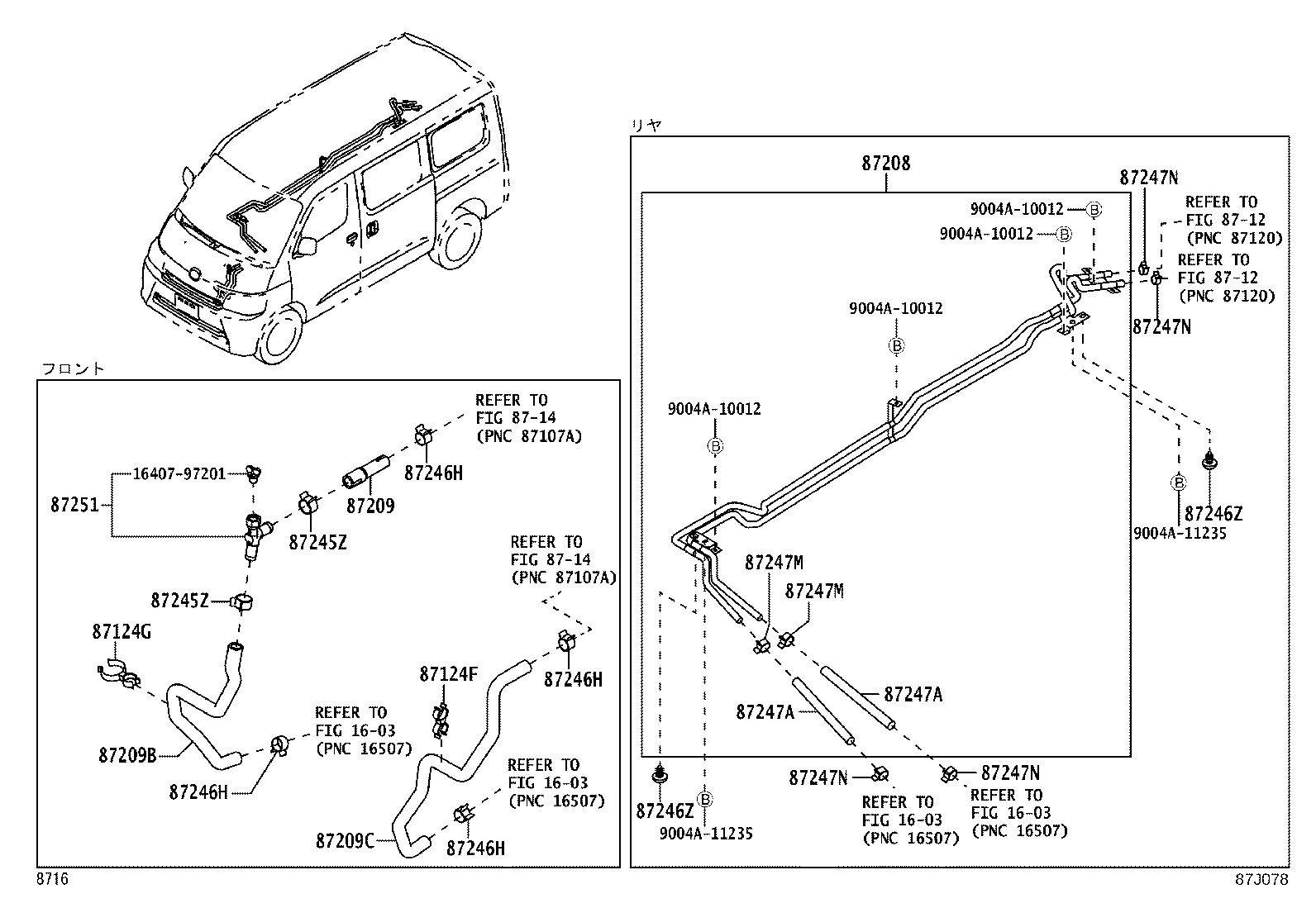

Figure 879972I 879972I 2008-01 → 2020-07 Figure 87J078 87J078 2020-07 → —

Part groups

PNCDescription
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87246Z Clip
87247A Hose, Heater Water, A
87247M Clip, Hose
87247N Clip, Hose
87251 Joint OR Union, Water Hose Through
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
