Heating & Air Conditioning - Cooler Piping

33 part groups · 3 illustrations

Illustrations

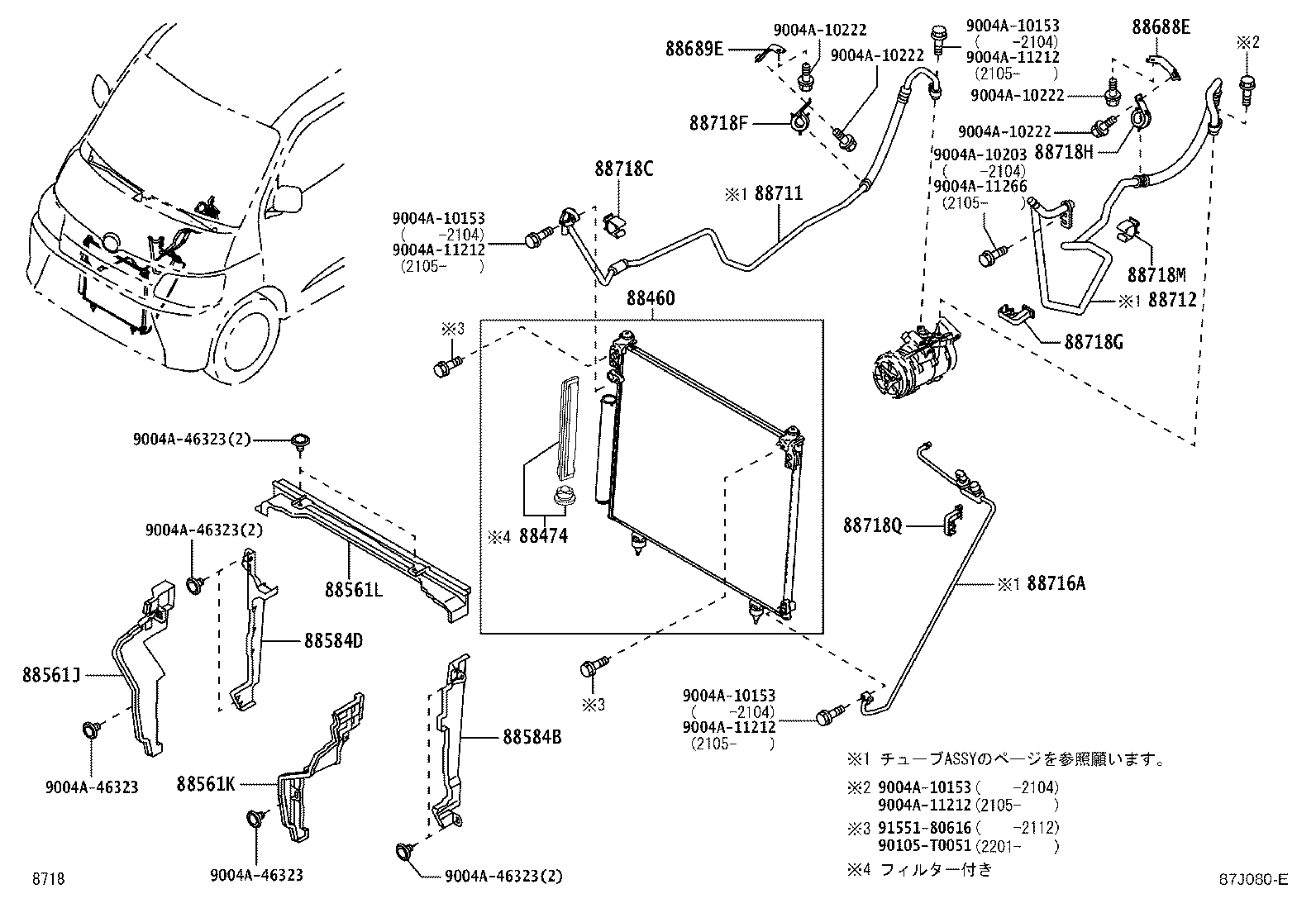

Figure 879979M 879979M 2008-01 → 2020-07 Figure 87J080E 87J080E 2020-07 → — Figure 87M4FR 87M4FR 2020-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88463B Bracket, Cooler Condenser, NO.3
88474 Dryer, Cooler
88561D Grille, Air Inlet NO.3
88561J Grille, Air Inlet NO.1
88561K Grille, Air Inlet NO.2
88561L Grille, Air Inlet NO.4
88584B Guide, Cooler Air
88584D Guide, Cooler Air
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88689E Bracket, Cooler, NO.1
88706G Ring, O(FOR LIQUID TUBE)
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88714B Ring, O(FOR COOLER REFRIGERANT LIQUID HOSE)
88716A Pipe, Cooler Refrigerant Liquid, A
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718H Clamp, NO.3(FOR COOLER REFRIGERANT HOSE)
88718M Clamp, Piping
88718Q Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
