Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

16 part groups · 5 illustrations

Illustrations

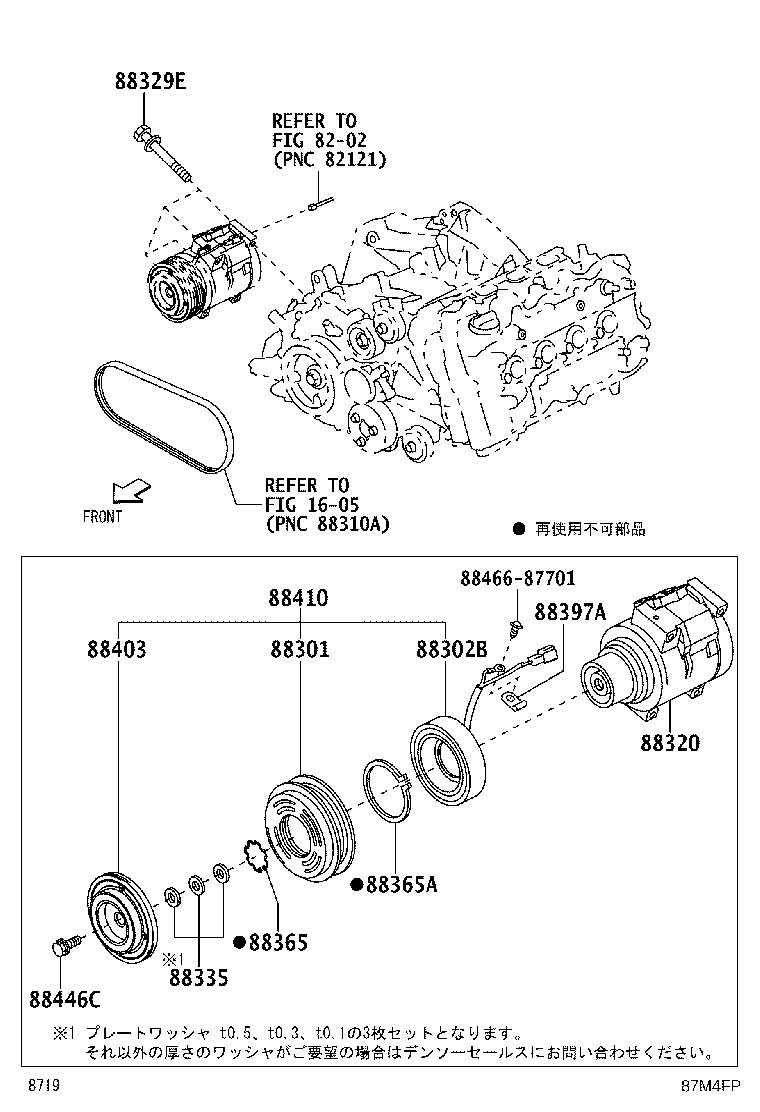

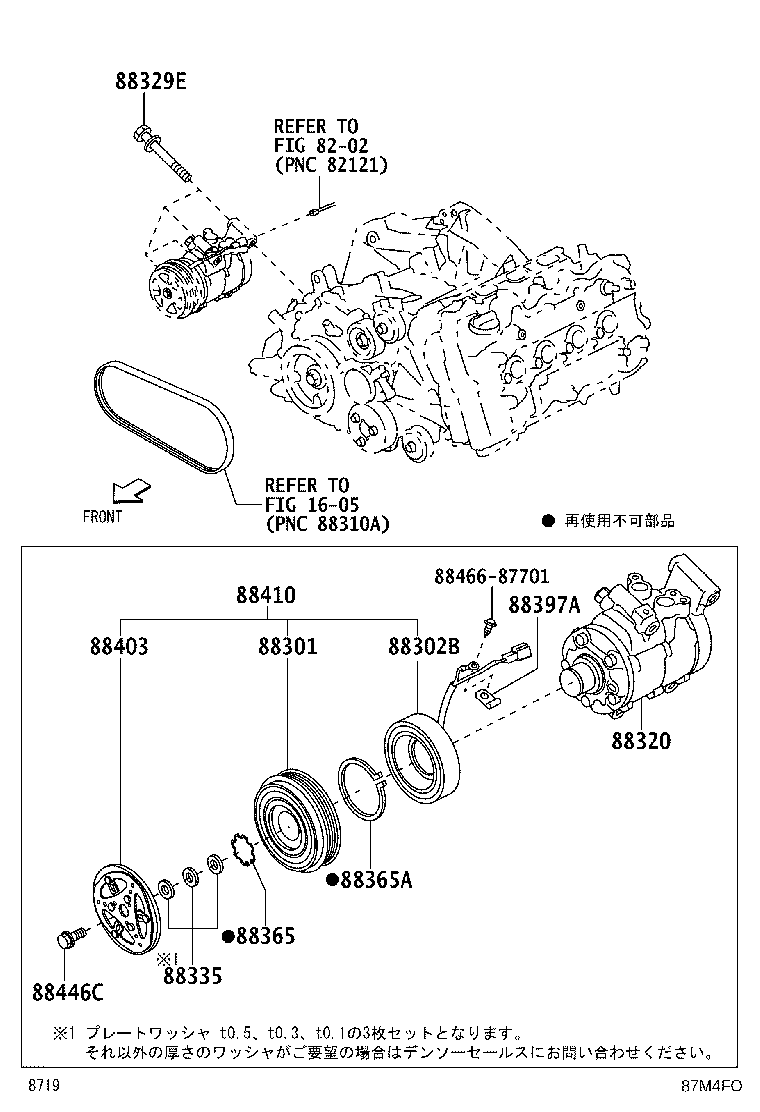

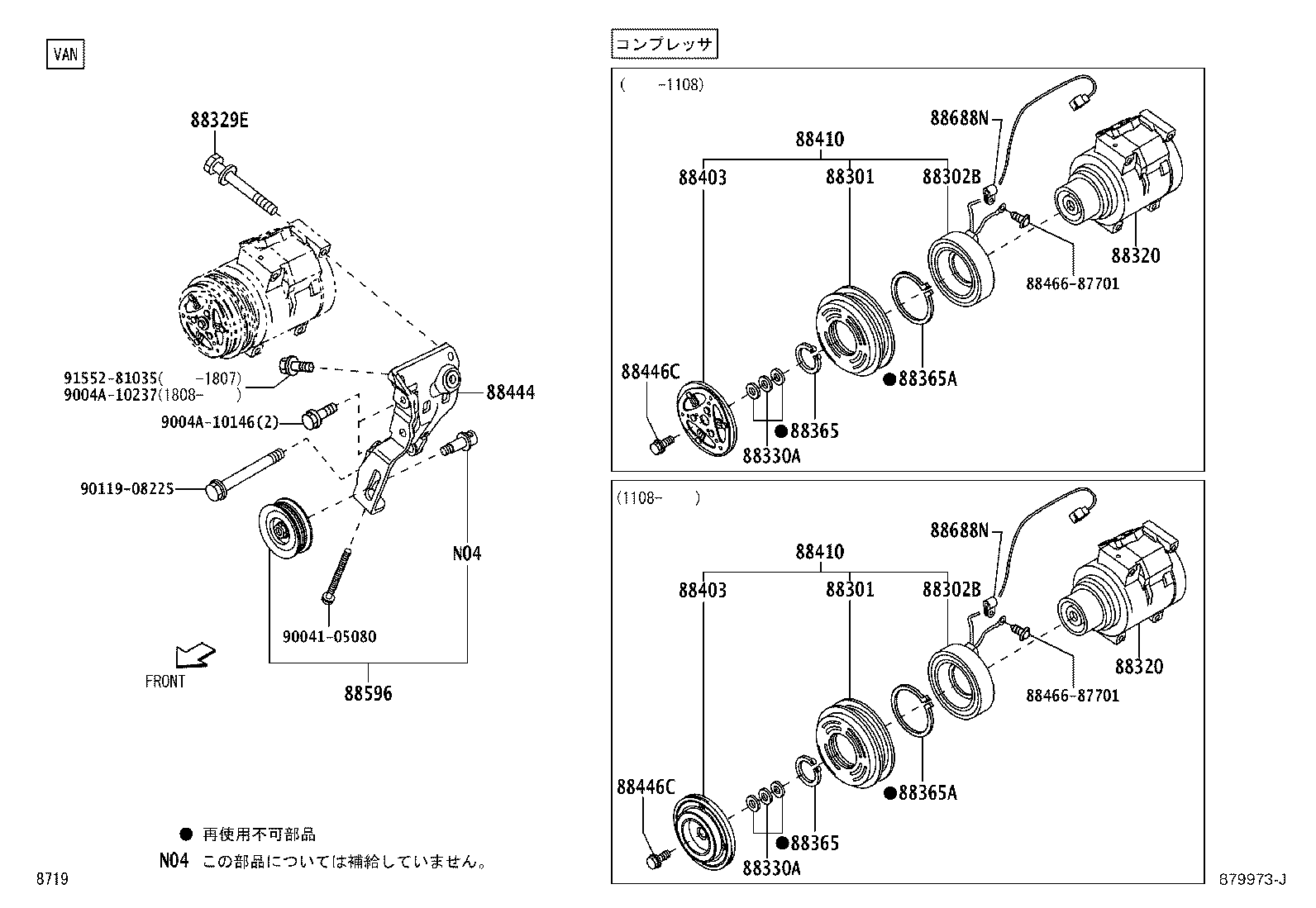

Figure 879974I 879974I 2008-01 → 2020-07 Figure 879973J 879973J 2008-01 → 2020-07 Figure 87M4FO 87M4FO 2020-07 → — Figure 87M4FP 87M4FP 2020-07 → — Figure 87M4FP 87M4FP 2020-10 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302B Stator, Magnet Clutch
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88365 Ring, Snap
88365A Ring, Snap (FOR COMPRESSOR)
88397A Clip, Compressor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88432A Attachment, Compressor
88444 Bracket, Idle Pulley
88446C Bolt, Magnet Clutch Setting
88596 Pulley Assy, Idle, NO.2
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
