Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

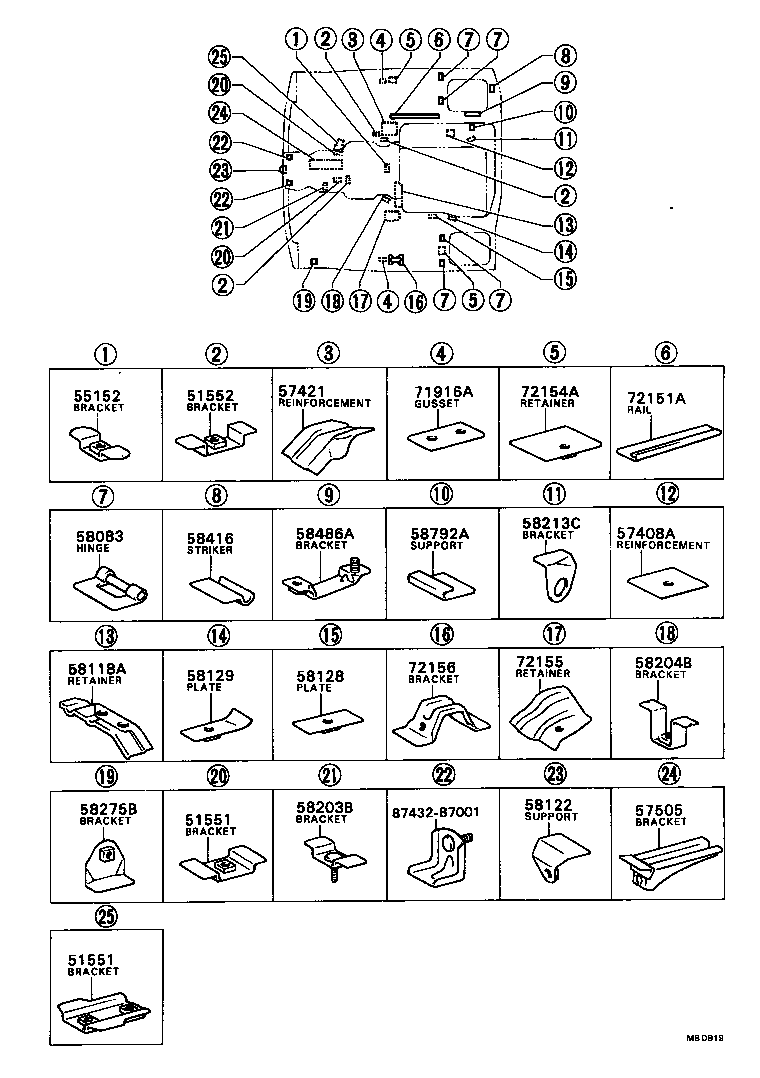

Exploded illustration MBD919 57421 — REINFORCEMENT, FRONT FLOOR, NO.1 (1 parts) 71916A — GUSSET, CATCH CENTER SEAT (2 parts) 72154A — RETAINER, SEAT TRUCK, NO.2 (1 parts) 55152 — BRACKET, 3 WAY ATTACHING (1 parts) 51552 — BRACKET, TUBE CLAMP, NO.2 (2 parts) 72151A — RAIL, SEAT TRUCK, LOWER RH (1 parts) 58213C — BRACKET, ACCELERATOR WIRE (1 parts) 57408A — REINFORCEMENT SUB-ASSY, SAFETY BAND ANCHORAGE (1 parts) 58486A — BRACKET, VACUUM SWITCHING VALVE (1 parts) 58792A — SUPPORT, JACK HOLDER, NO.2 (1 parts) 58083 — HINGE SUB-ASSY, BATTERY SERVICE COVER, MALE (1 parts) 58416 — STRIKER, BATTERY SERVICE HOLE COVER, LOCK (1 parts) 72155 — RETAINER, SEAT SET (1 parts) 58204B — BRACKET SUB-ASSY,HEATER HOSE CLAMP, NO.2 (1 parts) 72156 — BRACKET, FRONT SEAT, LH UNDER (1 parts) 58118A — RETAINER, ENGINE SERVICE HOLE (1 parts) 58129 — PLATE, FRONT FLOOR, NO.2 (1 parts) 58128 — PLATE, FRONT FLOOR, NO.1 (1 parts) 58122 — SUPPORT, FRONT PANEL LOWER SEAT (1 parts) 58203B — BRACKET SUB-ASSY, HEATER HOSE CLAMP, NO.1 (1 parts) 58275B — BRACKET, AIR CLEANER, REAR (1 parts) 57505 — BRACKET SUB-ASSY, PARKING BRAKE, NO.1 (1 parts) 8743287001 — not listed in this catalogue 51551 — BRACKET, TUBE CLAMP, NO.1 (2 parts) 51551 — BRACKET, TUBE CLAMP, NO.1 (2 parts)
MBD919 · 24 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
51551 — Bracket, Tube Clamp, NO.1
51551-87001 Bracket, Tube Clamp, NO.1
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX —
51551-87002 Bracket, Tube Clamp, NO.1
1982-02 → 1982-10 ended
TR15 3FC,5F —
51552 — Bracket, Tube Clamp, NO.2
51552-87001 Bracket, Tube Clamp, NO.2
1982-02 → 1982-10 ended
KR12 —
51552-87001 Bracket, Tube Clamp, NO.2
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE —
55152 — Bracket, 3 Way Attaching
55152-87701 Bracket, 3 Way Attaching
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE ¥640
57408A — Reinforcement Sub-assy, Safety Band Anchorage
57408-95400 Reinforcement Sub-assy, Safety Band Anchorage
1982-02 → 1982-10 ended
KR12 —
57421 — Reinforcement, Front Floor, NO.1
57421-87001 Reinforcement, Front Floor, NO.1
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX —
57505 — Bracket Sub-assy, Parking Brake, NO.1
57505-87001 Bracket Sub-assy, Parking Brake, NO.1
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX —
58083 — Hinge Sub-assy, Battery Service Cover, Male
58083-87001 Hinge Sub-assy, Battery Service Cover, Male
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX ¥680
58118A — Retainer, Engine Service Hole
58118-87001 Retainer, Engine Service Hole
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE —
58122 — Support, Front Panel Lower Seat
58122-87001 Support, Front Panel Lower Seat
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX —
58128 — Plate, Front Floor, NO.1
58128-87001 Plate, Front Floor, NO.1
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE —
58129 — Plate, Front Floor, NO.2
58129-87001 Plate, Front Floor, NO.2
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE —
58203B — Bracket Sub-assy, Heater Hose Clamp, NO.1
58203-87001 Bracket Sub-assy, Heater Hose Clamp, NO.1
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX —
58204B — Bracket Sub-assy,Heater Hose Clamp, NO.2
58204-95700 Bracket Sub-assy,Heater Hose Clamp, NO.2
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX —
58213C — Bracket, Accelerator Wire
58213-95700 Bracket, Accelerator Wire
1982-02 → 1982-10 ended
KR12 —
58275B — Bracket, Air Cleaner, Rear
58275-87501 Bracket, Air Cleaner, Rear
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX —
58416 — Striker, Battery Service Hole Cover, Lock
58416-95700 Striker, Battery Service Hole Cover, Lock
1982-02 → 1982-10 ended
KR12 —
58486A — Bracket, Vacuum Switching Valve
58486-87001 Bracket, Vacuum Switching Valve
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE —
58792A — Support, Jack Holder, NO.2
58792-87001 Support, Jack Holder, NO.2
1982-02 → 1982-10 ended
KR12 —
71916A — Gusset, Catch Center Seat
71916-87301 Gusset, Catch Center Seat
1982-02 → 1982-10 ended
KR12 —
71916-87301 Gusset, Catch Center Seat
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE —
72151A — Rail, Seat Truck, Lower RH
72151-95700 Rail, Seat Truck, Lower RH
1982-02 → 1982-10 ended
KR12 —
72154A — Retainer, Seat Truck, NO.2
72154-87001 Retainer, Seat Truck, NO.2
1982-02 → 1982-10 ended
TR11 5F;KR12,TR15;TR11 DLX —
72155 — Retainer, Seat Set
72155-87001 Retainer, Seat Set
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE —
72156 — Bracket, Front Seat, LH Under
72156-87001 Bracket, Front Seat, LH Under
1982-02 → 1982-10 ended
TR11 5F;TR1# CNP,CTM,DLX,GEX,STD,SUE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
