Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 6 illustrations

Illustrations

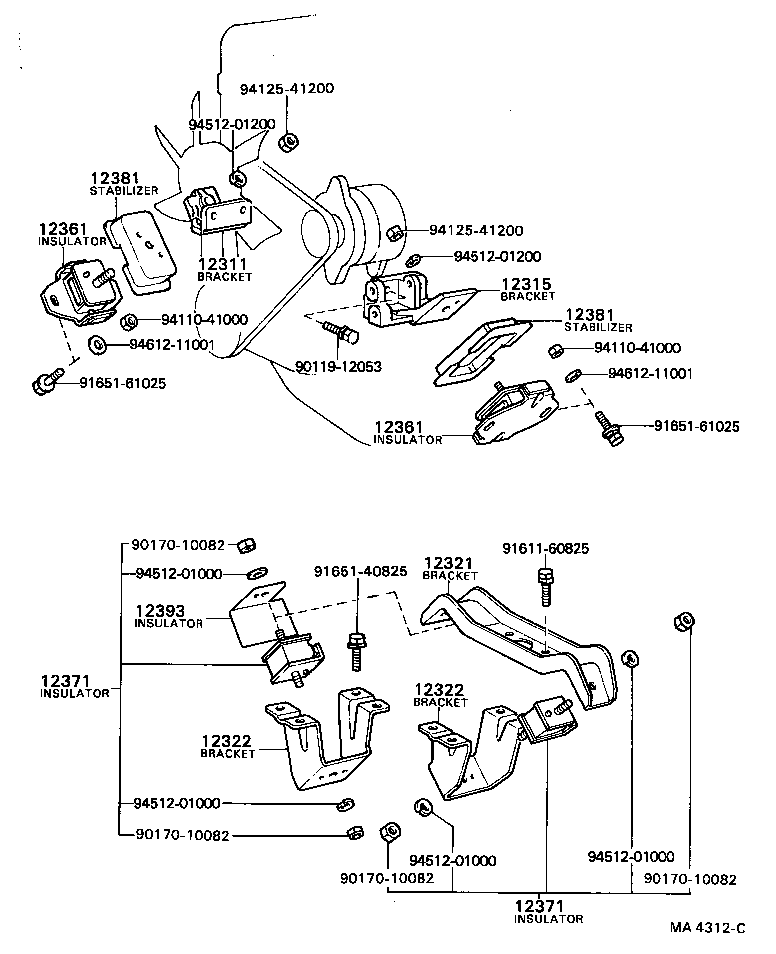

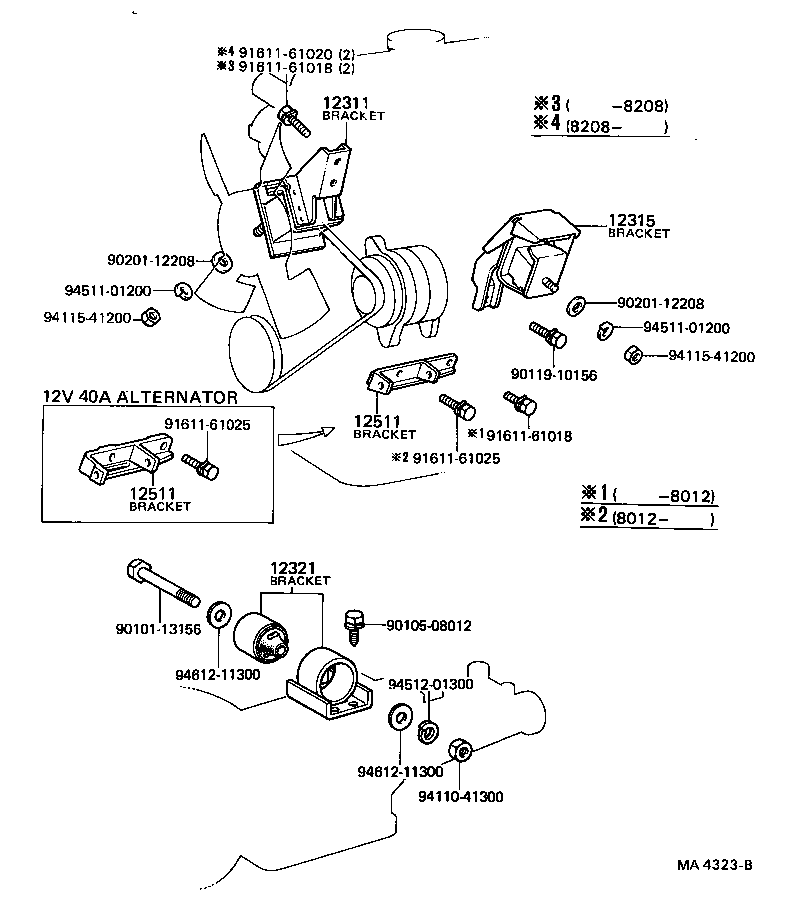

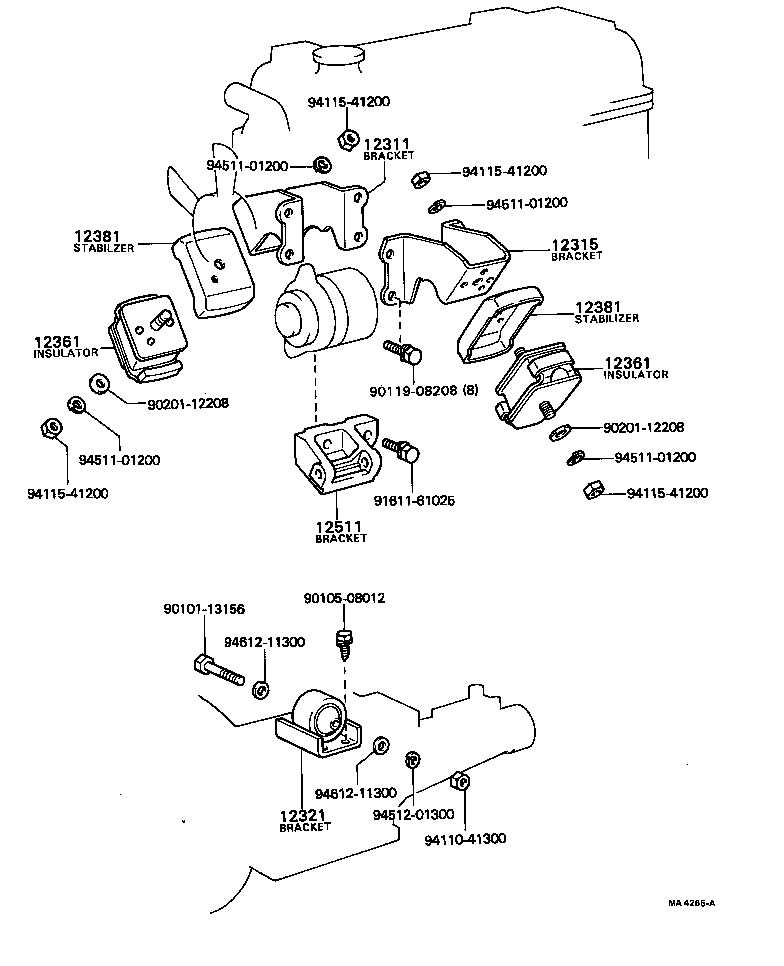

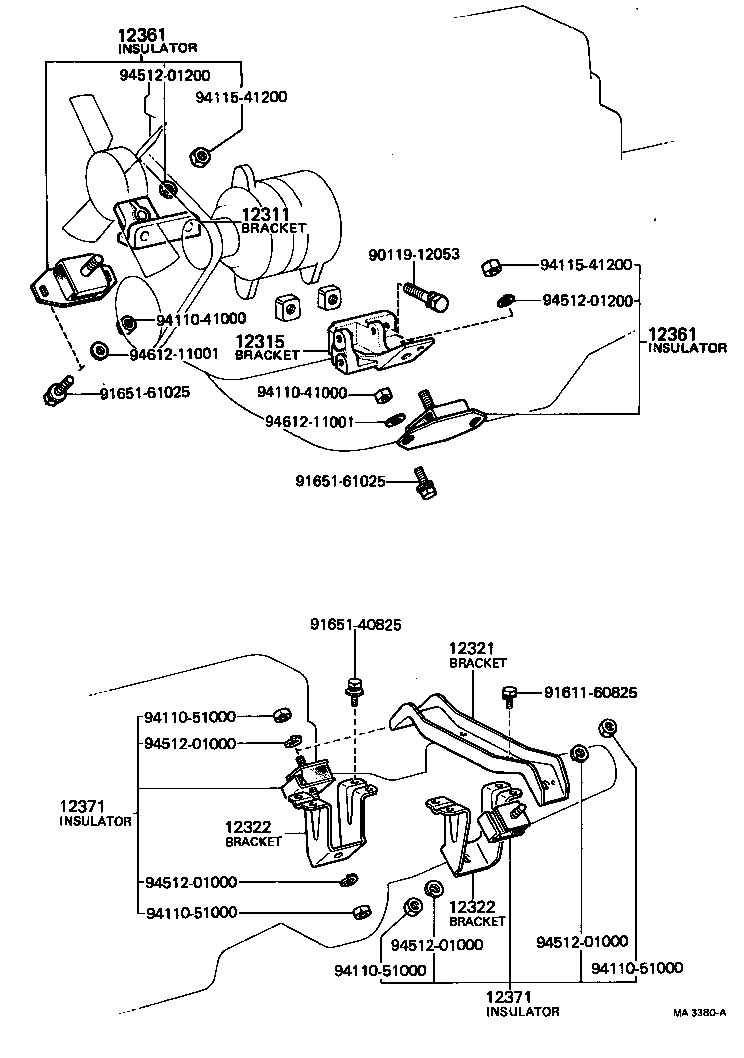

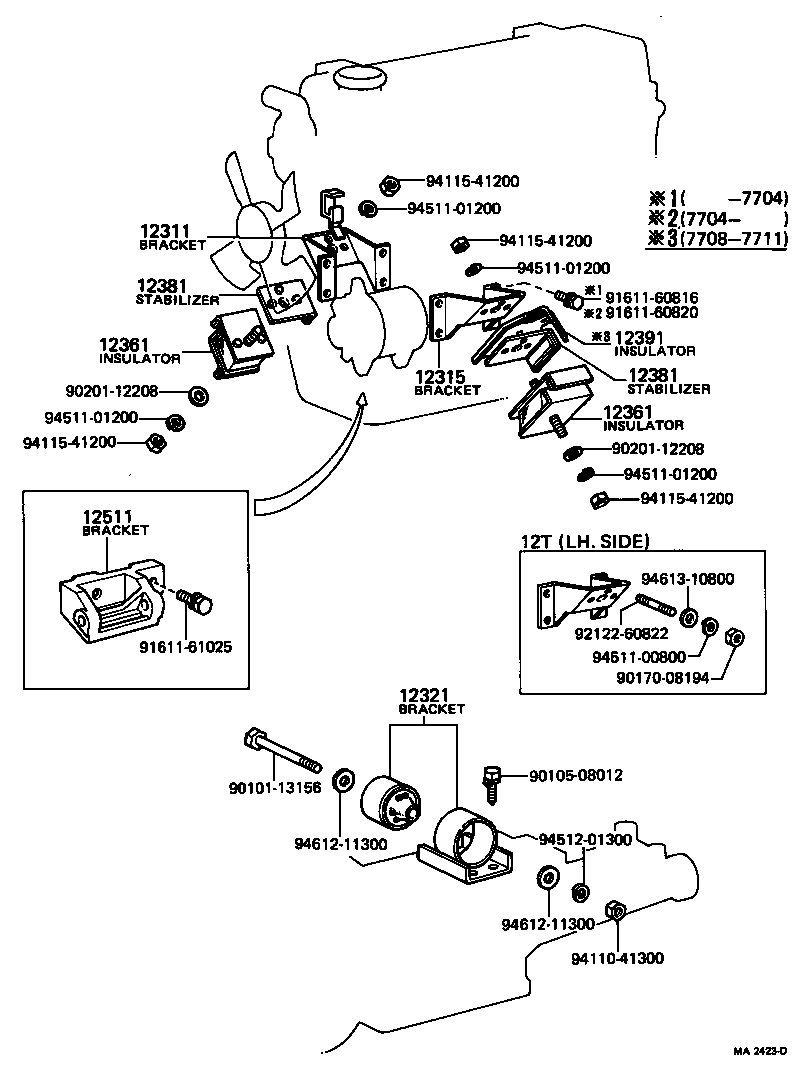

Figure MA2439A MA2439A 1976-10 → 1979-10 Figure MA4323B MA4323B 1979-10 → — Figure MA3380A MA3380A 1978-08 → 1979-11 Figure MA4312C MA4312C 1979-11 → — Figure MA2423D MA2423D 1976-10 → 1979-10 Figure MA4265A MA4265A 1979-10 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12393 Insulator, Engine Mounting Heat, Front
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
