Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

14 part groups · 7 illustrations

Illustrations

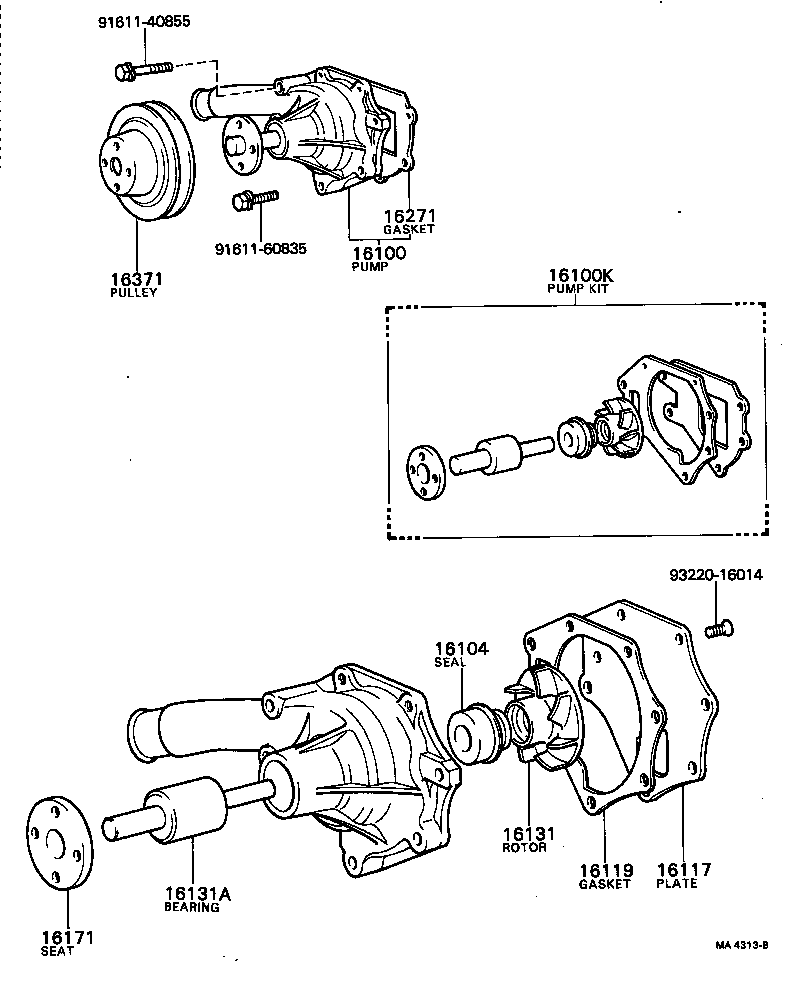

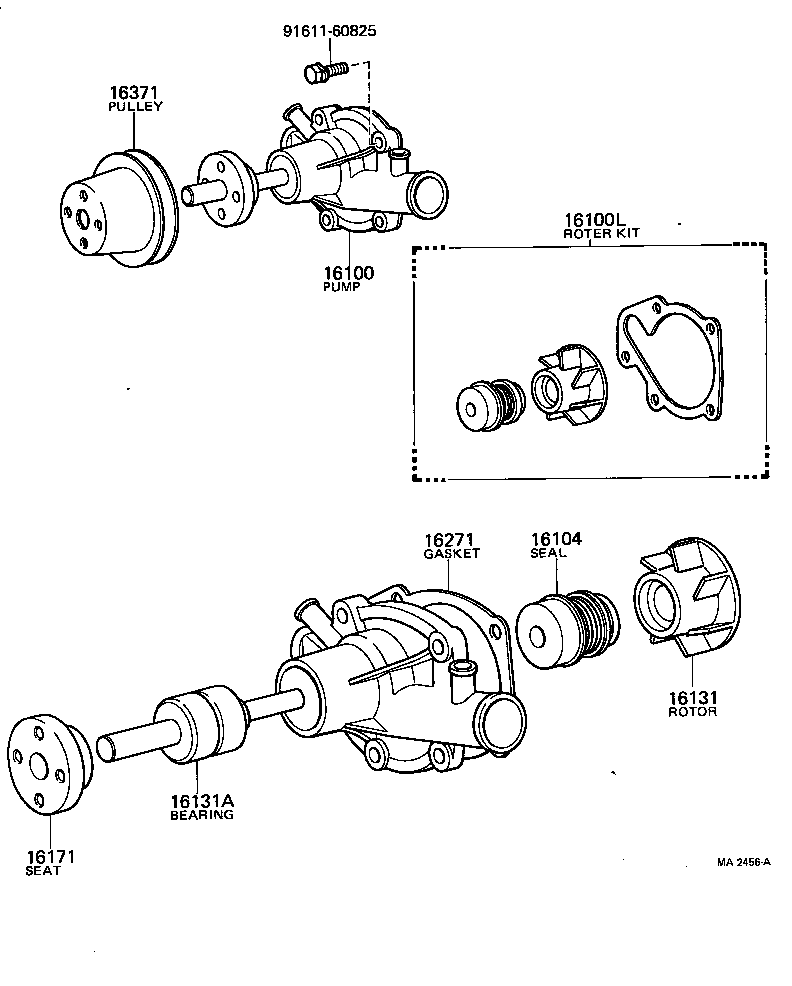

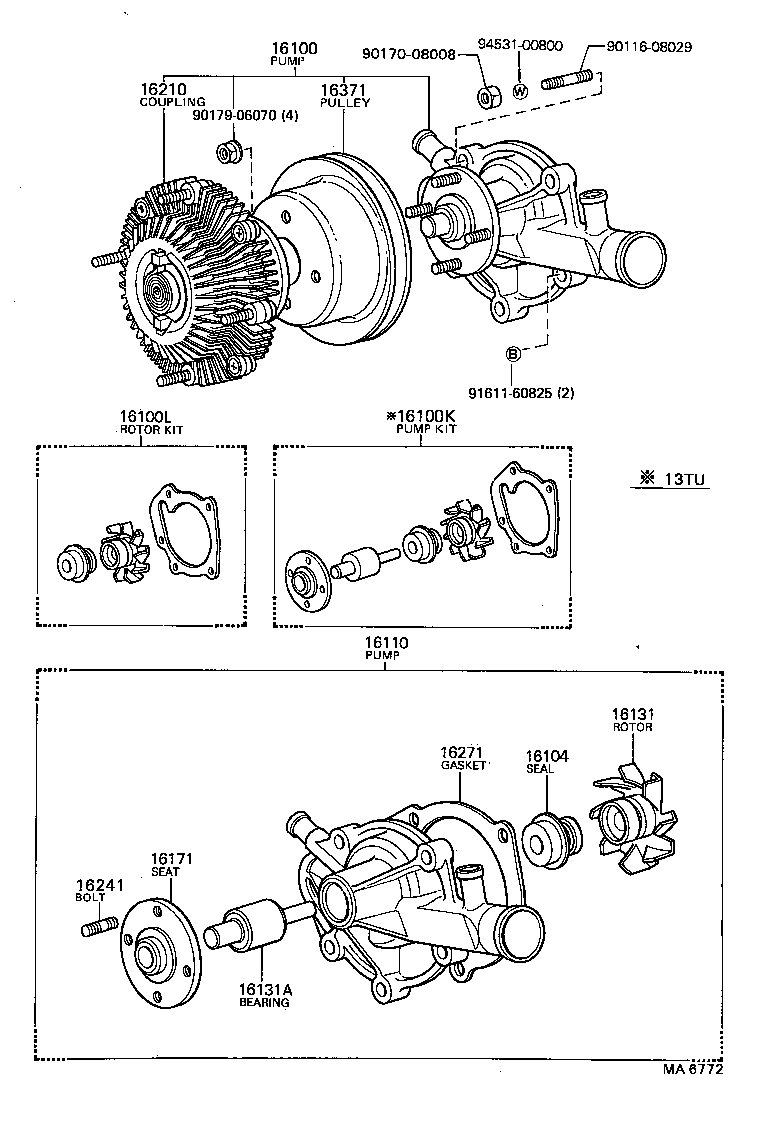

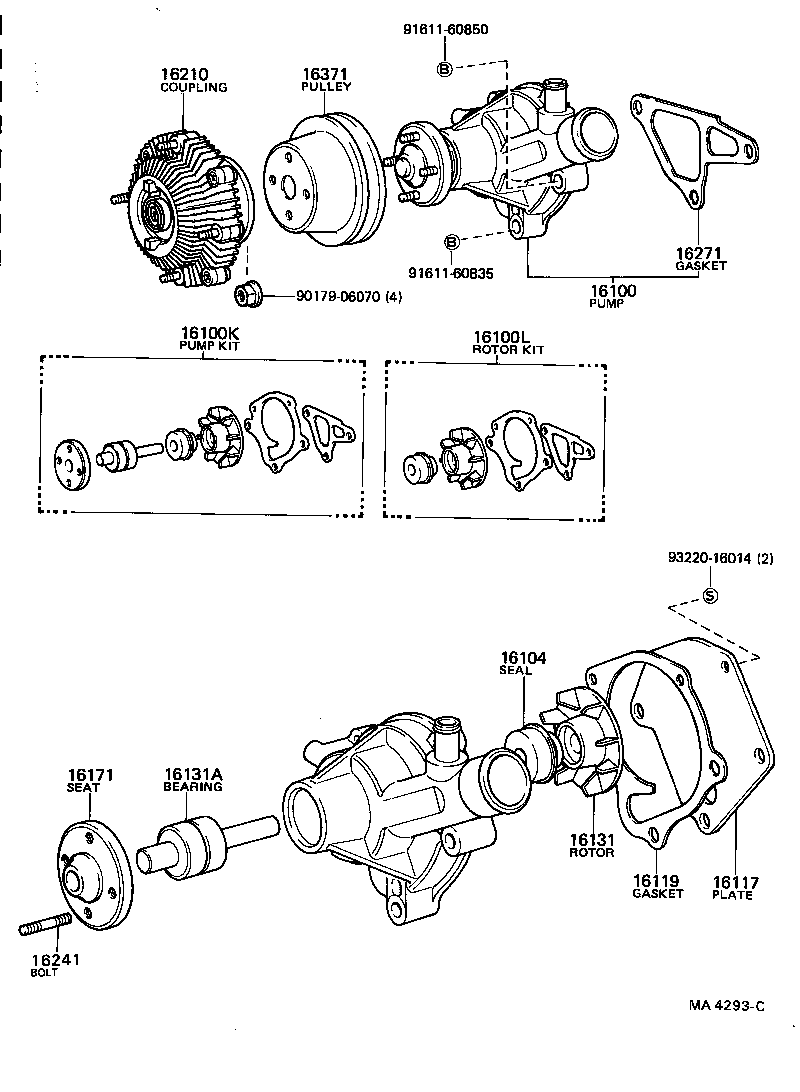

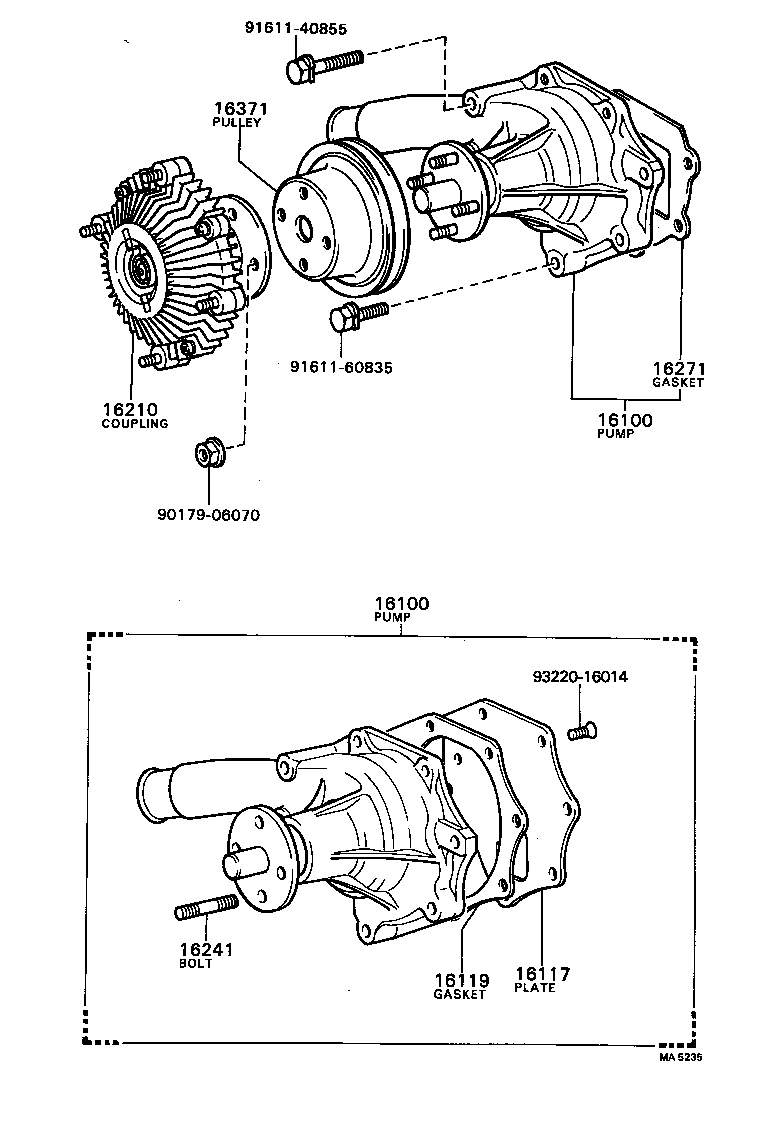

Figure MA2245 MA2245 1976-10 → 1979-10 Figure MA4293C MA4293C 1979-10 → — Figure MA4313B MA4313B 1978-08 → 1979-11 Figure MA5235 MA5235 1979-11 → — Figure MA2456A MA2456A 1976-10 → 1979-10 Figure MA6772 MA6772 1978-08 → 1979-10 Figure MA6772 MA6772 1979-10 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100K Pump Kit, Water
16100L Rotor Kit, Water Pump
16104 Seal Set, Water Pump
16110 Pump Assy, Water, W/O Coupling
16117 Plate, Water Pump
16119 Gasket, Water Pump Body
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16171 Seat, Water Pump Pulley
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
