Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

24 part groups · 8 illustrations

Illustrations

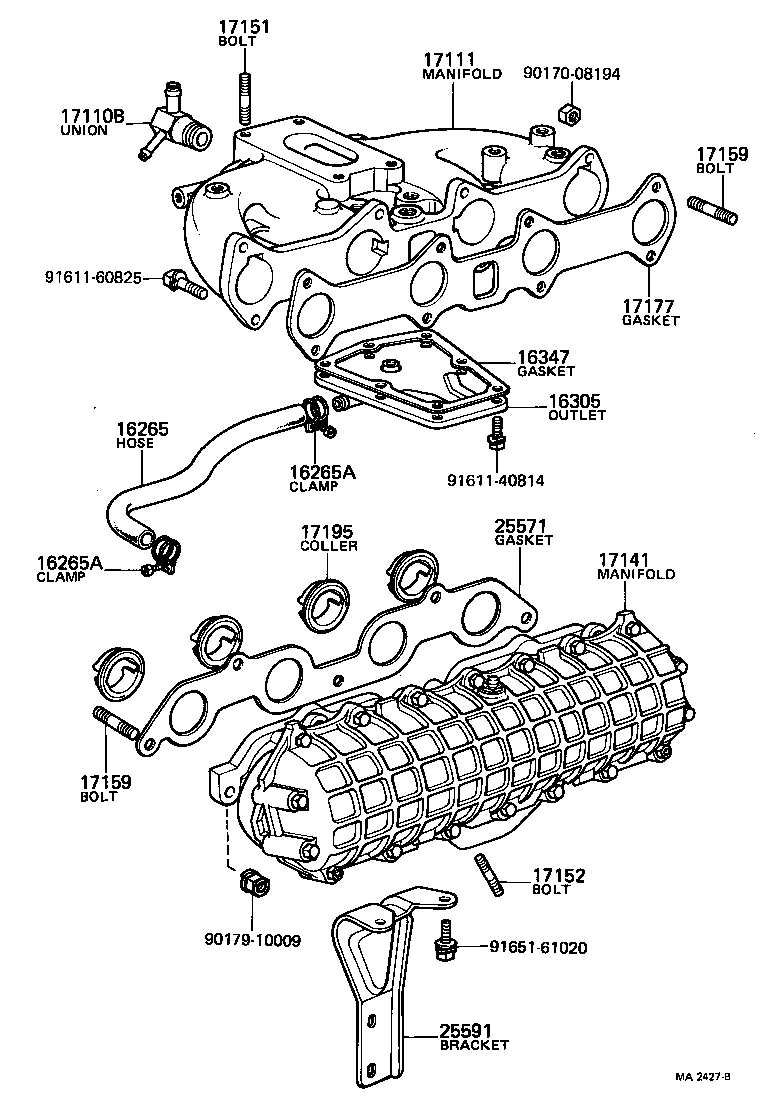

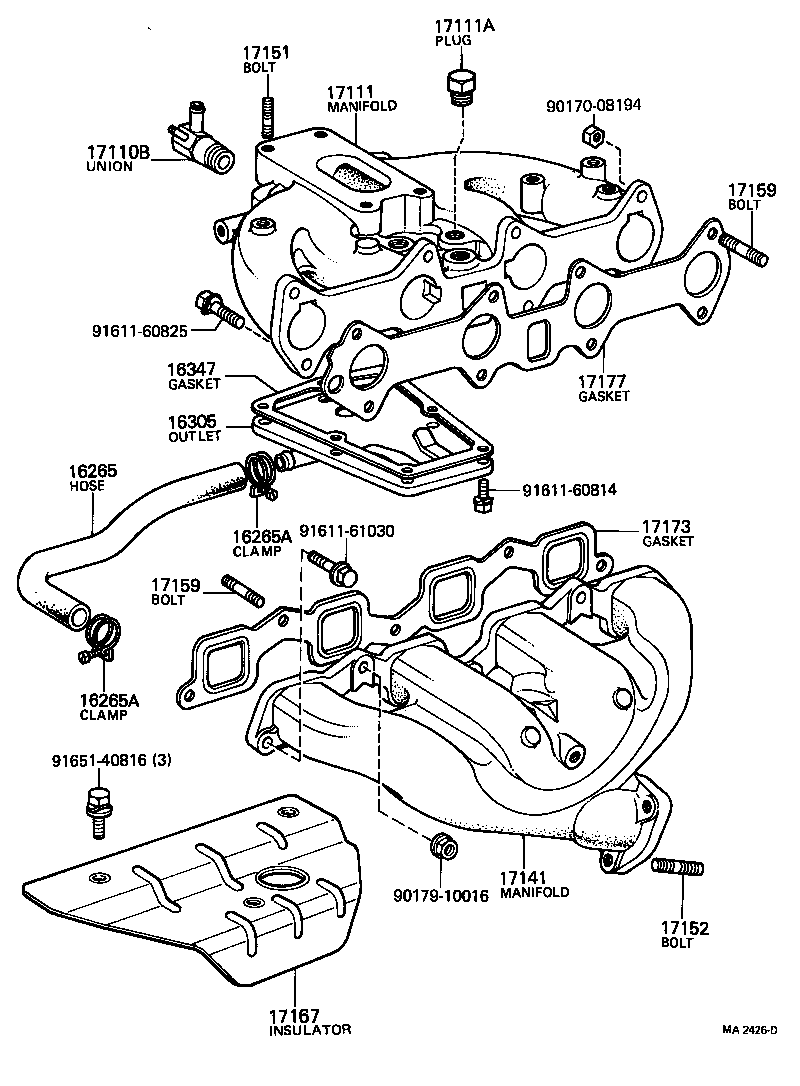

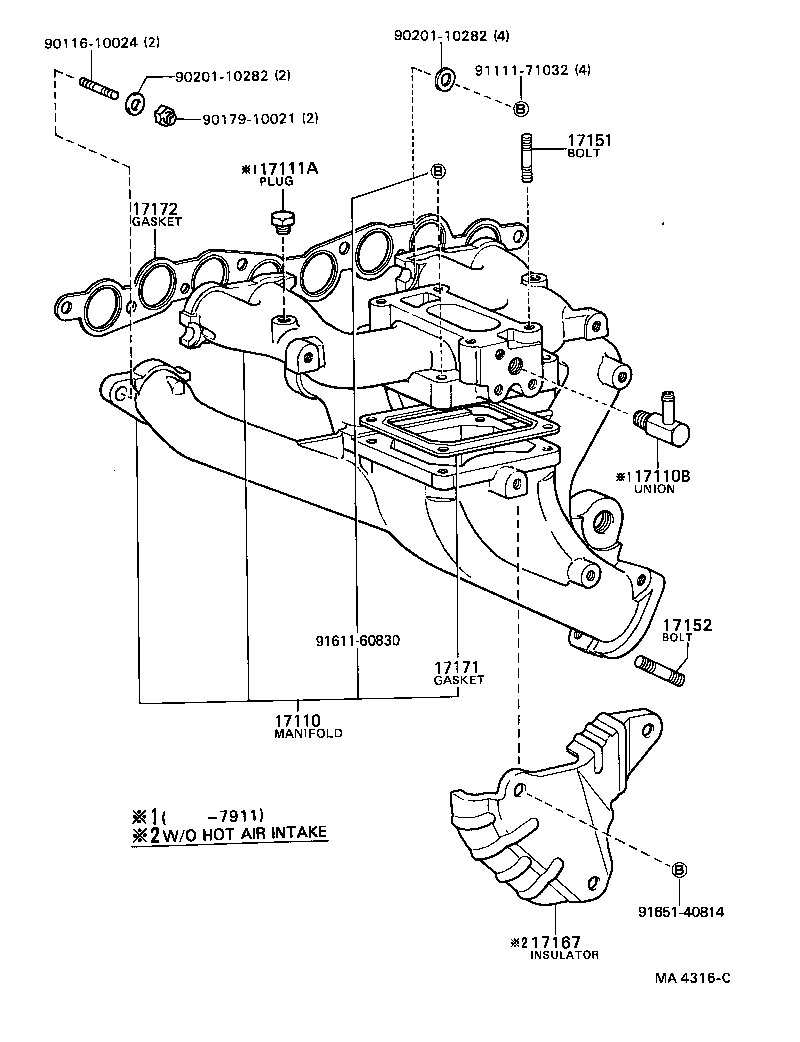

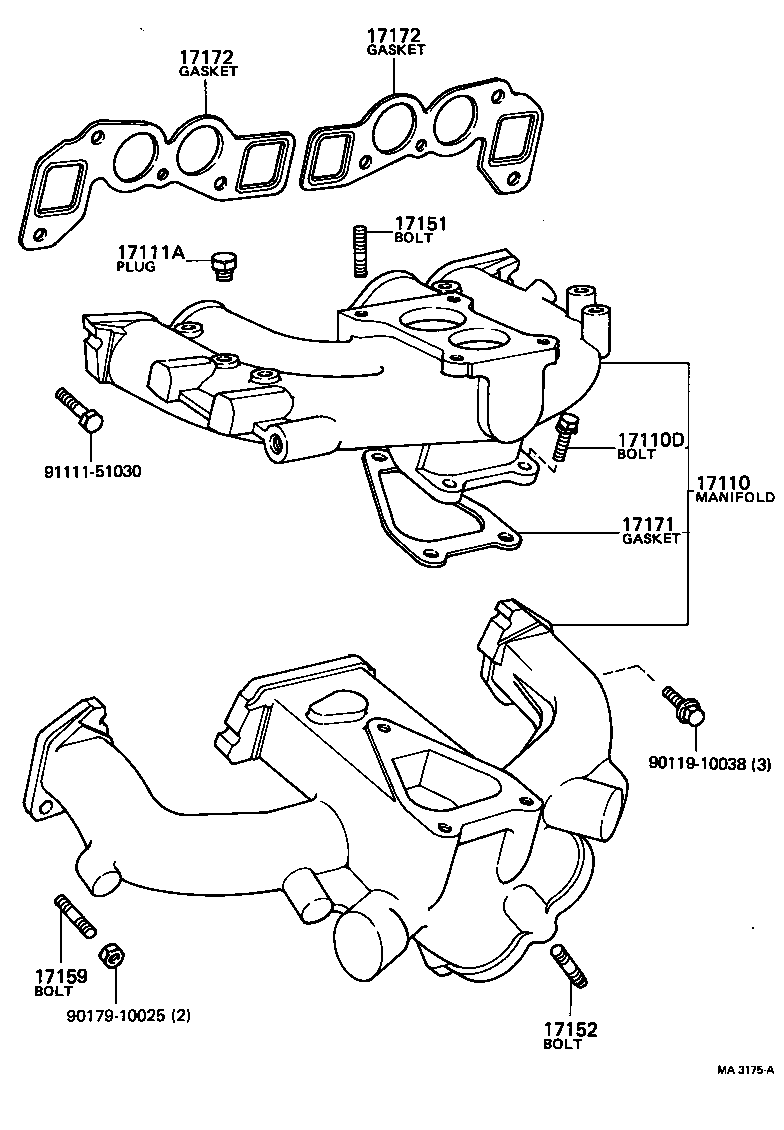

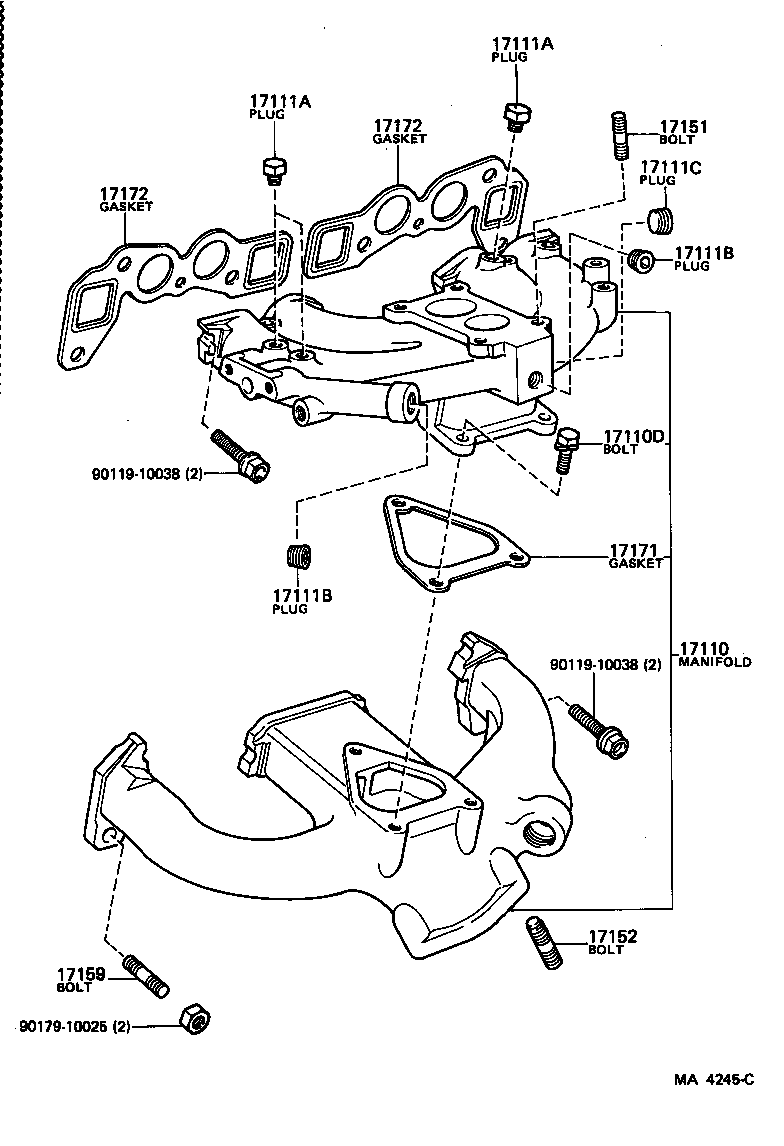

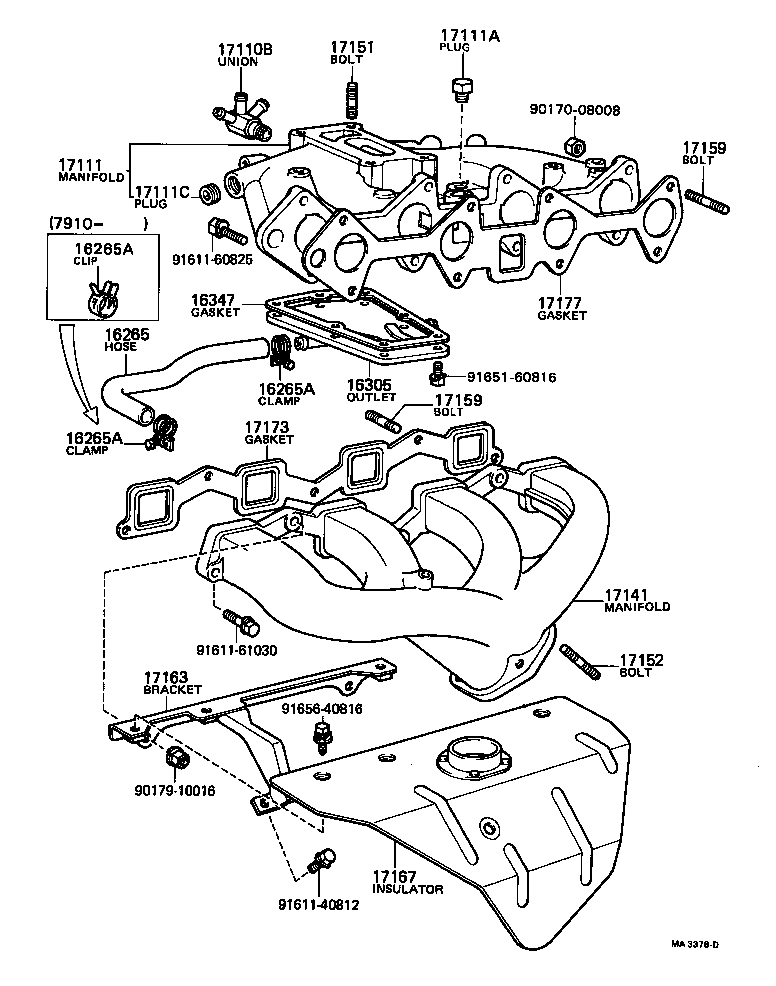

Figure MA2444B MA2444B 1976-10 → 1978-02 Figure MA3175A MA3175A 1978-02 → 1979-10 Figure MA4245C MA4245C 1979-10 → — Figure MA4316C MA4316C 1978-08 → — Figure MA2426D MA2426D 1976-10 → 1979-10 Figure MA2427B MA2427B 1976-10 → 1978-08 Figure MA3378D MA3378D 1978-08 → 1979-10 Figure MA3378D MA3378D 1979-10 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16347 Gasket, Water By-pass
17110 Manifold Assy
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17195 Collar, Exhaust Port Liner
25571 Gasket, Inlet Port Liner
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
