Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

42 part groups · 10 illustrations

Illustrations

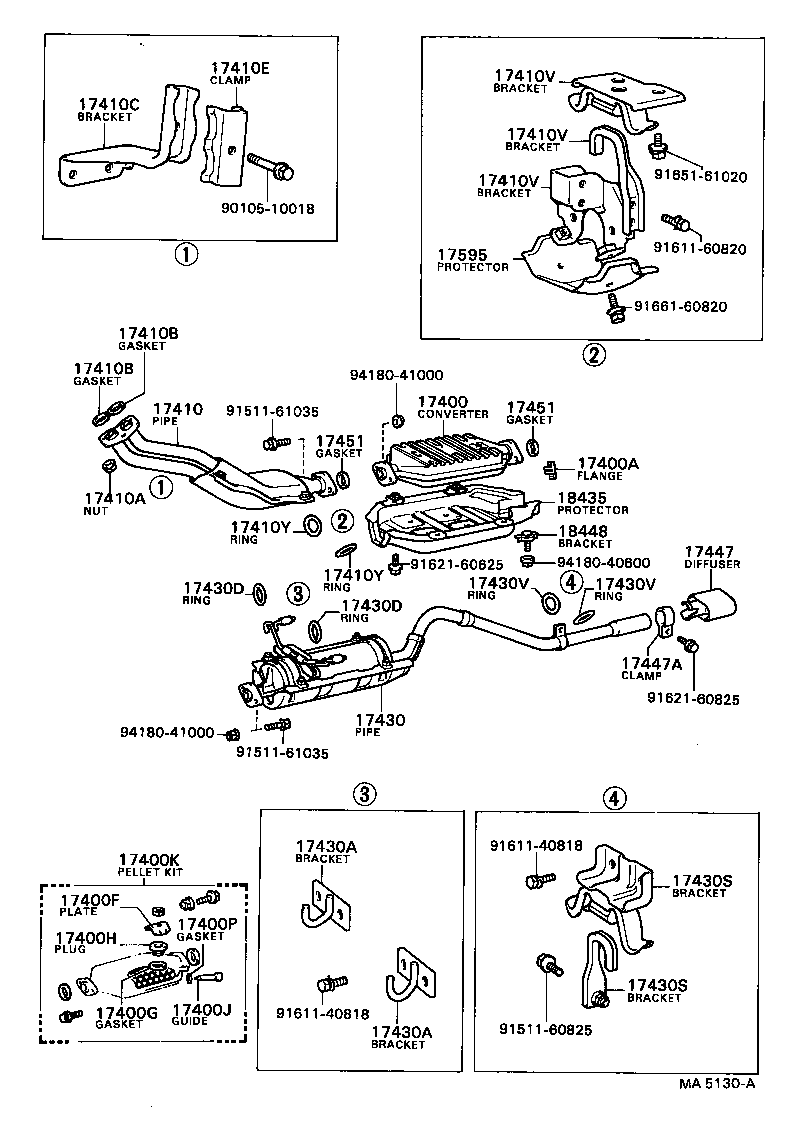

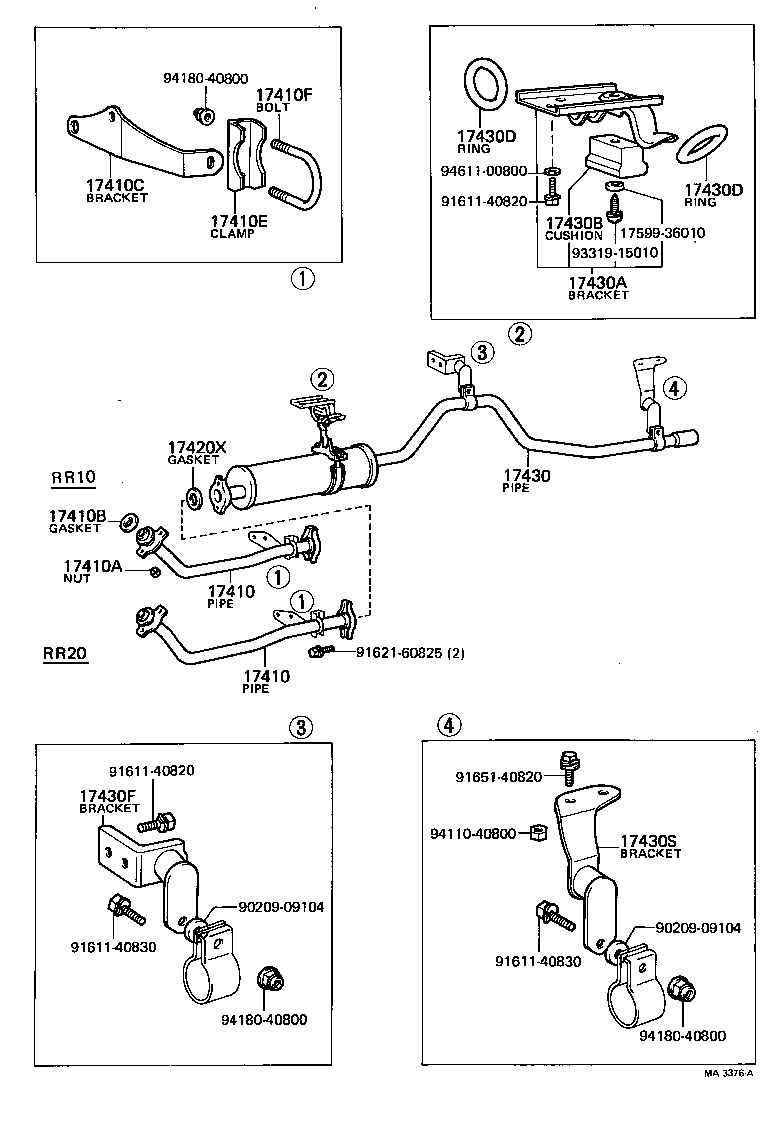

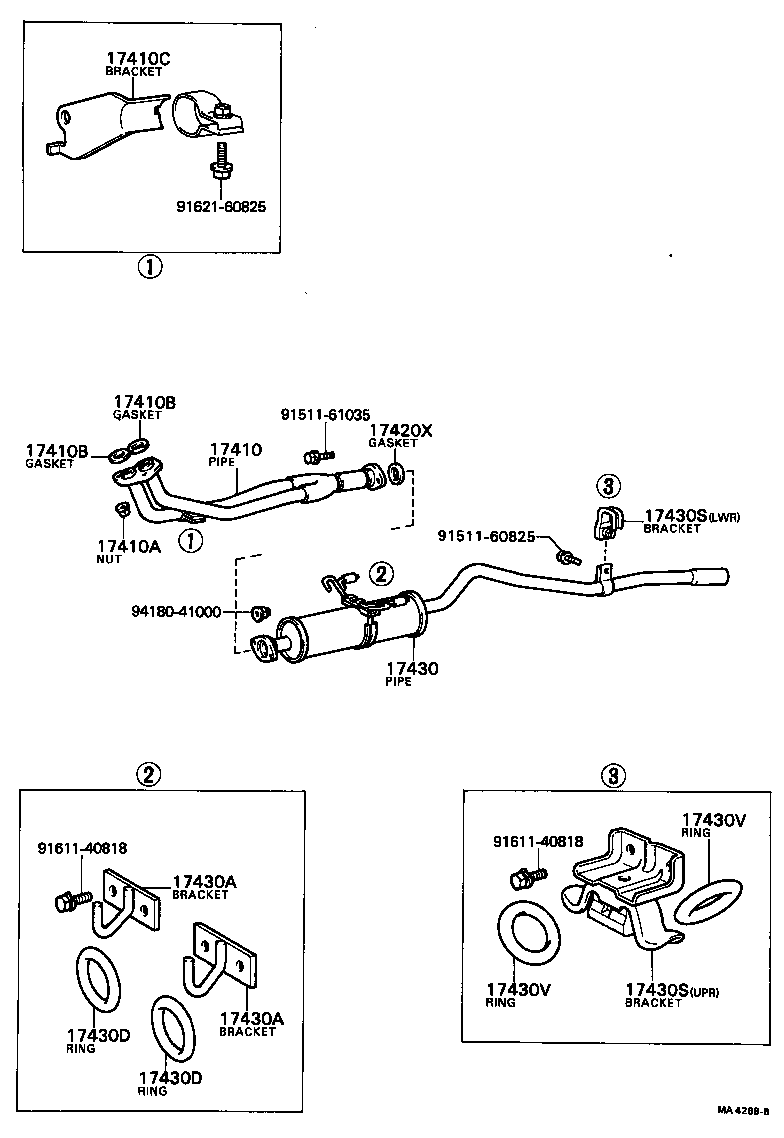

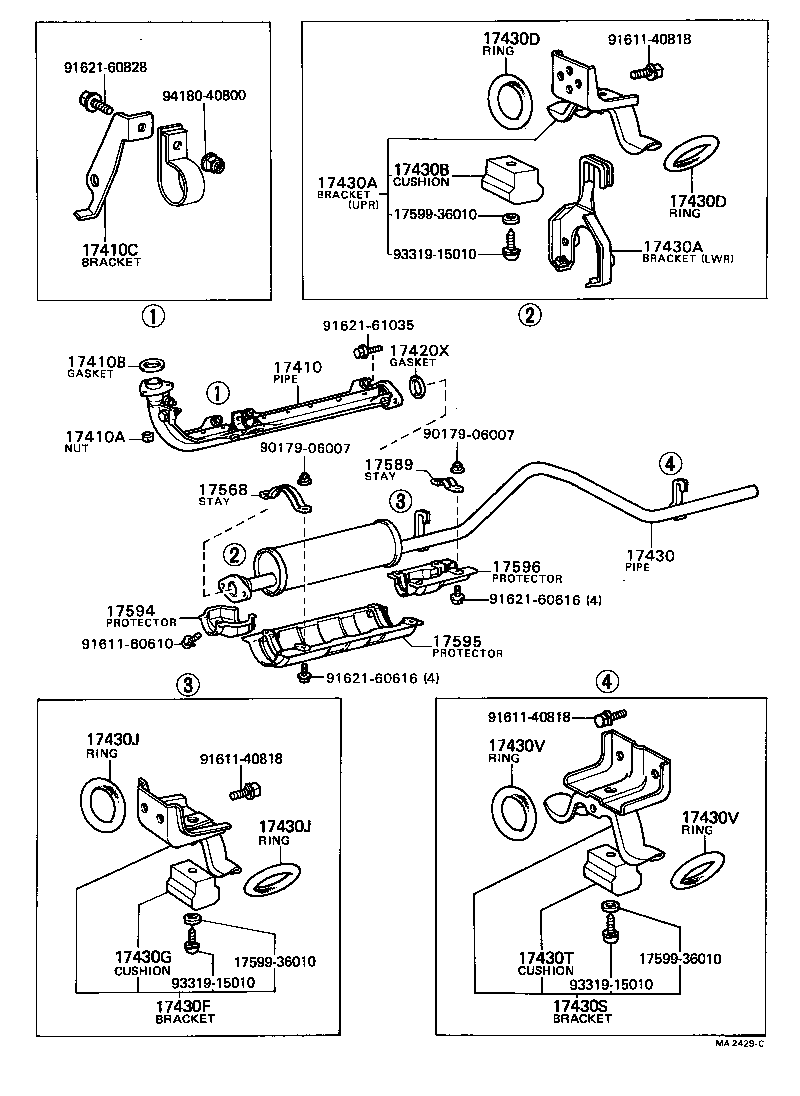

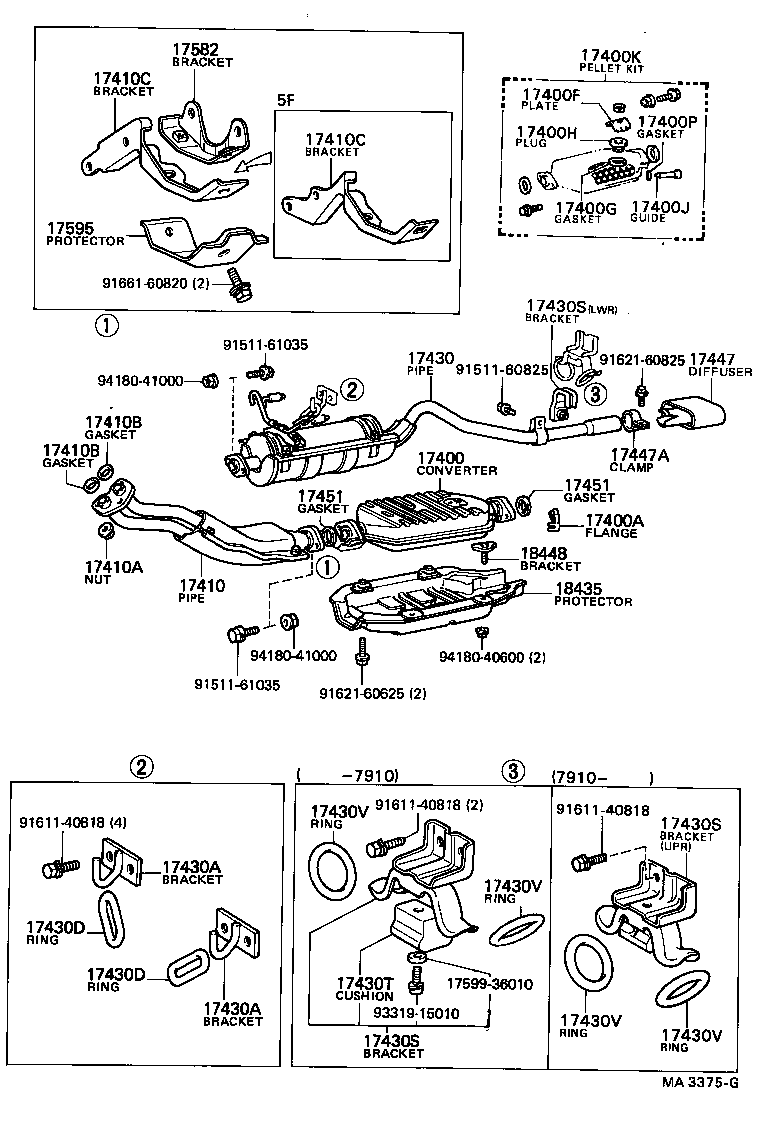

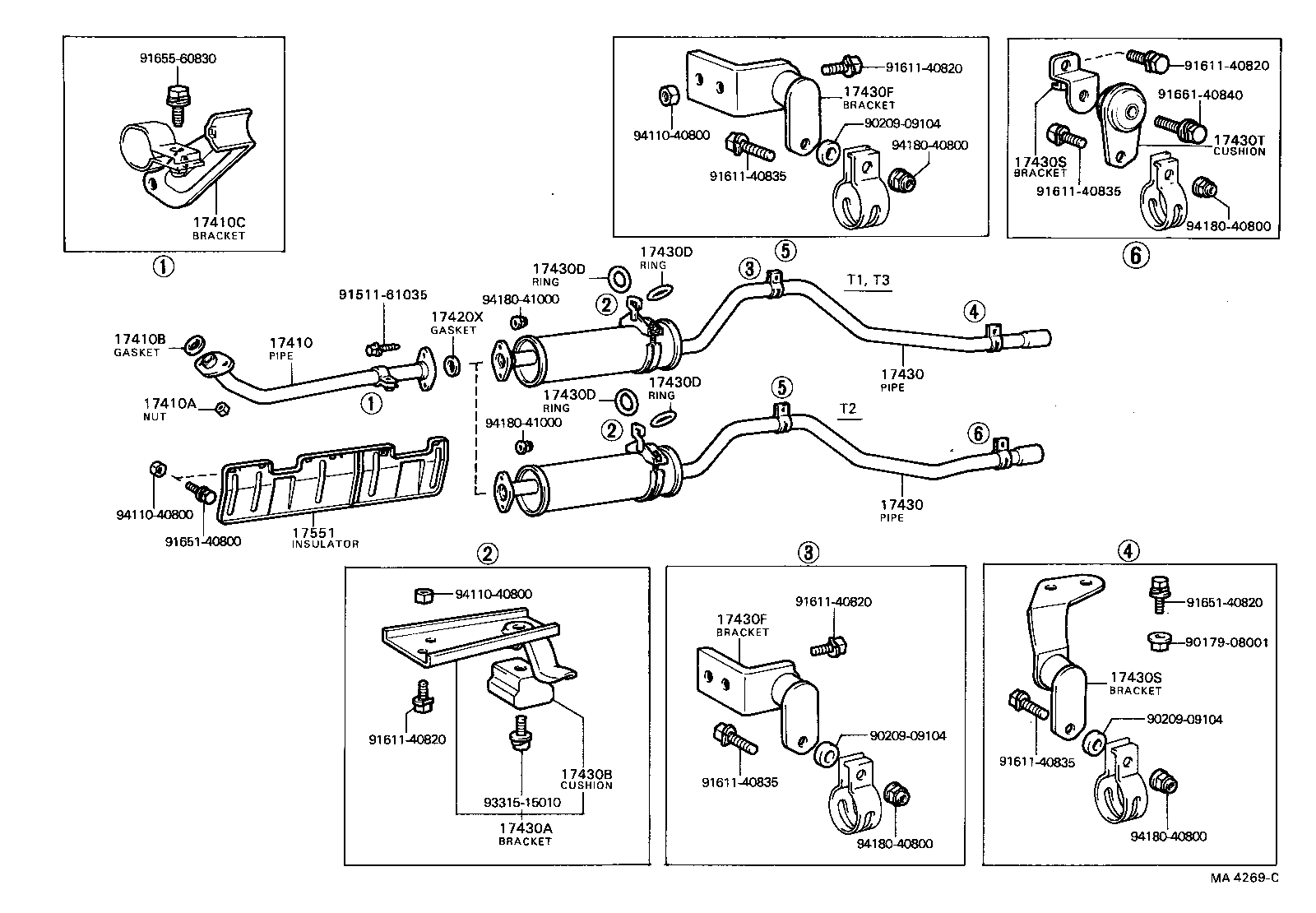

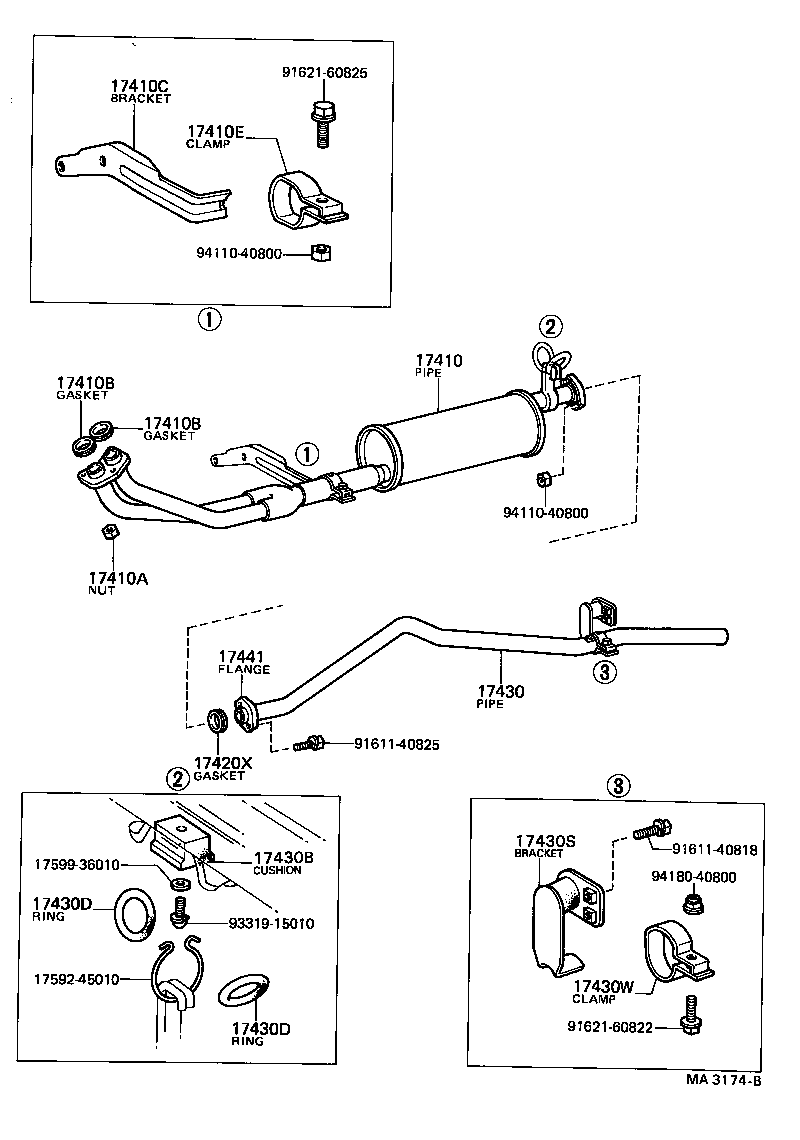

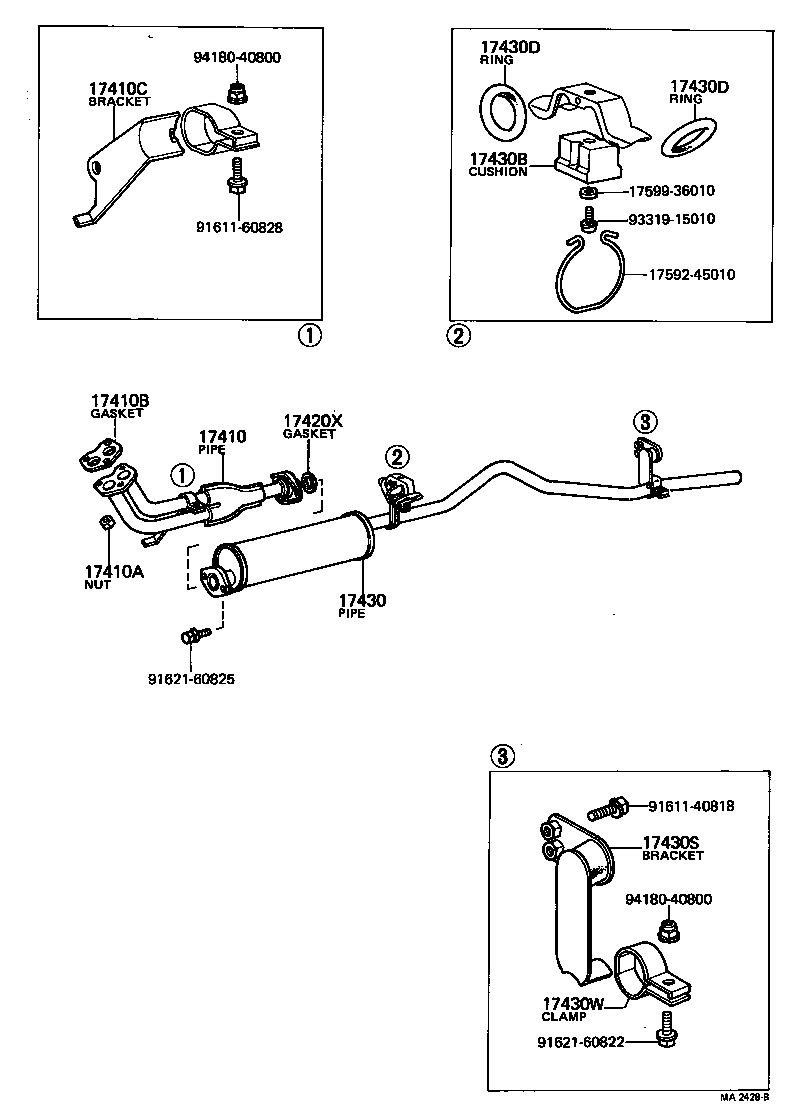

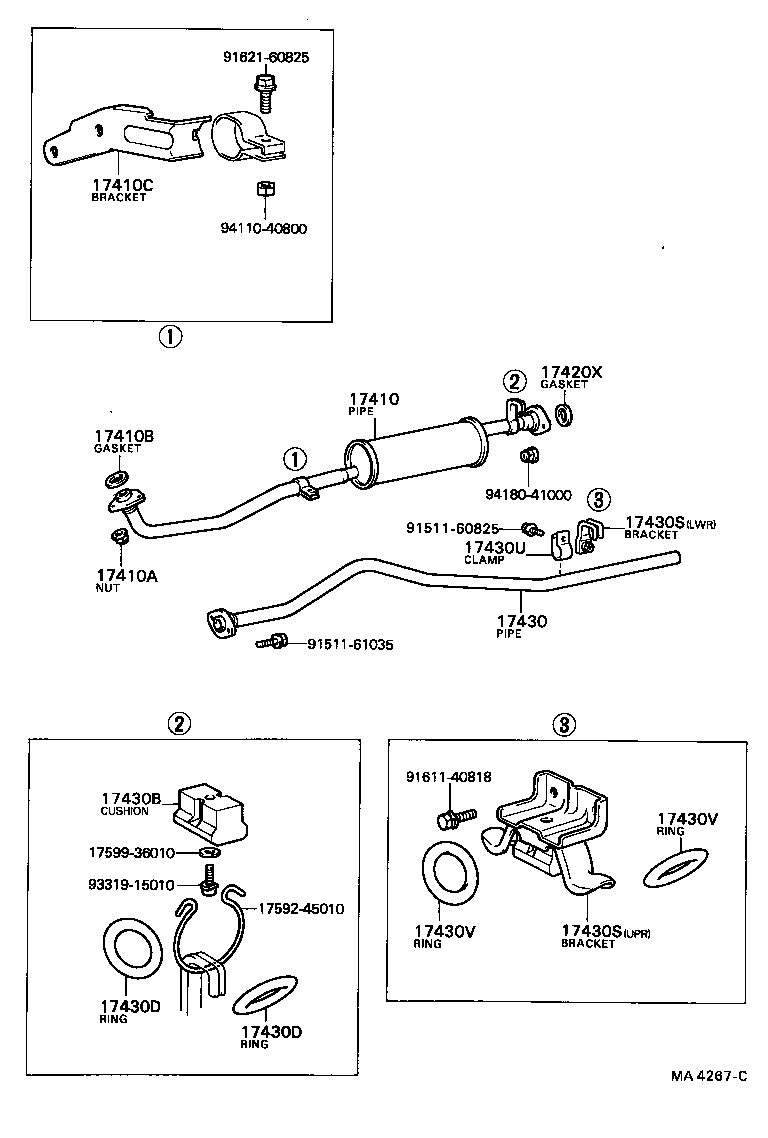

Figure MA2445A MA2445A 1976-10 → 1978-02 Figure MA3174B MA3174B 1978-02 → 1979-10 Figure MA4267C MA4267C 1979-10 → — Figure MA2428B MA2428B 1976-10 → 1979-10 Figure MA4268B MA4268B 1979-10 → — Figure MA2429C MA2429C 1976-10 → 1978-08 Figure MA3375G MA3375G 1978-08 → — Figure MA5130A MA5130A 1981-01 → — Figure MA3376A MA3376A 1978-08 → 1979-11 Figure MA4269C MA4269C 1979-11 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400A Flange, Thermosenser Inlet
17400F Plate, Catalyzer Inlet Plug Lock
17400G Gasket, Catalyzer Inlet
17400H Plug, W/Head Straight Screw(FOR CATALYZER INLET)
17400J Guide, Catalytic Converter Sensor
17400K Pellet Kit
17400P Gasket(FOR CATALYTIC CONVERTER SENSOR GUIDE)
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17441 Flange, Exhaust Pipe
17447 Diffuser, Exhaust Gas
17447A Clamp(FOR EXHAUST GAS DIFFUSER SETTING)
17451 Gasket, Exhaust Pipe
17551 Insulator, Exhaust Pipe Heat, NO.1
17568 Stay, Exhaust Pipe Support
17582 Bracket, Catalytic Converter Support, Upper
17589 Stay, Exhaust Pipe
17594 Protector, Exhaust Pipe, NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
17596 Protector, Exhaust Pipe, NO.4
18435 Protector, Catalytic Converter
18448 Bracket, Converter Protector, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
