Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

21 part groups · 3 illustrations

Illustrations

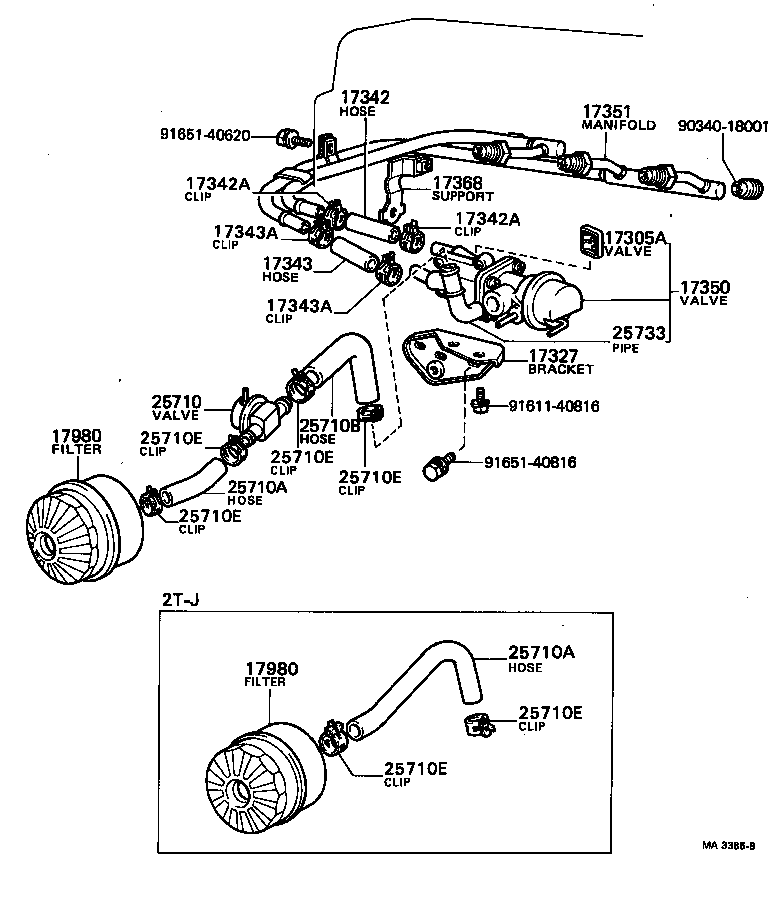

Figure MA4318A MA4318A 1979-11 → — Figure MA3385B MA3385B 1978-08 → 1979-10 Figure MA3385B MA3385B 1979-10 → —

Part groups

PNCDescription
17305A Valve Sub-assy, Reed
17325 Bracket, Air Valve
17327 Bracket, Reed Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17345 Hose, NO.5(FOR AIR INJECTION SYSTEM)
17345A Clamp OR Clip, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)
17350 Valve Assy, Reed
17351 Manifold, Air Injection
17352 Manifold, Air Injection, NO.2
17368 Support, Air Tube
17980 Filter Assy, Air Suction
25710 Valve Assy, Air Switching
25710A Hose(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
25710B Hose(FOR AIR SWITCHING VALVE TO CARBURETOR)
25710E Clip
25733 Pipe, NO.1(FOR REED VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
