Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

26 part groups · 19 illustrations

Illustrations

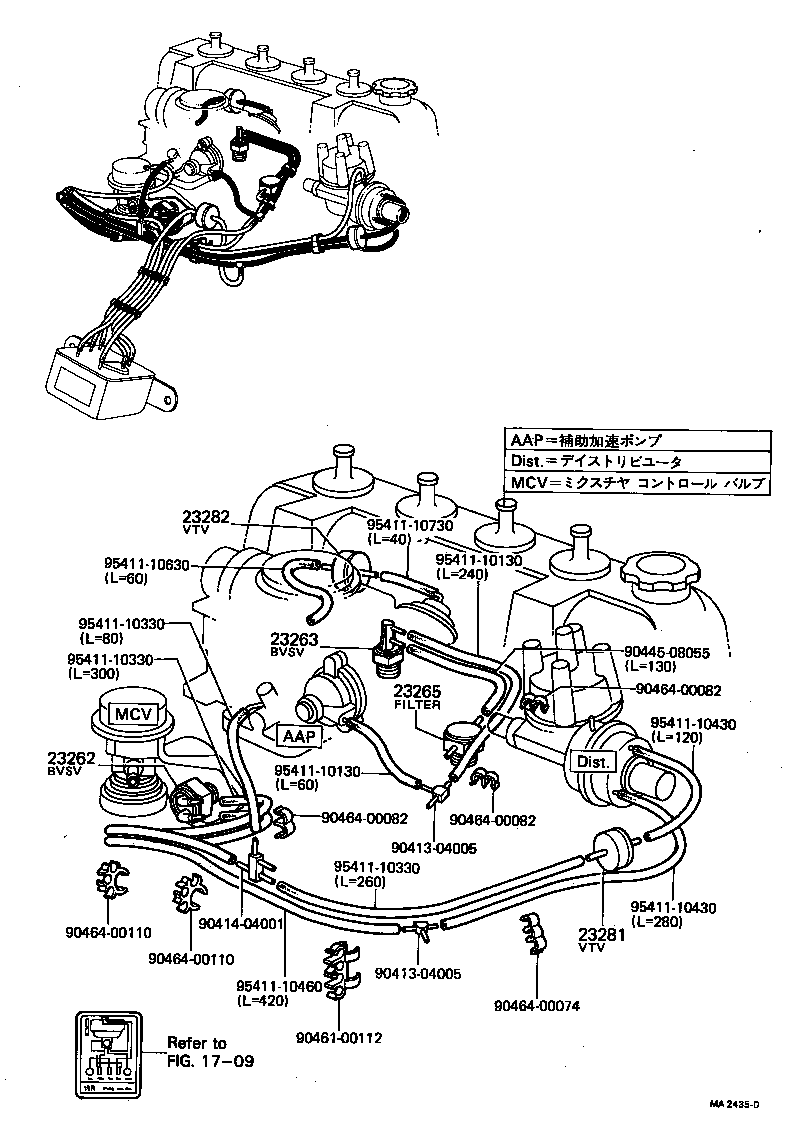

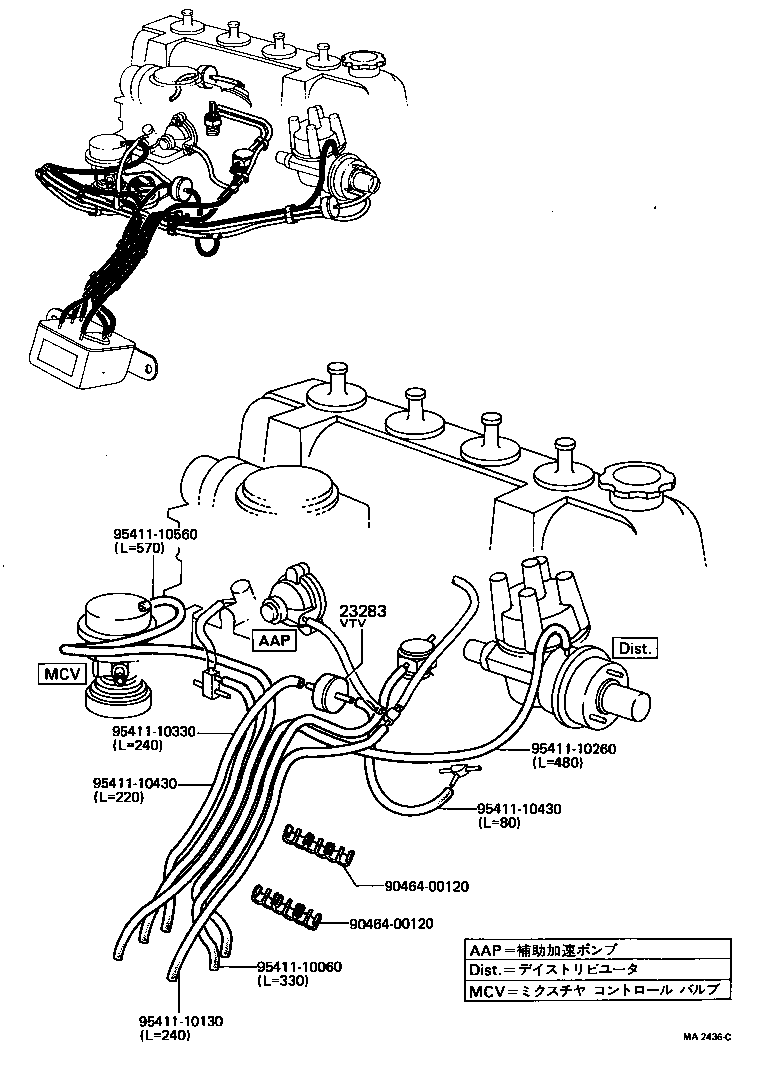

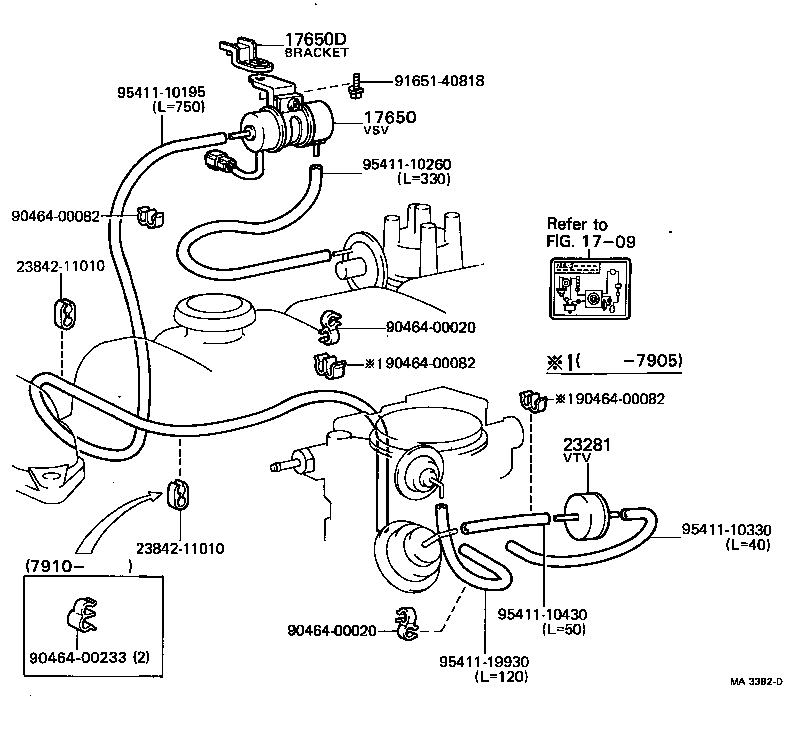

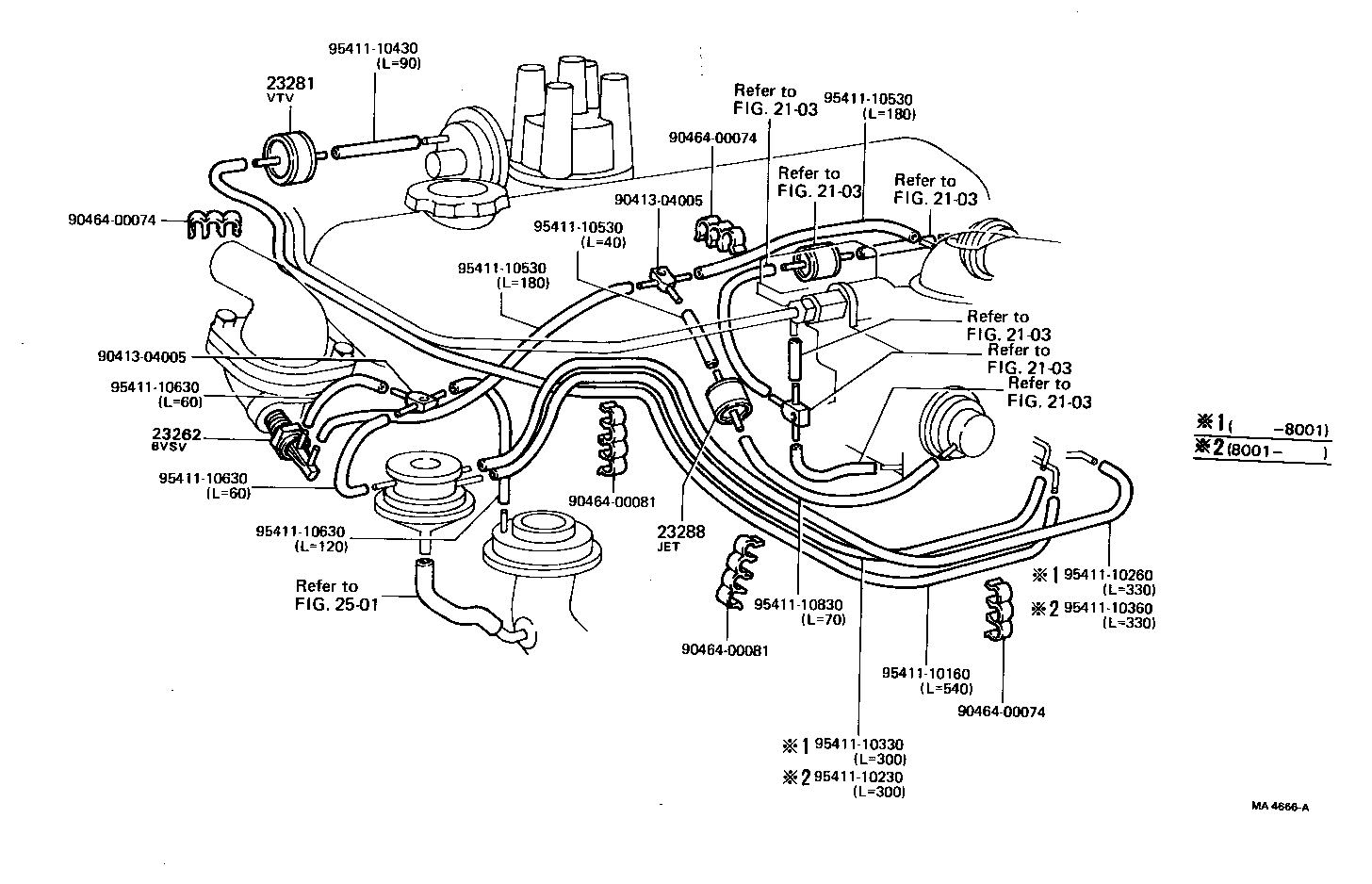

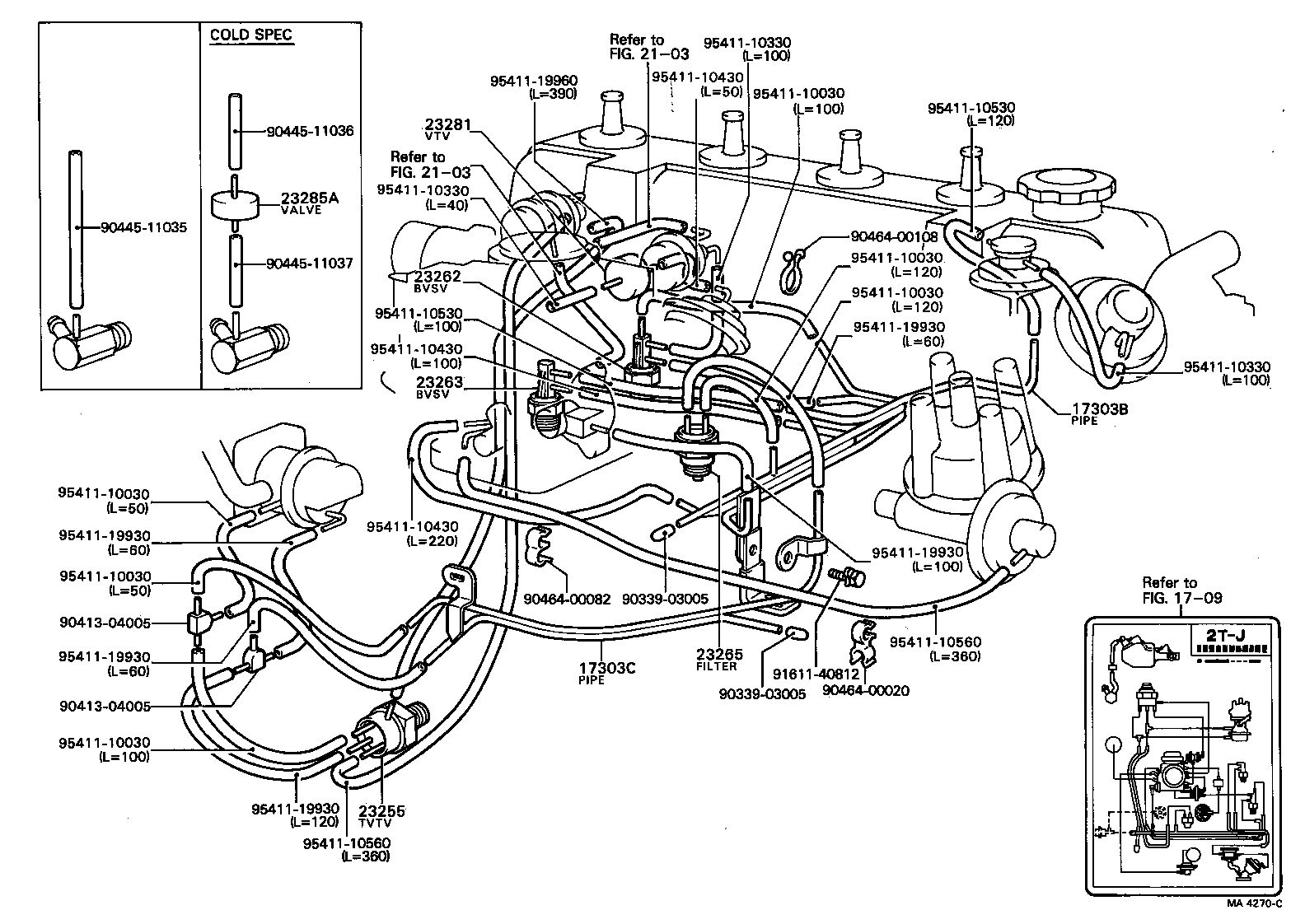

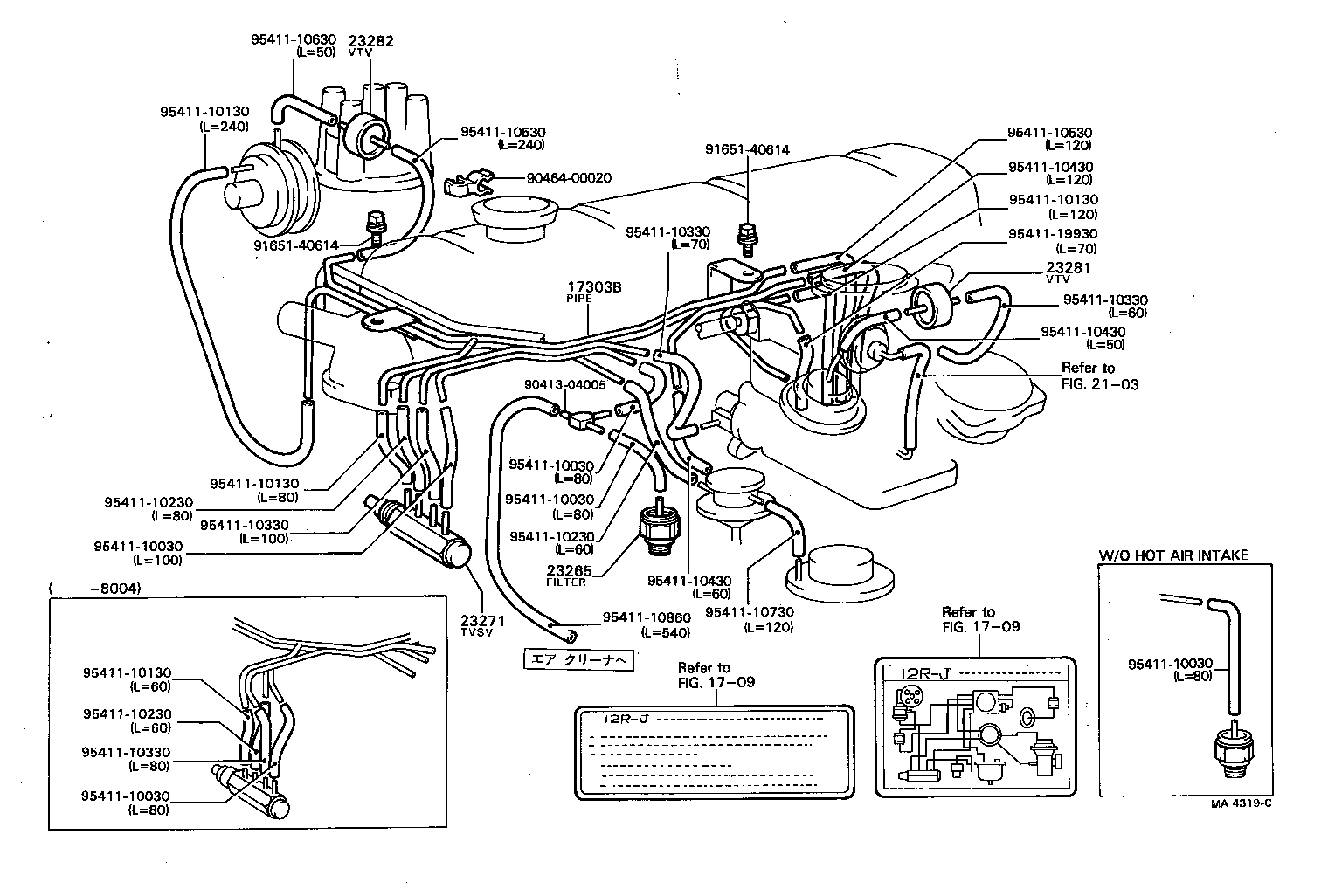

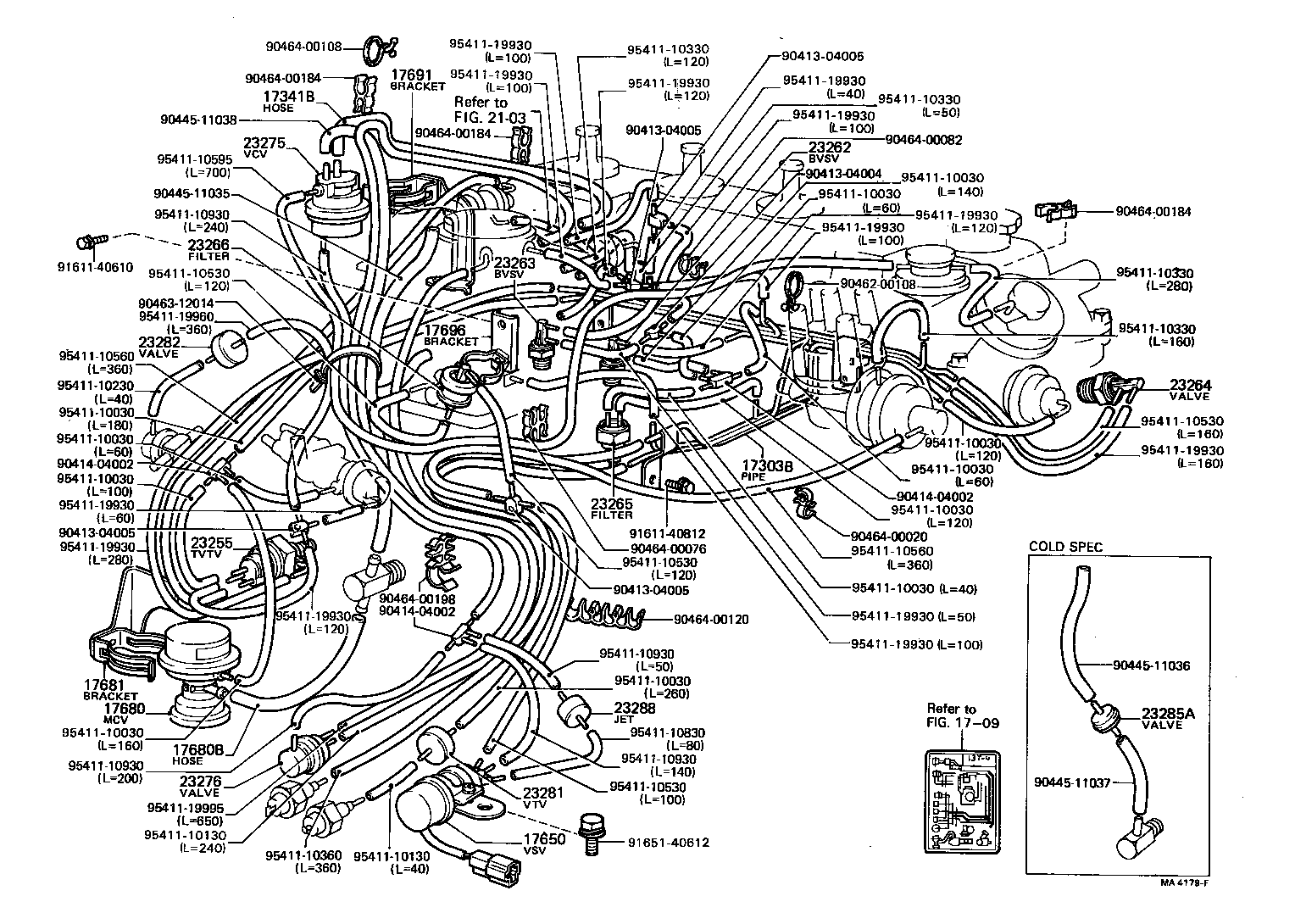

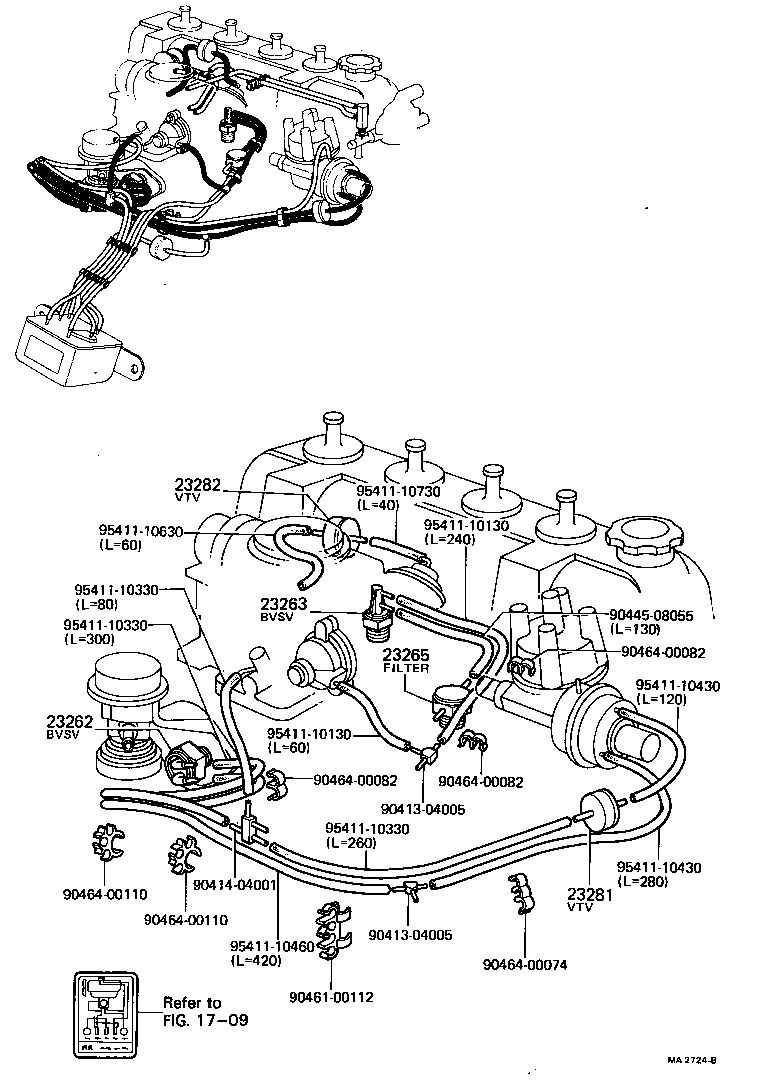

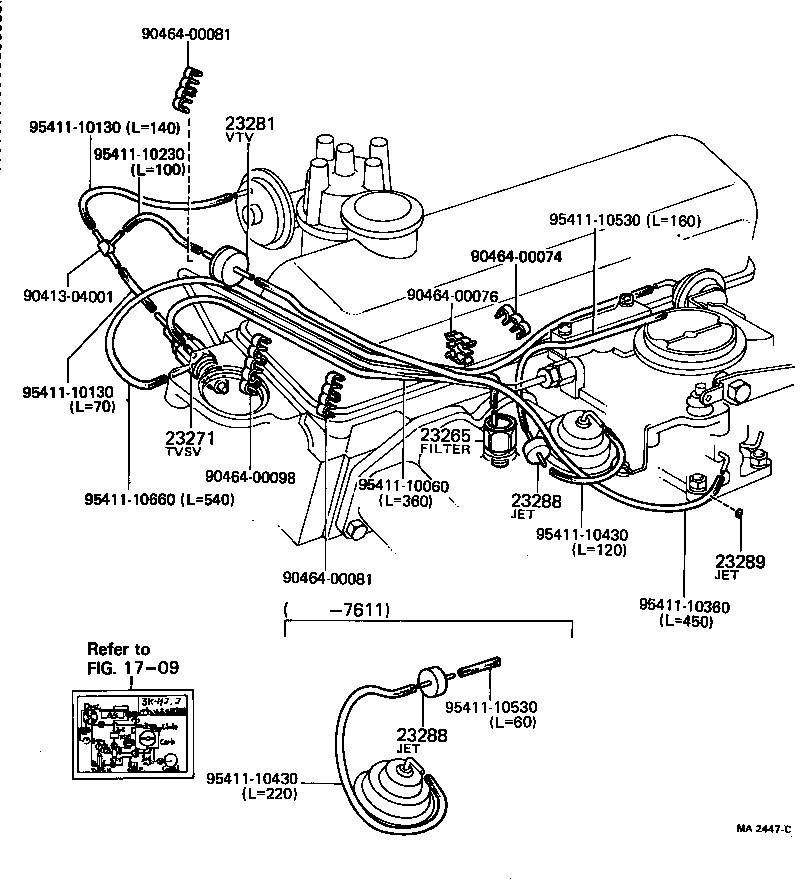

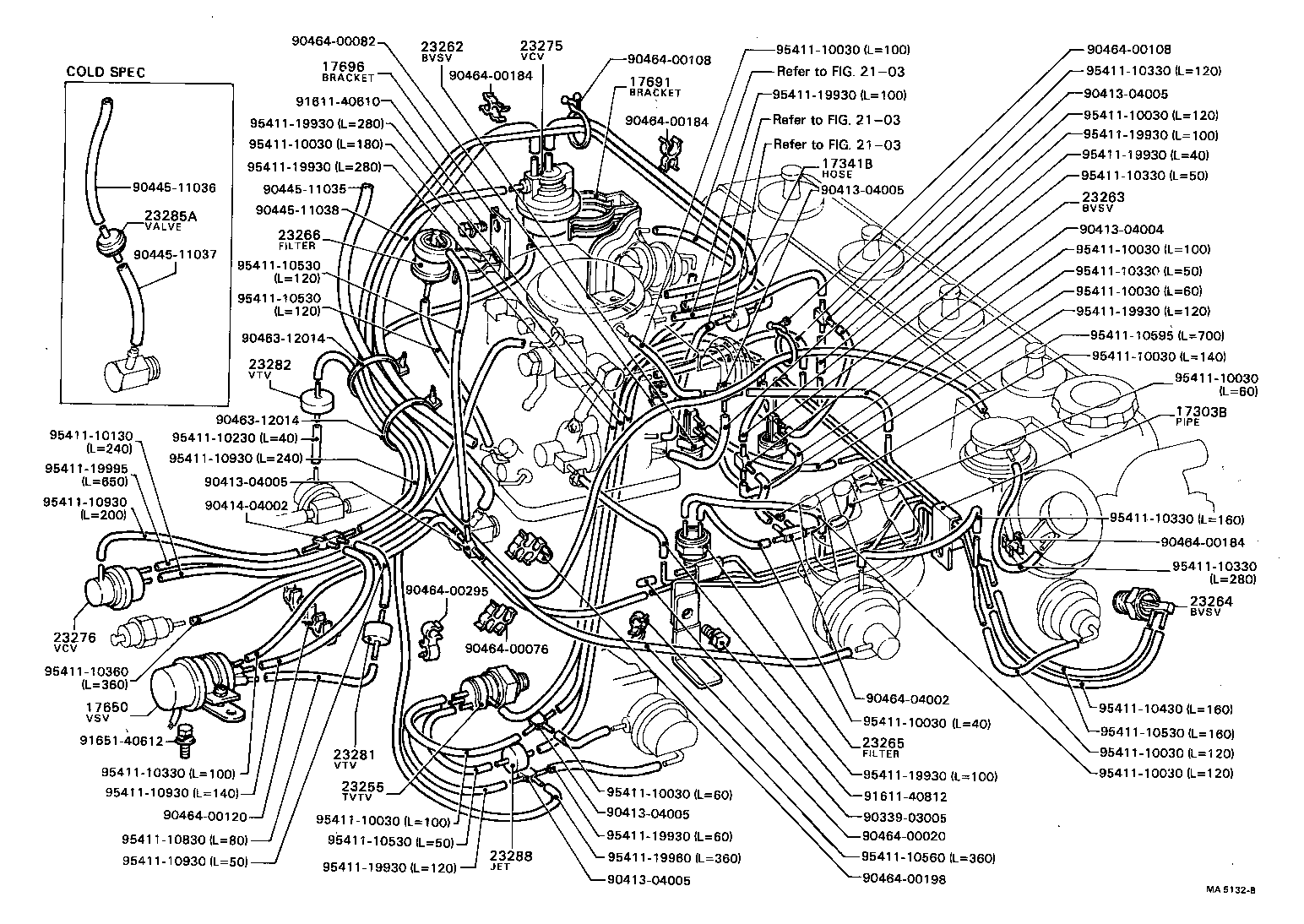

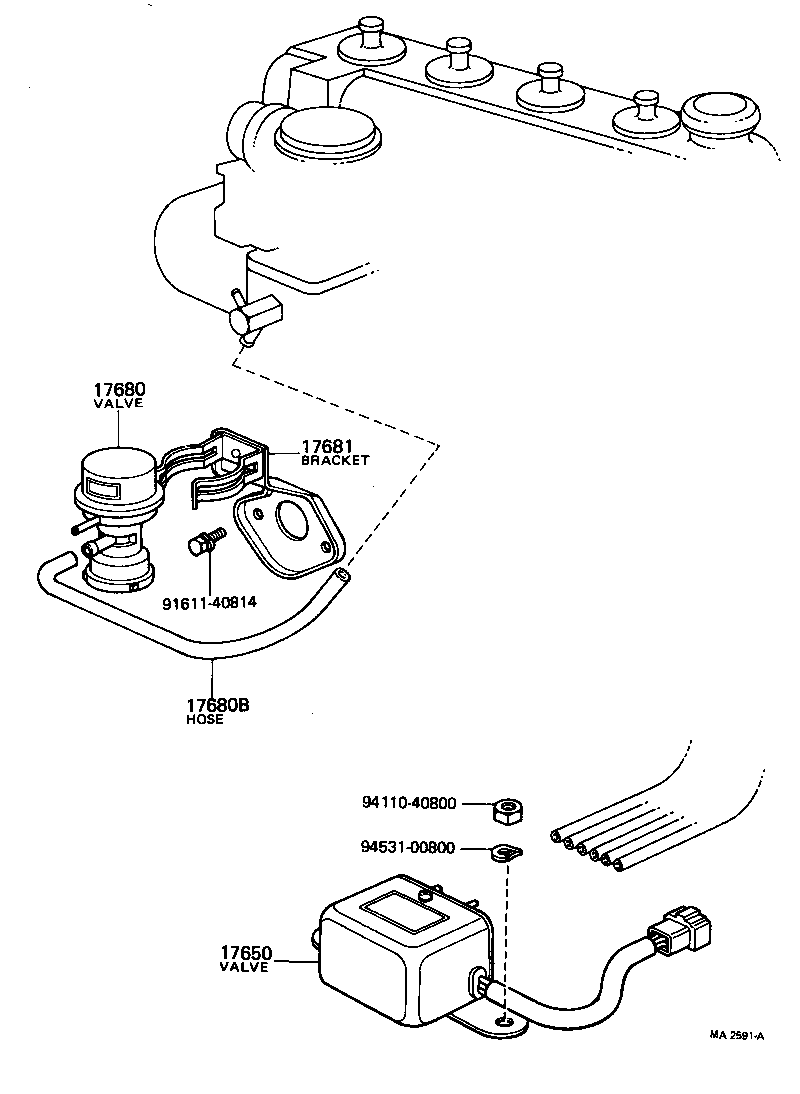

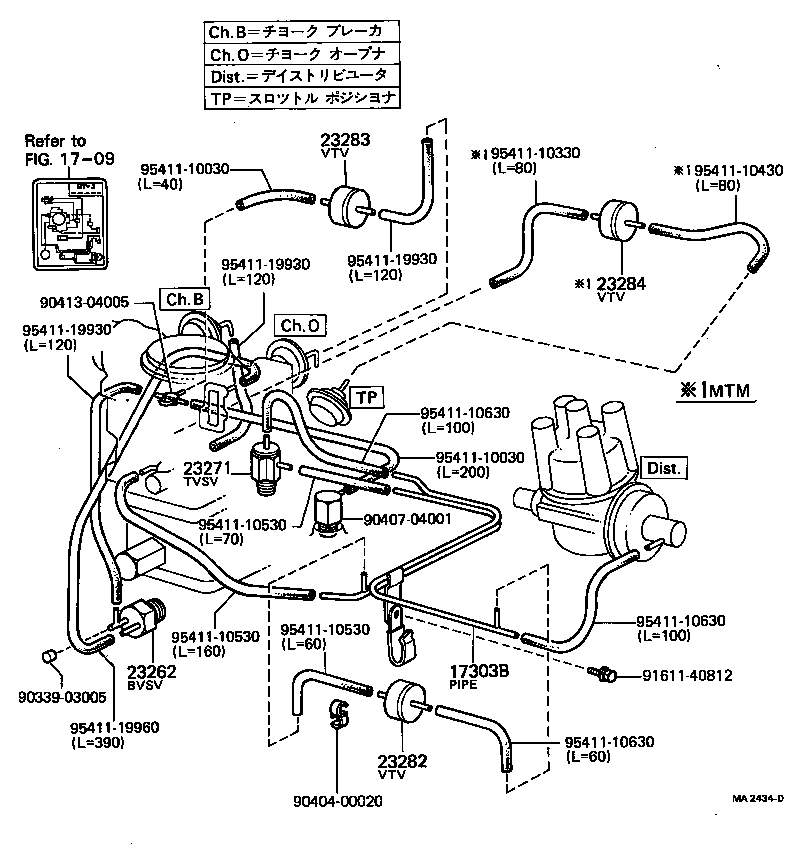

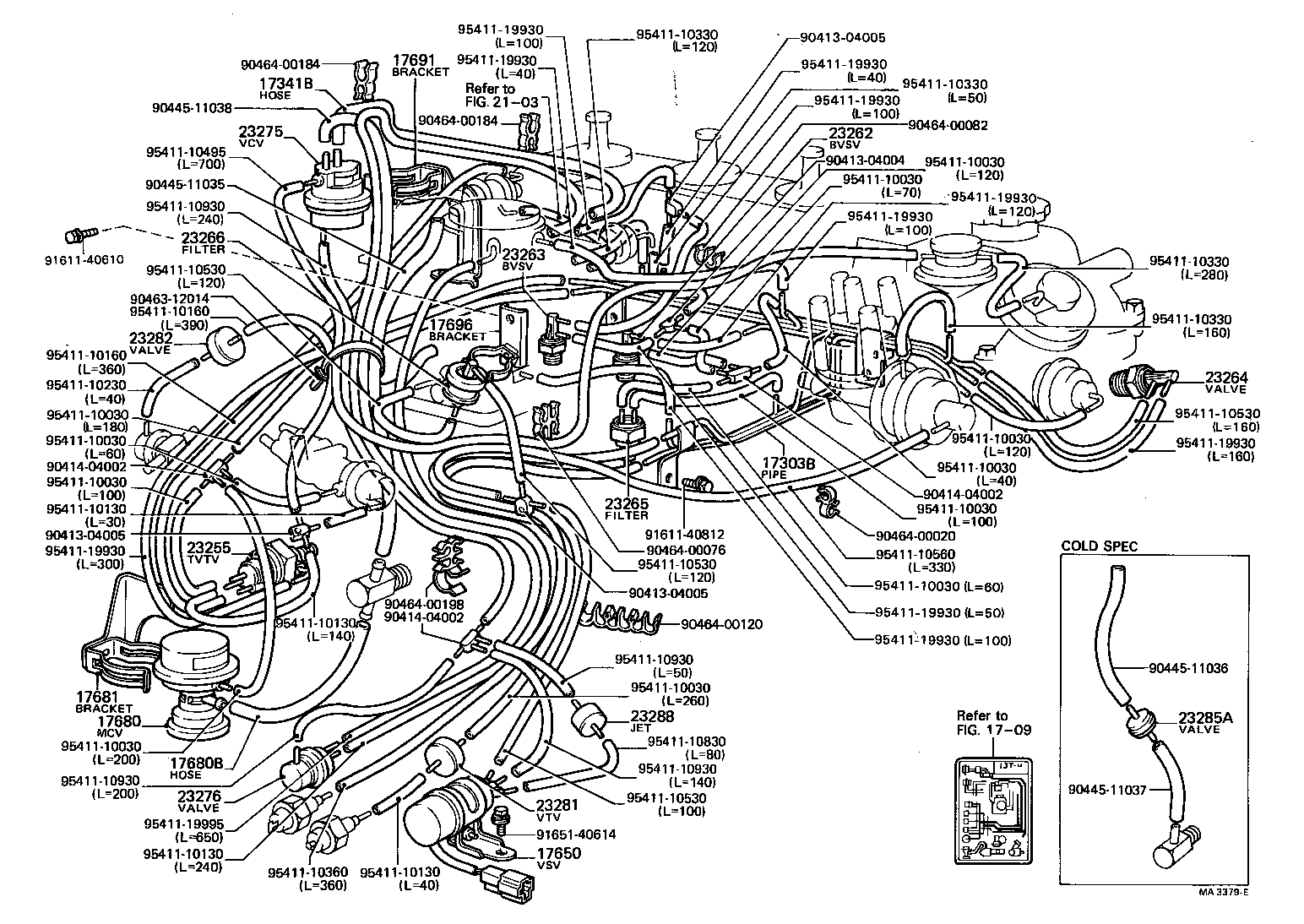

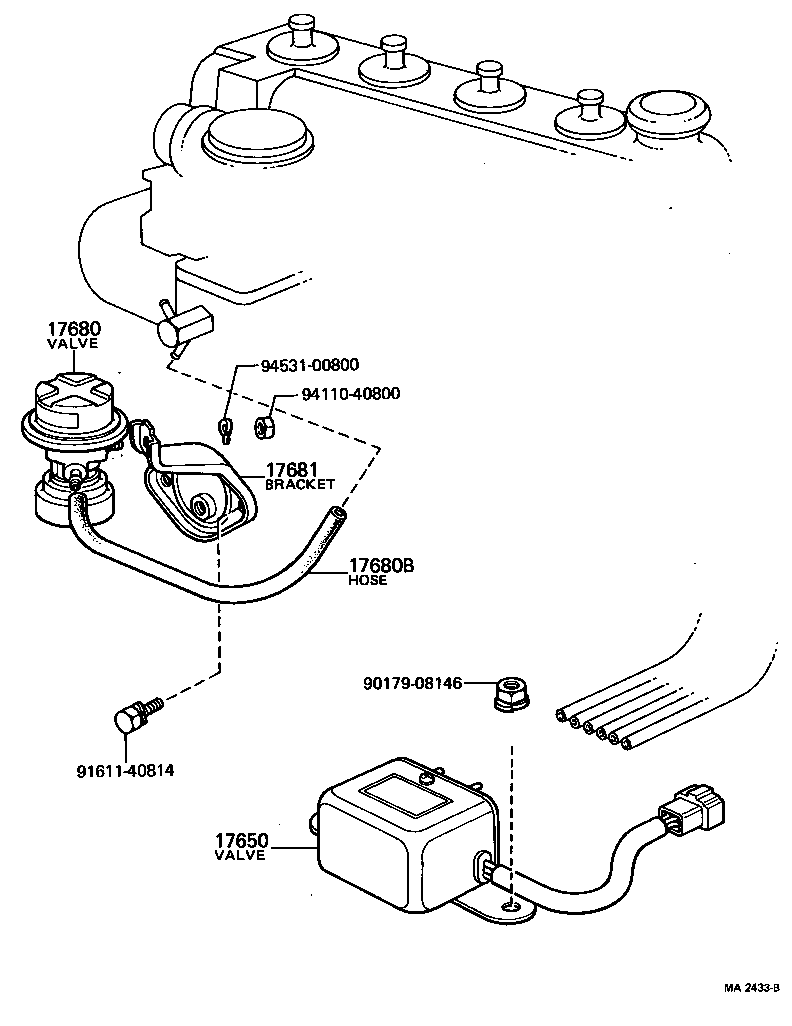

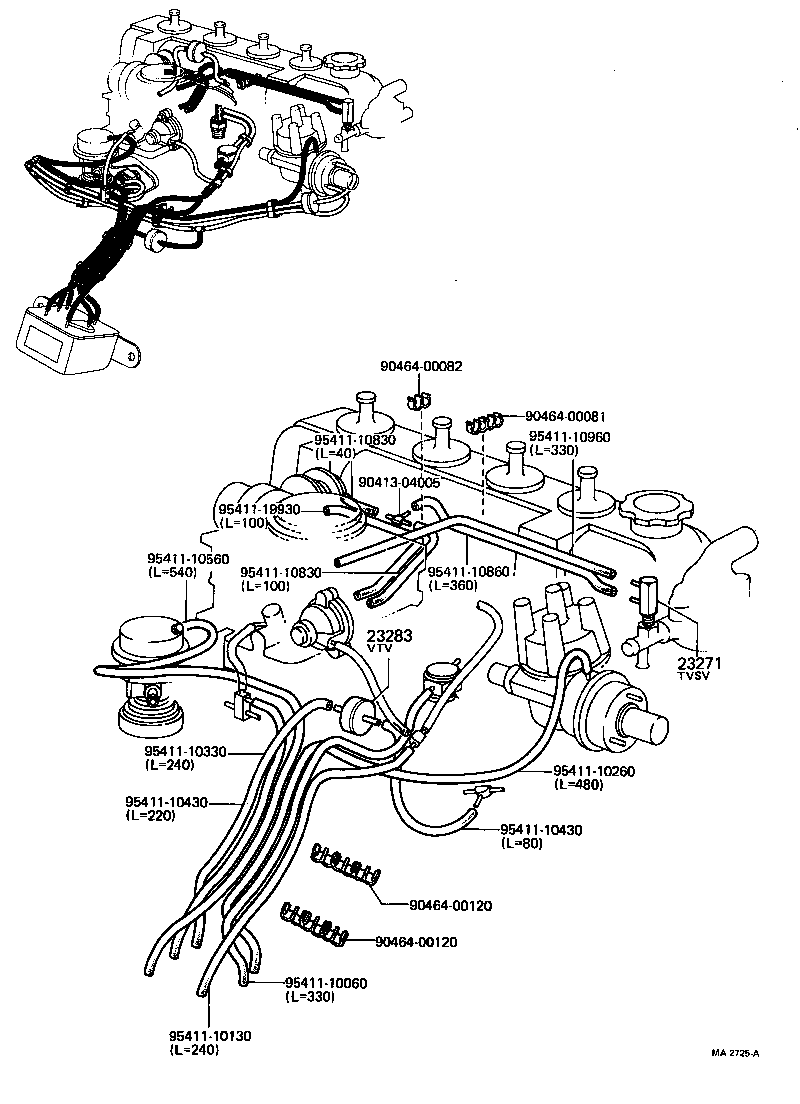

Figure MA9500 MA9500 1976-10 → — Figure MA2447C MA2447C 1976-10 → 1978-02 Figure MA3177B MA3177B 1978-02 → 1979-10 Figure MA4666A MA4666A 1979-10 → — Figure MA9500 MA9500 1976-10 → — Figure MA3382D MA3382D 1978-08 → 1979-11 Figure MA4319C MA4319C 1979-11 → — Figure MA9500 MA9500 1976-10 → — Figure MA2434D MA2434D 1976-10 → 1979-10 Figure MA4270C MA4270C 1979-10 → — Figure MA2433B MA2433B 1976-10 → 1977-02 Figure MA2435D MA2435D 1976-10 → 1977-02 Figure MA2436C MA2436C 1976-10 → 1977-02 Figure MA2591A MA2591A 1977-02 → 1978-08 Figure MA2724B MA2724B 1977-02 → 1978-08 Figure MA2725A MA2725A 1977-02 → 1978-08 Figure MA3379E MA3379E 1978-08 → 1979-10 Figure MA4179F MA4179F 1979-10 → — Figure MA5132B MA5132B 1981-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17681 Bracket, Mixture Control Valve
17691 Bracket, Vacuum Control Valve, NO.1
17696 Bracket, Gas Filter
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23284 Valve, Vacuum Transmitting, NO.4
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
