Factory parts data · Europe

Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

6 part groups · 4 illustrations

Illustrations

Figure MF2384B

MF2384B 1976-10 → —

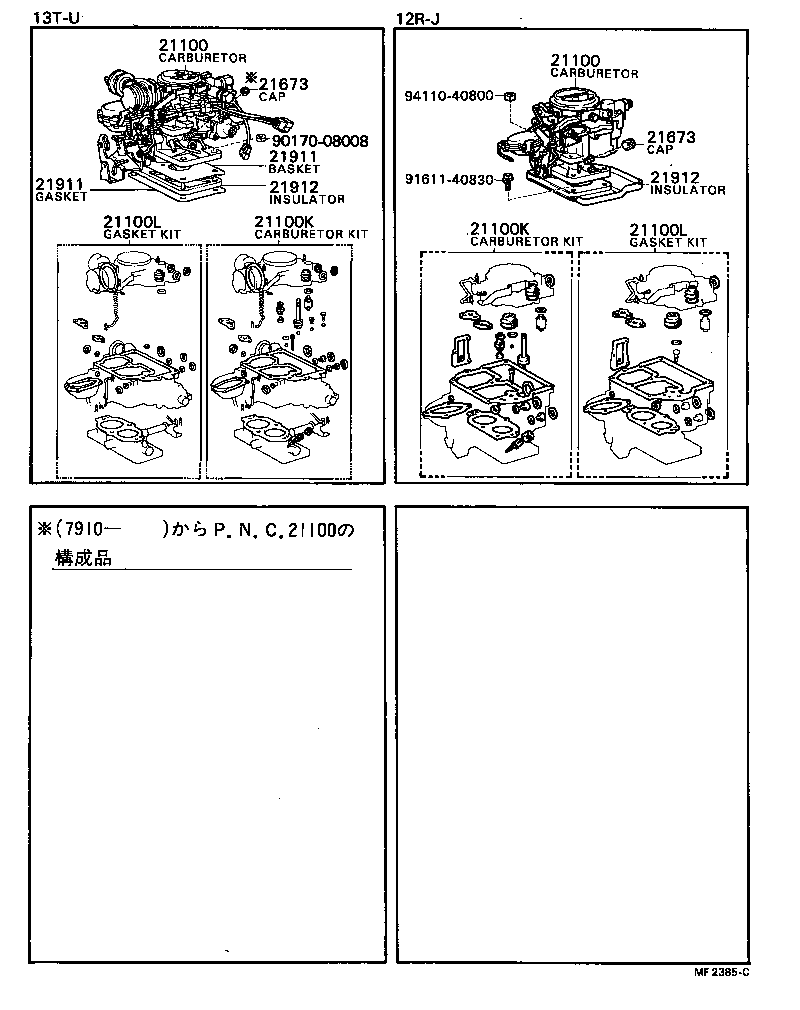

Figure MF2385C

MF2385C 1978-08 → —

Figure MF2384B

MF2384B 1976-10 → —

Figure MF2385C

MF2385C 1978-08 → —

Part groups

PNC	Description
21100	Carburetor Assy
21100K	Carburetor Kit
21100L	Gasket Kit, Carburetor
21673	Cap, Idle Limit
21911	Gasket, Carburetor
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
