Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

14 part groups · 7 illustrations

Illustrations

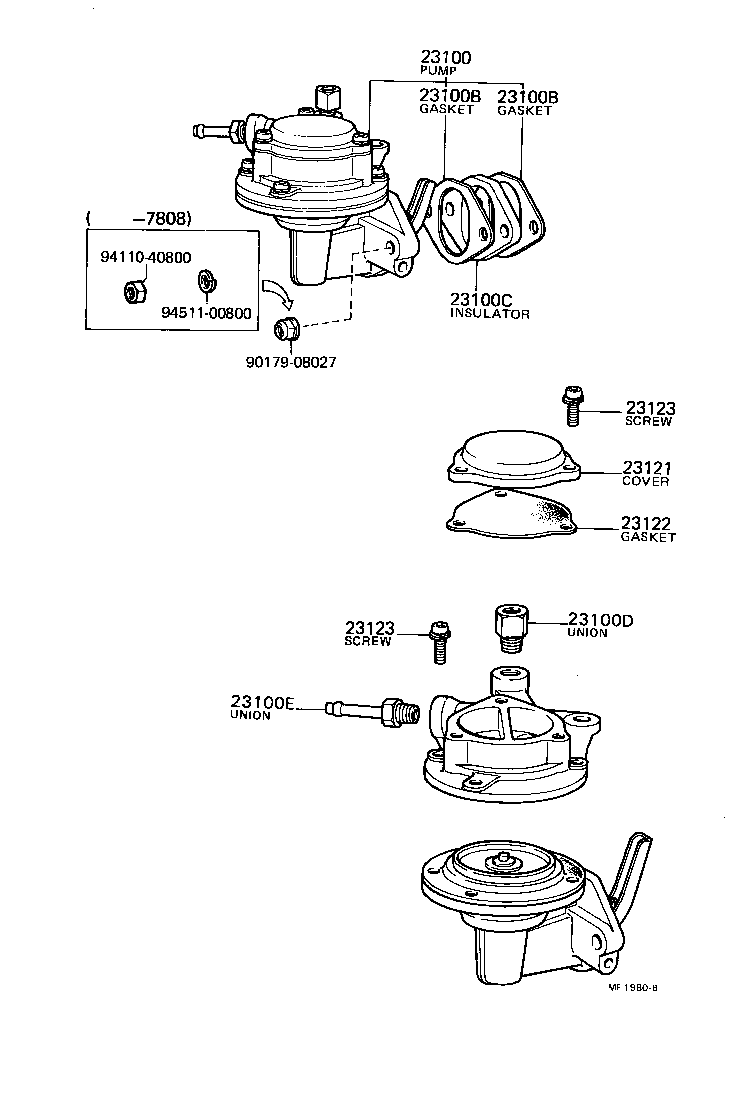

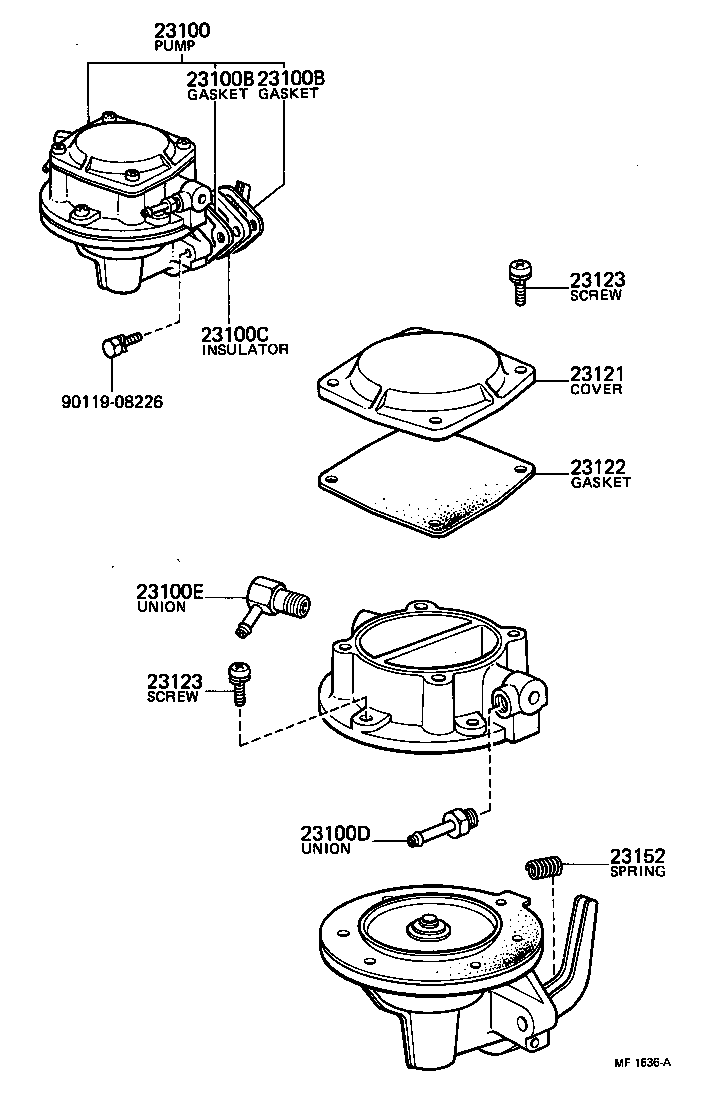

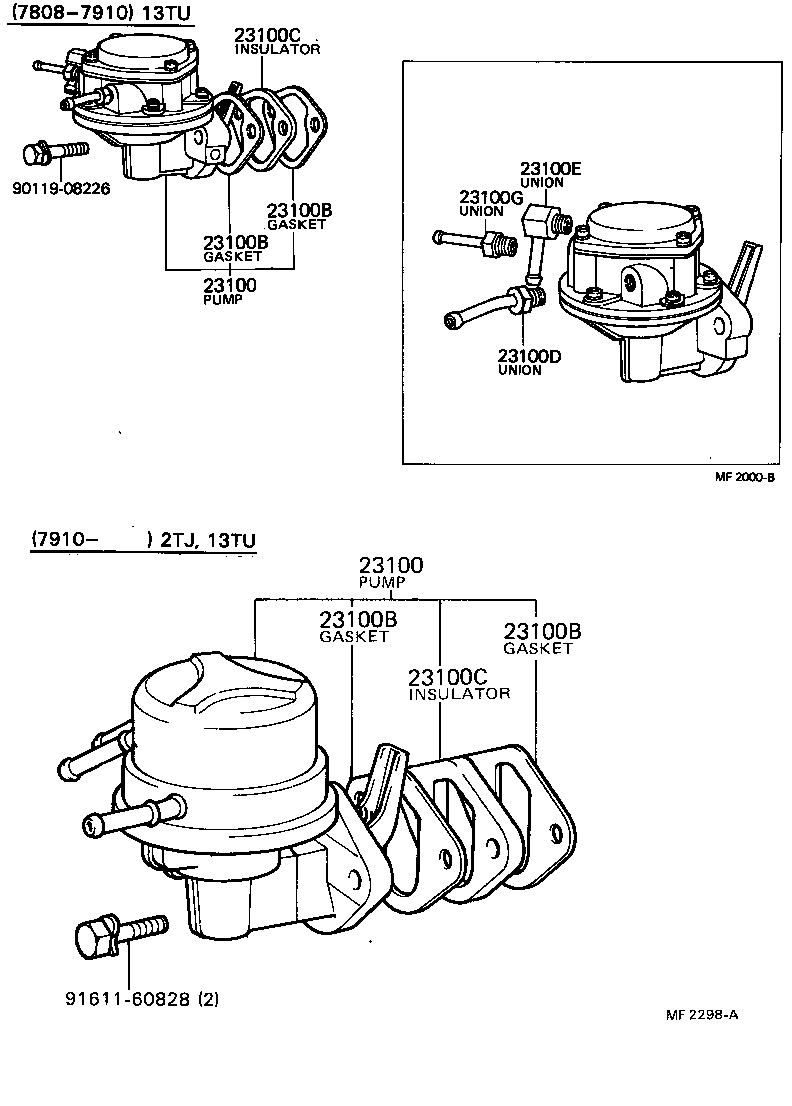

Figure MF8026A MF8026A 1976-10 → 1978-02 Figure MF1980B MF1980B 1978-02 → 1979-10 Figure MF2378A MF2378A 1979-10 → — Figure MF2026C MF2026C 1978-08 → — Figure MF1636A MF1636A 1976-10 → 1979-10 Figure AS0012A AS0012A 1978-08 → 1979-10 Figure AS0012A AS0012A 1979-10 → —

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100D Union, Nipple(FOR FUEL OUTLET)
23100E Union, Nipple(FOR FUEL INLET)
23100G Union, Nipple(FOR FUEL RETURN HOSE)
23104 Valve Sub-assy
23121 Cover, Fuel Pump
23122 Gasket, Fuel Pump Cover
23123 Screw, Cover Set, NO.1
23141 Packing, Valve
23142 Retainer, Valve
23143 Screw, Valve Retainer Set
23152 Spring, Rocker Arm
