Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

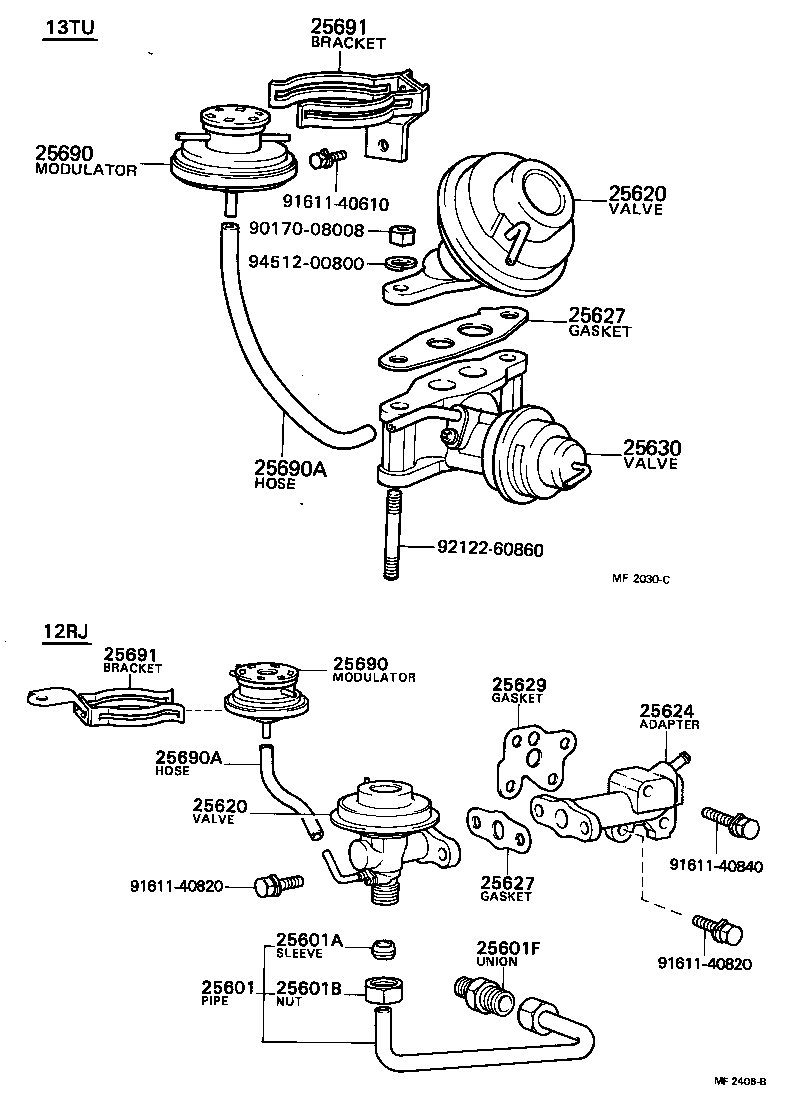

Exhaust Gas Recirculation System
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25601F | Union(FOR EGR PIPE, NO.1) |
| 25620 | Valve Assy, Egr |
| 25624 | Adapter, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25629 | Gasket, Egr Valve Adapter |
| 25630 | Valve Assy, Egr, NO.2 |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
