Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

11 part groups · 3 illustrations

Illustrations

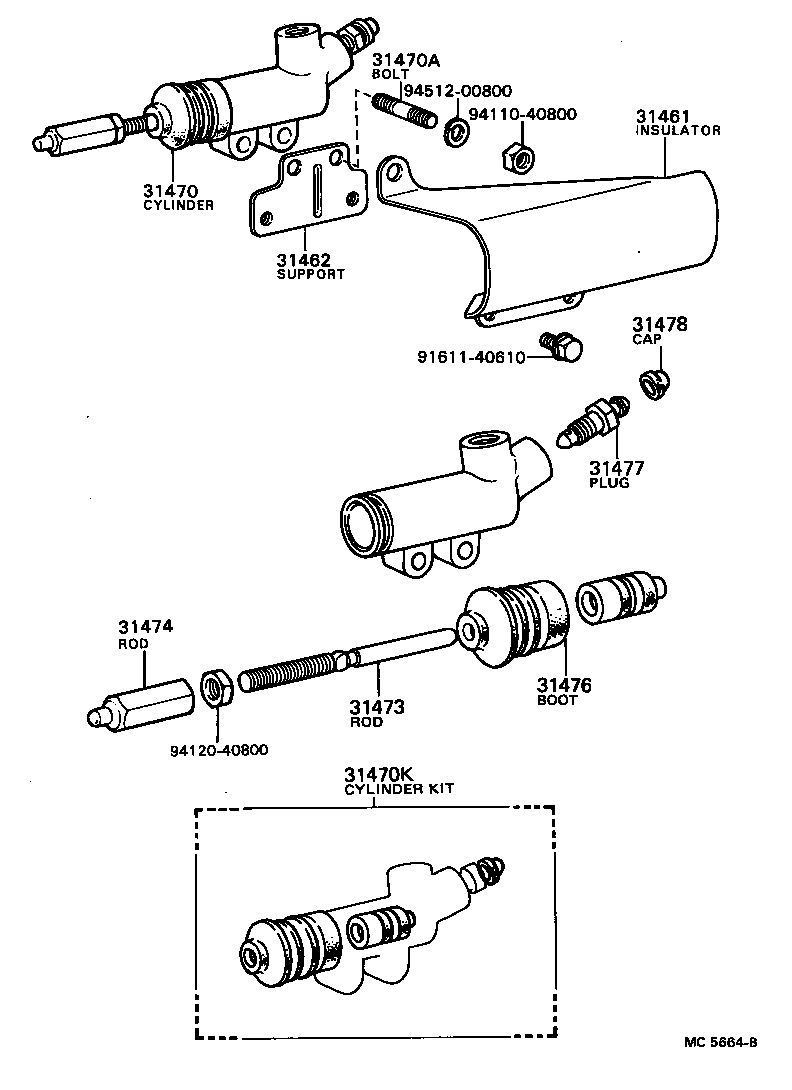

Figure MC4448A MC4448A 1976-10 → — Figure MC5663B MC5663B 1978-08 → — Figure MC5664B MC5664B 1978-08 → —

Part groups

PNCDescription
31461 Insulator, Release Cylinder Heat
31462 Support, Heat Insulator
31470 Cylinder Assy, Clutch Release
31470A Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
31470K Cylinder Kit, Clutch Release
31473 Rod, Clutch Release Cylinder Push, NO.1
31474 Rod, Clutch Release Cylinder Push, NO.2
31475 Nut, Clutch Release Cylinder Push Rod
31476 Boot, Clutch Release Cylinder
31477 Plug, Bleeder(FOR RELEASE CYLINDER)
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
