Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 10 illustrations

Illustrations

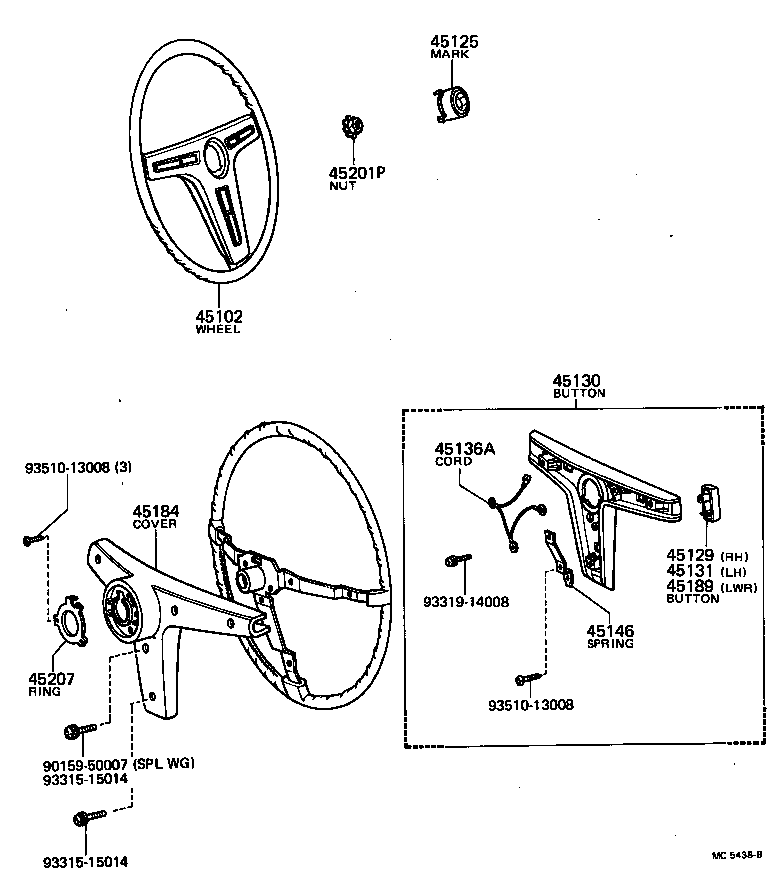

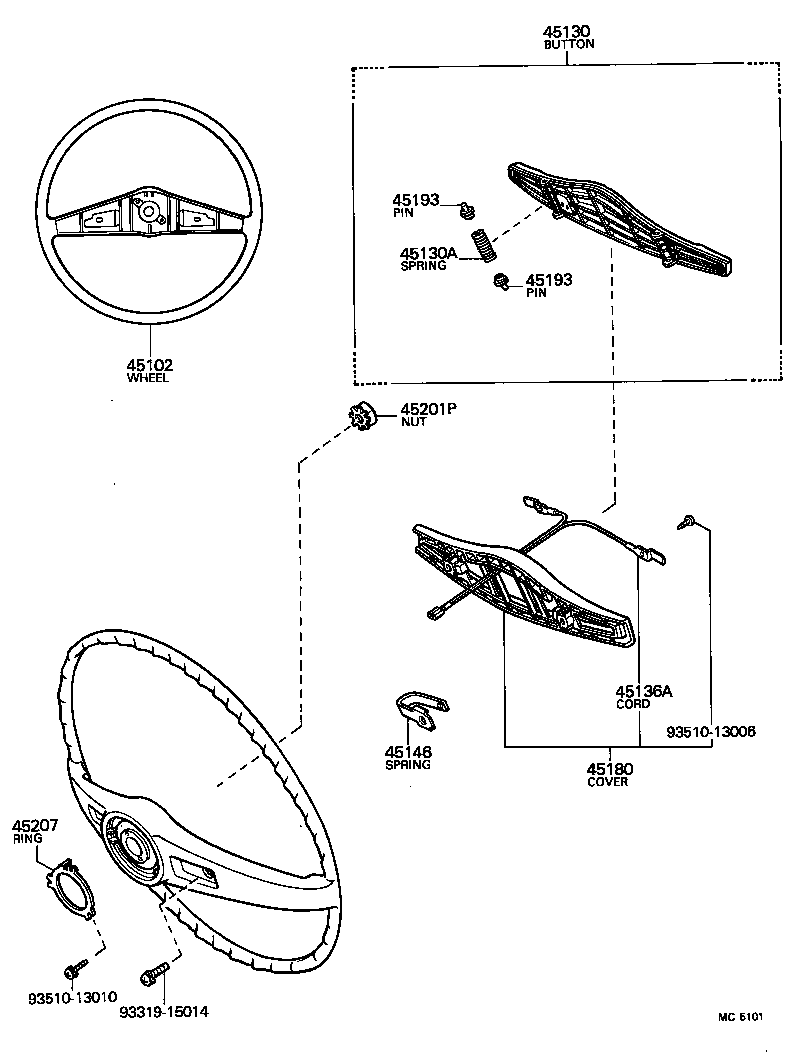

Figure MC4462A MC4462A 1976-10 → — Figure MC4463A MC4463A 1976-10 → 1979-10 Figure MC4463A MC4463A 1979-10 → 1981-01 Figure MC4463A MC4463A 1981-01 → — Figure MC5438B MC5438B 1977-06 → 1977-06 Figure MC5438B MC5438B 1978-08 → 1979-10 Figure MC5438B MC5438B 1979-10 → 1981-01 Figure MC5438B MC5438B 1981-01 → — Figure MC5102A MC5102A 1981-01 → — Figure MC5101 MC5101 1978-08 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45193 Pin, Horn Button
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
