Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

31 part groups · 3 illustrations

Illustrations

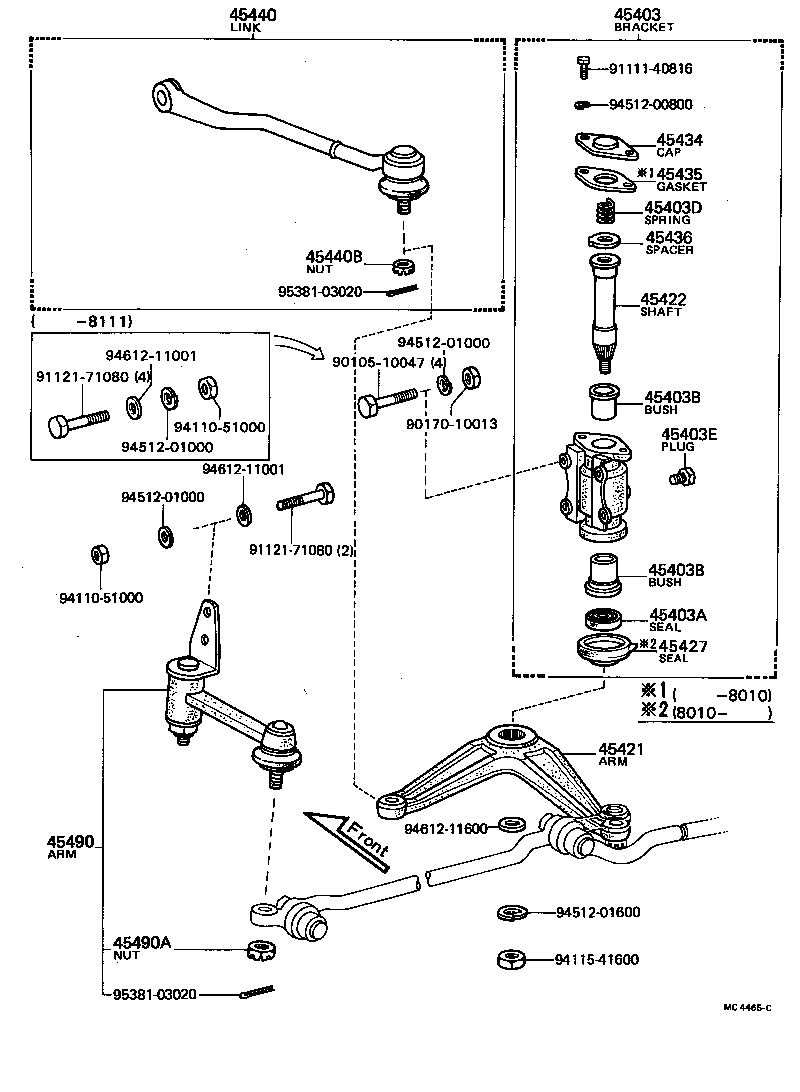

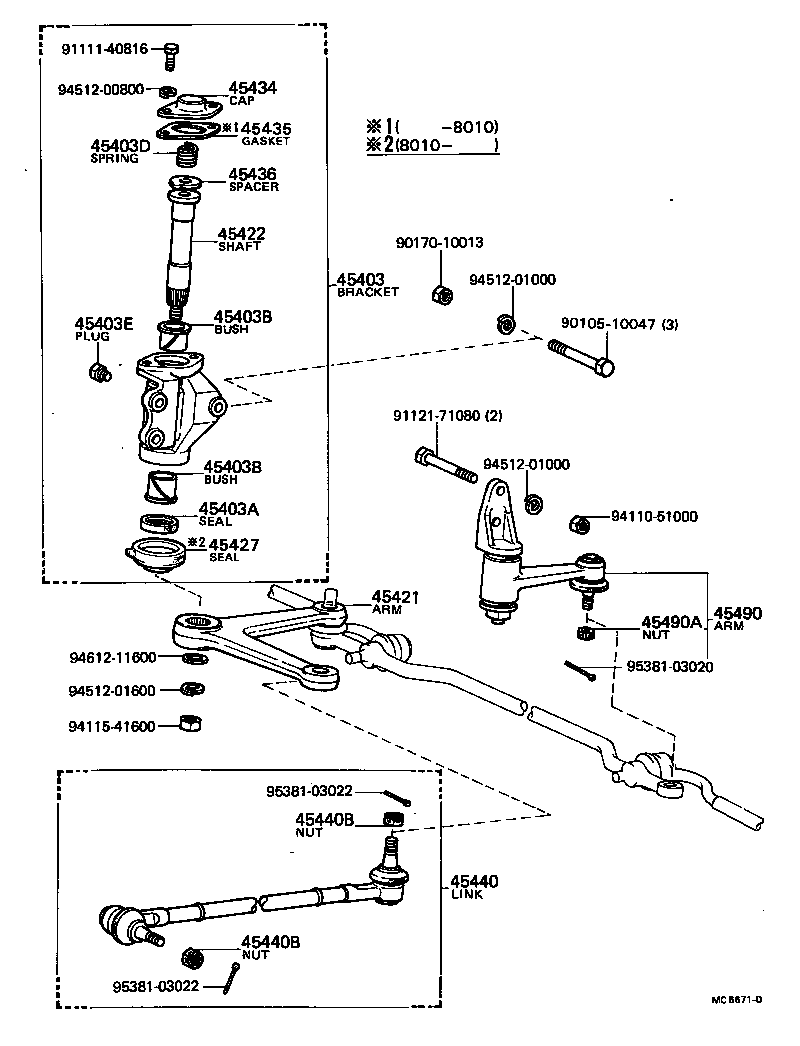

Figure MC4464C MC4464C 1976-10 → — Figure MC4465C MC4465C 1976-10 → — Figure MC5671D MC5671D 1978-08 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45403 Bracket Sub-assy, Center Arm
45403A Seal, Oil(FOR CENTER ARM BRACKET)
45403B Bush(FOR CENTER ARM BRACKET)
45403D Spring, Compression(FOR CENTER ARM SHAFT SET)
45403E Plug, W/Head Taper Screw(FOR CENTER ARM SHAFT)
45406 Rod Sub-assy, Tie, RH
45406A Nut, Castle(FOR TIE ROD)
45407 Rod Sub-assy, Tie, LH
45421 Arm, Steering Center
45422 Shaft, Center Arm
45427 Seal, Center Arm Dust, Lower
45434 Cap, Center Arm Bracket
45435 Gasket, Center Arm Bracket Cap
45436 Seat, Center Arm Shaft
45440 Link Assy, Steering Drag
45440B Nut, Castle(FOR STEERING DRAG LINK)
45450 Rod Assy, Steering Relay
45450A Nut, Castle(FOR RELAY ROD)
45460 Rod Assy, Tie, RH
45461 Rod, Steering Tie
45466 Clamp, Tie Rod End
45470 Rod Assy, Tie, LH
45490 Arm Assy, Steering Idler
45490A Nut, Castle(FOR IDLER ARM)
45611 Arm, Steering Knuckle, RH
45611A Bolt, Knuckle Stopper
45612 Arm, Steering Knuckle, LH
45619 Cover, Knuckle Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
