Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

30 part groups · 5 illustrations

Illustrations

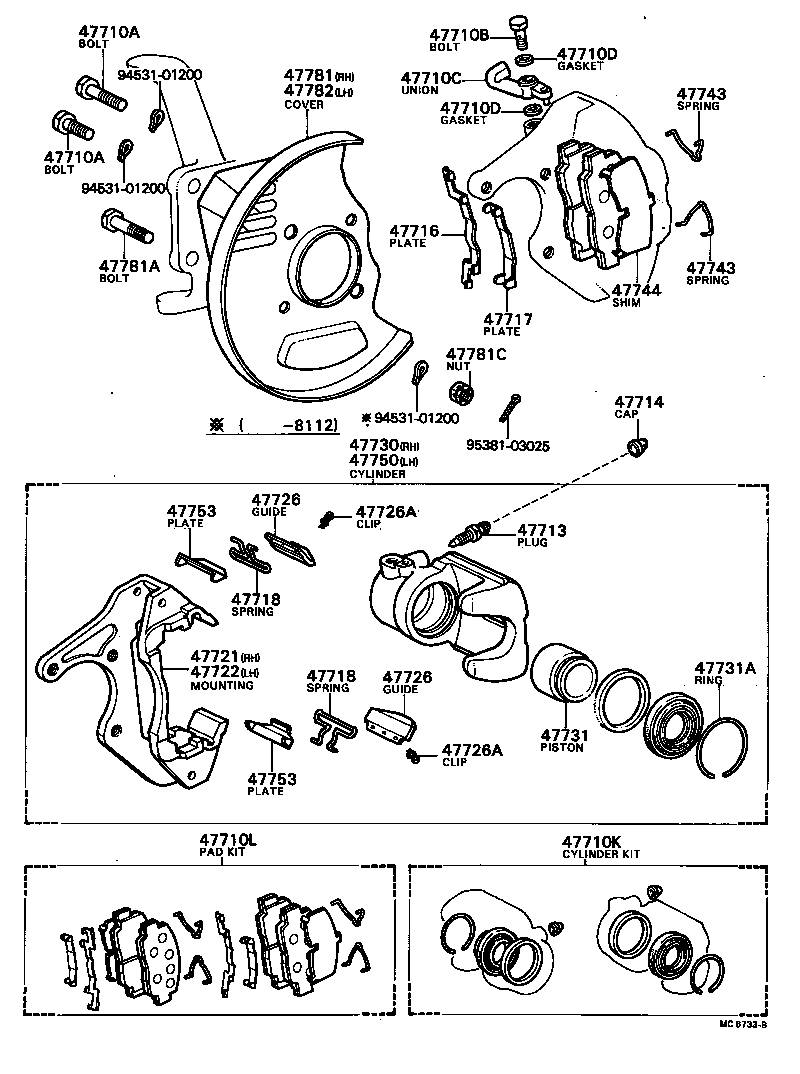

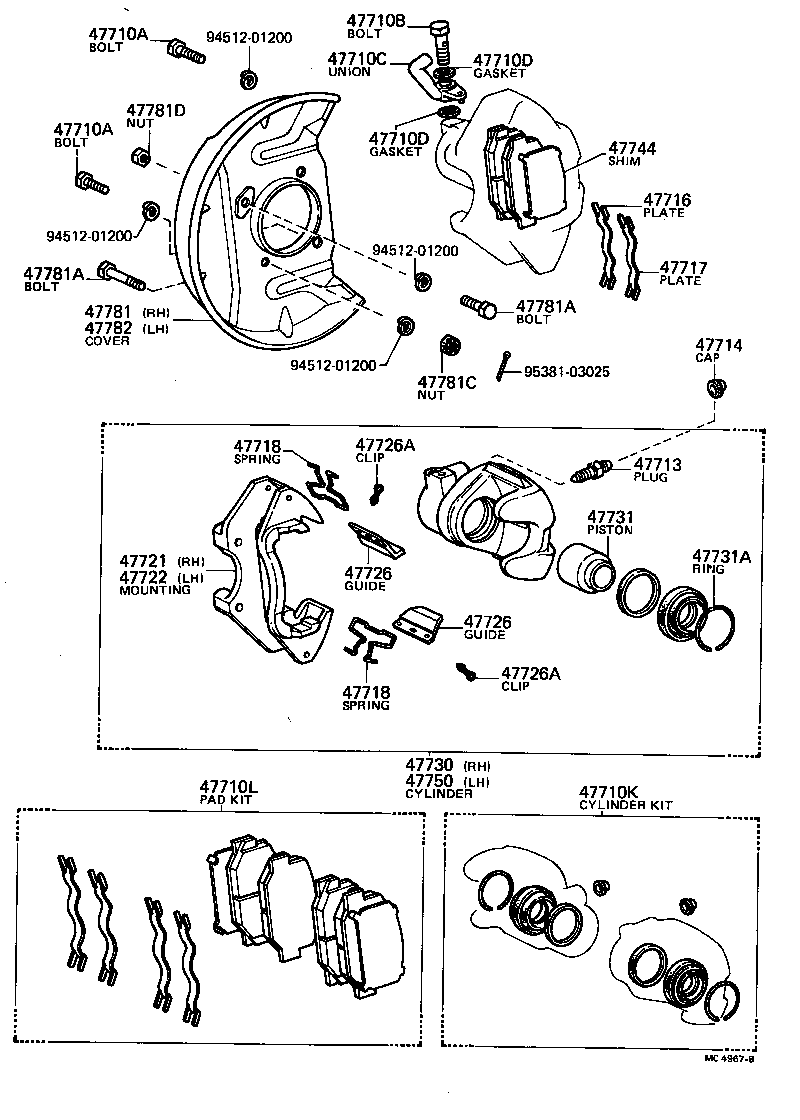

Figure MC4473B MC4473B 1976-10 → 1976-11 Figure MC4967B MC4967B 1976-11 → 1979-10 Figure MC6733B MC6733B 1979-10 → 1981-01 Figure MC6733B MC6733B 1981-01 → — Figure MCR482A MCR482A 1976-10 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47710B Bolt, Union(FOR FRONT DISC BRAKE CALIPER)
47710C Union(FOR FRONT DISC BRAKE CALIPER)
47710D Gasket(FOR FRONT DISC BRAKE CALIPER UNION)
47710K Cylinder Kit, Disc Brake, Front
47710L Pad Kit, Disc Brake, Front
47713 Plug, Bleeder(FOR FRONT DISC BRAKE)
47714 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47717 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47718 Spring, Front Disc Brake Cylinder Support
47721 Mounting, Front Disc Brake Cylinder, RH
47722 Mounting, Front Disc Brake Cylinder, LH
47726 Guide, Front Disc Brake Cylinder
47726A Clip(FOR FRONT DISC BRAKE CYLINDER)
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47743 Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47750 Cylinder Assy, Disc Brake, LH
47753 Plate, Cylinder Guide
47781 Cover, Disc Brake Dust, Front RH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781C Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781D Nut(FOR DUST COVER SETTING)
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
