Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

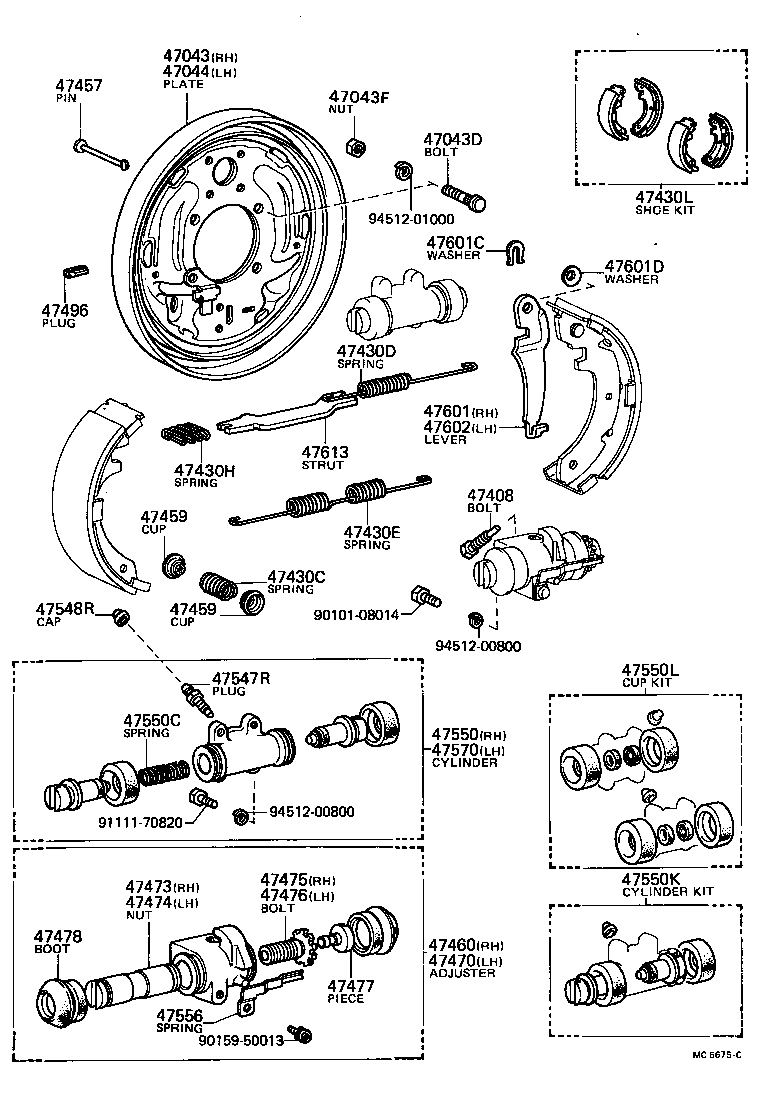

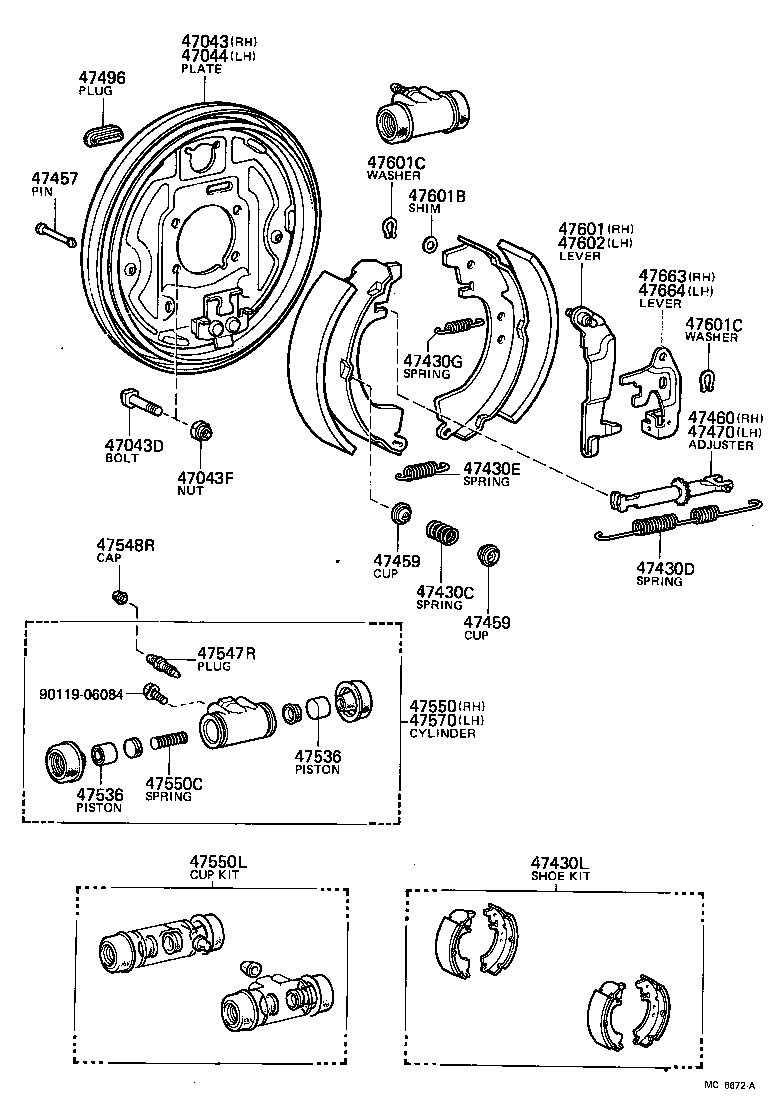

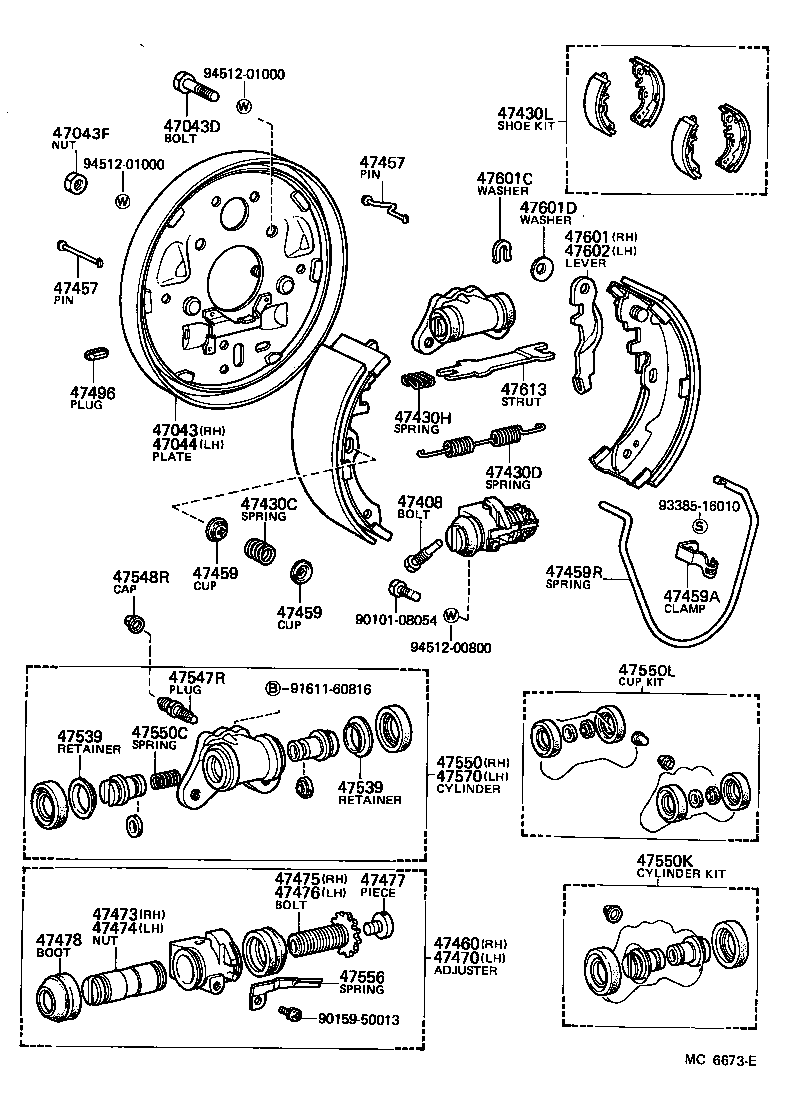

Rear Drum Brake Wheel Cylinder & Backing Plate
50 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043D | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47408 | Bolt Sub-assy, Retracting Spring Clamp |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430G | Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) |
| 47430H | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47430L | Shoe Kit, Rear Brake |
| 47430S | Spring, Tension(FOR PARKING BRAKE SHOE STRUT) |
| 47457 | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47459 | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47459A | Clamp(FOR SHOE RETURN SPRING) |
| 47459R | Spring, Shoe Return(FOR REAR BRAKE) |
| 47460 | Adjuster Assy, Shoe, RH(FOR REAR BRAKE) |
| 47470 | Adjuster Assy, Shoe, LH(FOR REAR BRAKE) |
| 47473 | Nut, Rear Wheel Cylinder Adjusting, RH(FOR REAR BRAKE) |
| 47474 | Nut, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47475 | Bolt, Rear Wheel Cylinder Adjusting, RH (FOR REAR BRAKE) |
| 47476 | Bolt, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47477 | Piece, Shoe Support (FOR REAR BRAKE) |
| 47478 | Boot, Adjuster Cylinder(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47536 | Piston, Wheel Brake Cylinder(FOR REAR BRAKE) |
| 47539 | Retainer, Wheel Cylinder Boot |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550C | Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550K | Cylinder Kit, Rear Wheel |
| 47550L | Cup Kit, Rear Wheel Cylinder |
| 47556 | Spring, Adjuster Lock(FOR REAR BRAKE) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47601 | Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE) |
| 47601B | Shim, Rear Parking Brake Shoe Lever |
| 47601C | Washer, C(FOR REAR BRAKE) |
| 47601D | Washer, Wave(FOR REAR BRAKE) |
| 47602 | Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE) |
| 47608 | Lever Sub-assy, Automatic Adjust, RH(FOR REAR BRAKE) |
| 47609 | Lever Sub-assy, Automtic Adjust, LH(FOR REAR BRAKE) |
| 47613 | Strut, Parking Brake Shoe (FOR REAR BRAKE) |
| 47645 | Pin, Automatic Adjust Lever(FOR REAR BRAKE) |
| 47646 | Latch, Automatic Adjust(FOR REAR BRAKE) |
| 47646A | Washer, Plate(FOR REAR BRAKE AUTOMATIC ADJUST LATCH) |
| 47648 | Stopper, Automatic Adjust Latch, RH(FOR REAR BRAKE) |
| 47649 | Stopper, Automatic Adjust Latch, LH(FOR REAR BRAKE) |
| 47663 | Lever, Automatic Adjust, RH(FOR REAR BRAKE) |
| 47664 | Lever, Automatic Adjust, LH(FOR REAR BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
