Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

20 part groups · 3 illustrations

Illustrations

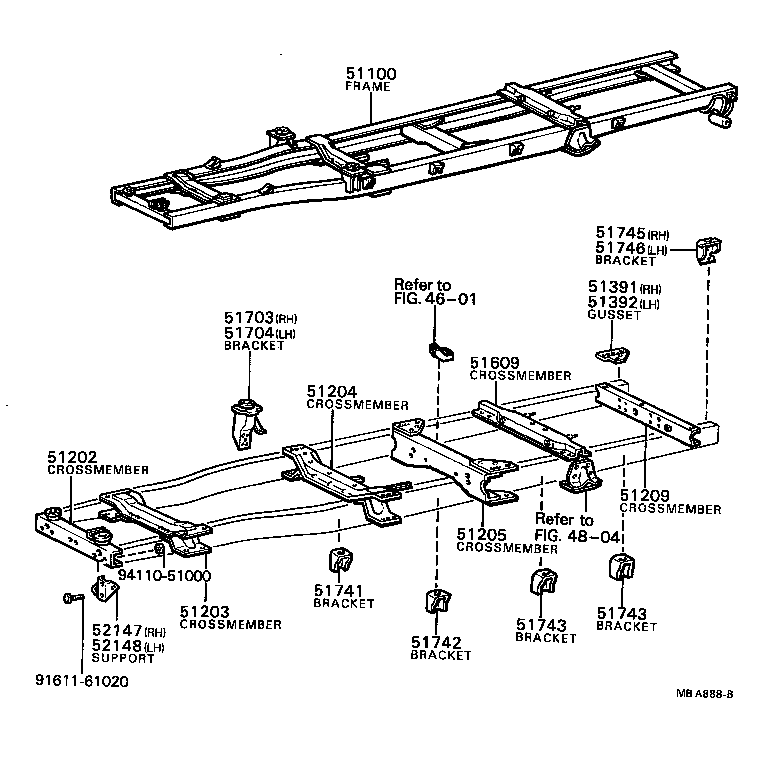

Figure MB8161C MB8161C 1978-08 → 1979-11 Figure MB8161C MB8161C 1979-11 → — Figure MBA888B MBA888B 1979-11 → —

Part groups

PNCDescription
51100 Frame Assy
51202 Crossmember Sub-assy, Frame, NO.1
51203 Crossmember Sub-assy, Frame, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51209 Crossmember Sub-assy, Frame, NO.8
51391 Gusset, Frame Rear Crossmember, RH
51392 Gusset, Frame Rear Crossmember, LH
51401A Reinforcement, Engine Front Mounting Bracket, RH
51609 Crossmember Sub-assy, Rear Shock Absorber Support
51703 Bracket Sub-assy, Cab Mounting, NO.2, RH
51704 Bracket Sub-assy, Cab Mounting, NO.2 LH
51741 Bracket, Rear Body Mounting, NO.1
51742 Bracket, Body Mounting, NO.2
51743 Bracket, Body Mounting, NO.3
51745 Bracket, Body Mounting, NO.5
51746 Bracket, Body Mounting, NO.6
52147 Support, Front Bumper, RH
52148 Support, Front Bumper, LH
66441 Shim, Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
