Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 6 illustrations

Illustrations

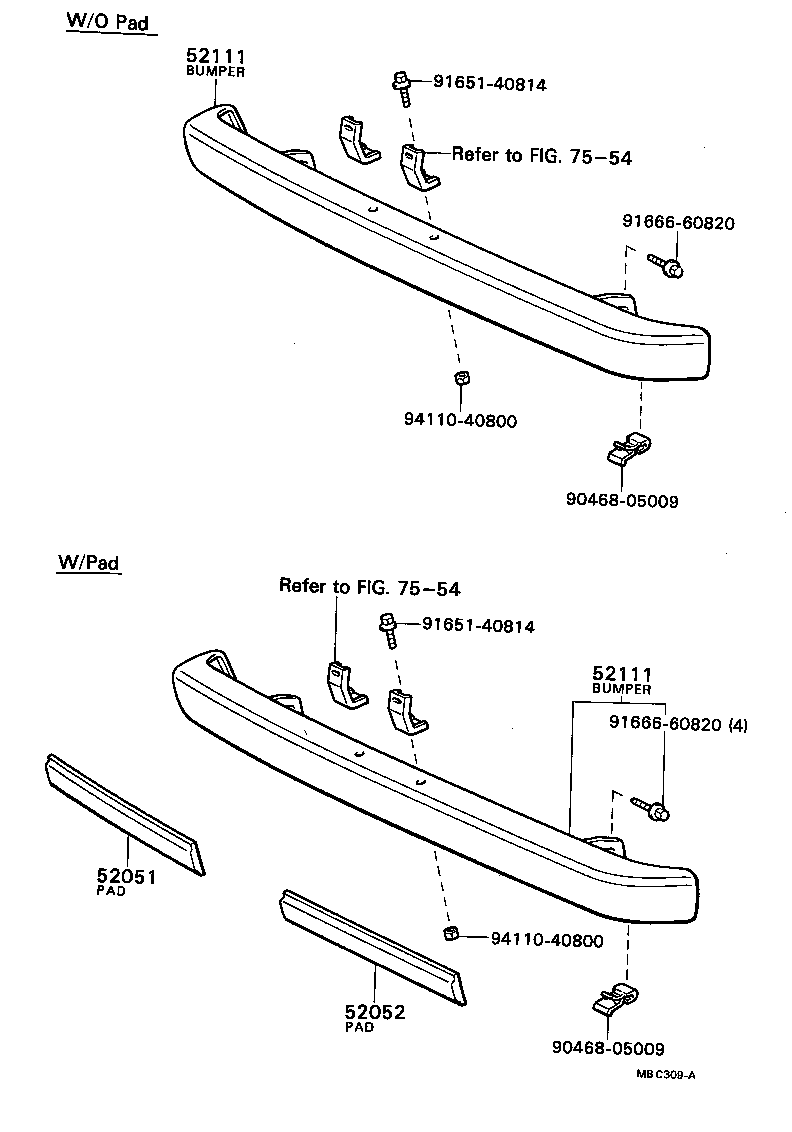

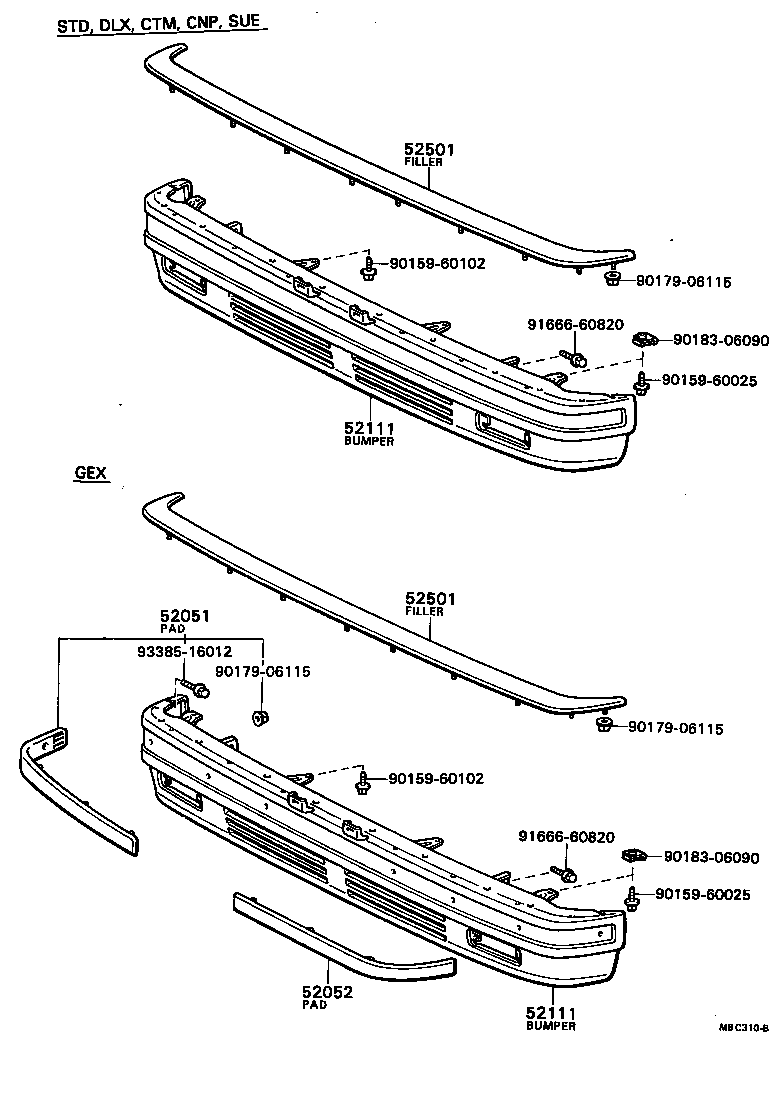

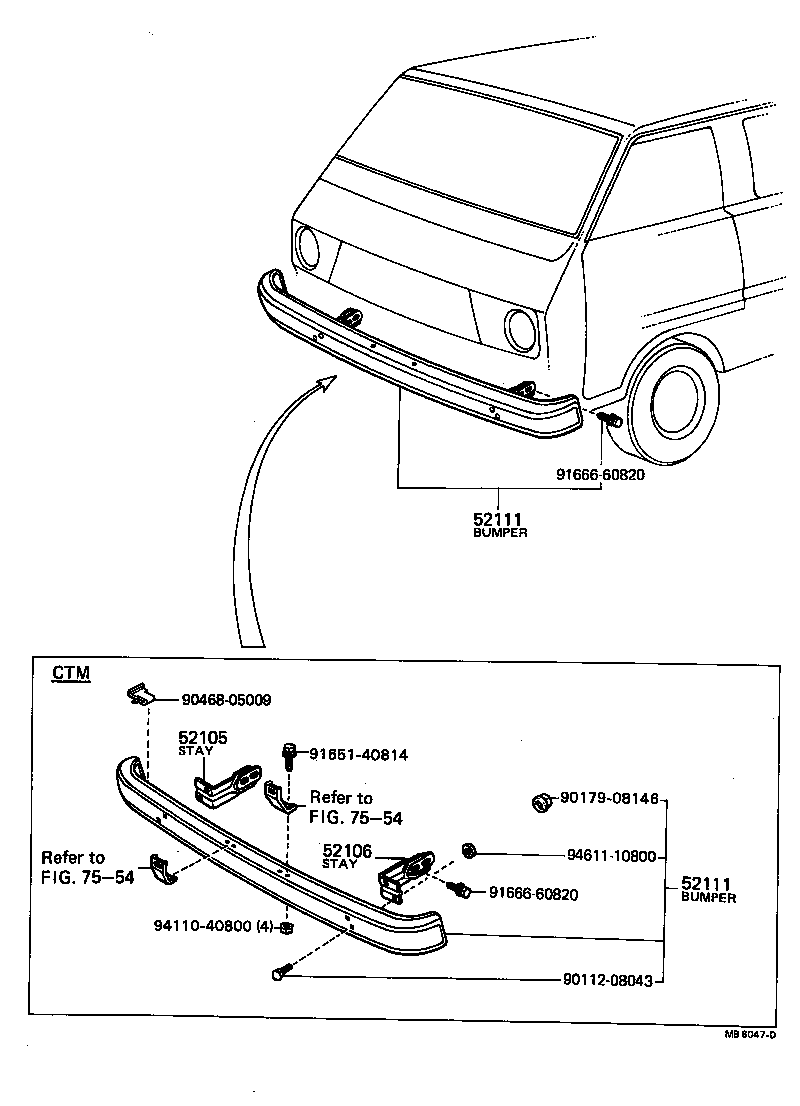

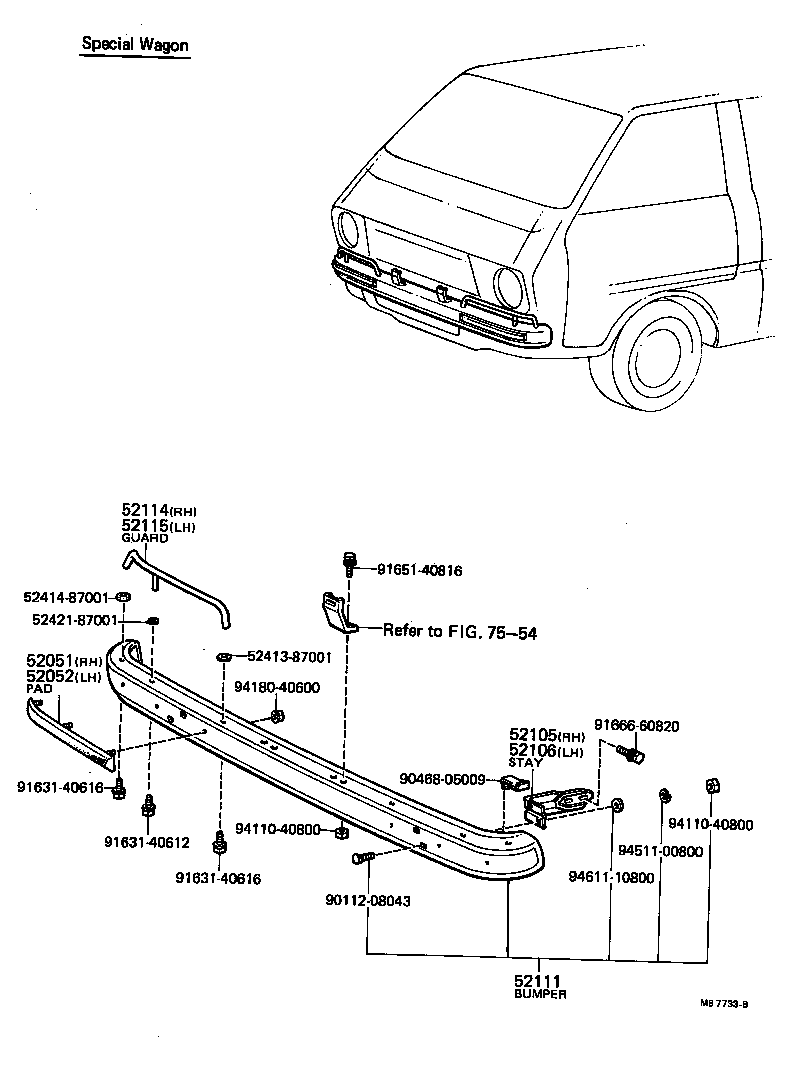

Figure MB8165E MB8165E 1978-08 → 1981-01 Figure MB6047D MB6047D 1976-10 → 1981-01 Figure MBC308 MBC308 1981-01 → — Figure MBC309A MBC309A 1981-01 → — Figure MBC310B MBC310B 1981-01 → — Figure MB7733B MB7733B 1977-06 → 1977-06

Part groups

PNCDescription
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52114 Guard, Bumper, Front RH
52115 Guard, Bumper, Front LH
52501 Filler Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
