Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

6 part groups · 4 illustrations

Illustrations

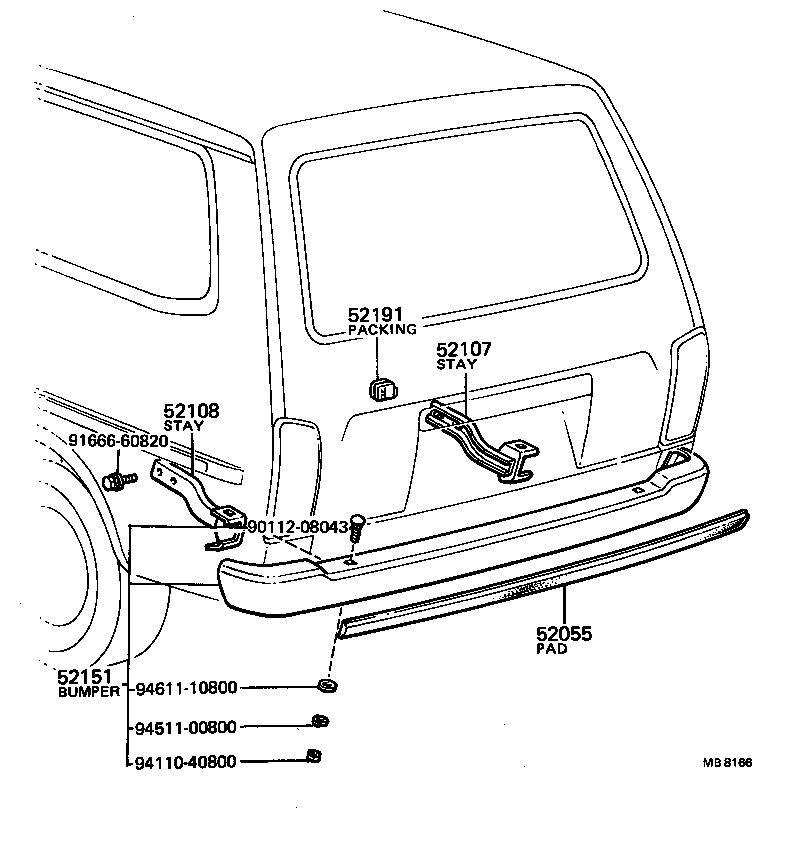

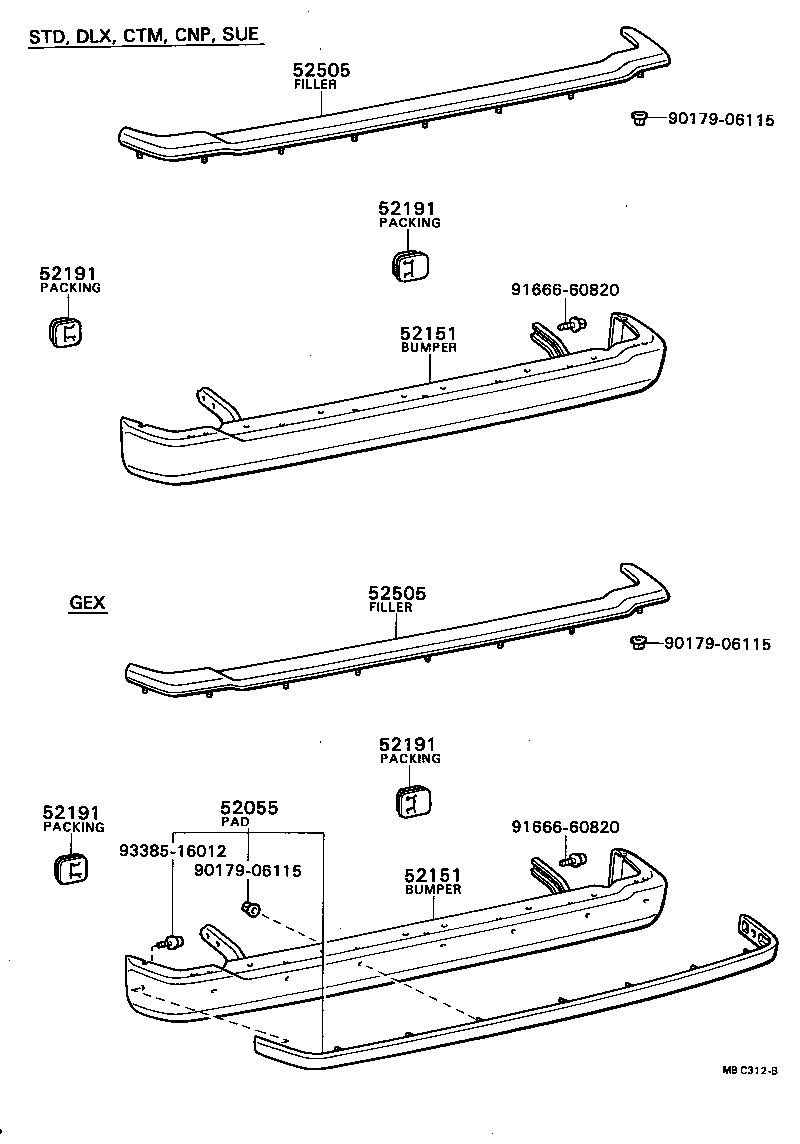

Figure MB6042C MB6042C 1976-10 → 1981-01 Figure MB8166 MB8166 1978-08 → 1981-01 Figure MBC311 MBC311 1981-01 → — Figure MBC312B MBC312B 1981-01 → —

Part groups

PNCDescription
52055 Pad Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52191 Packing, Rear Bumper Stay
52505 Filler Sub-assy, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
