Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

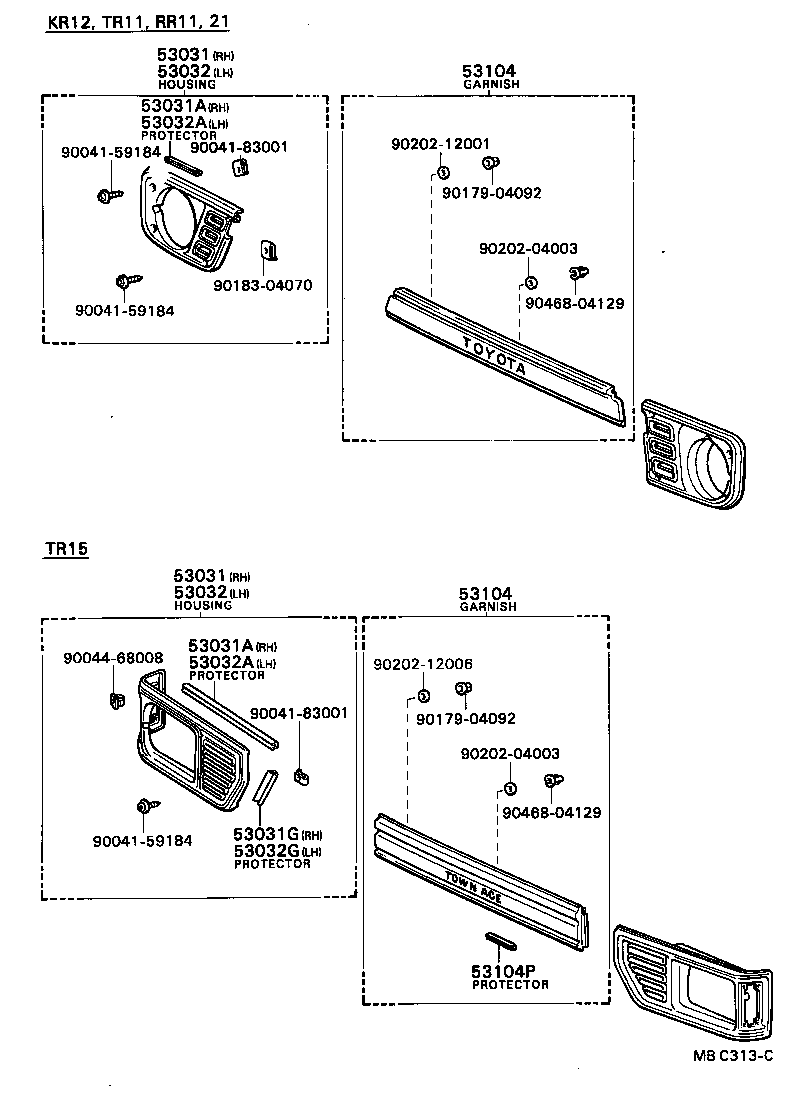

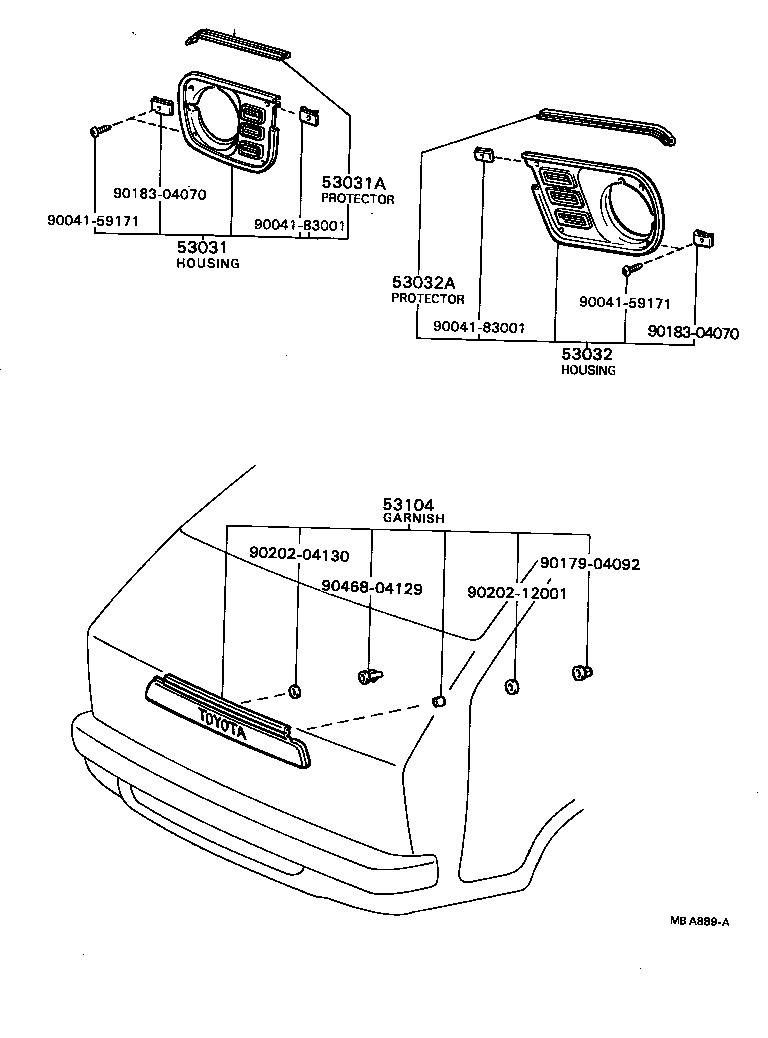

Radiator Grille
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53031 | Housing, Headlamp, RH |
| 53031A | Protector, Headlamp Door, RH |
| 53031G | Protector, Headlamp Door NO.2, RH |
| 53032 | Housing, Headlamp, LH |
| 53032A | Protector, Headlamp Door, LH |
| 53032G | Protector, Headlamp Door NO.2, LH |
| 53104 | Garnish Sub-assy, Front Panel, Center |
| 53104P | Protector, Front Panel Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
