Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Ventilator

9 part groups · 3 illustrations

Illustrations

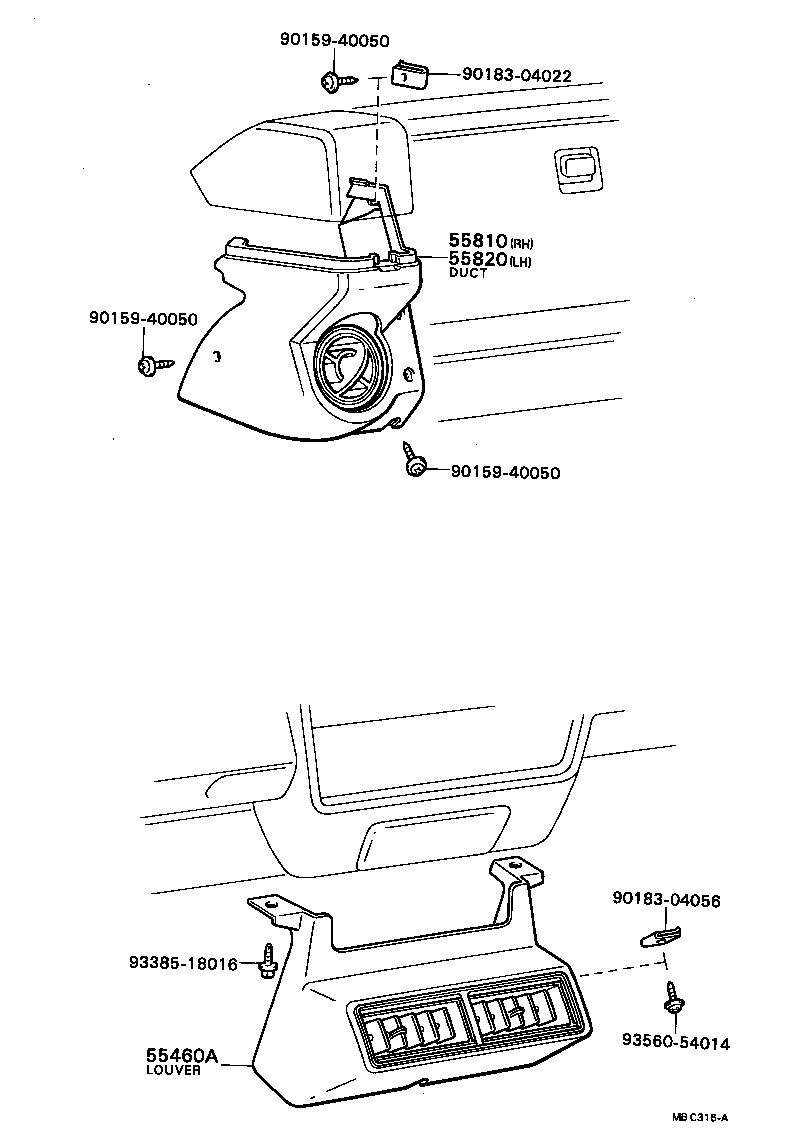

Figure MB6074D MB6074D 1976-10 → 1981-01 Figure MB6074D MB6074D 1981-01 → — Figure MBC316A MBC316A 1981-01 → —

Part groups

PNCDescription
55460A Louver Assy, Center Ventilator
55805 Duct Sub-assy, Side Ventilator, NO.2 RH
55806 Duct Sub-assy, Side Ventilator, NO.2 LH
55810 Duct Assy, Side Ventilator, RH
55818 Seal, Side Ventilator Duct
55820 Duct Assy, Side Ventilator, LH
55851 Retainer, Air Duct NO.1
55857A Cover, Duct Air
55950 Nozzle Assy, Defroster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
