Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Panel & Windshield Glass

12 part groups · 6 illustrations

Illustrations

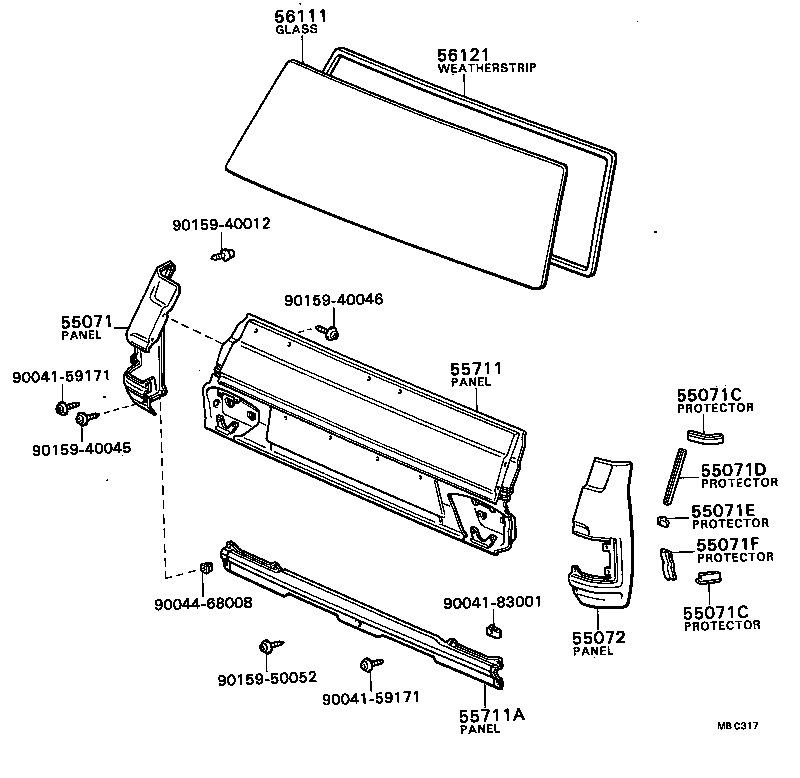

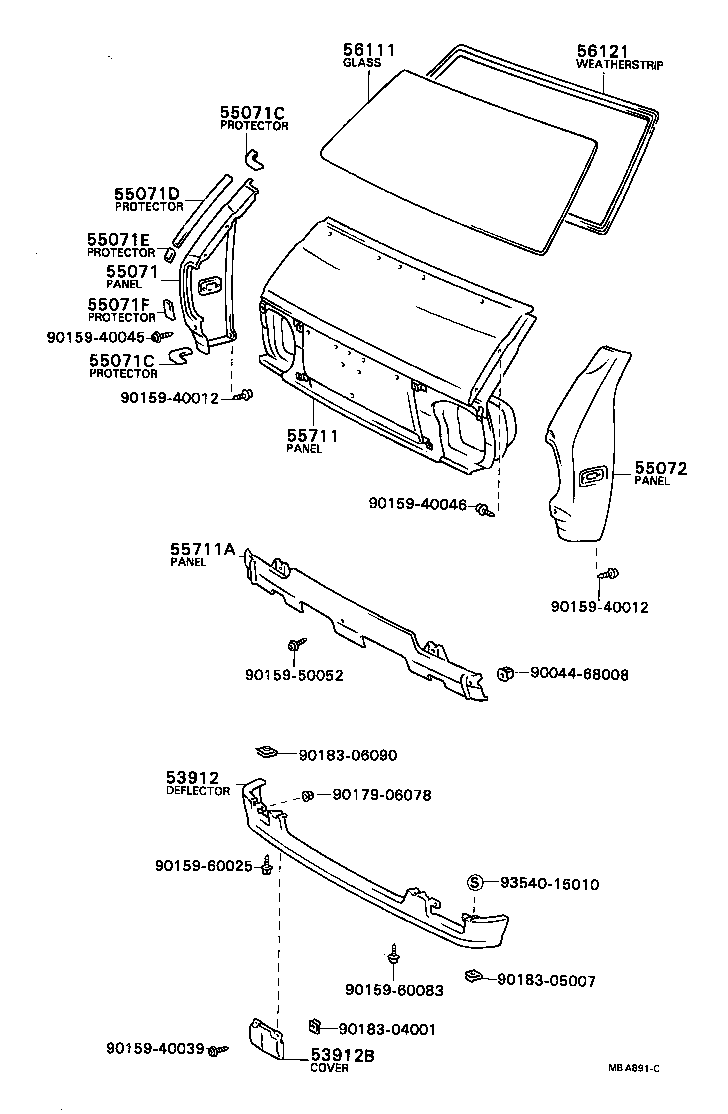

Figure MB6054M MB6054M 1976-10 → 1979-10 Figure MB6054M MB6054M 1978-08 → 1979-11 Figure MBA891C MBA891C 1979-10 → 1981-01 Figure MBA891C MBA891C 1979-11 → — Figure MBA891C MBA891C 1981-01 → — Figure MBC317 MBC317 1981-01 → —

Part groups

PNCDescription
53912 Deflector, Front Bumper Stone
53912B Cover, Steering Gear Housing
55071 Panel Sub-assy, Front Side, RH
55071C Protector, Front Side Panel, NO.1
55071D Protector, Front Side Panel, NO.2
55071E Protector, Front Side Panel, NO.3
55071F Protector, Front Side Panel, NO.4
55072 Panel Sub-assy, Front Side, LH
55711 Panel, Cowl Top, Outer
55711A Panel, Front, Lower
56111 Glass, Windshield
56121 Weatherstrip, Windshield
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
