Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

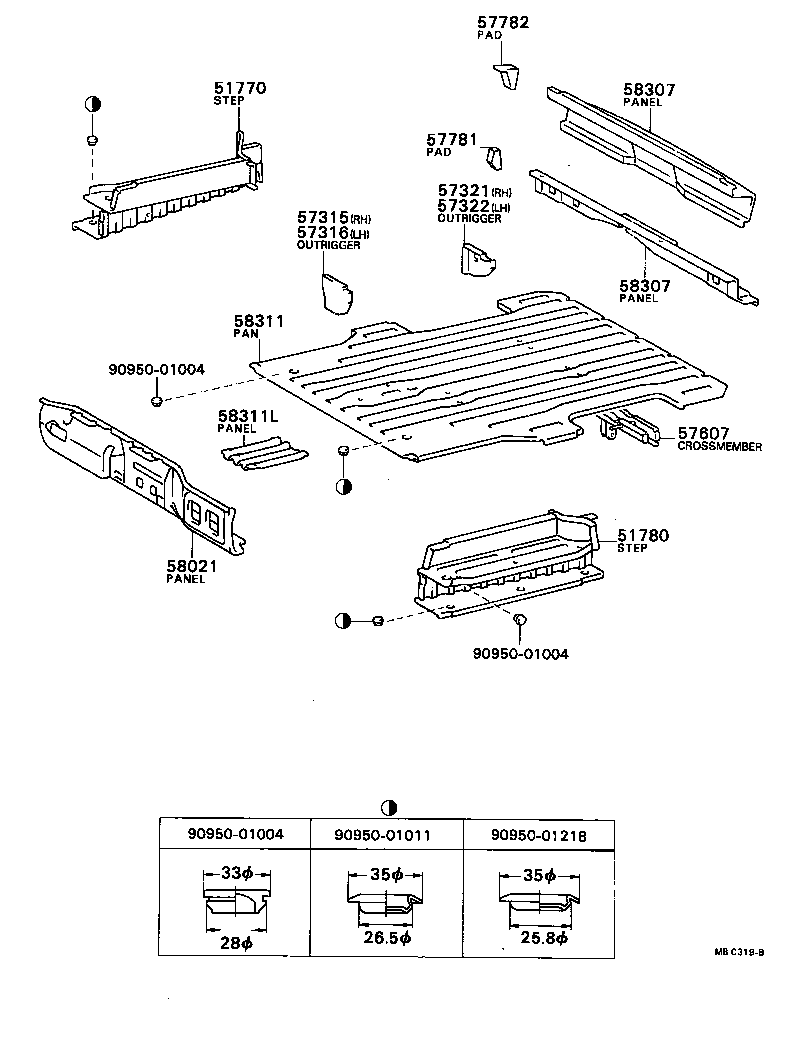

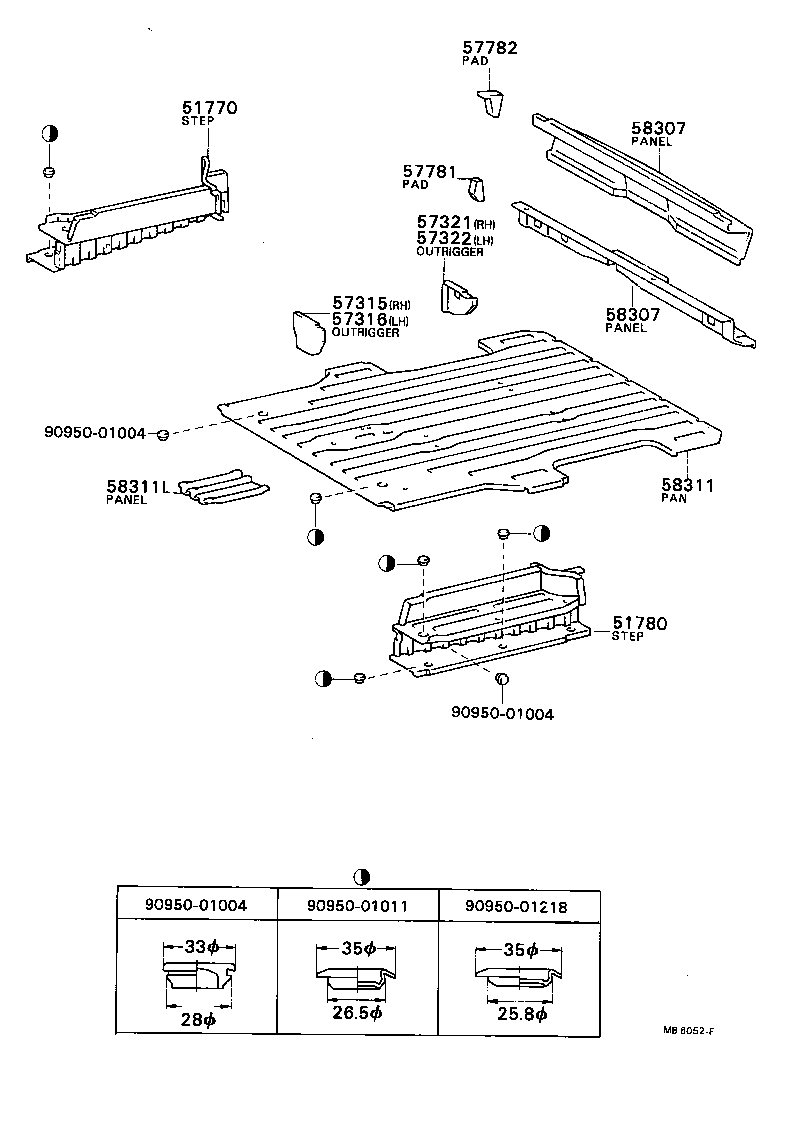

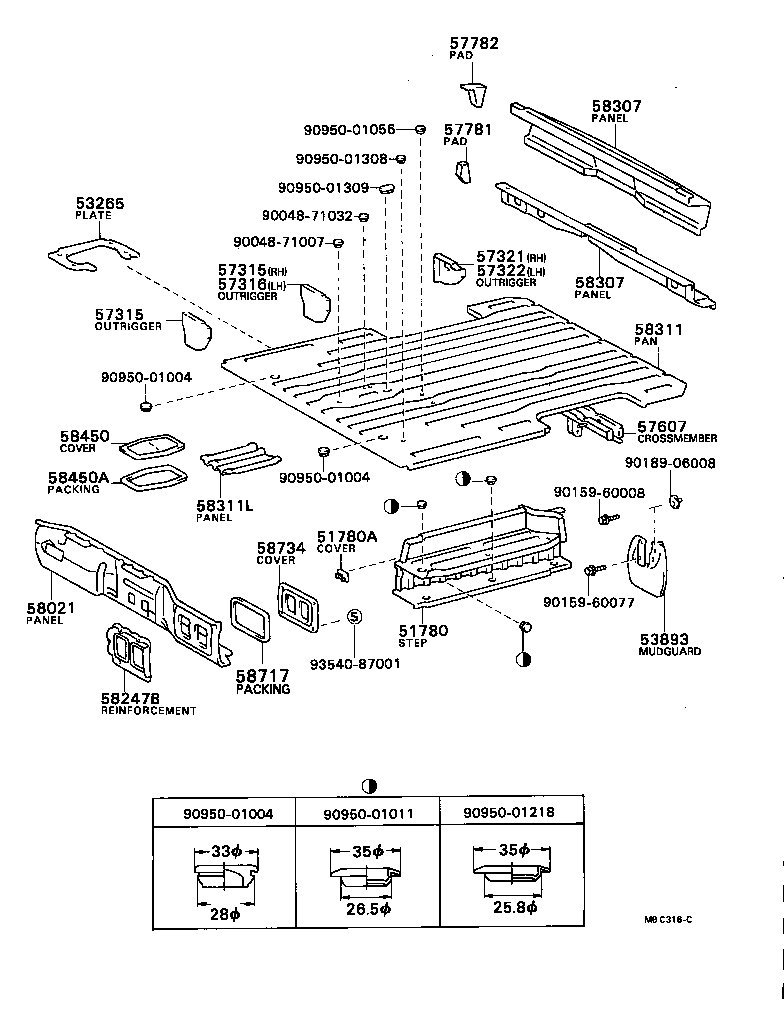

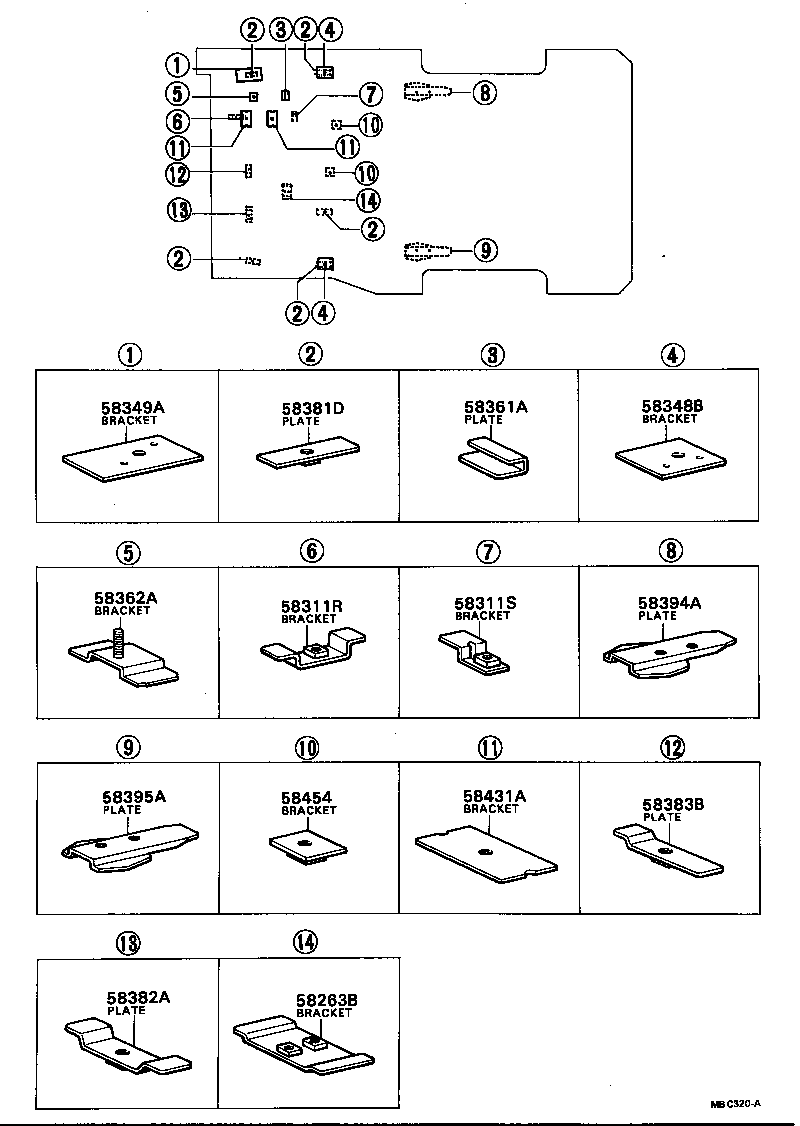

Rear Floor Panel & Rear Floor Member
35 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51770 | Step Assy, Front, RH |
| 51780 | Step Assy, Front, LH |
| 51780A | Cover, Step Lamp Hole |
| 53265 | Plate, Battery Carrier Mounting, NO.2 |
| 53893 | Mudguard, Rear |
| 57315 | Outrigger, NO.3 RH |
| 57316 | Outrigger, NO.3 LH |
| 57321 | Outrigger, NO.4 RH |
| 57322 | Outrigger, NO.4 LH |
| 57607 | Crossmember Sub-assy, Rear Floor, NO.1 |
| 57781 | Pad, Dust Proof Rear Floor, NO.1 |
| 57782 | Pad, Dust Proof Rear Floor, NO.2 |
| 58021 | Panel Sub-assy, Header |
| 58247B | Reinforcement, Header Panel |
| 58263B | Bracket, Water Hose |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58311L | Panel, Heat Proof |
| 58311R | Bracket, Mounting Rear Floor, NO.1 |
| 58311S | Bracket, Mounting Rear Floor, NO.2 |
| 58348B | Bracket, Rear NO.1 Passenger Seat Set |
| 58349A | Bracket, Rear NO.1 Passenger Seat Set, Front |
| 58361A | Plate, Jack Holder |
| 58362A | Bracket, Jack |
| 58381D | Plate, Rear NO.1 Passenger Seat Set, NO.1 |
| 58382A | Plate, Rear NO.1 Passenger Seat Set, NO.2 |
| 58383B | Plate, Rear NO.1 Passenger Seat Set, NO.3 |
| 58394A | Plate, Rear NO.2 Passenger Seat Set, RH |
| 58395A | Plate, Rear NO.2 Passenger Seat Set, LH |
| 58431A | Bracket, Heater |
| 58450 | Cover Assy, Battery Service Hole |
| 58450A | Packing, Battery Service Hole Cover |
| 58454 | Bracket, Safety Band Anchor |
| 58717 | Packing, Cooler Air Inlet Cover |
| 58734 | Cover, Cooler Air Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
