Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

32 part groups · 8 illustrations

Illustrations

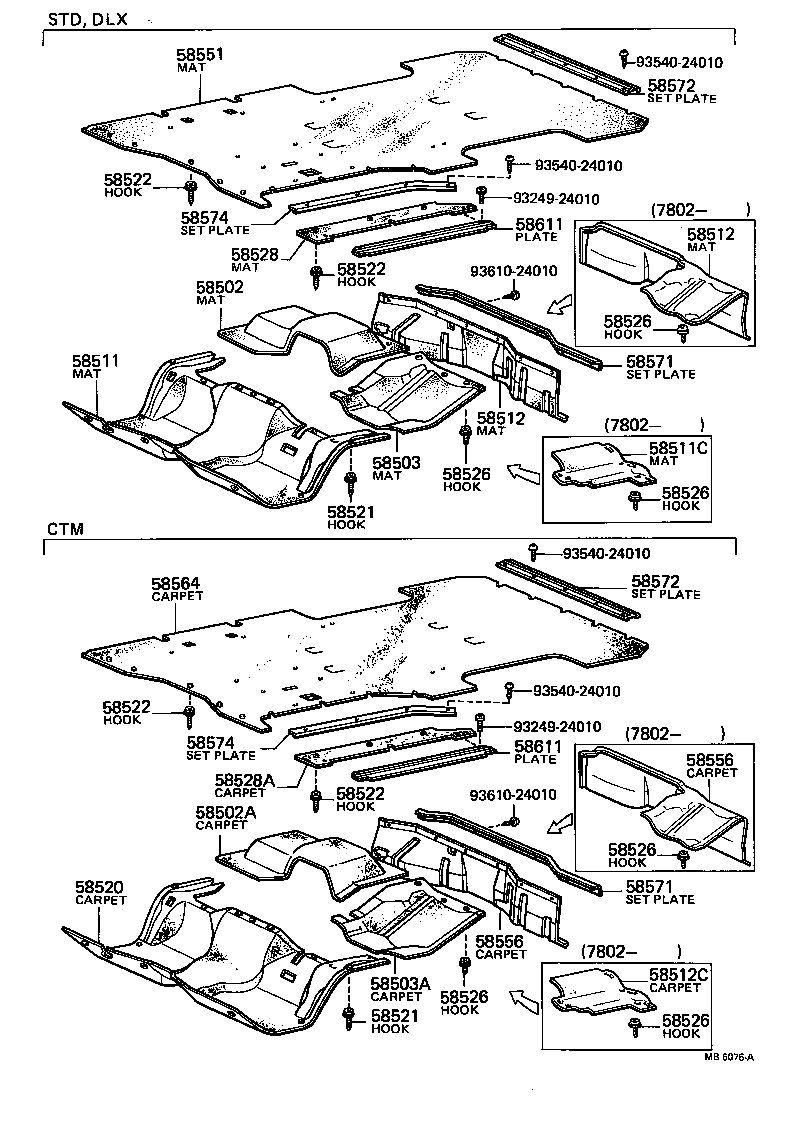

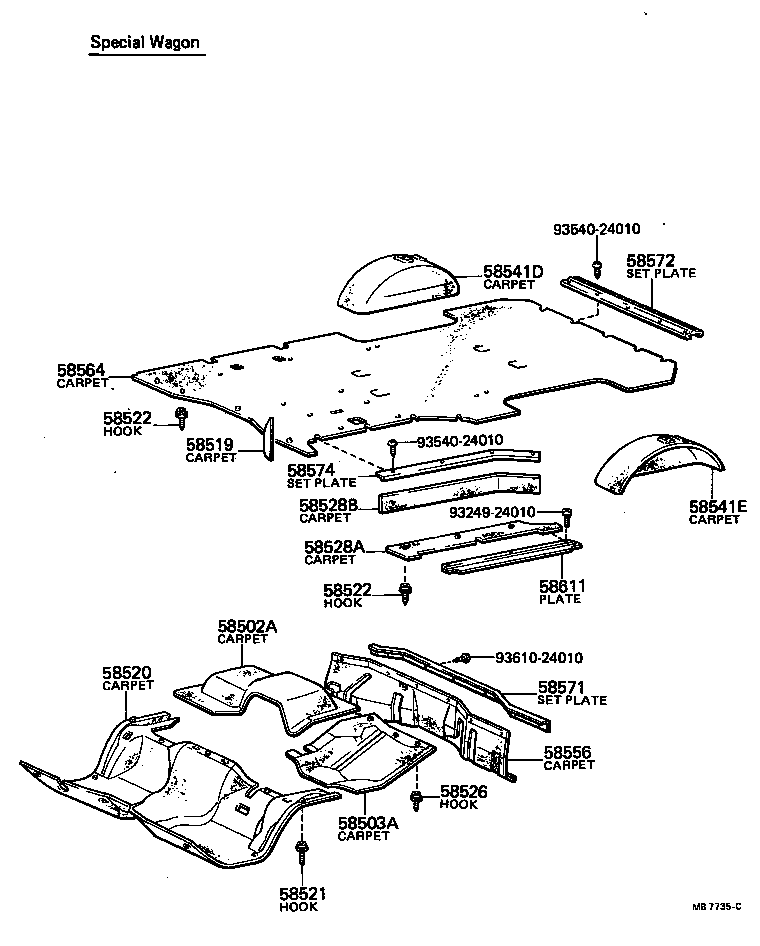

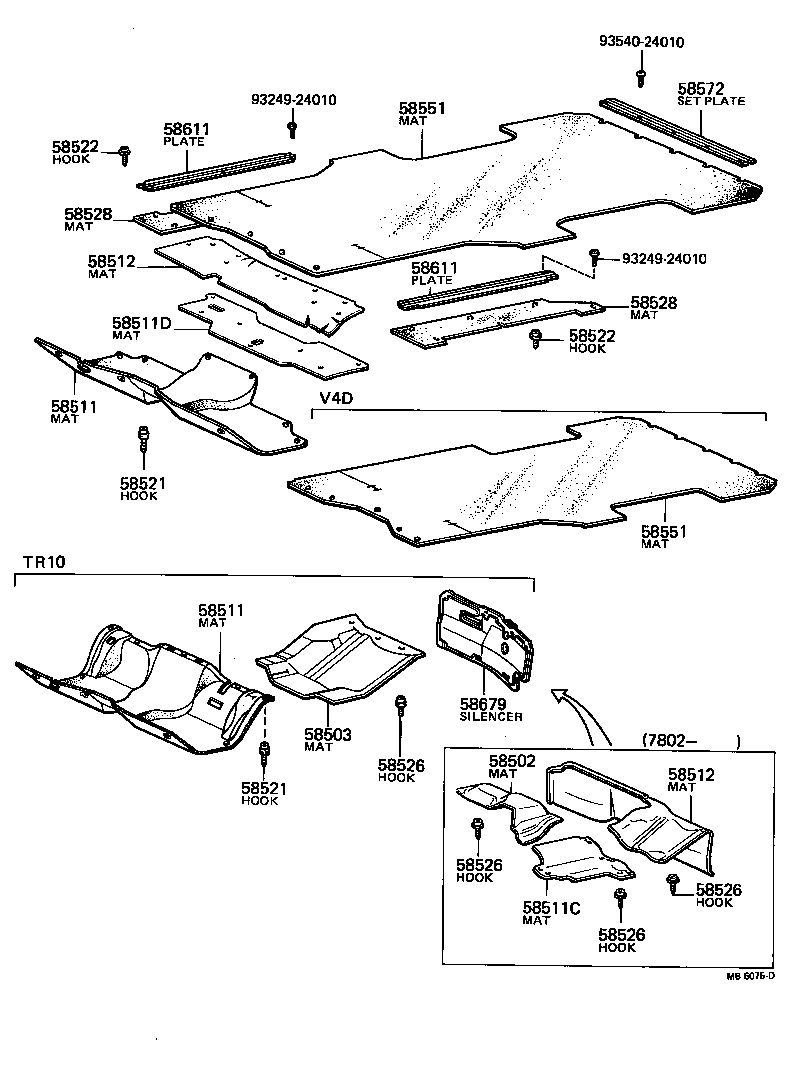

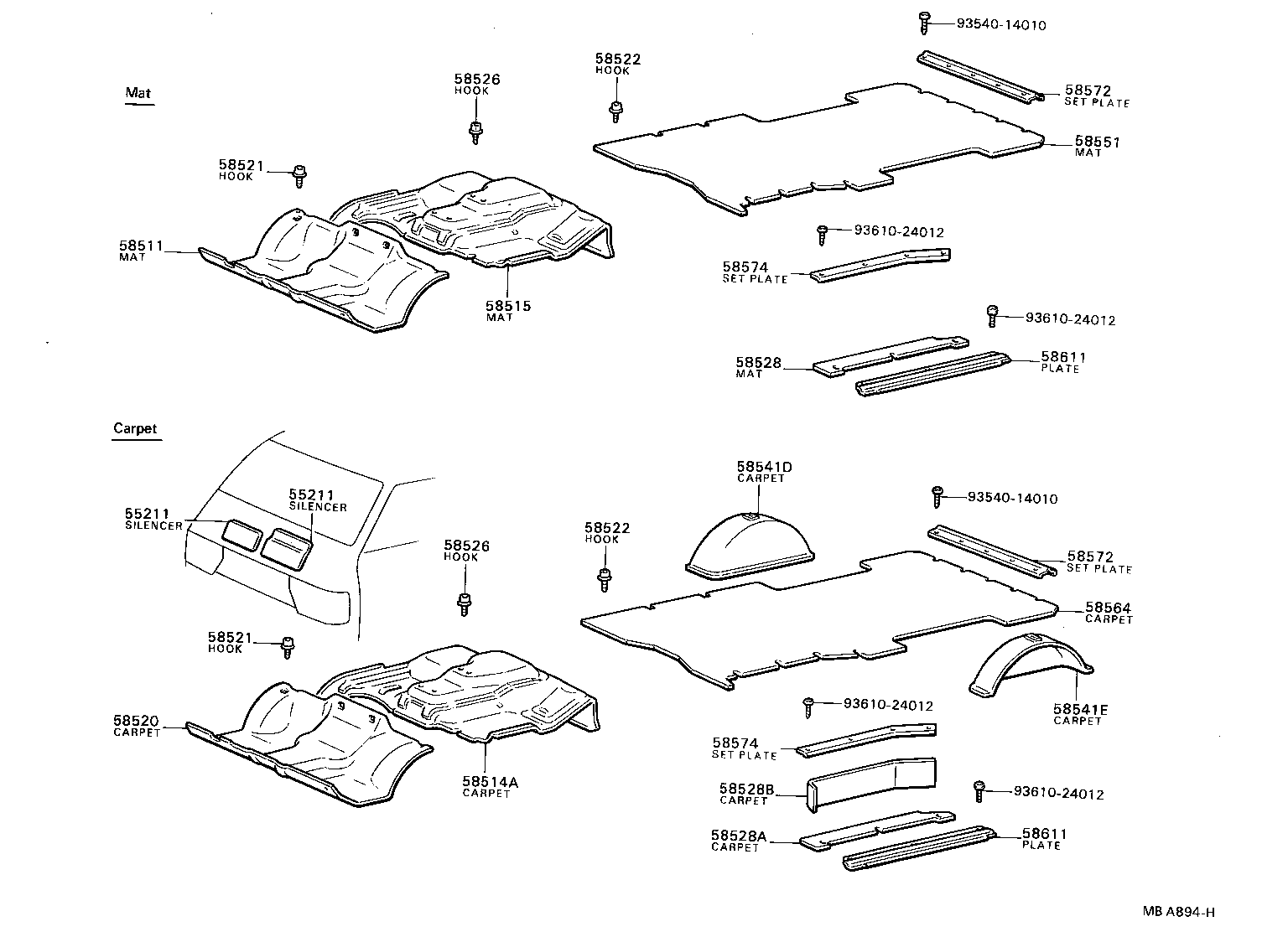

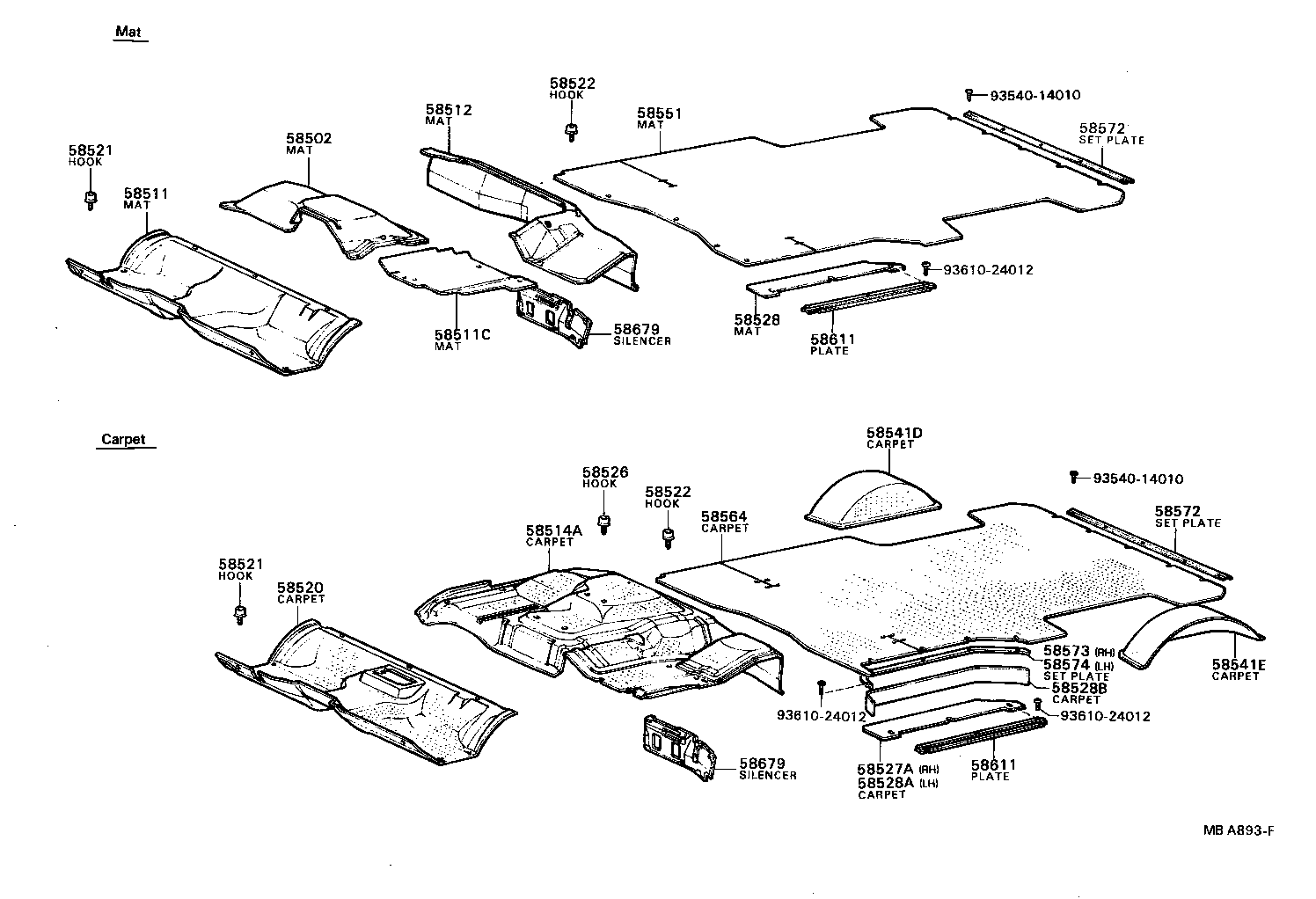

Figure MB8169 MB8169 1978-08 → — Figure MB6075D MB6075D 1976-10 → 1979-10 Figure MB7735C MB7735C 1977-06 → 1977-06 Figure MB6076A MB6076A 1976-10 → 1979-10 Figure MB8170B MB8170B 1978-08 → 1979-10 Figure MBA892F MBA892F 1979-10 → — Figure MBA893F MBA893F 1979-10 → — Figure MBA894H MBA894H 1979-10 → —

Part groups

PNCDescription
55211 Silencer, Front Panel
58502 Mat Assy, Engine Service Hole Cover
58502A Carpet Assy,Engine Service Hole Cover
58503 Mat Assy, Battery Service Hole Cover
58503A Carpet Assy, Battery Service Hole Cover
58511 Mat, Floor, Front
58511C Mat Sub-assy, Front Floor, LH
58511D Mat Sub-assy, Front Floor, Rear
58512 Mat, Seat Floor
58512C Carpet Assy, Front Floor, LH
58514A Carpet, Floor, Center
58515 Mat, Floor, Center
58519 Carpet, Front Seat Side, LH
58520 Carpet Assy, Front Floor
58521 Hook, Male, NO.1
58522 Hook, Male, NO.3
58526 Hook, Male, NO.2
58527A Carpet Assy, Step RH
58528 Mat, Rear Door Step
58528A Carpet Assy, Step, LH
58528B Carpet, Step Side
58541D Carpet, Rear Wheel House, RH
58541E Carpet, Rear Wheel House, LH
58551 Mat, Floor, Rear
58556 Carpet, Rear Seat, Front
58564 Carpet, Rear Floor
58571 Set Plate, Rear Floor Mat, Front
58572 Set Plate, Rear Floor Mat, Rear
58573 Set Plate, Rear Floor Mat Side, Front RH
58574 Set Plate, Rear Floor Mat Side, Front LH
58611 Plate, Rear Floor Mat Set, Side
58679 Silencer, Header Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
