Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 3 illustrations

Illustrations

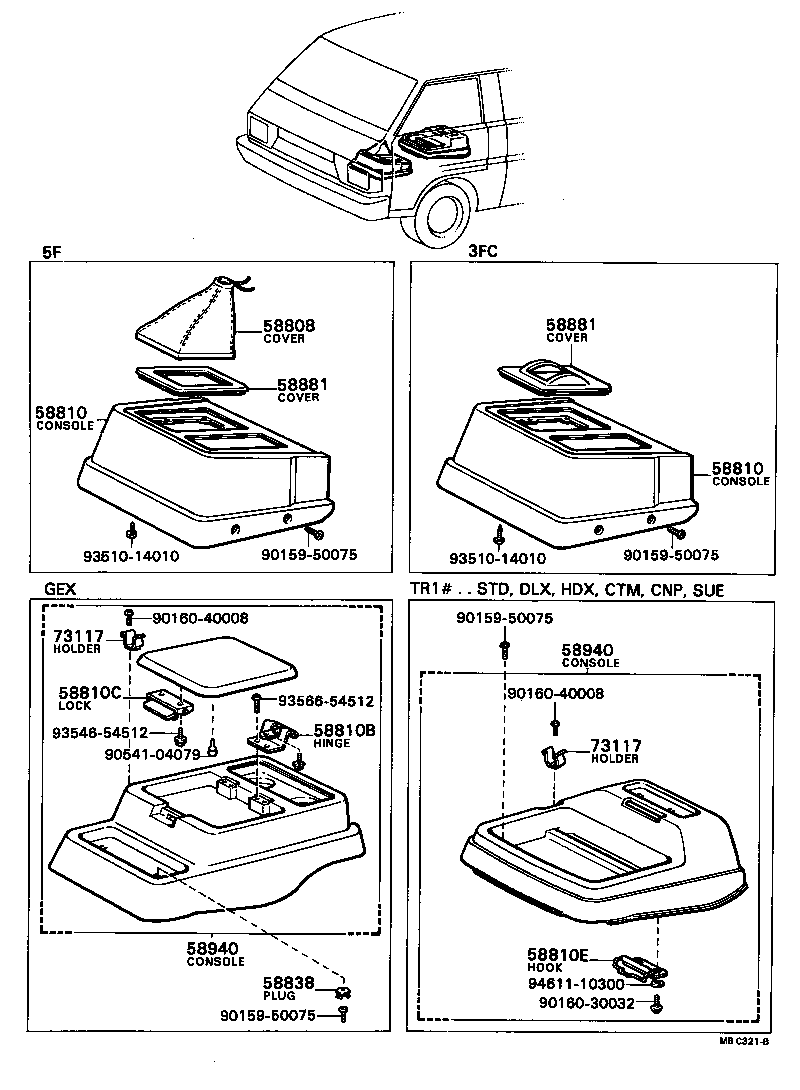

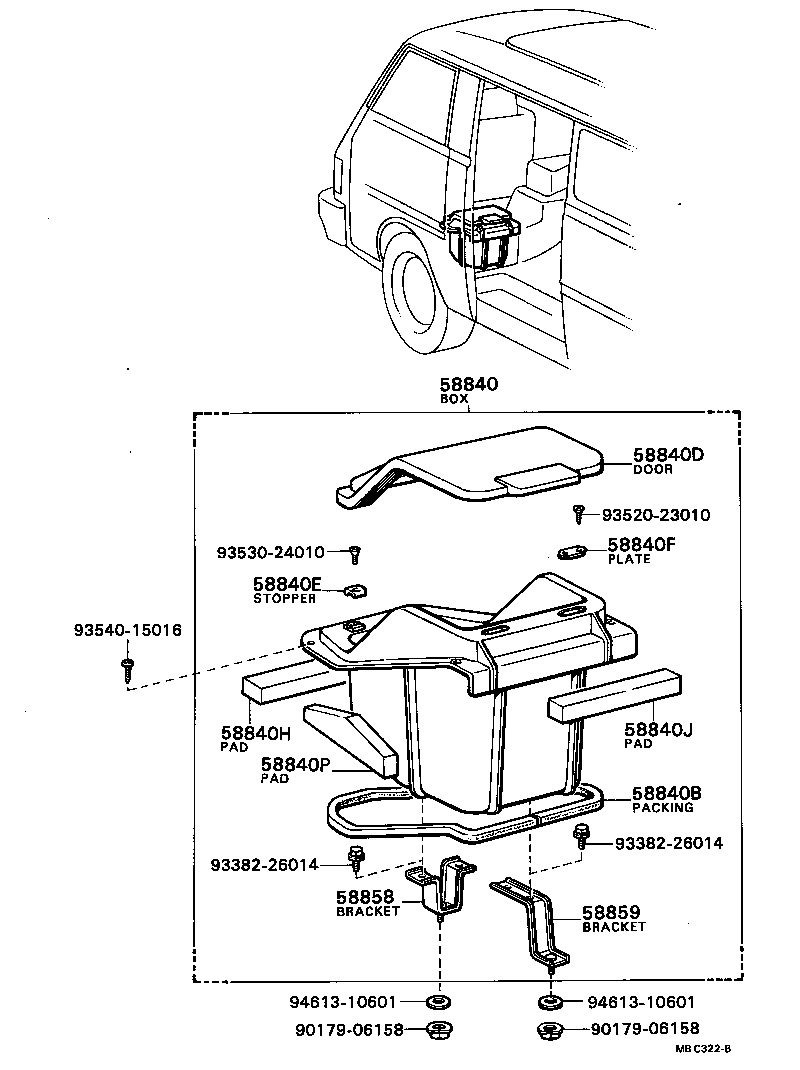

Figure MB6077G MB6077G 1976-10 → 1981-01 Figure MBC321B MBC321B 1981-01 → — Figure MBC322B MBC322B 1981-01 → 1982-01

Part groups

PNCDescription
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58810B Hinge Sub-assy,Console Compartment Door
58810C Lock Sub-assy, Console Compartment Door
58810E Hook Sub-assy, Console
58838 Plug, Console Box Hole
58840 Box Assy, Console Compartment
58840B Packing, Console Compartment Box
58840D Door, Console Compartment Box
58840E Stopper, Console Compartment Door
58840F Plate, Console Compartment Door Lock
58840H Pad, Console Box Silencer, NO.1
58840J Pad, Console Box Silencer, NO.2
58840P Pad, Console Box Silencer, NO.3
58858 Bracket, Console Support, NO.1
58859 Bracket, Console Support, NO.2
58881 Cover, Shifting Hole
58887 Cushion, Console, NO.1
58888 Cushion, Console, NO.2
58940 Console Assy, Rear
73117 Holder, Seat Belt Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
