Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

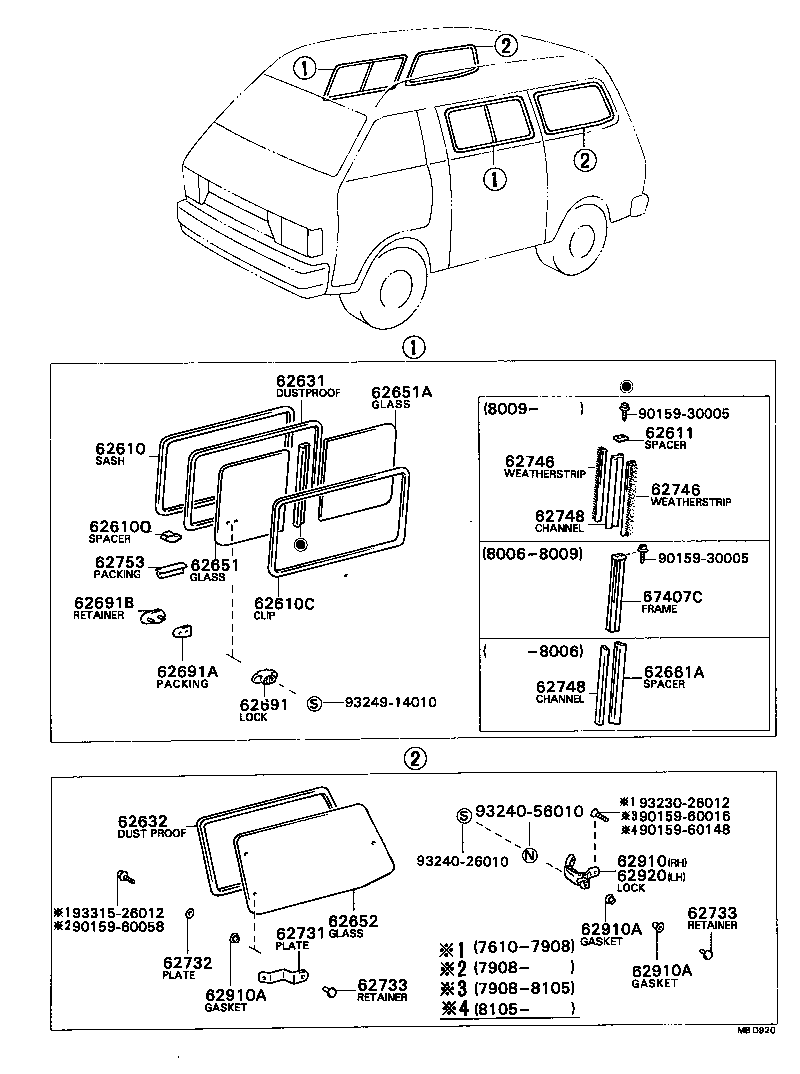

Side Window
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62610 | Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE) |
| 62610C | Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE) |
| 62610Q | Spacer, Side Window Frame |
| 62611 | Spacer, Side Window Support, NO.1 |
| 62631 | Dust Proof, Side Window, NO.1 |
| 62632 | Dust Proof, Side Window, NO.2 |
| 62651 | Glass, Side Window, NO.1, Front (FOR SLIDE TYPE) |
| 62651A | Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE) |
| 62652 | Glass, Side Window, NO.2, Front (FOR SLIDE TYPE) |
| 62661A | Spacer, Side Window, Rear, NO.1 |
| 62691 | Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE) |
| 62691A | Packing, Side Window Lock, NO.1 |
| 62691B | Retainer, Side Window Lock, NO.1 |
| 62715 | Glass, Side Window, NO.1(FOR FIXED TYPE) |
| 62731 | Plate, Quarter OR Side Window Hinge |
| 62732 | Plate, Quarter OR Side Window Hinge Finish |
| 62733 | Retainer, Quarter OR Side Window Hinge |
| 62746 | Weatherstrip, Side Window Glass Channel, NO.1 |
| 62748 | Channel, Side Window Glass |
| 62751 | Stop, Side Window Fix Glass |
| 62753 | Packing, Side Window |
| 62880 | Guard Assy, Rear Quarter Window, RH |
| 62883 | Guard Assy, Side Window |
| 62890 | Guard Assy, Rear Quarter Window, LH |
| 62910 | Lock Assy, Quarter OR Side Window, RH |
| 62910A | Gasket(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) |
| 62920 | Lock Assy, Quarter Window, LH |
| 67407C | Frame Sub-assy, Side, Front Center RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
