Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

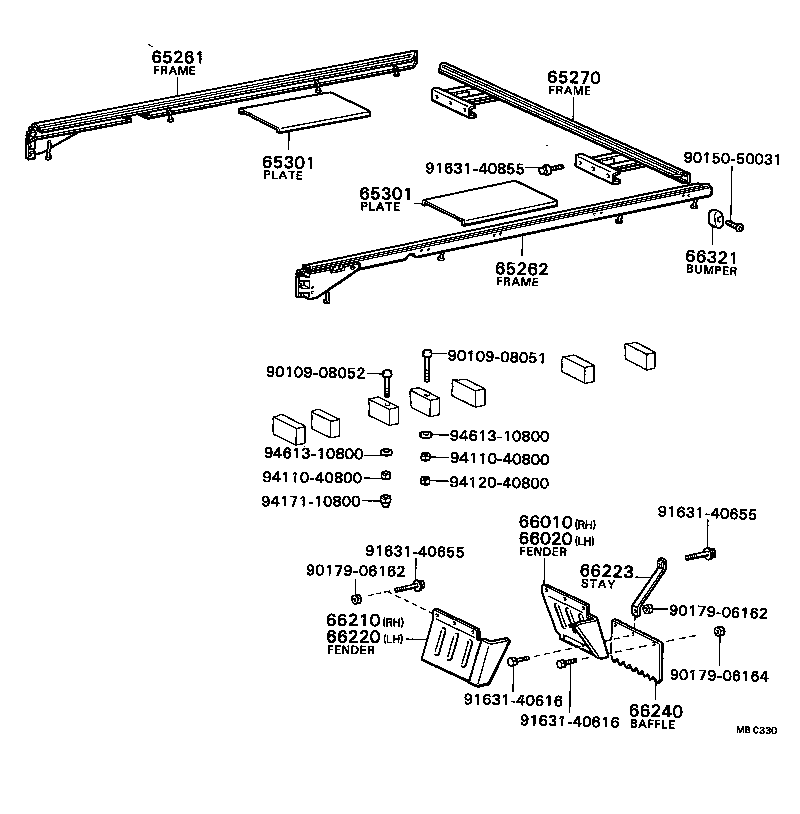

Rear Body Floor & Fender
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65110 | Sill Assy, Main, RH |
| 65120 | Sill Assy, Main, LH |
| 65129A | Stay, Main Sill |
| 65240 | Crossmember, Rear Body Floor, Tail |
| 65248 | Stay, Rear Body Step |
| 65261 | Frame, Floor Side, RH |
| 65262 | Frame, Floor Side, LH |
| 65270 | Frame Assy, Floor, Rear |
| 65301 | Plate Sub-assy, Rear Fender Outer, Upper |
| 65311 | Panel, Floor, Center |
| 65317 | Panel, Floor Side, RH |
| 65318 | Panel, Floor Side, LH |
| 65351 | Cover, Battery Service Hole |
| 65353 | Packing, Battery Service Hole Cover |
| 65354 | Cover, Fuel Tank Service Hole |
| 65354A | Packing, Fuel Tank Service Hole Cover |
| 66010 | Fender Assy, Rear Body, Rear RH |
| 66020 | Fender Assy, Rear Body, Rear LH |
| 66210 | Fender Assy, Rear Body, Front RH |
| 66220 | Fender Assy, Rear Body, Front LH |
| 66223 | Stay, Rear Fender Rear Plate |
| 66225 | Support, Rear Mudguard, RH |
| 66226 | Support, Rear Mudguard, LH |
| 66240 | Baffle Assy, Rear Fender |
| 66241 | Mudguard, Rear |
| 66271 | Step, Rear Body |
| 66321 | Bumper, Gate Rubber |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
