Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

18 part groups · 2 illustrations

Illustrations

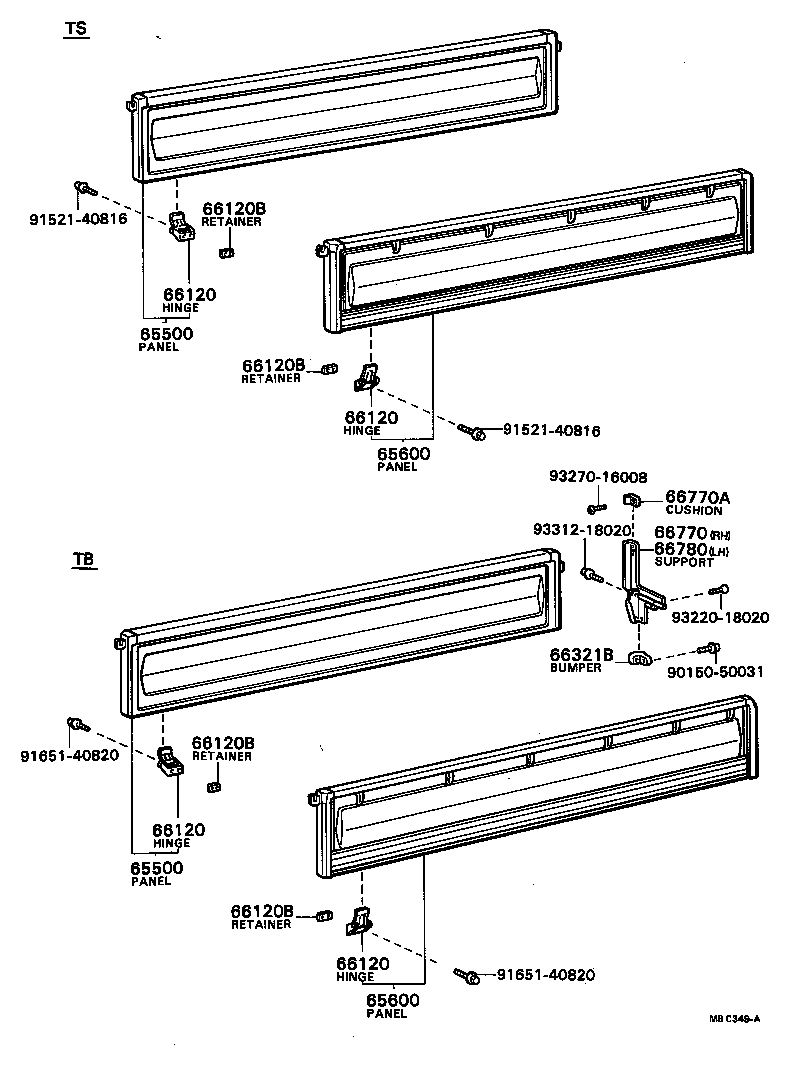

Figure MBC348B MBC348B 1978-08 → — Figure MBC349A MBC349A 1978-08 → —

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65600 Panel Assy, Rear Body Side, LH
65610 Skirt Assy, Side Panel, Front RH
65620 Skirt Assy, Side Panel, Front LH
65631 Skirt, Side Panel, Rear RH
65632 Skirt, Side Panel, Rear, LH
66120 Hinge Assy, Side Gate
66120B Retainer, Side Gate Hinge, Lower
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66321B Bumper, Gate Rubber
66770 Support Sub-assy, Side Gate, RH
66770A Cushion, Side Gate Support
66780 Support Sub-assy, Side Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
