Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 3 illustrations

Illustrations

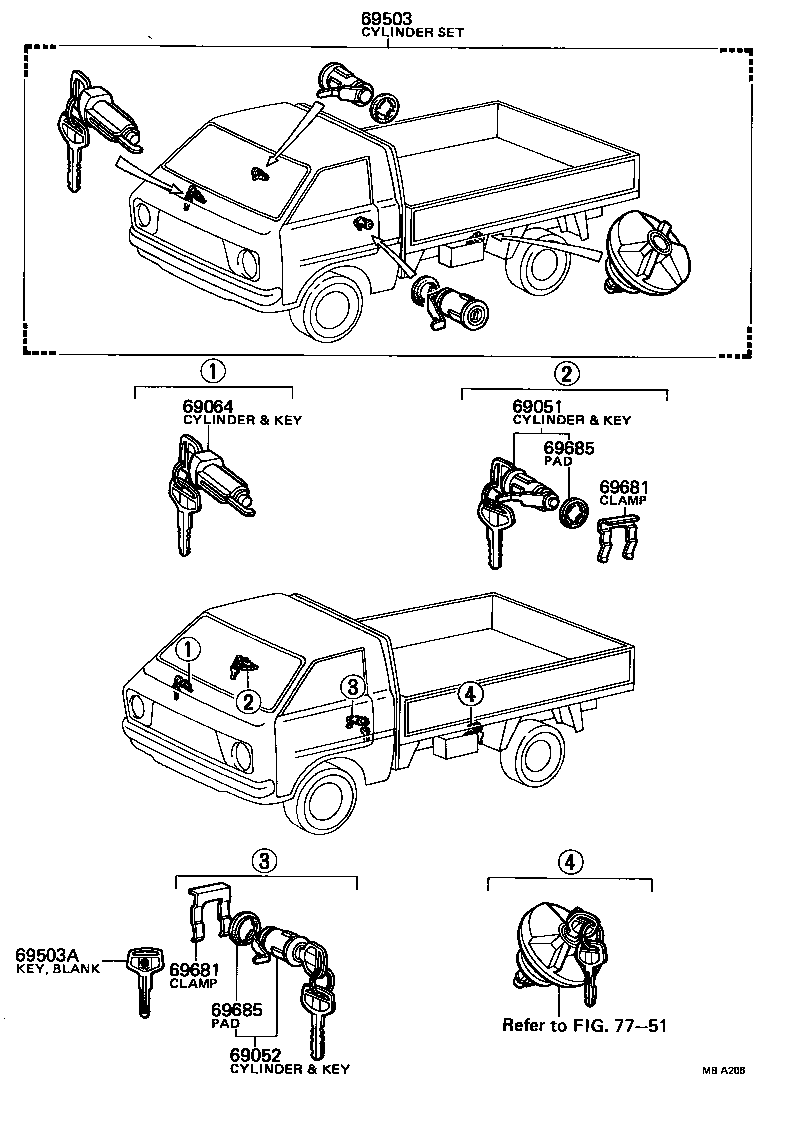

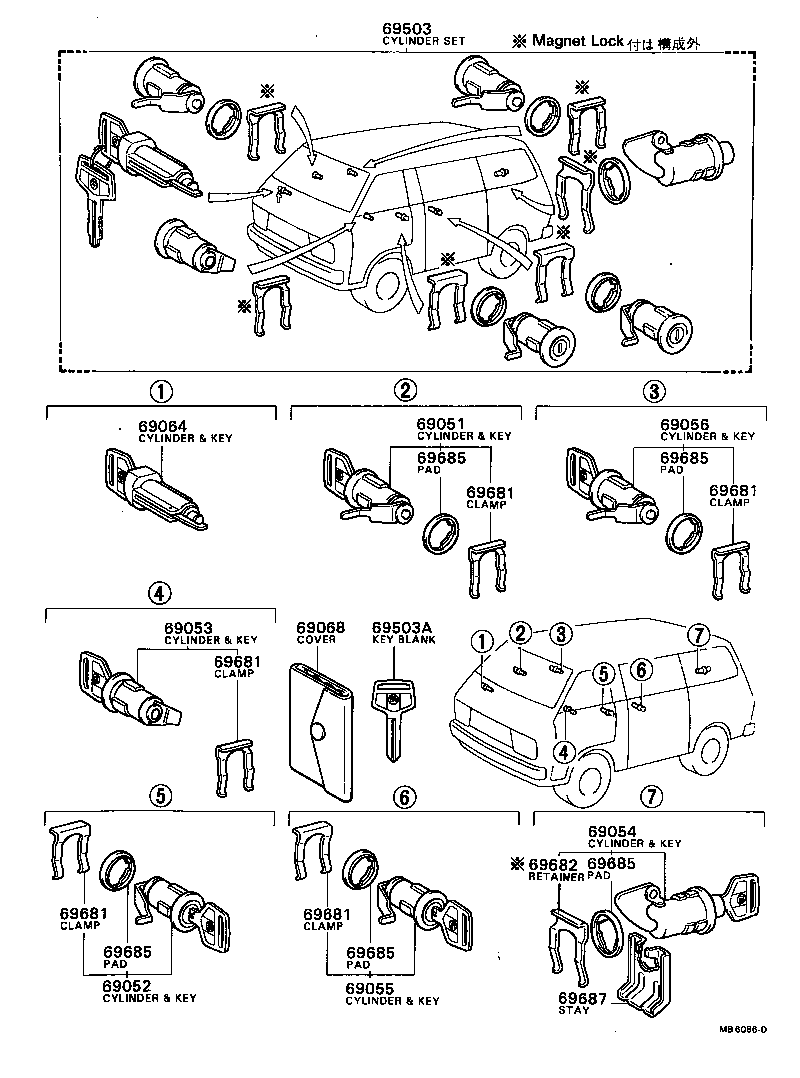

Figure MB8185 MB8185 1978-08 → 1978-09 Figure MBA206 MBA206 1978-09 → — Figure MB6086D MB6086D 1976-10 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69053 Cylinder & Key Set, Fuel Inlet Lock
69054 Cylinder & Key Set, Back Door Lock
69055 Cylinder & Key Set, Rear Door Lock, LH
69056 Cylinder & Key Set, Rear Door Lock, RH
69064 Cylinder & Key Set, Ignition Switch Lock
69068 Cover Sub-assy, Key
69503 Cylinder Set, Lock
69503A Key, Blank
69681 Clamp, Door Lock Cylinder & Sleeve
69682 Retainer, Lock Cylinder
69685 Pad, Lock Cylinder
69687 Stay, Back Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
