Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

73 part groups · 12 illustrations

Illustrations

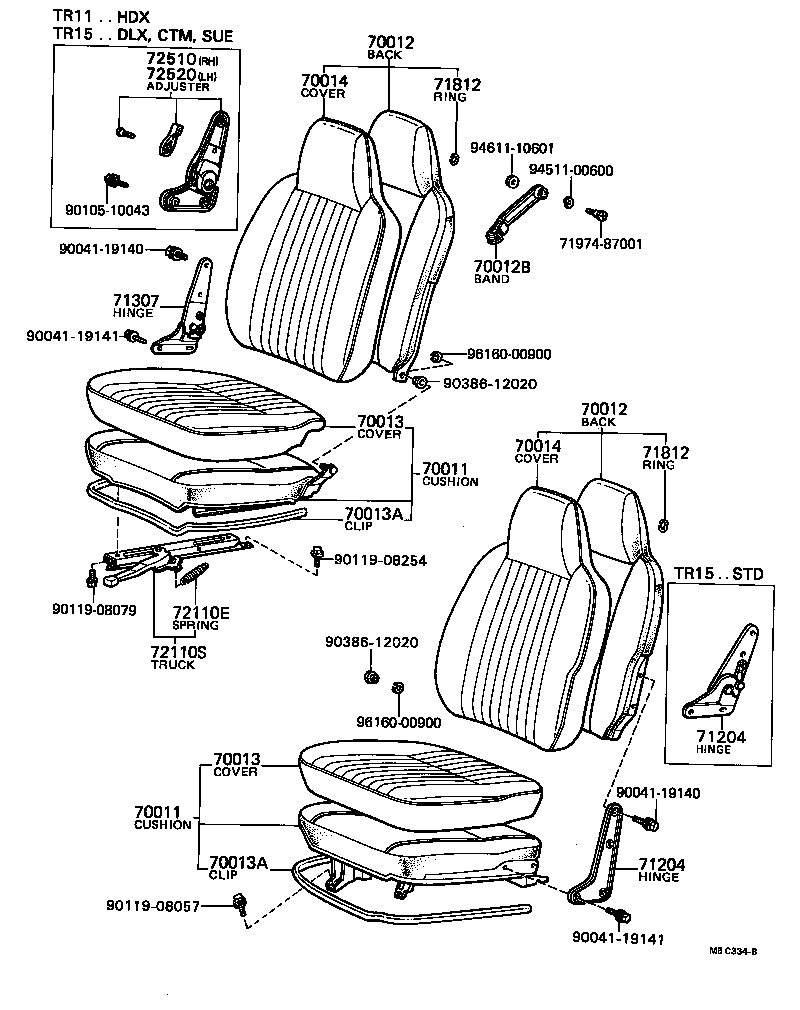

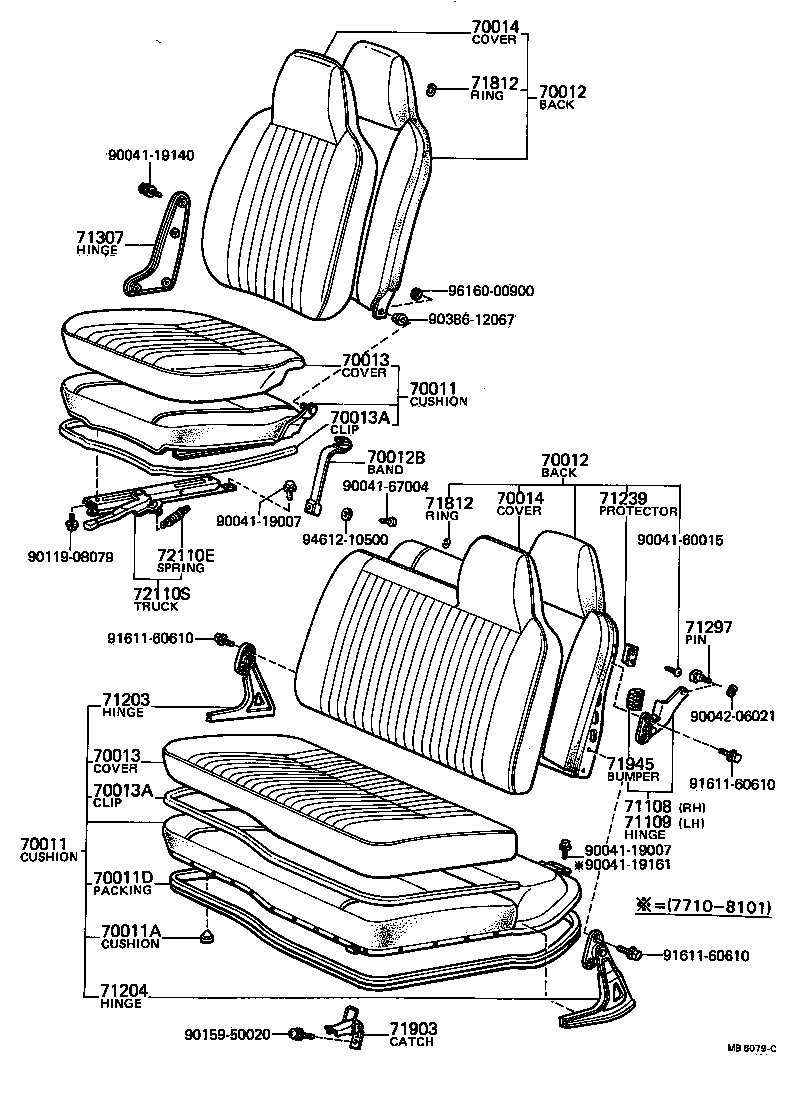

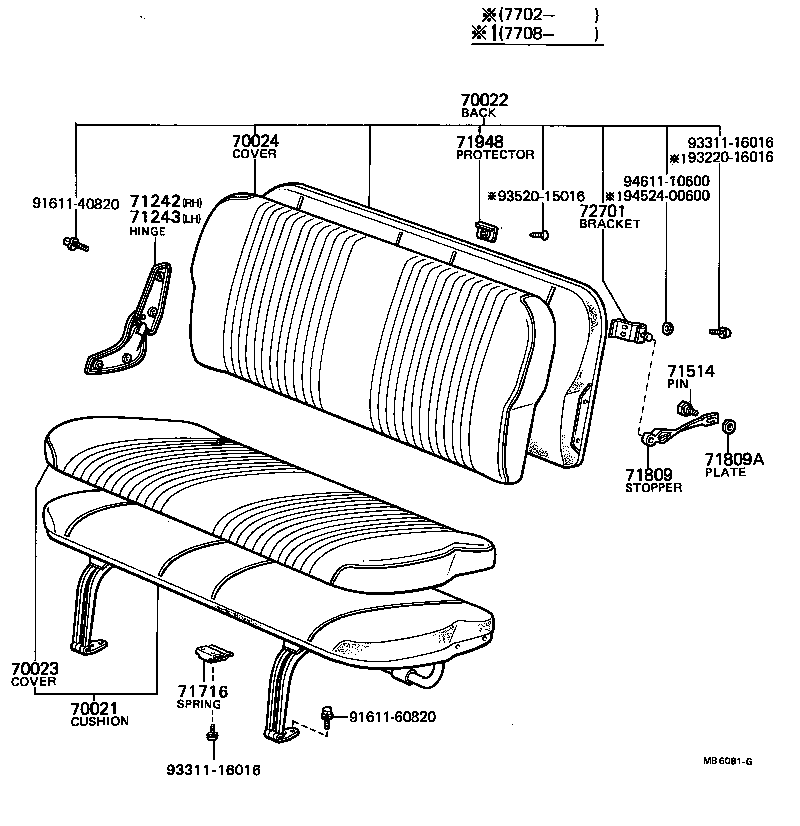

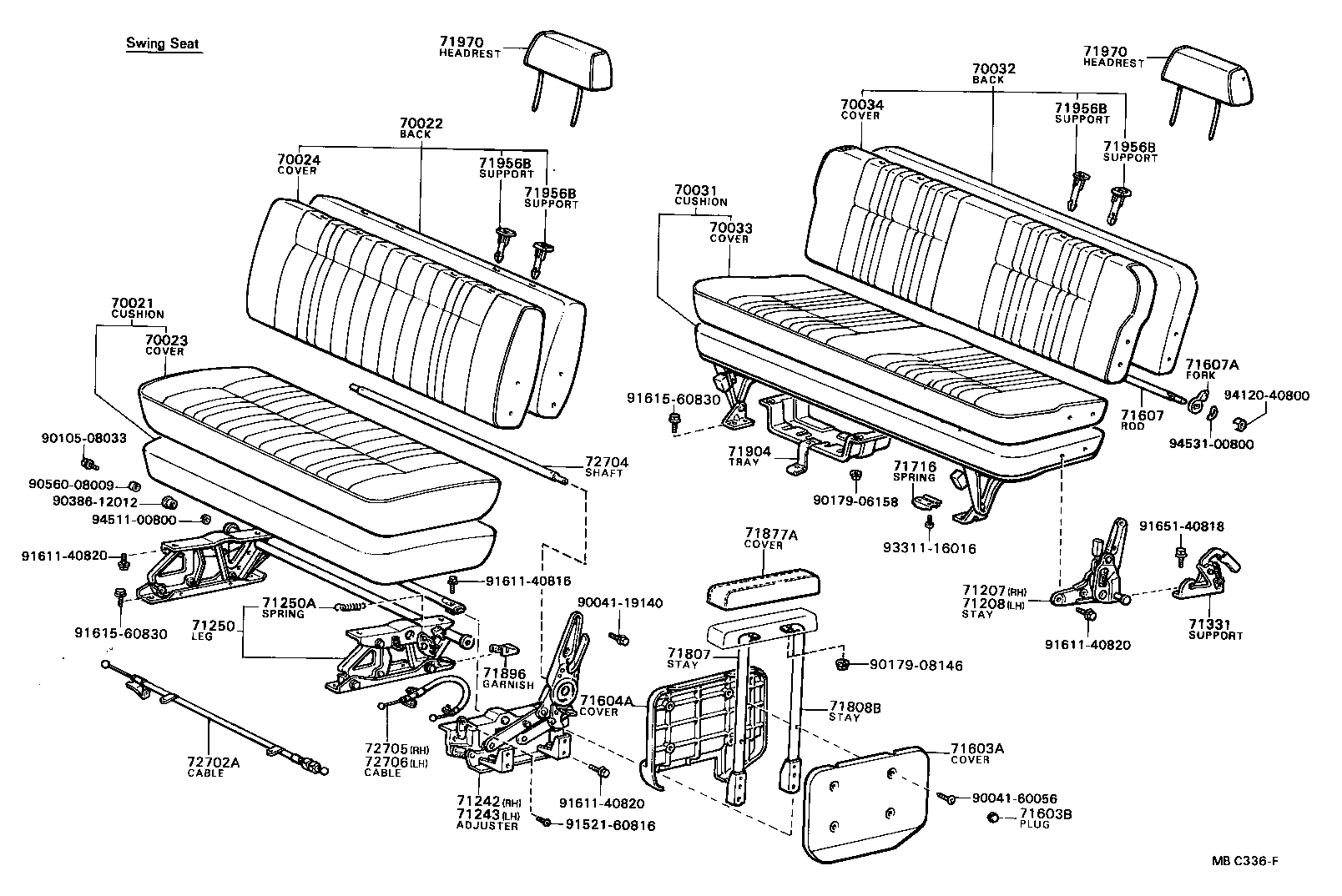

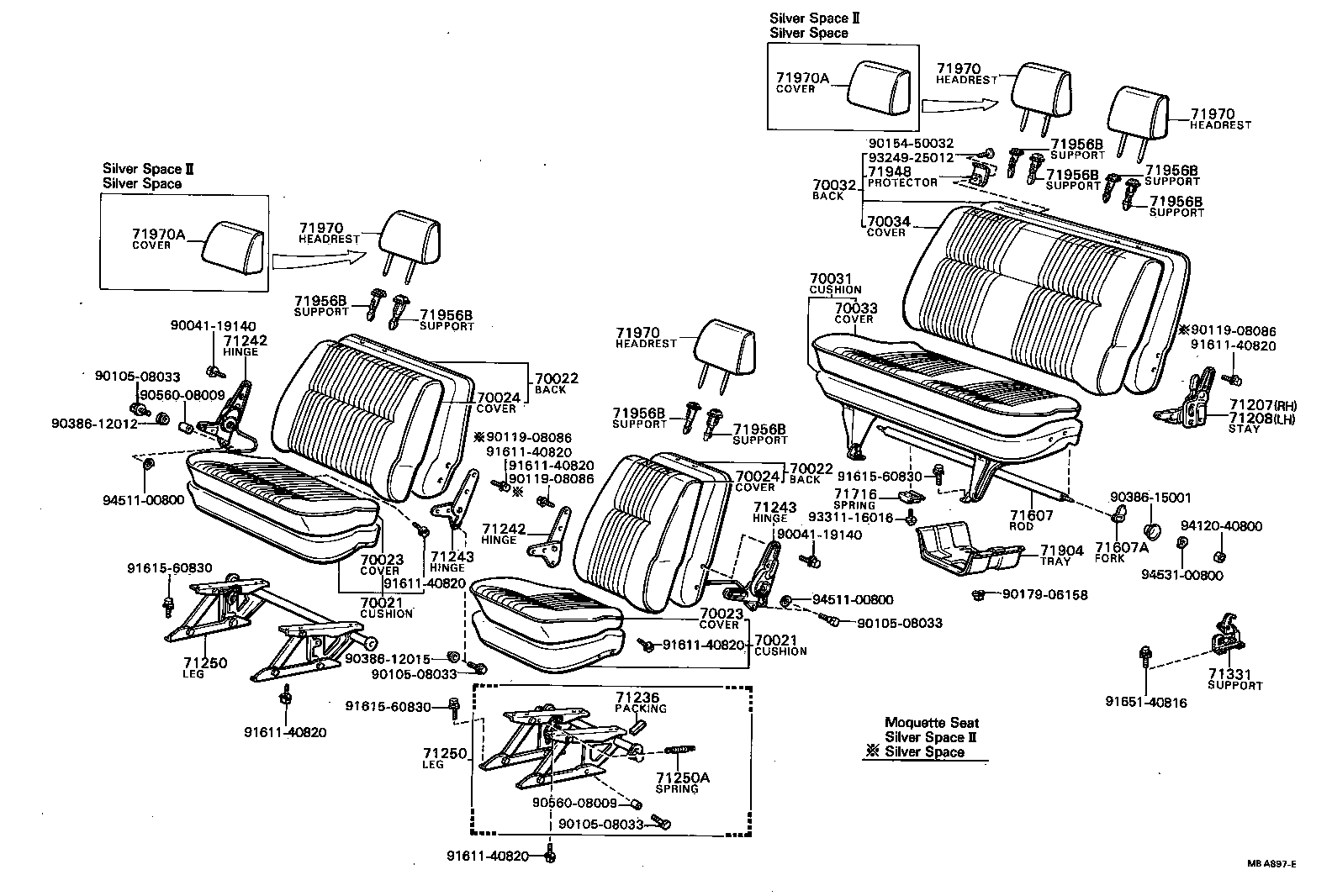

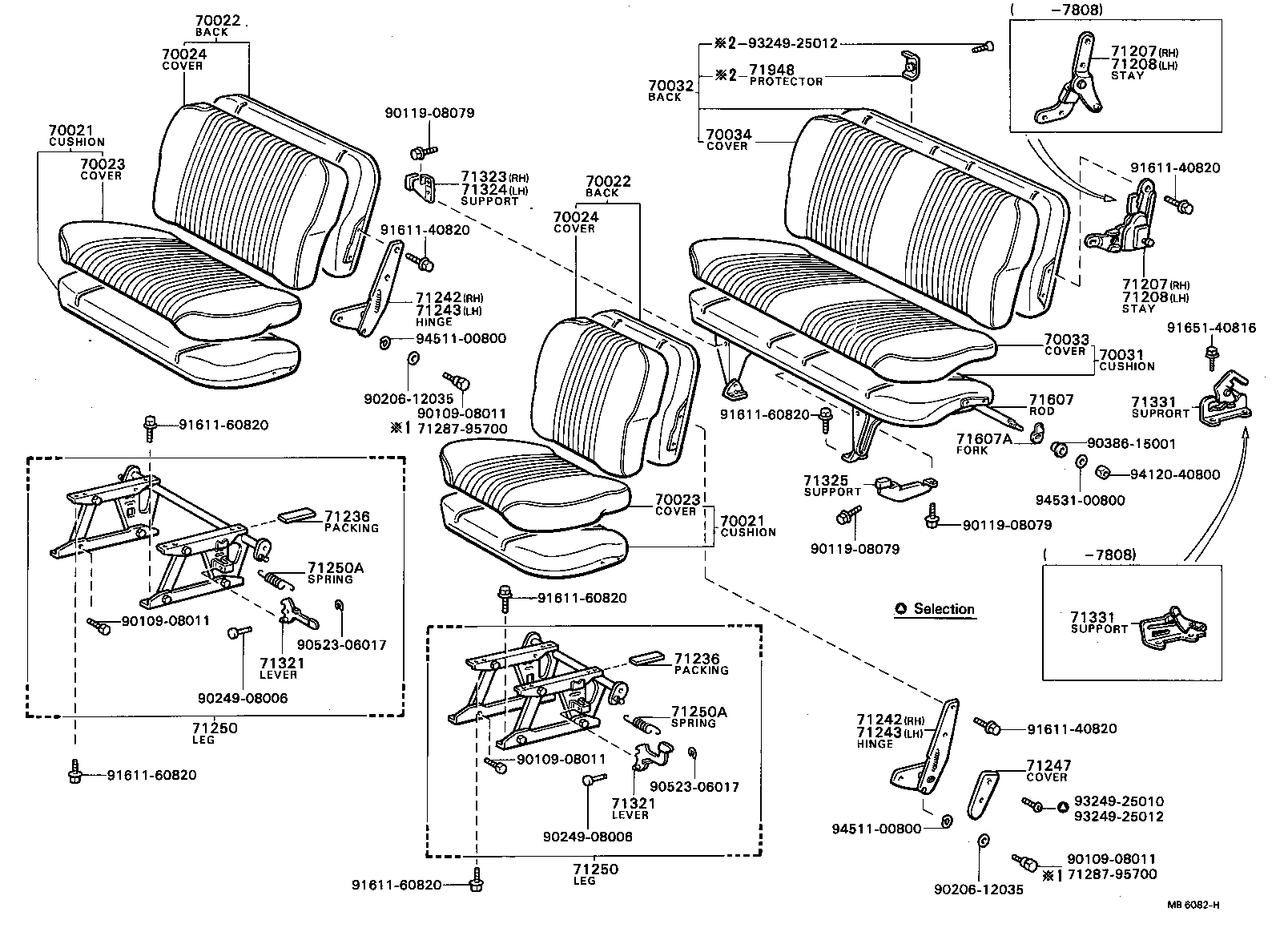

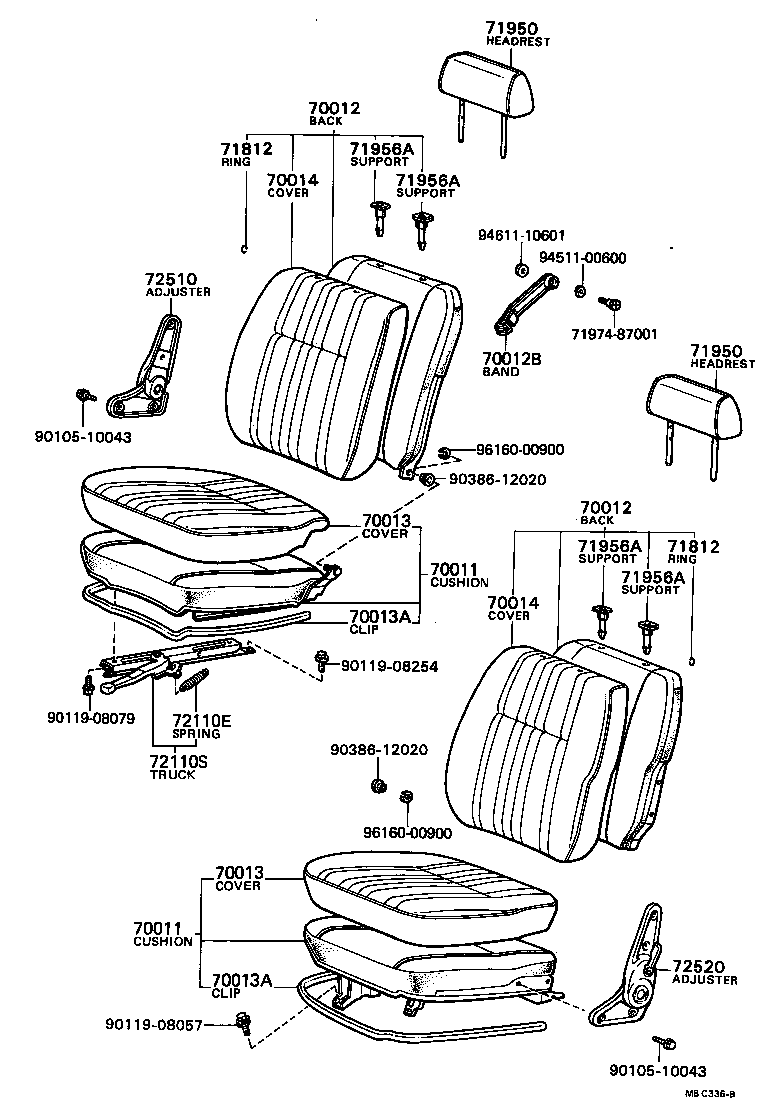

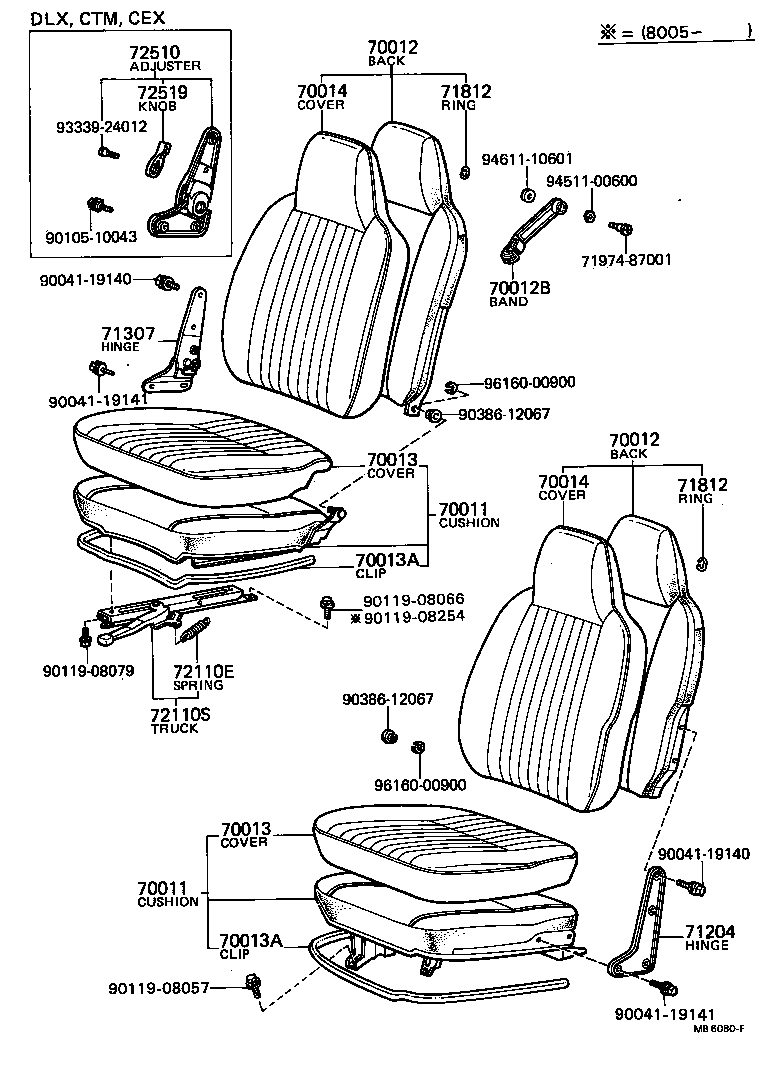

Figure MB8186E MB8186E 1978-08 → — Figure MB6079C MB6079C 1976-10 → — Figure MB6080F MB6080F 1976-10 → 1981-01 Figure MBC334B MBC334B 1981-01 → — Figure MBC335B MBC335B 1981-01 → 1982-01 Figure MBC335B MBC335B 1982-01 → — Figure MB6081G MB6081G 1976-10 → — Figure MB6082H MB6082H 1976-10 → 1979-10 Figure MBA897E MBA897E 1979-10 → 1981-01 Figure MBA897E MBA897E 1981-01 → — Figure MBC336F MBC336F 1981-01 → 1982-01 Figure MBC336F MBC336F 1982-01 → —

Part groups

PNCDescription
70011 Cushion Assy, NO.1 Seat
70011A Cushion, Rubber (FOR SEAT CUSHION ASSY)
70011D Packing, Engine Service Hole Cover
70012 Back Assy, NO.1 Seat
70012B Band, Engine Service Hole Cover Support
70013 Cover Assy, NO.1 Seat Cushion
70013A Clip, Leather (FOR SEAT CUSHION COVER)
70014 Cover Assy, NO.1 Seatback
70021 Cushion Assy, NO.2 Seat
70022 Back Assy, NO.2 Seat
70023 Cover Assy, NO.2 Seat Cushion
70024 Cover Assy, NO.2 Seatback
70031 Cushion Assy, NO.3 Seat
70032 Back Assy, NO.3 Seat
70033 Cover Assy, NO.3 Seat Cushion
70034 Cover Assy, NO.3 Seatback
71108 Hinge Sub-assy, Front Seatback, Upper RH
71109 Hinge Sub-assy, Front Seatback, Upper LH
71143 Panel, Engine Service Hole Cover
71198 Cover, Engine Service Hole Auxuiary
71203 Hinge Sub-assy, Passenger Seat, RH
71204 Hinge Sub-assy, Passenger Seat, LH
71207 Stay Assy, Rear Seatback, RH
71208 Stay Assy, Rear Seatback, LH
71236 Packing, Rear Seatback Frame Hinge, Lower
71239 Protector, Passenger Seat Leather
71242 Hinge, Passenger Seatback, RH
71243 Hinge, Passenger Seatback, LH
71247 Cover, Rear NO.1 Seatback Hinge, LH
71250 Leg Assy, Rear NO.1 Seat
71250A Spring, Rear NO.1 Seat Leg
71297 Pin, Passenger Seatback Support
71307 Hinge Sub-assy, Driver Seat, RH
71321 Lever Sub-assy, Rear Seat Stop
71323 Support Sub-assy, Rear NO.2 Seat, RH
71324 Support Sub-assy, Rear NO.2 Seat, LH
71325 Support Sub-assy, Rear NO.2 Seat, Center
71331 Support, Rear Seat Cushion
71408 Patch Sub-assy, Safety Band Anchorage
71514 Pin, Rear Seatback Stopper
71603A Cover Sub-assy, Rear NO.1 Seat, Outer, LH
71603B Plug, Hole(FOR REAR SEAT COVER)
71604A Cover Sub-assy, Rear NO.1 Seat, Inner LH
71607 Rod Sub-assy, Rear NO.2 Seat
71607A Fork, Rear NO.2 Seat Reclining Connecting
71716 Spring, Jack Handle Support
71807 Stay Sub-assy, Rear NO.1 Seat Armrest, Front
71808B Stay Sub-assy, Rear NO.1 Seat Armrest, Rear
71809 Stopper Sub-assy, Rear Seatback, LH
71809A Plate, Rear Seatback Stopper
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71877A Cover Sub-assy, Rear NO.1 Seat Armrest
71896 Garnish, Rear NO.1 Seat Leg Rear
71903 Catch Sub-assy, Seat Cushion, Front
71904 Tray Sub-assy, Rear Seat Headrest
71944 Silencer, Engine Service Hole Cover
71945 Bumper, Seatback
71948 Protector, Passenger Seatback
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
71970A Cover, Rear Seat Headrest
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72510 Adjuster Assy, Reclining Seatback, RH
72519 Knob, Reclining Seatback Adjusting Arm
72520 Adjuster Assy, Reclining Seatback, LH
72701 Bracket Sub-assy, Rear Seatback Stopper
72702A Cable Sub-assy, Reversible Rear Seat Locking Lever Control
72704 Shaft Sub-assy, Reclining Connect
72705 Cable Sub-assy, Seat Lock Control, RH
72706 Cable Sub-assy, Seat Lock Control, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
