Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

15 part groups · 3 illustrations

Illustrations

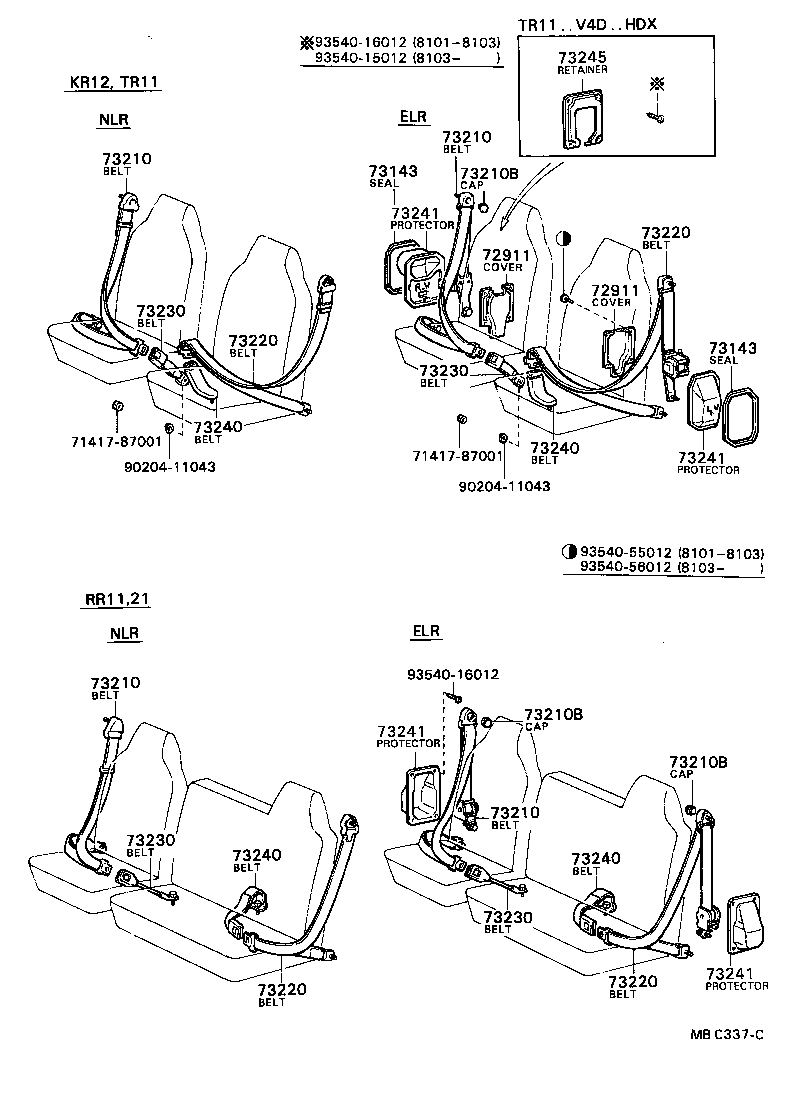

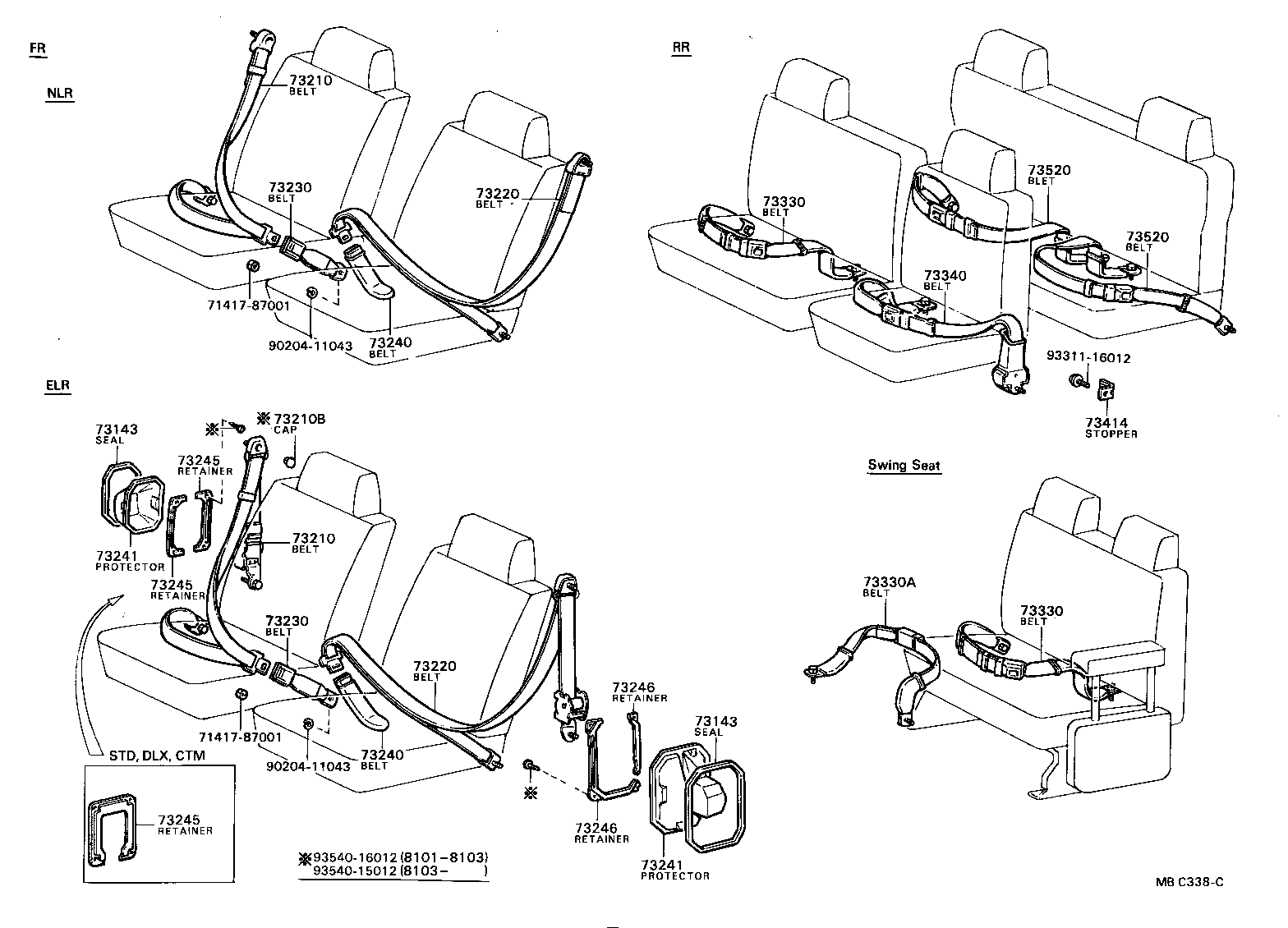

Figure MB6083F MB6083F 1976-10 → 1981-01 Figure MBC337C MBC337C 1981-01 → — Figure MBC338C MBC338C 1981-01 → —

Part groups

PNCDescription
72911 Cover, Seat Belt Retractor
73143 Seal, Seat Belt Hole
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73241 Protector OR Case, Belt Retractor
73245 Retainer, Seat Belt Retractor Cover, RH
73246 Retainer, Seat Belt Retractor Cover, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73330A Belt Sub-assy, Rear Seat Lap Type, Front
73340 Belt Assy, Rear Seat Lap Type, LH
73414 Stopper, Rear Seat Belt Retractor
73520 Belt Assy, Rear Seat Lap Type, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
