Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

13 part groups · 2 illustrations

Illustrations

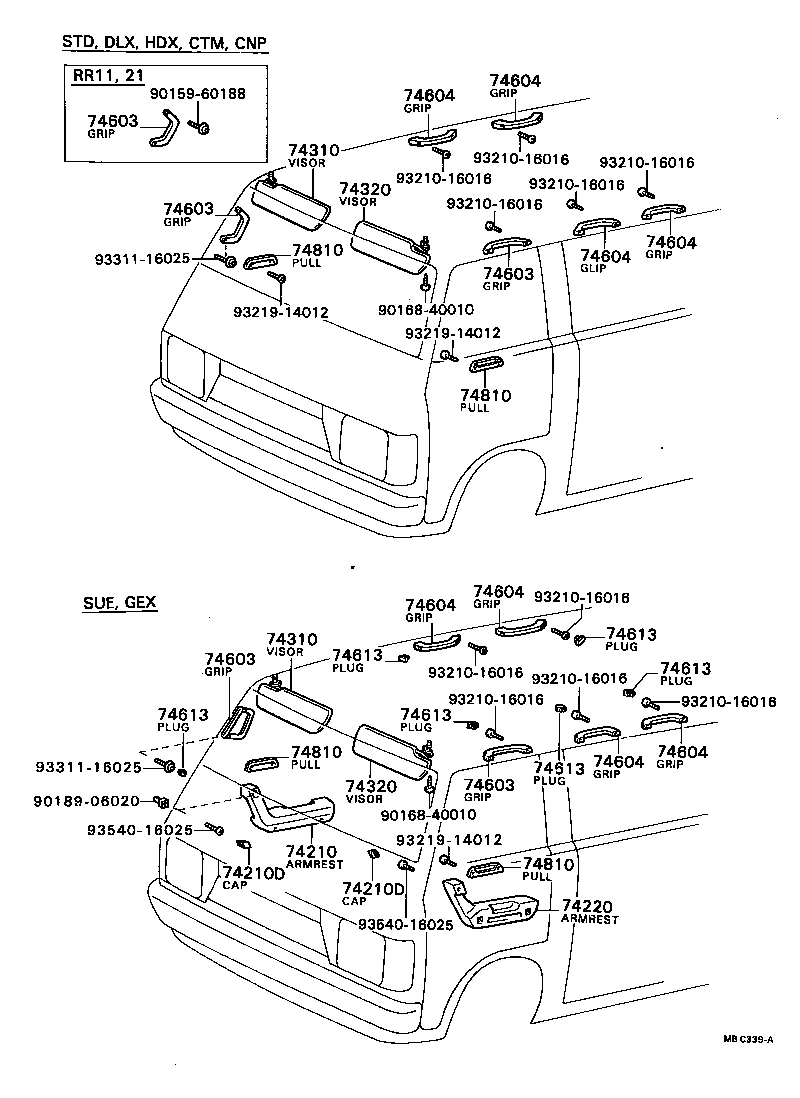

Figure MB6068F MB6068F 1976-10 → 1981-01 Figure MBC339A MBC339A 1981-01 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74210D Cap, Door Armrest
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74603 Grip Sub-assy, Assist, Front
74604 Grip Sub-assy, Assist, Rear
74606 Bar Assy, Assist Grip
74606A Cover, Assist Grip
74613 Plug, Assist Grip
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
